GKTech - 370z/G37 Rear Toe Arms (buckets) - 370Z-TBKT

Part Number: 370Z-TBKT
  • USA TARIFF PRICING MAY AFFECT SUPPLY LEAD TIMES ON GKTECH, EXPECT 2-4 WEEKS OR MORE ON AFFECTED ITEMS.
  • SPECIAL ORDER ITEM – PLEASE CONTACT US TO VERIFY THE LEAD TIME BEFORE PLACING YOUR ORDER.

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

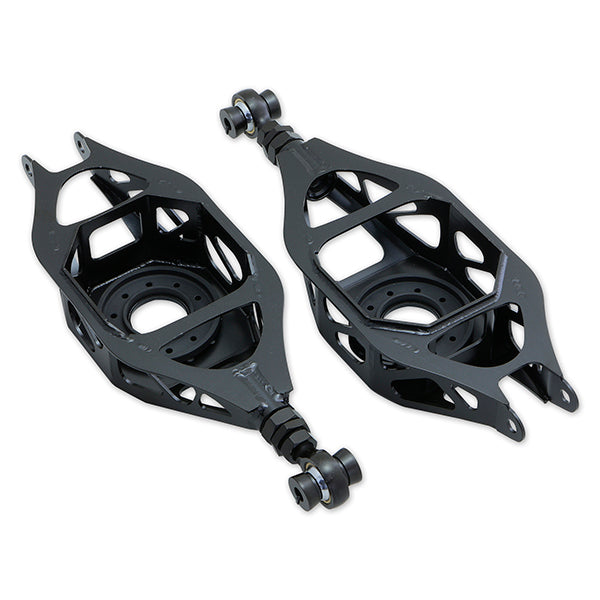

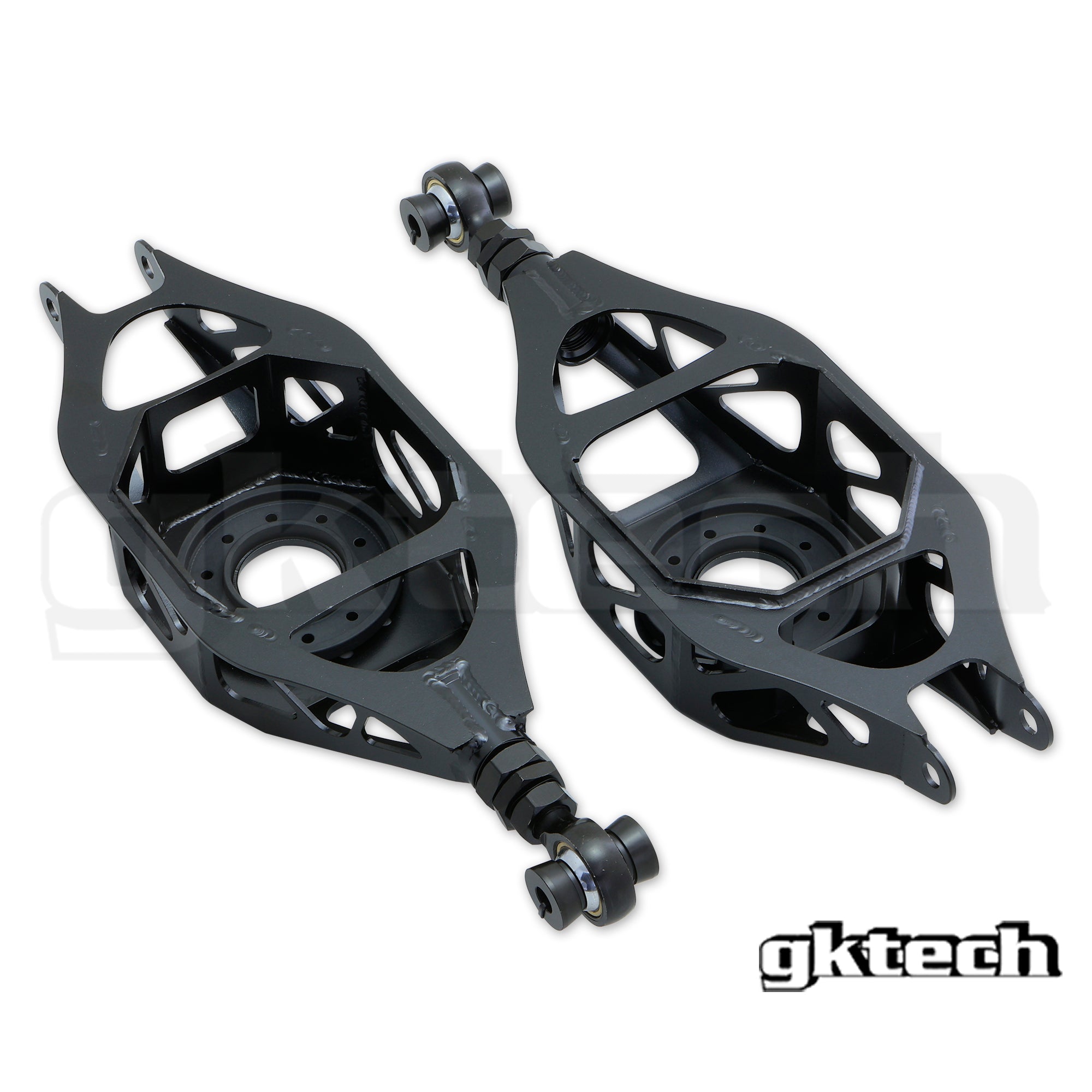

Introducing the GKTech 370Z/ Infiniti G37 rear toe buckets (rear mid links), an OEM style suspension arm for those that want to retain the separate spring and shock design. They replace the OEM 5" helical style spring with a common off the shelf 2.5" race style spring to ensure compatibility and ease of spring rate adjustment.

These arms feature a laser-cut, CNC folded, and TIG welded sheet metal design, ensuring durability and a sleek appearance. Crafted from 4130 chromoly steel, each component has undergone extensive Finite Element Analysis (FEA) testing couple with countless days of drift and grip track abuse to guarantee

One standout feature is the double adjuster, allowing for effortless on-car alignment adjustments. With an impressive adjustment range of -22mm(0.86') to +30mm(1.18'), achieving optimal suspension settings has never been easier.

Alongside this, we've incorporated standard sized PTFE lined spherical bearings, effectively eliminating any deflection present in OEM bushings. This addition significantly improves compliance, resulting in more precise control during challenging manoeuvres. Moreover, our thoughtfully designed Delrin spring locator retains the spring while eliminating any unwanted spring noise.

Specs:
- Suits race style 2.5" ID closed and ground springs
- Laser cut, CNC folded and TIG welded sheet metal design
- Made from 4130 chromoly steel
- FEA tested for strength
- Double adjuster for easy on-car alignment adjustments
- Adjustment range of -22mm(0.86') to +30mm(1.18')
- standard PTFE lined spherical bearings
- Delrin spring locator

Notes
- Spring perch between spring and chassis required for locating and adjusting spring
- Only suits 2.5" ID race style springs

Recommended spring lengths:

GKTECH Rear Upright - 225mm (9")
OEM Rear Upright - 200-225mm (8-9")
Why can't I use the OEM bucket spring? What we found was, if using the OEM spring it would have significantly increased the size and compromised strength. Will these fit my car? We can only confirm fitment for the vehicles listed above under "confirmed fitment. How long is the warranty on these arms? All GKTECH suspension arms come with a lifetime warranty against manufacturing defects and the Teflon lined heim joints come with a 1 year replacement warranty. We stock spare heims so even after the 12 months is up we can still help with replacements, worse case scenario they're a 5/8" heim joint and are readily available through your local autoshop. Are these suspension arms legal for use on street cars? If this is of concern to you we do recommend that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a heim joint on public roads is at your discretion. Are there any special tools required? No, a spanner set will do the job which we do sell separately here - Double open ended wrenches Do you carry spare parts for this product? Yes we carry the following spare parts for this product;Replacement Pcml12TES Heim - Spare part can be found here
