GKTech - 5x100 to 5x114.3 FR-S / GR86 / BRZ bolt on conversion spacer - Extended Studs - CNV2-15MM

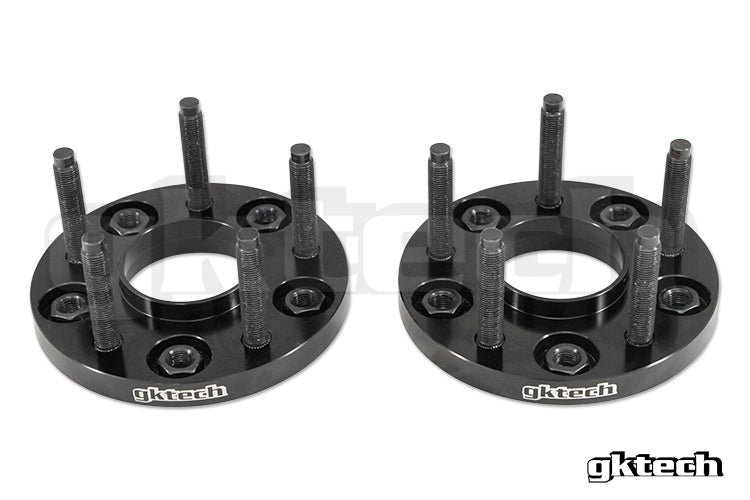

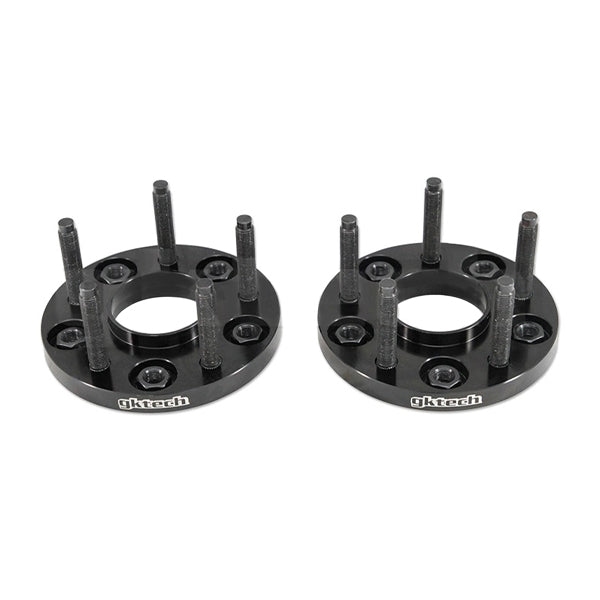

The GKTECH 5x100 to 5x114.3 wheel adapters allow you to fit 5x114.3 wheels on your FRS or BRZ.

Sold as a pair these wheel adapters bolt on to your standard hub just like a normal wheel spacer.

The wheel spacers are hub centric to suit FRS/BRZ 56.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 studs, which you have the option of either standard length studs or extended wheel studs.

Our unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.

- CNC machined aluminium T6-6061 construction
- Grade 10.9 studs
- Hub centric to the vehicle to suit 56.1mm
- M12 x 1.25 thread thread pitch
- Either 35mm or 60mm long studs
- Oval shaped studs to prevent stripping of the knurl
- 15mm thick wheel adapters

NOTE: Sold as a PAIR

NOTE: You may need hub centric rings that we have available to suit your aftermarket wheels etc

Sizes (width)	PCD	Centre bore	Spacer O.D	Standard stud length	Extended stud length	Stud thread
15mm	5x100	56.1mm	150mm	35mm	60mm	M12 x 1.25 thread

Should I get extended studs or standard studs? If you're not planning to use slip-on spacers on top of your bolt on spacers, we recommend going with the "standard studs". Additionally, if you have capped wheel nuts (those with a closed end), you will need the standard length studs. If you're still uncertain, you could opt for the extended studded spacers and trim the studs to the your desired length. What torque should the nuts be set to? As per the Toyota tech guide we recommend a torque setting of 120nm (88.5ft-lbs). Anything more than this will strip the stud and is DANGEROUS. The setting of 120nm (88.5ft-lbs) is as per Toyota's specifications. What's involved in installing these adapters? As the 5x100 and 5x114.3 PCD's don't overlap these are a very straightforward install. These are no more difficult to install than any other bolt on wheel spacer. Note that when running any 15mm bolt on wheel spacer you will need to trim down your wheel studs so they don't protrude past the spacers mounting surface.  Do you make different sized or PCD wheel spacers? We only sell the items listed on our website. If it's not listed on our website then we don't make it and we can't help. Sorry. Are these safe? These are no different to any other wheel spacer. They are machined from T6-6061 aluminium and are hub centric with grade 10.9 studs. They're strong! That said, as with all wheel spacers or adapters they are not intended or legal for road use. Do have carry spare studs? We do, the spare studs can be seen here; Extended Studs Short Studs
