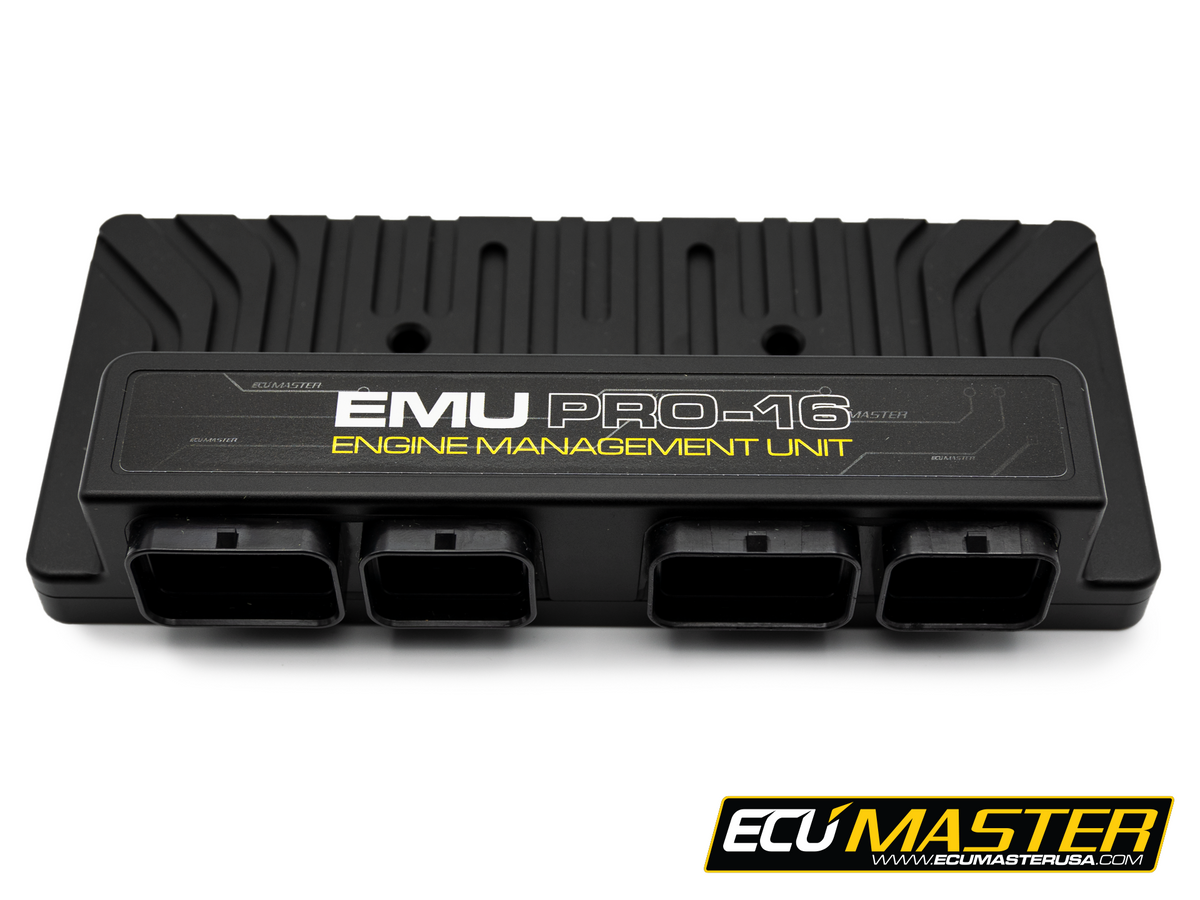

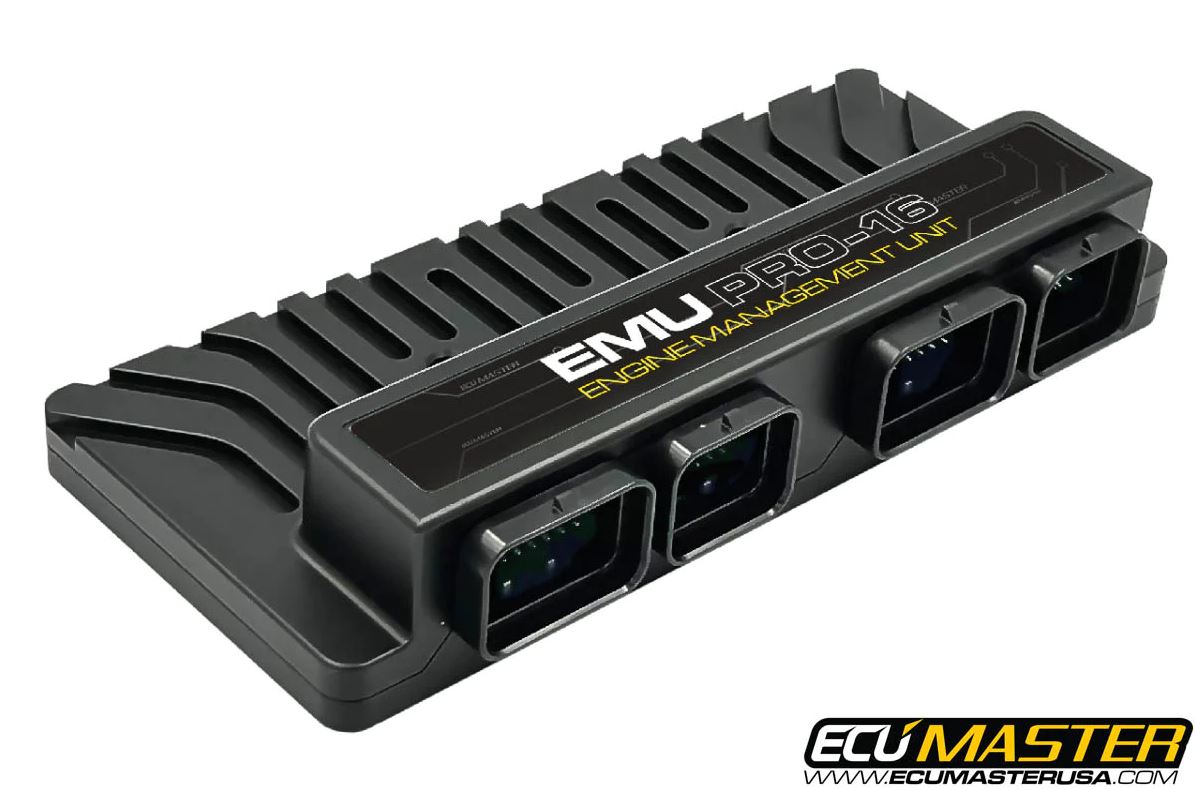

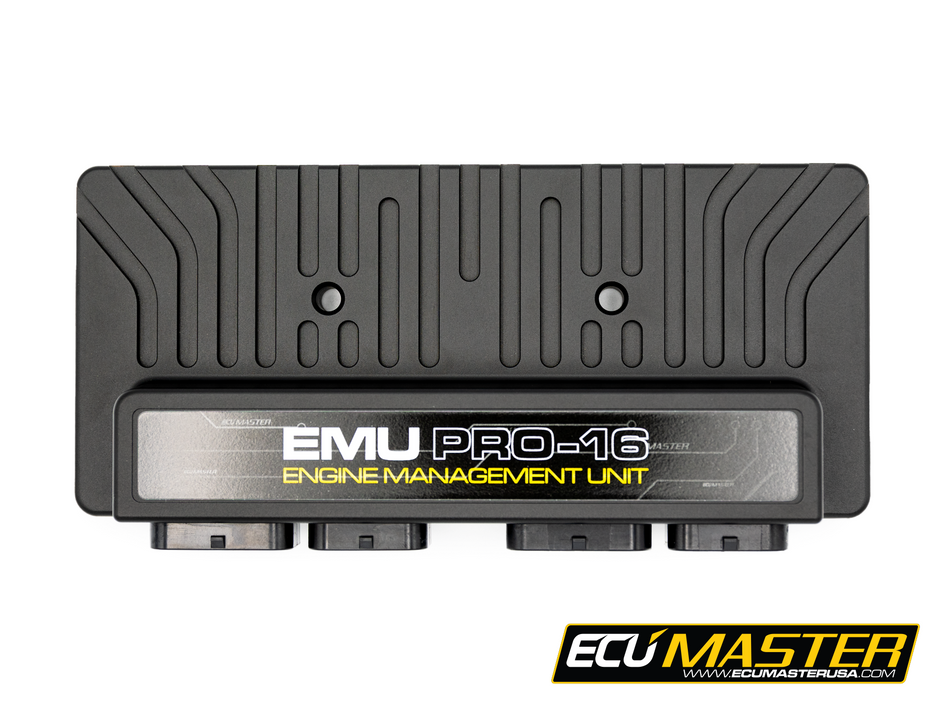

ECUMaster EMU PRO 16 - ECUEMUPRO16

ECUMaster EMU PRO 16 stand-alone engine management system for applications with more than 8 cylinders or that need additional inputs and outputs. Part number ECUEMUPRO16.

Also available as a kit

• EMU PRO 16 with Connectors (ECUEMUPRO16-CONN)
• EMU PRO 16 with USB to CAN (ECUEMUPRO16-CAN)
• EMU PRO 16 with Connectors and USB to CAN (ECUEMUPRO16-CONNCAN)

The ECU ships without connectors. A complete set needs the EMU PRO 16 connector kit.

USB to CAN: a USB to CAN module is required to program this device. One module works for a whole system, so skip it if you already own one. Add the USB to CAN module (ECUUSBCAN) or choose a kit above.

Key features

• Closed-loop short and long term fuel trim with fuel film model
• Engine types: four-stroke, two-stroke and rotary, up to 12 cylinders
• 2 x internal LSU 4.9 wideband controllers, up to 4 sensors supported
• 2 x DBW with auto-calibration, up to 4 VVT channels with auto-calibration
• 2 x CAN 2.0A/B, 1 x LIN bus, 2 x knock sensors
• 8 x EGT inputs (or high-precision analog inputs)
• 46 outputs and 30 inputs in total
• User-defined table sizes up to 32x32, up to 500 Hz data logging to external USB memory
• Stand-alone sequential gearbox / paddle-shift strategy
• Water resistant IP65 bespoke CNC machined aluminum enclosure

For up to 8 cylinders or less I/O see the EMU PRO 8.

Contact us if you are unsure of fitment or Size HERE

Resources

• EMU PRO software
• EMU PRO 16 pinout
• EMU PRO 16 dimensions
