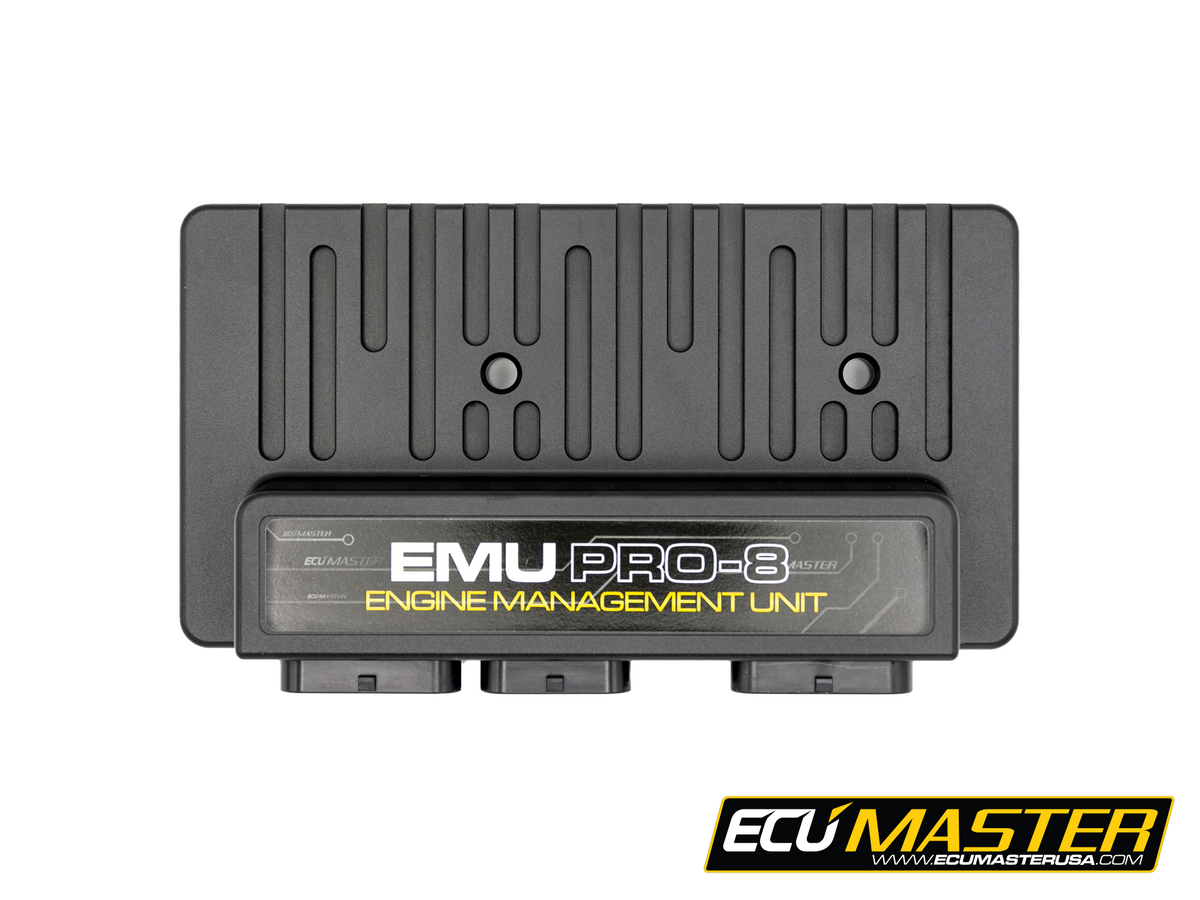

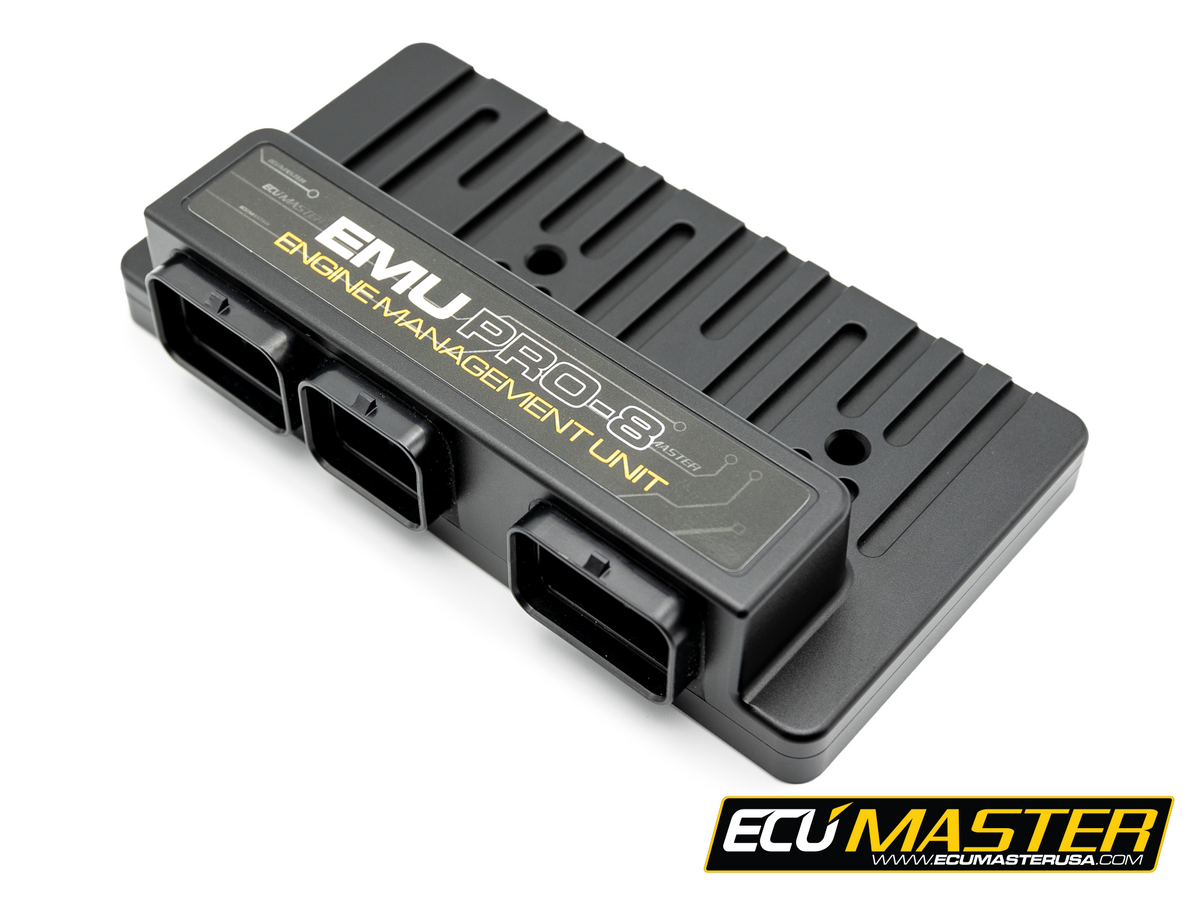

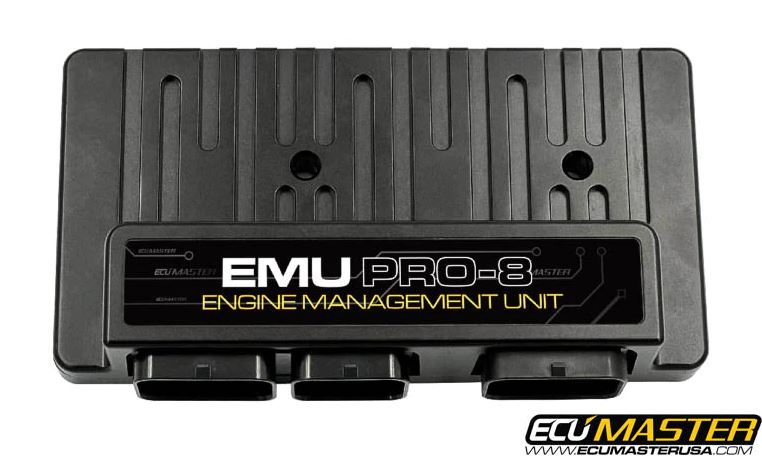

ECUMaster EMU PRO 8 with USB to CAN - ECUEMUPRO8-CAN

ECUMaster EMU PRO 8 stand-alone engine management system bundled with the ECUMaster USB to CAN module. Part number ECUEMUPRO8-CAN.

Included

• ECUMaster EMU PRO 8 ECU (ECUEMUPRO8)
• USB to CAN module (ECUUSBCAN)

EMU PRO 8 key features

• Stand-alone engine management for engines up to 8 cylinders, or setups that do not need additional I/O
• Closed-loop short and long term fuel trim with fuel film model
• Engine types: four-stroke, two-stroke and rotary, up to 12 cylinders
• 2 x internal LSU 4.9 wideband controllers, up to 4 sensors supported
• 2 x DBW with auto-calibration, up to 4 VVT channels with auto-calibration
• 2 x CAN 2.0A/B, 1 x LIN bus, 2 x knock sensors
• 4 x EGT inputs (or high-precision analog inputs)
• 31 outputs and 24 inputs in total
• User-defined table sizes up to 32x32, up to 500 Hz data logging to external USB memory
• Stand-alone sequential gearbox / paddle-shift strategy
• Water resistant IP65 bespoke CNC machined aluminum enclosure

Connectors are sold separately (EMU PRO 8 connector kit).

Contact us if you are unsure of fitment or Size HERE

Resources

• EMU PRO software
• EMU PRO 8 dimensions
