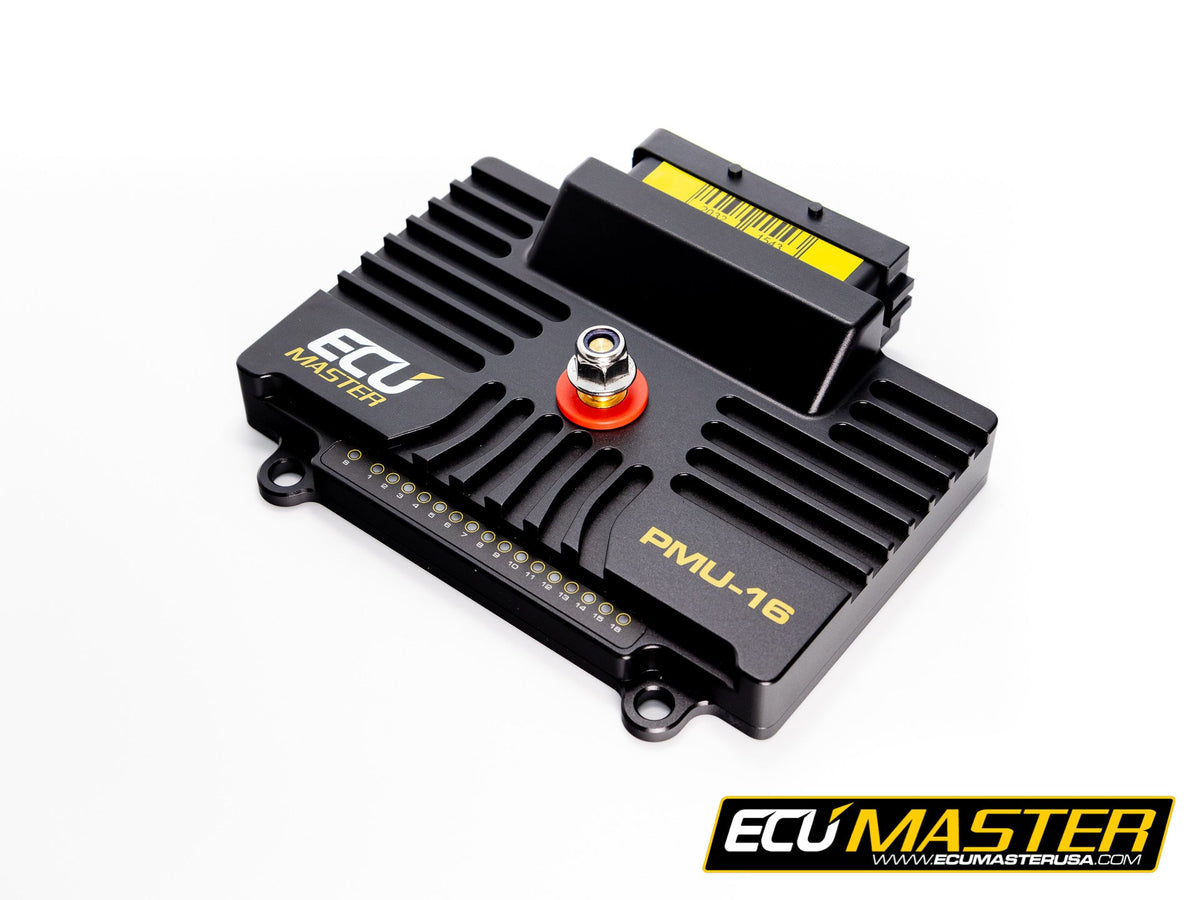

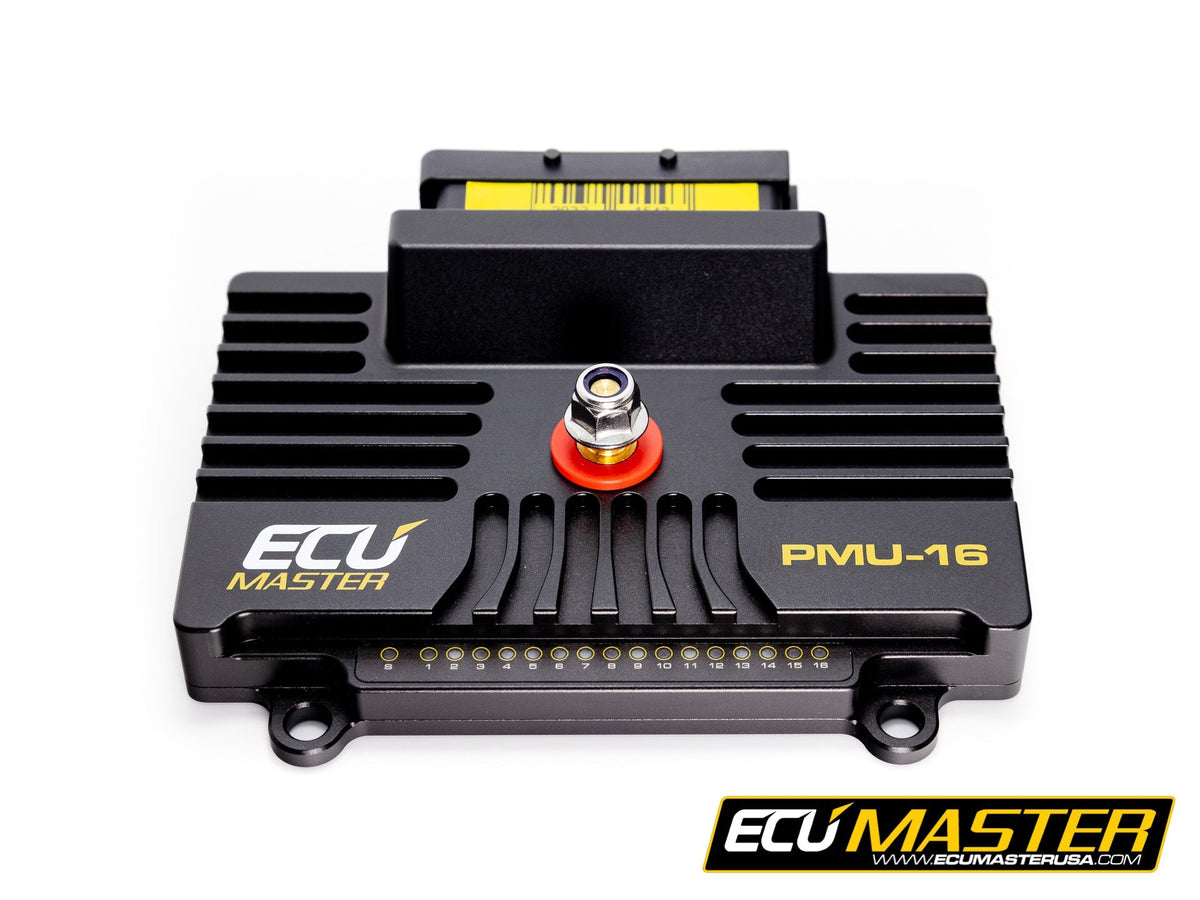

ECUMaster PMU-16 with USB to CAN - ECUPMU16-CAN

ECUMaster PMU-16 power management unit bundled with the ECUMaster USB to CAN module, which is needed to program the PMU. Part number ECUPMU16-CAN.

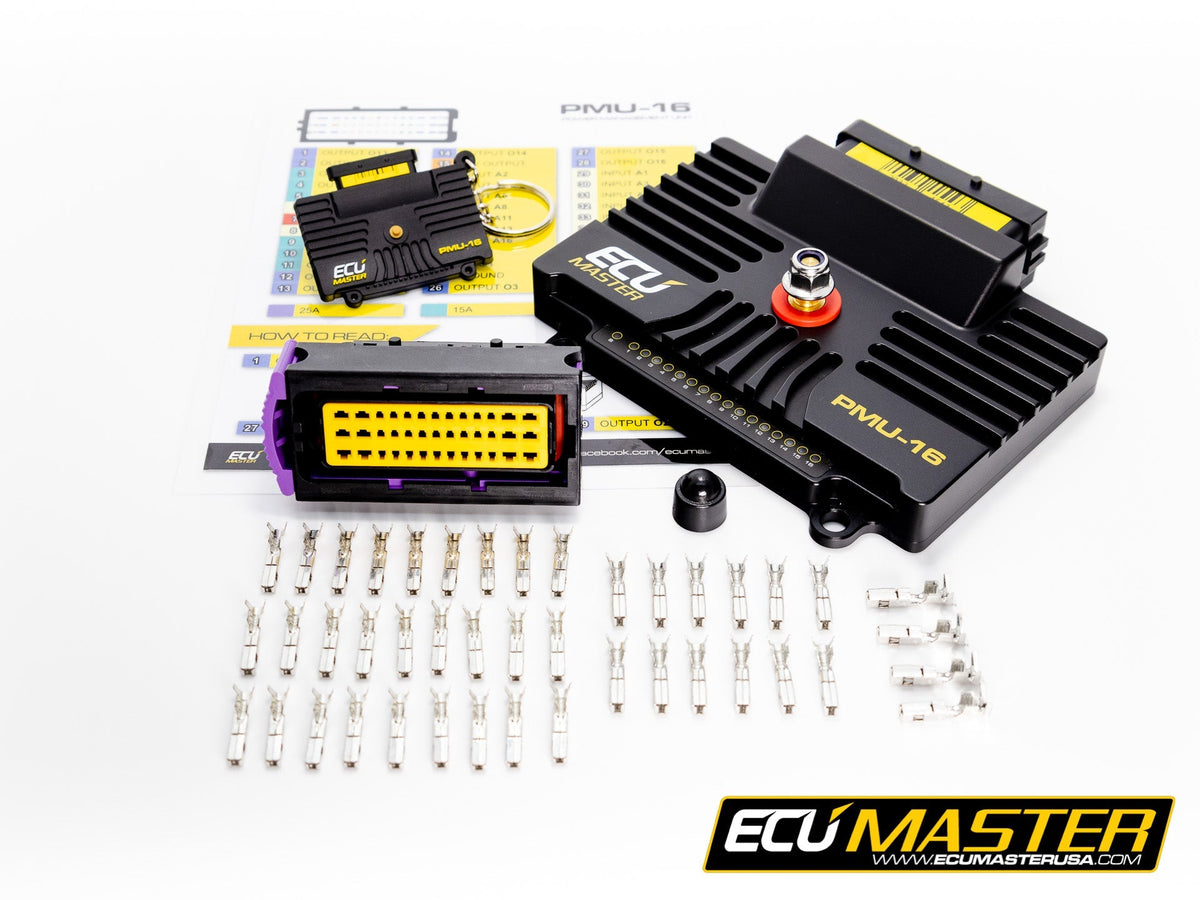

Included

• ECUMaster PMU-16 (ECUPMU16)
• USB to CAN module (ECUUSBCAN)

PMU-16 key features

• 16 high current outputs: 10 x 25A and 6 x 15A continuous, 150A total, with overcurrent and overheating protection
• 16 analog inputs, 2 x CAN 2.0B, up to 48 user defined CAN input messages
• Current and voltage measured on every output, 16 bicolor status LEDs
• Built-in 3D accelerometer and gyroscope, real time clock
• Operating voltage 6-22V, temperature range -40 to 125 C
• IP60 CNC machined aluminum enclosure, 131 x 112 x 32.5 mm, 345 g
• Includes the 39 position connector with terminals

Contact us if you are unsure of fitment or Size HERE

Resources

• PMU-16 user manual
• PMU-16 pinout
• PMU software
