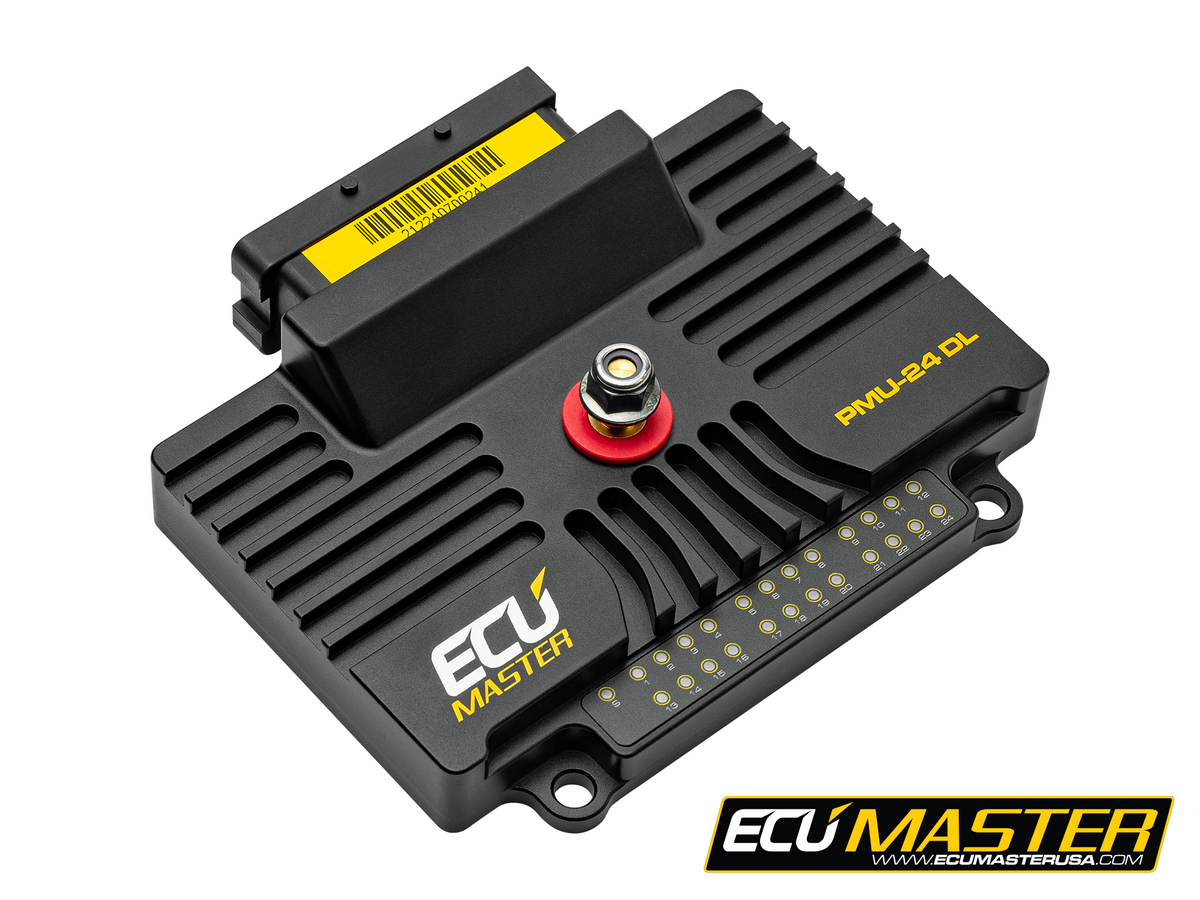

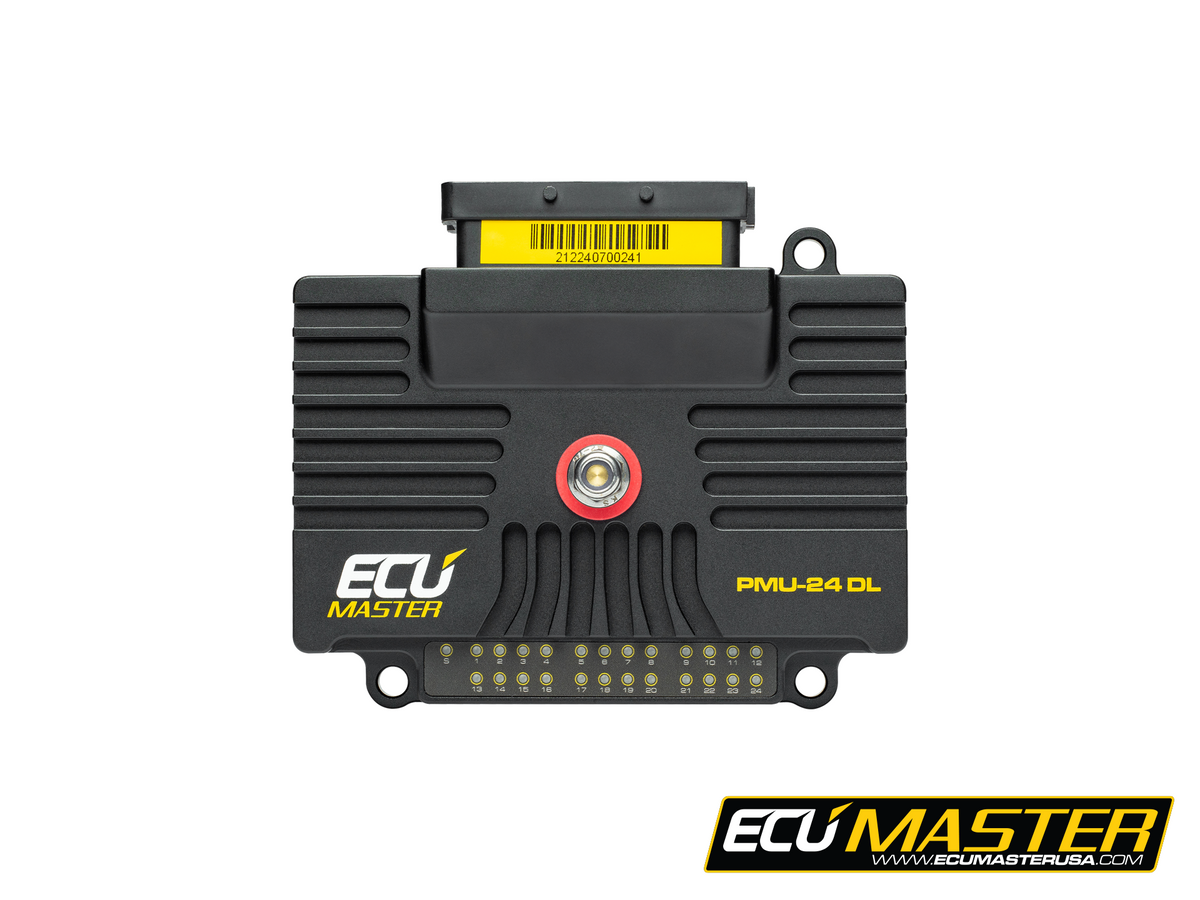

ECUMaster PMU-24 DL with USB to CAN - ECUPMU24DL-CAN

ECUMaster PMU-24 DL power management unit with 24 high-side outputs and internal data logging, bundled with the ECUMaster USB to CAN module, which is needed to program the PMU. Part number ECUPMU24DL-CAN.

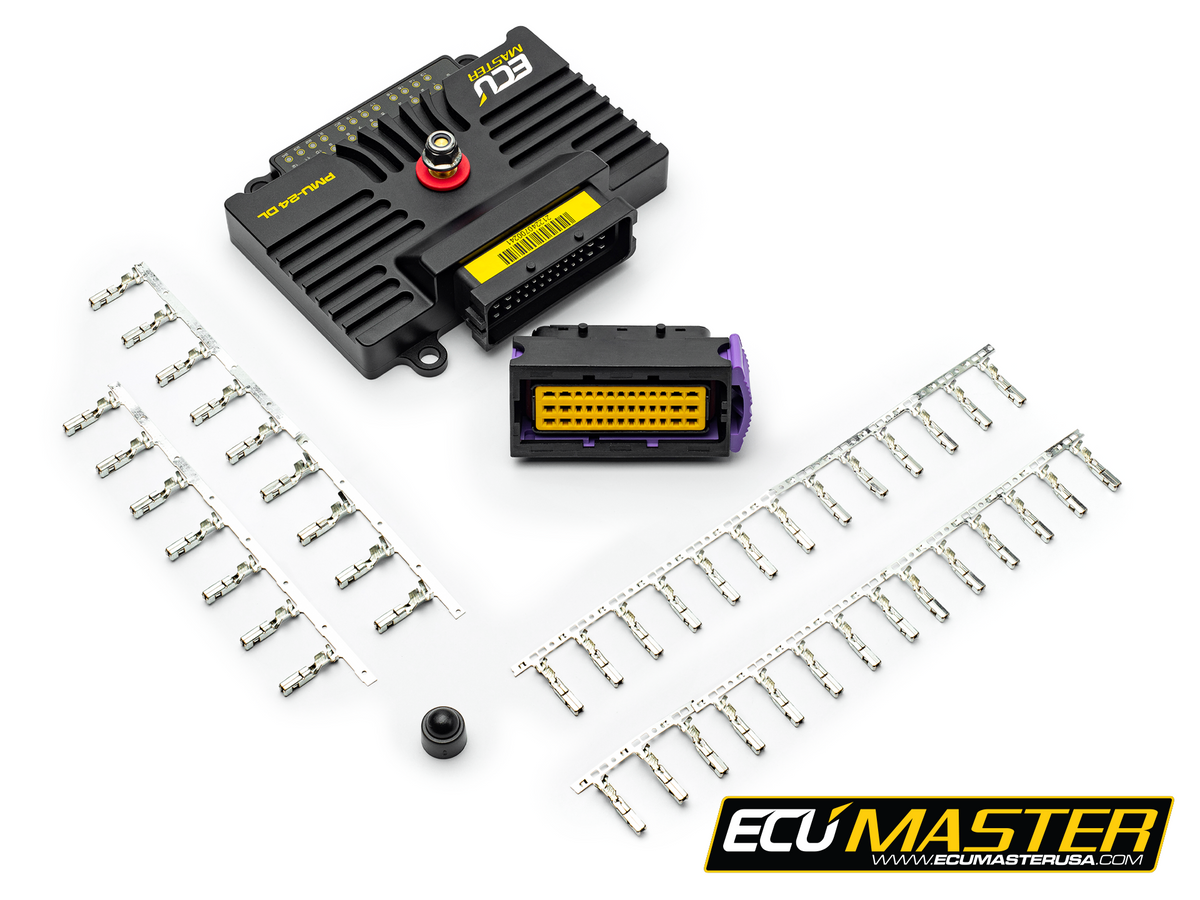

Included

• ECUMaster PMU-24 DL (ECUPMU24DL)
• USB to CAN module (ECUUSBCAN)

PMU-24 DL key features

• 170A continuous current capacity
• 10 x 25A high-side outputs (PWM capable), 6 x 15A high-side outputs and 8 x 7A high-side outputs
• Up to 16 analog inputs, 2 x CAN 2.0 A/B
• 24 tricolor LEDs, one per output state
• 256 MB data logger memory, logging up to 500 Hz, real-time clock
• 3D accelerometer and gyroscope with built-in inertia switch
• Operating voltage 6-22V, temperature range -40 to +125 C

Contact us if you are unsure of fitment or Size HERE
