GKTech - Replacement PCML13TES bearing - PCML13TES

Name: GKTech - Replacement PCML13TES bearing - PCML13TES
Brand: GKTech
SKU: PCML13TES
Price: 38.99 CAD
Availability: InStock

Part Number: PCML13TES

Inventory Location: Boost Factory Calgary Canada

Stock: 2

2OUT OF STOCK

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

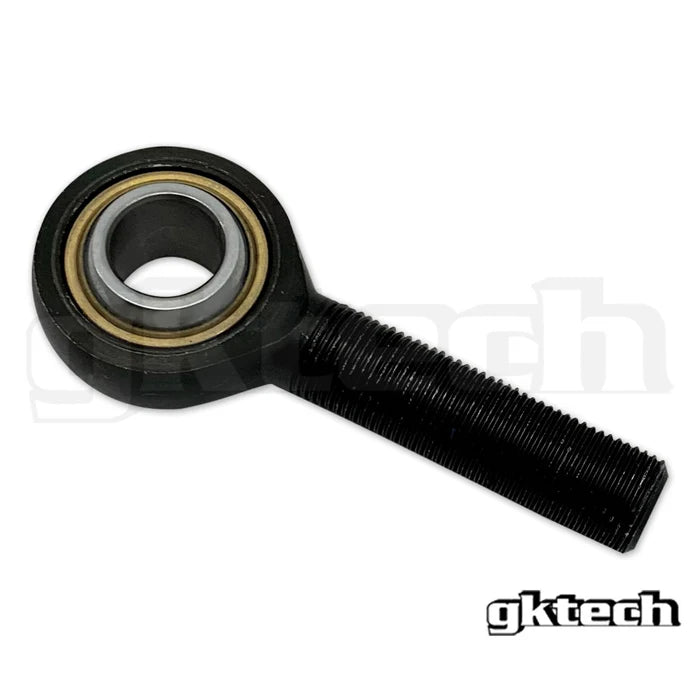

Replacement PCML13TES bearing

Used in the following GKTECH products: 350Z/V35/G35 + 370z/V36 Skyline Rear Traction Arms (350Z-TRTN + 370Z-TRTN)

IMPERIAL	METRIC
ROD END BALL BORE SIZE	ROD END BALL BORE SIZE
0.8000 in	20.3200 mm
ROD END BALL WIDTH	ROD END BALL WIDTH
0.8750 in	22.2250 mm
THREAD LENGTH	THREAD LENGTH
2.5000 in	63.5000 mm
THREAD SIZE	THREAD SIZE
3/4 - 16 UNF LH	3/4 - 16 UNF LH
ROD END HEAD DIAMETER	ROD END HEAD DIAMETER
1.7500 in	44.4500 mm
ROD END MISALIGNMENT ANGLE	ROD END MISALIGNMENT ANGLE
24 degrees	24 degrees
ROD END STATIC LOAD CAPACITY (lbs)	ROD END STATIC LOAD CAPACITY (kg)
28,025 lbs	12,712 kg
ROD END MATERIAL	ROD END MATERIAL
Chromoly	Chromoly
LUBRICATION	LUBRICATION
PTFE lined	PTFE lined

VEHICLE COMPATIBILITY

V35 SKYLINE
Z33 350Z
