GKTech - S13 240sx high clearance adjustable swaybar - SWAYBARX-S13

GKTech S13 240SX high clearance adjustable sway bar kit, part number SWAY-BARX-S13.

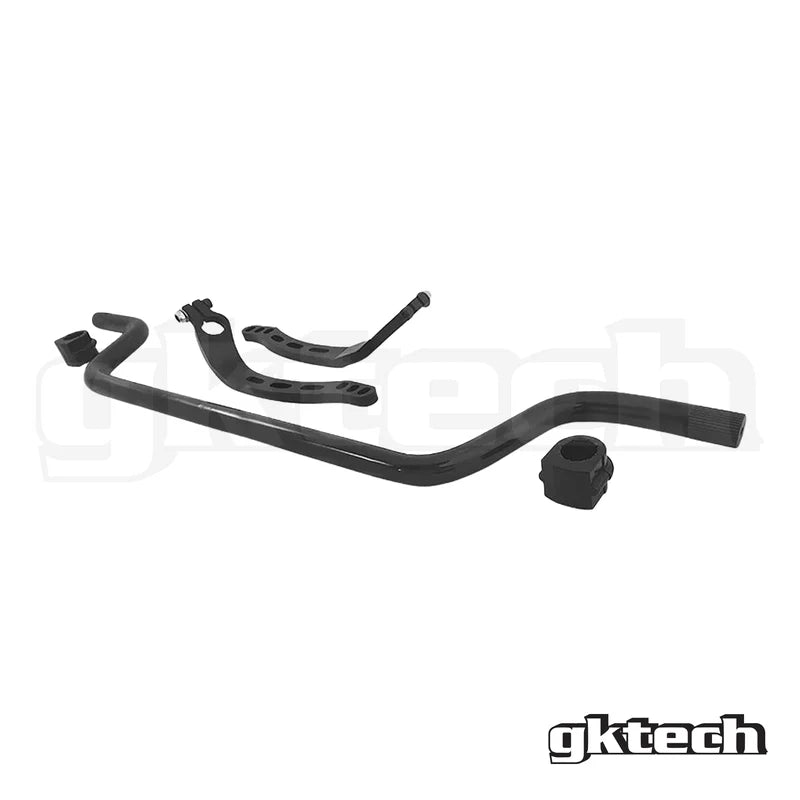

• Kit includes: SWAY-BARX sway bar, S13D-BUSH S13 sway bar D bushings, 13LEVER S13 240SX lever set, 54614-35F15 S13 240SX sway bar U bracket
• Unique 3 piece design with lots of clearance in the wheel well. The main rod in the engine bay can be rotated up or down for clearance with engine swaps (RB, 2JZ, LS and similar)
• Supports 70+ degrees of steering lock (the tire hits the chassis rail before the sway bar lever)
• CAD designed and FEA tested; spring steel (50CrV4), 25.5mm OD
• Stiffness 1087 lbf/in (192 N/mm), motion ratio 0.53, roll stiffness 576 lbf/in (101.8 N/mm)
• Adjustable stiffness with 3 holes that lengthen or shorten the lever arm
• 3 piece design allows the pitch of the bar to be adjusted, which is needed on low cars
• Includes new polyurethane D bushings
• Does NOT include sway bar end links. OEM style end links can be used; spherical end links are recommended
• Levers are chassis specific: this kit is the S13 / 240SX version (S14 / S15 use a different lever)

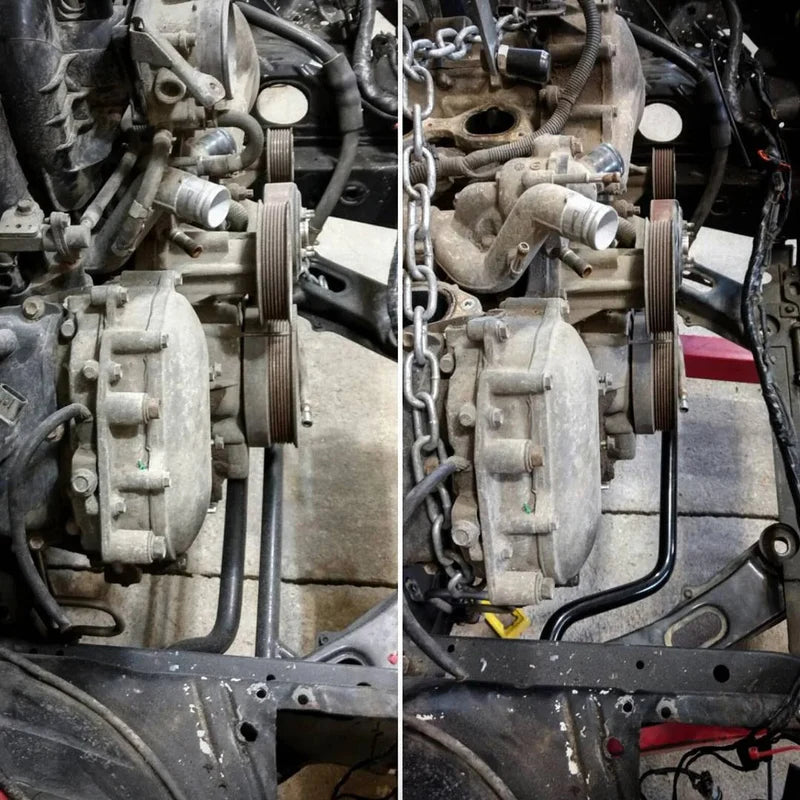

• Fits with JZ, LS and RB engine swaps with plenty of oil pan clearance
• Will not fit Skylines. Will not fit with caster rod / K-frame bars. Will not fit with the Nismo Power Brace on S13 chassis (it only fits alongside the Power Brace on S14 / S15)
• Easy install with mechanical knowledge: remove the standard bar, grease the bushings and bolt the new bar in its place

Fitment

• Nissan S13 KA24 240SX
• Nissan S13 KA24 Hatch
• Nissan S13 SR20 240SX Hatch
• Nissan S13 SR20 240SX/Silvia

Contact us if you are unsure of fitment or Size HERE
