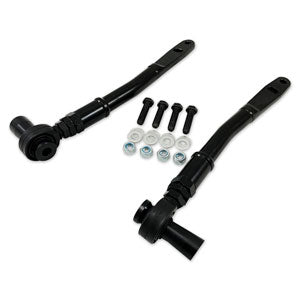

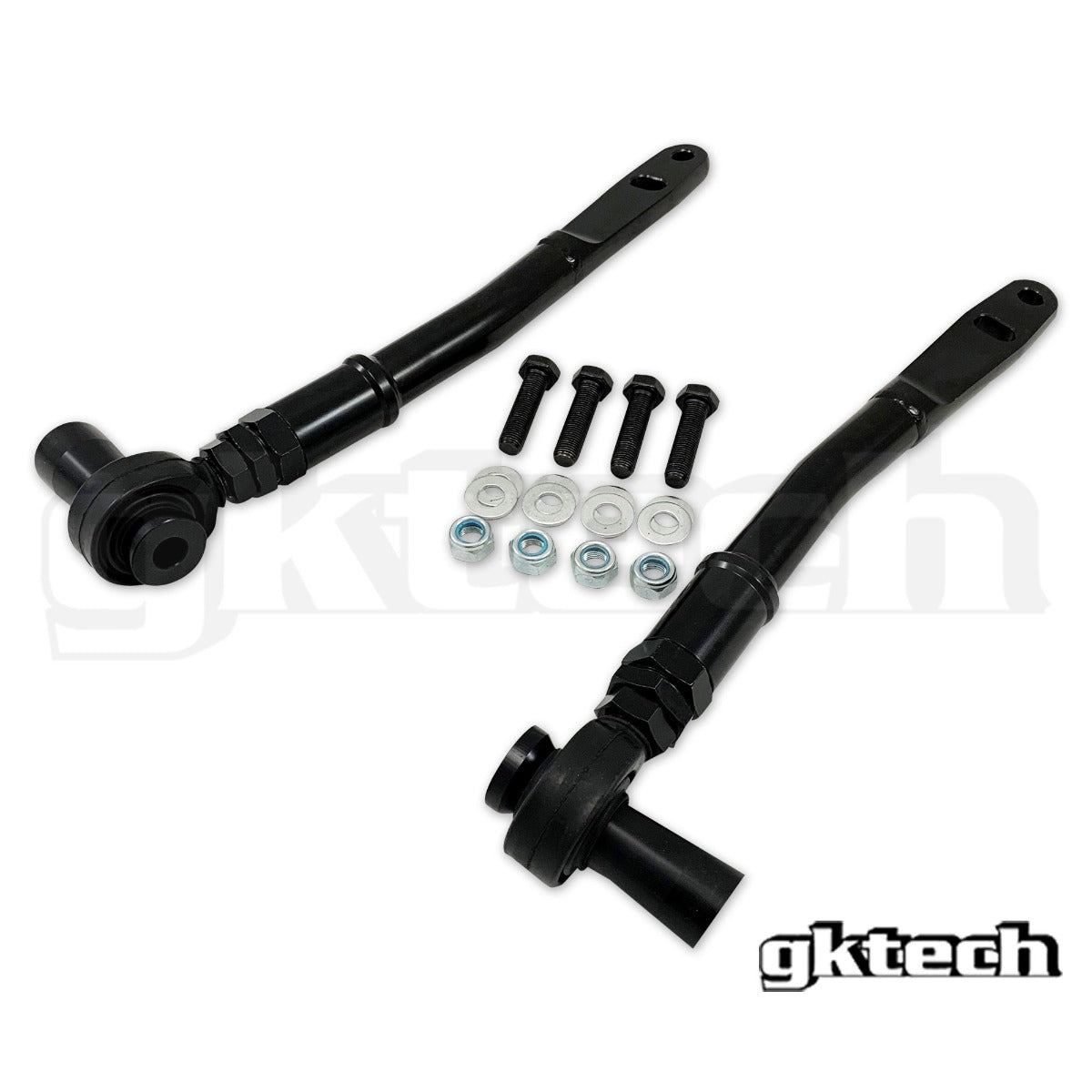

GKTech - V5 - S13 240sx/R32/Z32 Tension Rods - s13x-cstr
Part Number: s13x-cstr
Inventory Location:
Boost Factory Calgary Canada
Increments of 1
Minimum of 1
Maximum of
The new V5 GKTECH Tension Rods offer the most amount of clearance available in a tension rod while now being 0.62" (16mm) thick! Tension rods (aka caster arms) allow adjustment in vehicle castor to bring the wheels forward and increase steering response.
In general, the more caster the better. Allowing sharper turn in and faster return to the straight position when letting go of the wheel.
- V5 arms feature high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel.
- V5 arms are manufactured from 4130 chromoly sheet with billet CNC machined ends and CNC machined 4130 chromoly adjusters.
- CAD designed, FEA tested, CNC machined ends and TIG welded
- V5 arms include offset bushing spacers for even more clearance
- Offers a total of 56mm extra wheel clearance which equates to roughly 9 degrees of additional wheel clearance.
NOTE: If you require S14 240sx/S15 Silvia or R33/R34 Skyline tension rods please refer to our other listing to suit.
FAQs
Will this fit my car?We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.
What modifications are required, is this hard to fit?
No modifications are required, simply just remove and refit.
Is there anything else needed for installation?
No, we do supply nuts and bolts for the rear of the caster arm however you will need to use your OEM bolt for the front. In terms of the arms themselves they will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, provided you have general mechanical knowledge as they are relitively straightforward. Installation time should be around 30 minutes. However, being a suspension component we recommend only a trained professional to install this product.
Will I have to get a wheel alignment after installing these?
Even if you have matched the arm length to OEM. We still do recommend a wheel alignment after any suspension changes.
How long is the warranty on these arms?
All GKTECH suspension arms come with a lifetime warranty against manufacturing defects and the Teflon lined heim joints come with a 1 year replacement warranty. We stock spare heims so even after the 12 months is up we can still help with replacements, worse case scenario they're a 5/8" heim joint and are readily available through your local autoshop.
VEHICLE COMPATIBILITY
NOTE: If you require S14/S15/R33/R34 Skyline caster arms please refer to our other listing to suit.
Nissan
CEFIRO A31R32 SKYLINE GTS-T
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
Z32 300ZX
Engineering Certificates
Download S13X-CSTR S145-CSTR CertCouldn't load pickup availability
