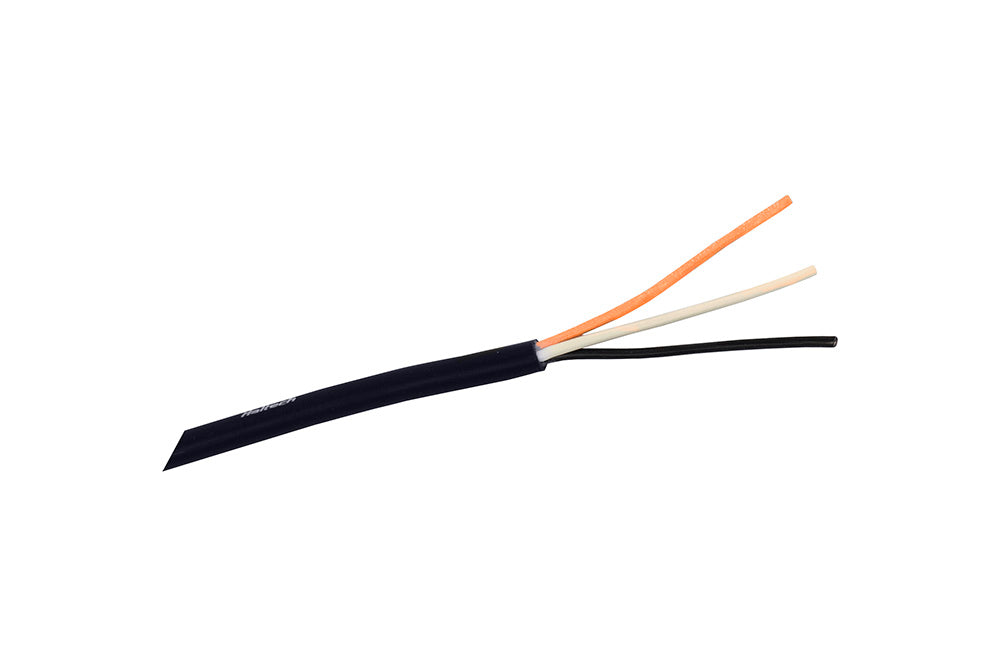

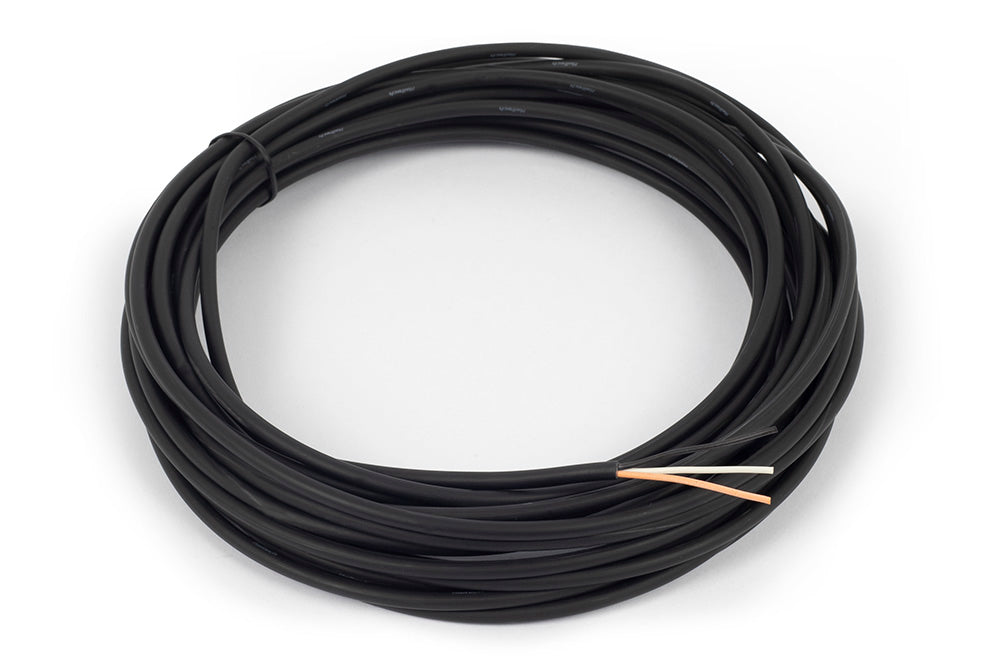

Haltech Cable - Multicore - 3 x 22AWG (Orange/Black/White) - 10M (32') - HT-039203

Haltech Cable - Multicore - 3 x 22AWG (Orange/Black/White) - 10M (32') - HT-039203

Notes: In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Overview

Supplied in 10m (32') length. Used to wire 3 pin sensors such as linear position sensors, shock travel sensors, speed sensors, etc

Conductors - 3 x 22AWG - (Orange/Black/White)

Conductor Insulation - ETFE

Cable Jacket Material - PVC

Outside Diameter - 4.00mm +/- 0.15mm

Downloads

Manuals, wiring diagrams and software for HT-039203 are on haltech.com.
