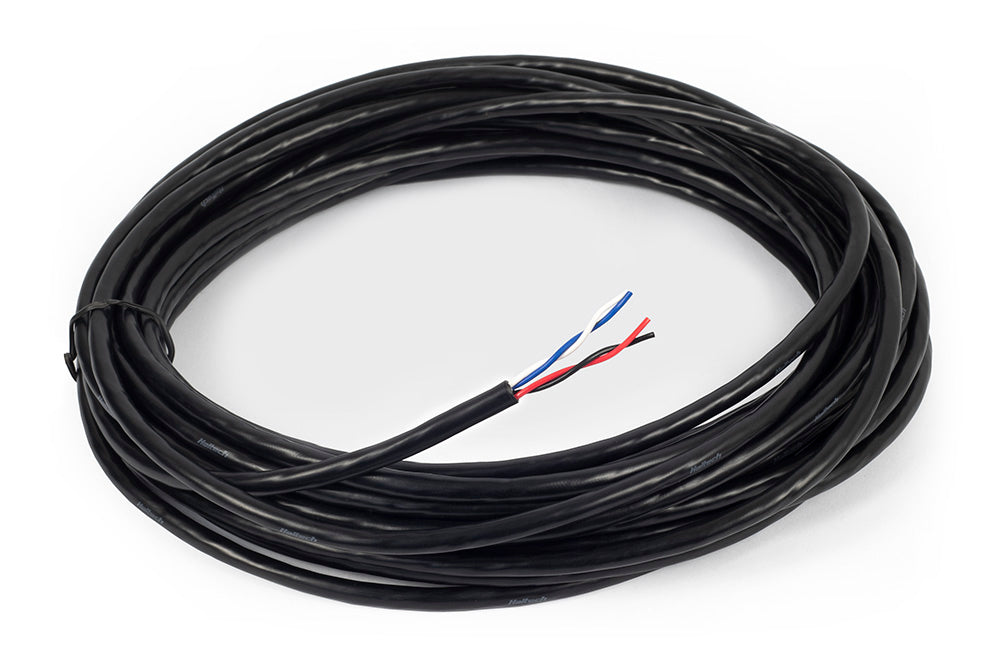

Haltech Cable - Multicore - 4 x 20AWG (Red/Black/White/Blue) - 10M (32') - HT-039204

Haltech Cable - Multicore - 4 x 20AWG (Red/Black/White/Blue) - 10M (32') - HT-039204

Notes: In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Overview

Supplied in 10m (32') length. Used to make Haltech CAN cables with custom extended lengths, e.g. ECU at the front and PD-16 at the rear of the car.

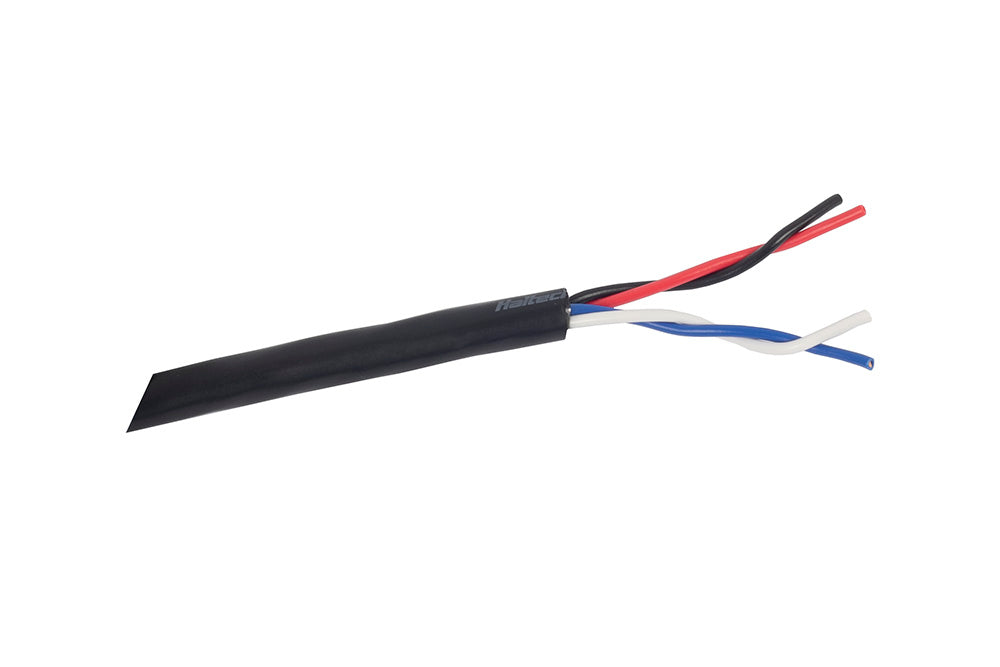

Conductors - 4 x 20AWG - (Red/Black/White/Blue)

Conductor Insulation - PVC

Cable Jacket Material - PVC

Outside Diameter - 6.00mm +/- 0.25mm

Downloads

Manuals, wiring diagrams and software for HT-039204 are on haltech.com.
