Haltech iC-7 7in Color Display Dash Kit - HT-067010

Haltech iC-7 7in Color Display Dash Kit - HT-067010

Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following generic aftermarket ECU protocols: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

Includes: Haltech iC-7 Display Dash, 34 Pin main connector harness (including spare pins for input wiring), DTM-4 to DTM-4 CAN extension cable 3.0m (118in), USB to M5 right angle cable, USB Cable, Mounting Screws, Quick Start Guide, Haltech stickers and a fabric keyring tag

Notes: OBD-II and Stand-Alone versions also available.

Overview

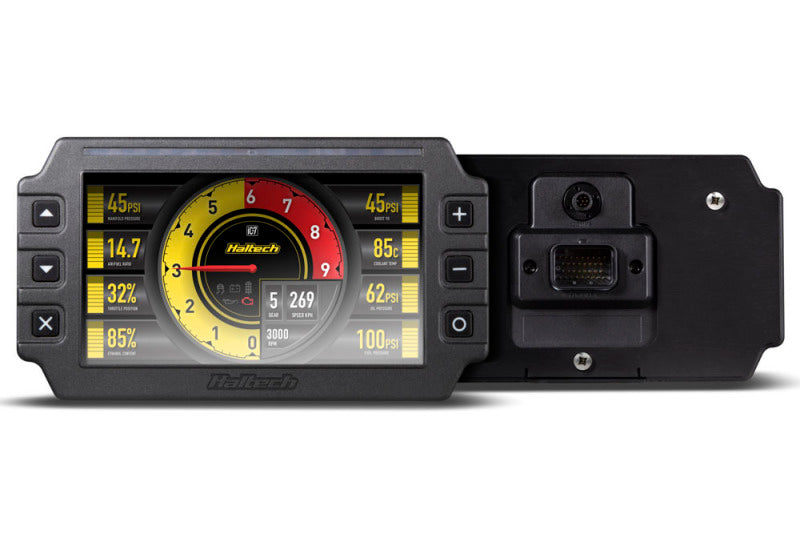

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.

Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.

Featuring custom screen displays,I/O sharing (for Haltech Elite & Nexus ECU's only), datalogging, auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network.

• Ideal replacement for individual analogue gauge clusters.

• Easy to install and configure.

• User adjustable brightness control with automatic dimming.

• User configurable channels, units and alarms.

• User definable Inputs & Outputs

• 9 x Analog Voltage Inputs (AVI)

• 3 x Digital Pulsed Inputs (DPI)

• 1 x Tachometer input

• 4 x Digital Pulsed Outputs (DPO)

• 14 programmable, seven colour shift light LEDs.

• On-board datalogging (512MB)

• Controlled via easily accessible, face-mounted control buttons.

• Configuration via Haltech software and USB cable.

• IP64 (Dust-tight and protected against water splashes).

Downloads

• Quick Start Guide (PDF)
