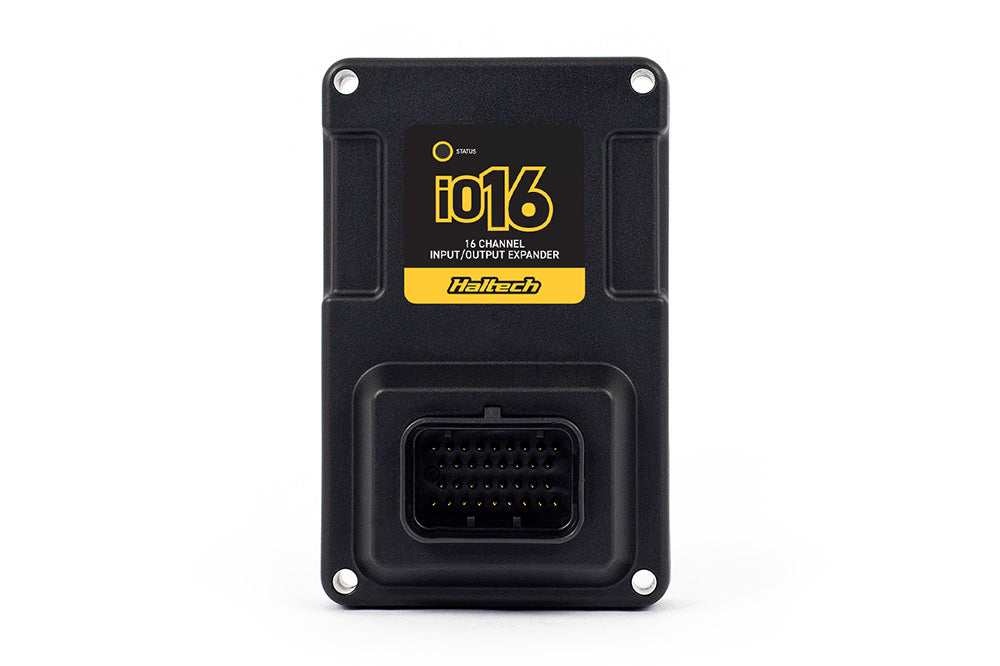

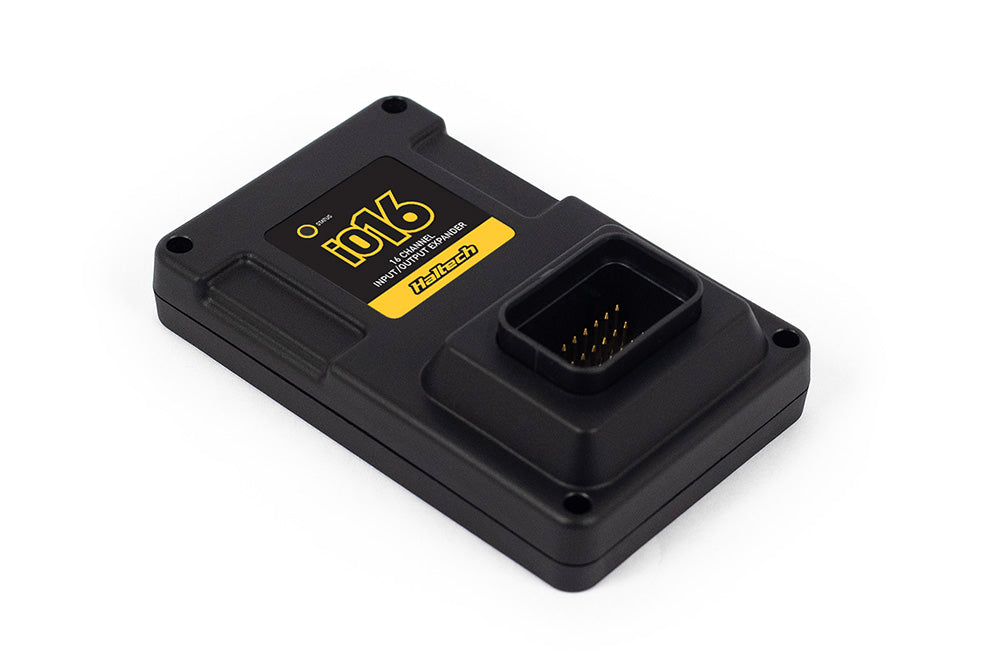

Haltech Nexus IO16 Input/Output Expander - 16 Channel - HT-196000

Part Number: HALHT-196000
Authorized Haltech Dealer Ships from Calgary
Haltech 40th Birthday Sale: long ETA We place our Haltech sale order after the sale ends on Dec 7. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

Haltech Nexus IO16 Input/Output Expander - 16 Channel - HT-196000

Suits: Nexus ECU's/VCU's/Dashes, Elite ECU's

Includes: IO16 Expander, Mounting Hardware, Quick Start Guide

Notes: Not Compatible with Platinum Series ECU's

Overview

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

INPUTS

  • 6 x Analogue Voltage Inputs (AVI): 0-5V readable range with selectable 1k pull-up resistor to 5V
  • 4 x Synchronised Pulsed Inputs (SPI): Reluctor/Digital, 0-5V readable range with selectable 1k pull-up resistor to 5V

OUTPUTS

  • 6 x Half Bridge Outputs (HBO): 8A current (sink/source), capable of 0-100% duty cycle, 2.2kHz switching speed. NOT suitable for DBW throttle application

WARNING – When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.

OTHERS

  • 3 x 5V output (sensor power)
  • 4 x Sensor ground

Note: Any 5V and sensor ground pins can be paired when wiring sensors.

Downloads

Manuals, wiring diagrams and software for HT-196000 are on haltech.com.
