Sale price $683.99 Regular price
Regular price $683.99

Haltech Nexus Ti6L Transmission Interface Kit - Suits GM 6L Series - HT-196002

Part Number: HALHT-196002
Authorized Haltech Dealer Ships from Calgary
Haltech 40th Birthday Sale: long ETA We place our Haltech sale order after the sale ends on Dec 7. Sale orders usually arrive in Calgary in early 2027. Need it sooner? Contact us before you order. support@boostfactory.ca

Warehouse Icon Inventory Location: Manufacturer Warehouse USA

Stock: 0

Haltech Nexus Ti6L Transmission Interface Kit - Suits GM 6L Series - HT-196002

Suits: Nexus Series ECUs & VCUs including Rebel. Does not support Elite / Platinum / Legacy ECUs. Supports GM 6L80 / 6L90 Automatic Transmissions running a compatible OS version.

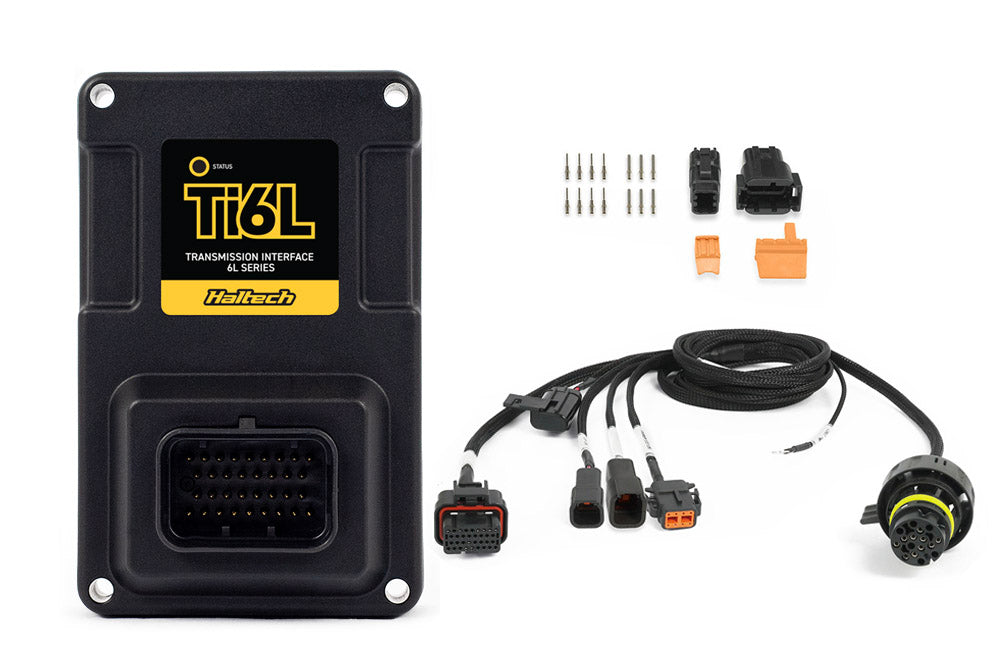

Includes: HT-196002 Nexus Ti6L, HT-187007 Nexus Series 6Lx0 Transmission Harness, Mounting hardware kit, Opposing connectors, Quick Start Guide

Overview

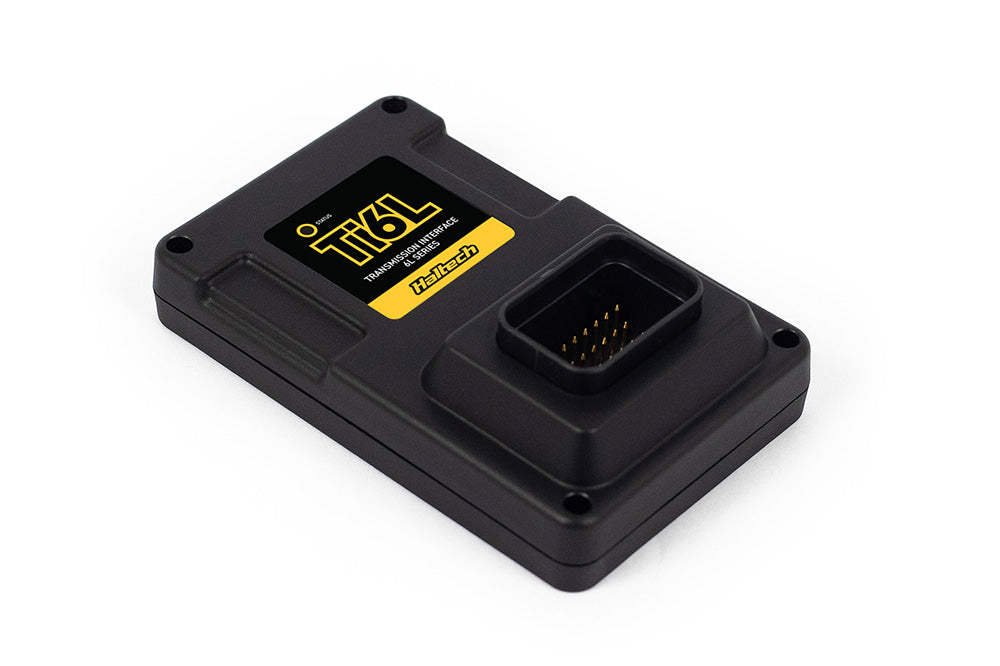

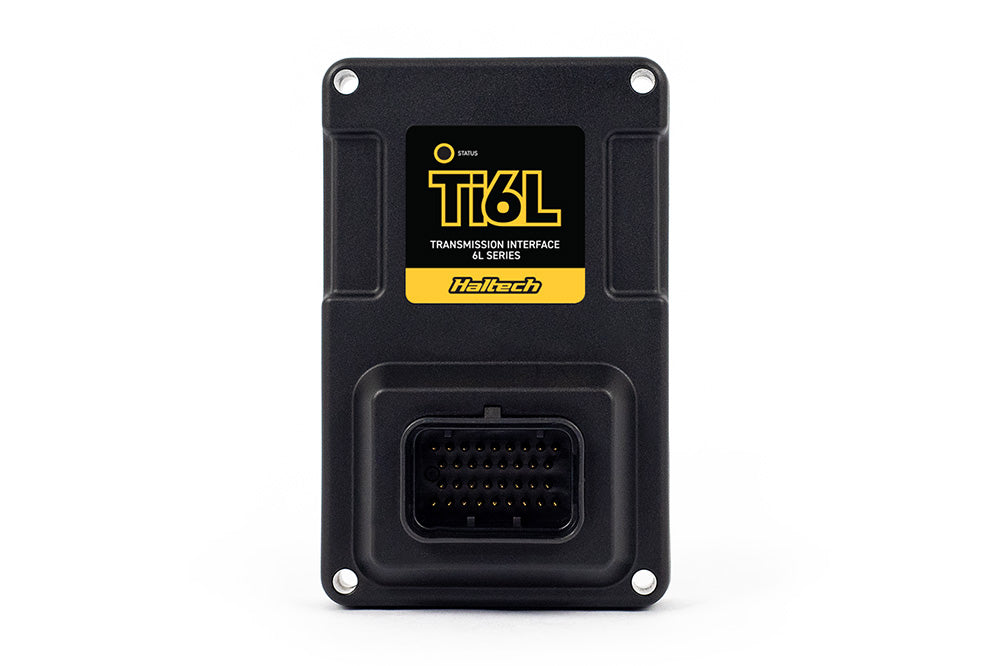

This device, in conjunction with a Nexus series 6Lx0 transmission harness (HT-187007), enables a Nexus ECU or VCU to integrate and control a supported GM 6L series automatic transmission. This kit is plug and play with a Rebel LS ECU and terminated harness via the transmission breakout connector.

Features

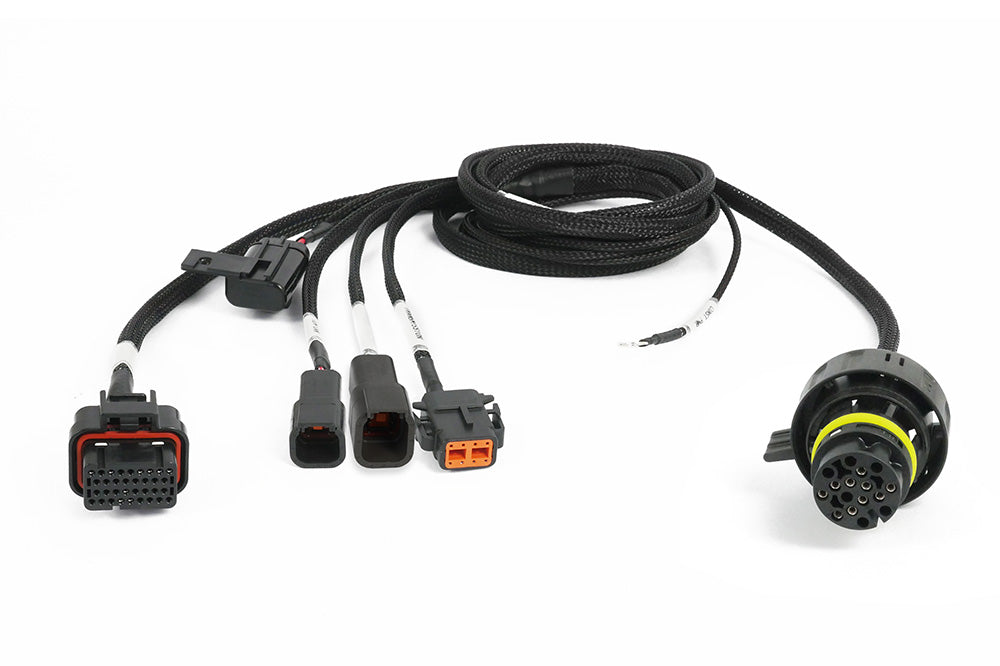

  • Fully terminated transmission harness to suit GM 6Lx0 transmissions
  • Plug and Play with a Nexus Rebel LS ECU terminated harness
  • Easy Rebel LS Setup Wizard using the Haltech NSP Software or Haltech Connect App
  • Convenient TCM OS update support (see Knowledge Base article for more info)

Specifications

  • Connector: 34 pin AMP Superseal Keyway Type 2
  • Communications: CAN 1 (Haltech Protocol), CAN 2 (6L TCM Protocol)
  • Operating voltage: 8 - 22V
  • Ambient temperature: 105°C / 221°F (max)
  • IP rating: IP66

Downloads

Manuals, wiring diagrams and software for HT-196002 are on haltech.com.

Haltech Knowledge Base: Nexus Ti6L Transmission Interface Kit
