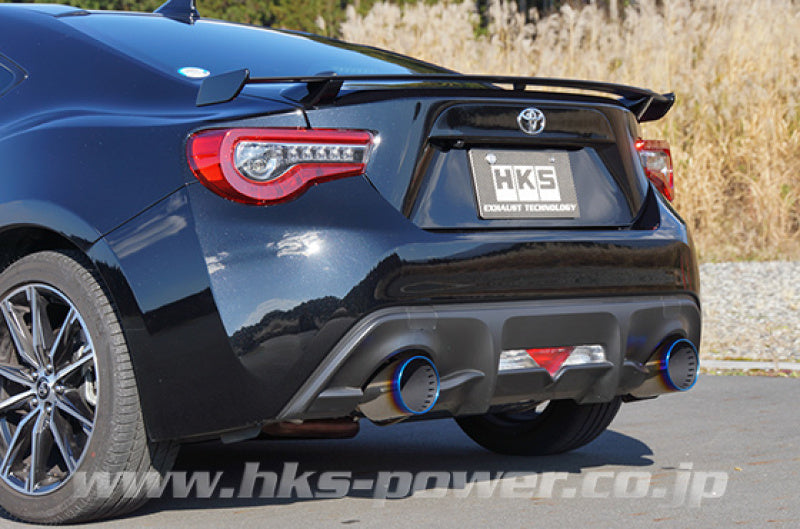

HKS LEGAMAX Premium Main Muffler (Late Model) Toyota 86 ZN6 / Subaru BRZ ZC6 - 32018-AT058

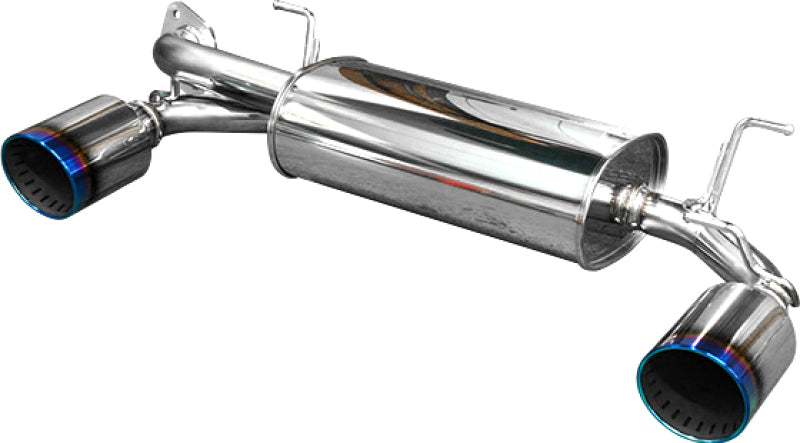

The HKS LEGAMAX Premium main muffler, part number 32018-AT058, is an S304 SSR (Titan) shape muffler for the late model Toyota 86 (ZN6) and Subaru BRZ (ZC6) with the FA20 engine.

• Part number: 32018-AT058
• Muffler shape: SSR (Titan) (LEGAMAX Premium)
• Main material: S304
• Tip diameter: 124 mm (L and R)
• Center pipe diameter: 60-54 mm x 2
• Close noise level: L 90 dB / R 88 dB (stock 83 dB)
• Road clearance: 165 mm (kit portion: main shell); minimum clearance at the lowest point with the original mid pipe is 130 mm
• Product weight: 10.5 kg
• Remarks: main muffler only, compatible with late model only
• Certification No.: JQR10161203

Fitment

• Toyota 86 (DBA-/4BA-ZN6), FA20, 2016/08 to 2021/10. (Source: HKS Japan)
• Subaru BRZ (DBA-/4BA-ZC6), FA20, 2016/08 to 2021/10. (Source: HKS Japan)

Resources

• HKS Japan product page (86)
• HKS Japan product page (BRZ)
• HKS Japan LEGAMAX Premium overview
• HKS USA product page

Contact us if you are unsure of fitment or Size HERE
