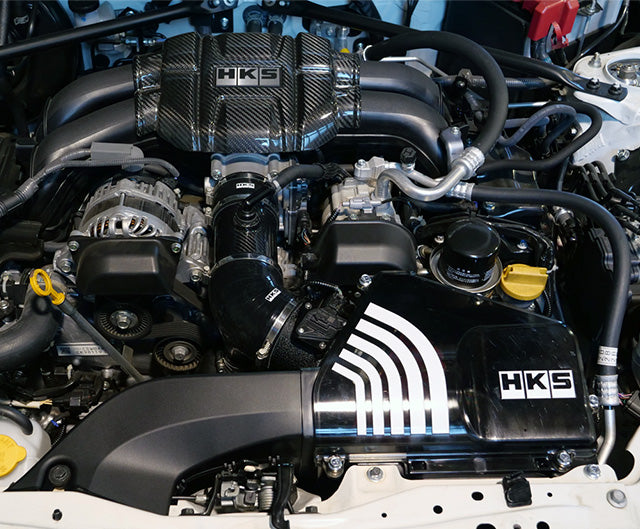

HKS Cold Air Intake Full Kit Subaru BRZ ZD8 / Toyota GR86 ZN8 - 70026-AT012

HKS Cold Air Intake Full Kit, part number 70026-AT012, for the Subaru BRZ ZD8 and Toyota GR86 ZN8 with the FA24 engine.

• Cold air intake box with a Super Power Flow wet-type 2-layer air filter (D150-80) to reduce engine bay heat; upper case is clear smoke
• Air flow meter stays in the stock position; a second intake duct reduces airflow resistance
• Carbon suction pipe: carbon prepreg, 3K twill weave outer surface with UD prepreg inner layer, connected with high-temperature silicone hose
• One-piece molded air intake duct with no internal seams; narrowest section D87.5 mm (factory D50 mm); same layout as the factory duct
• Installation time: 4.0 hours
• Cannot be used together with the HKS GT2 Supercharger
• Circular marks may appear inside the air cleaner cover and the cover may look dimmed; these are manufacturing traits, not defects. Do not clean with organic solvents as they may melt the resin
• Kit contents: Cold Air Intake Box kit 70026-AT010, Carbon Suction kit 70026-AT011, Air Intake Duct 70999-AT003

Fitment

• Subaru BRZ (ZD8), FA24, 08/2021 onward. (Source: HKS Japan)
• Toyota GR86 (ZN8), FA24, 10/2021 onward. (Source: HKS Japan)

HKS resources:

• Installation instructions (PDF, HKS Japan)
• HKS Japan product page (BRZ)
• HKS Japan product page (GR86)

Contact us if you are unsure of fitment or Size HERE
