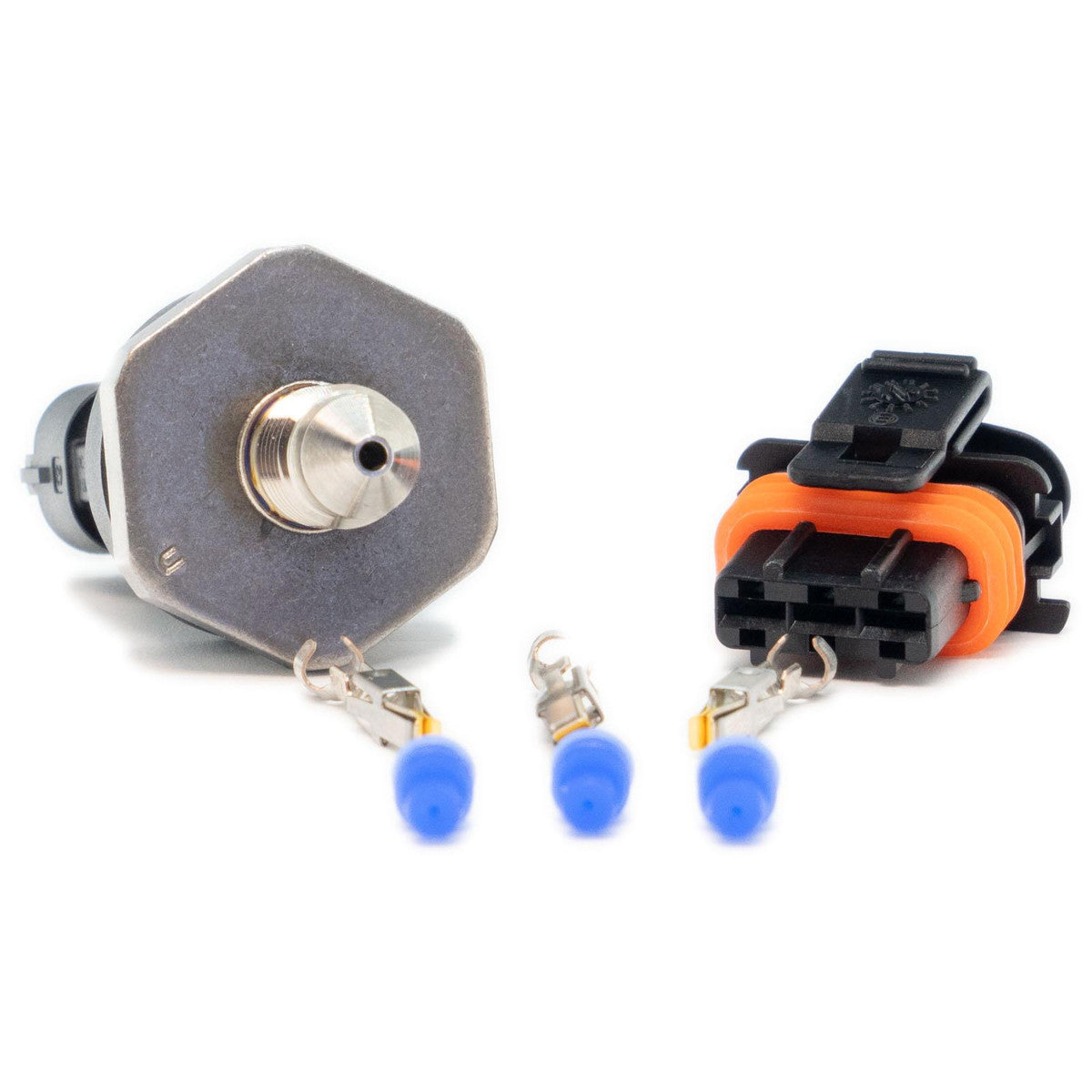

A compact Bosch high-pressure sensor for liquid pressures up to 140 bar (2030 psi). The M10 x 1 fitting with 45° cone seat and compact 3-pin connector make it a reliable choice for high-pressure fuel, oil and hydraulic measurement.

Suits: Link ECUs and other ECUs with 0.5-4.5 V analogue inputs, for liquid pressure up to 140 bar.

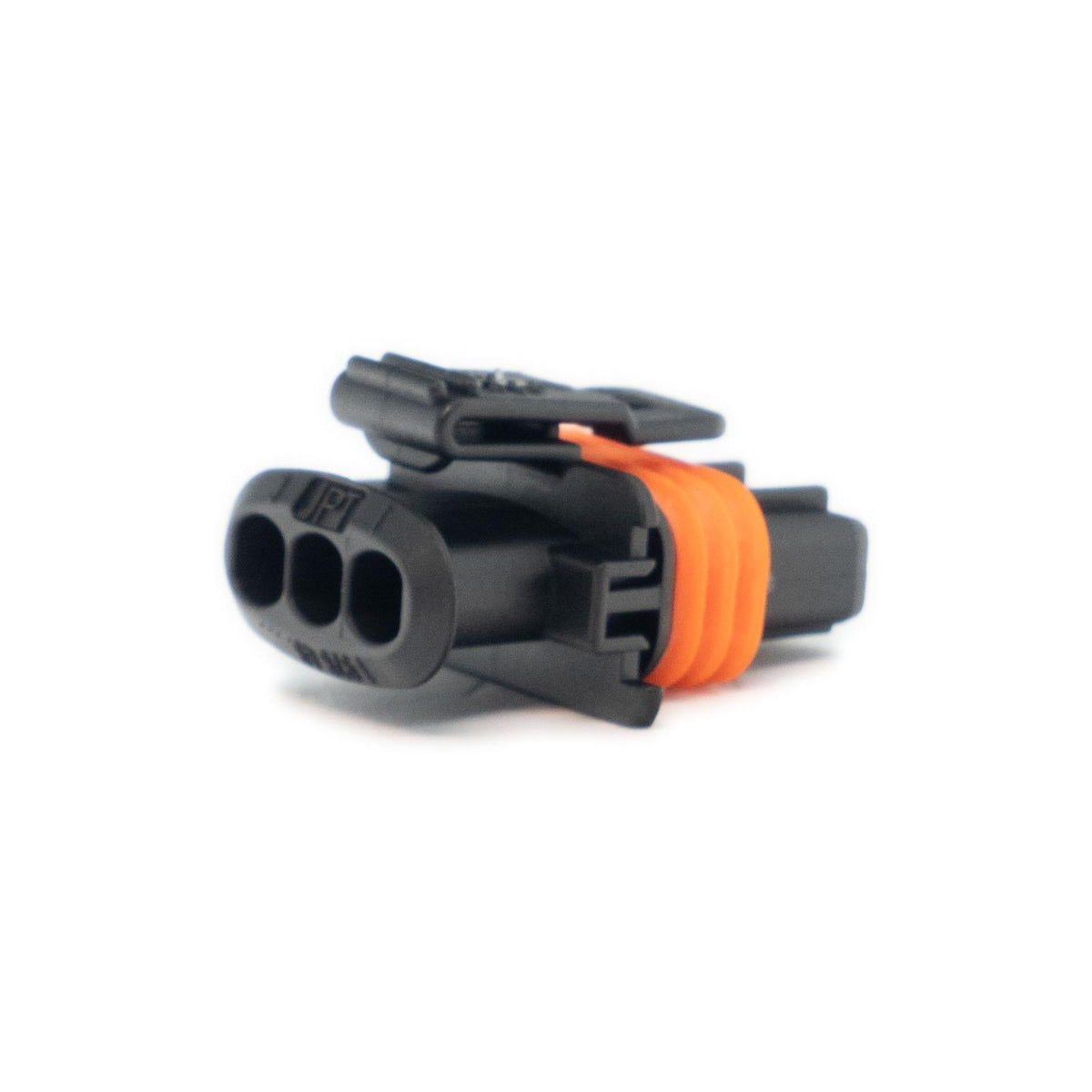

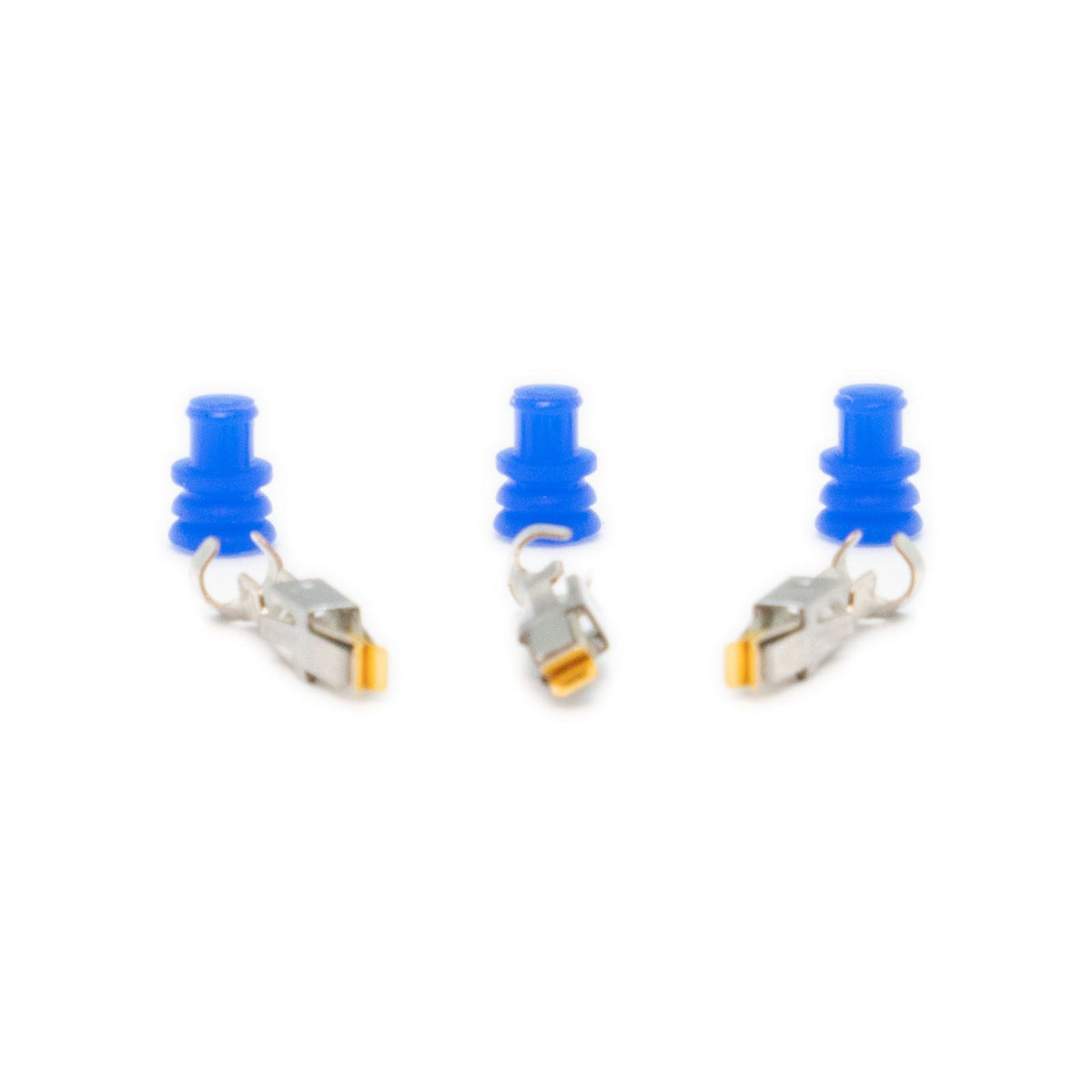

Includes: Bosch 140 bar liquid pressure sensor, Bosch compact 3-pin mating connector, printed accessory instructions.

Specifications

• Pressure range: 0-140 bar (2030 psi)
• Fitting: M10 x 1 thread, 45° cone seat
• Operating voltage 4.75-5.25 V, maximum input voltage 5.25 V
• Connector: compact 3-pin
• PCLink calibration name: Bosch 140Bar 0 261 545 053
• Raw calibration: 0.5 V = 0 kPa, 4.5 V = 14000 kPa
• Dimensions: 50 x 30 x 30 mm (1.97 x 1.18 x 1.18 in)
• Weight: 40 g (1.41 oz)

Notes

• For liquid pressure only. It reads up to 2030 psi above atmospheric and cannot read vacuum.
• Install with the pressure tube pointing down (0° to ±90° from vertical).

Downloads

• 140 Bar Pressure Sensor Diagram (image)
