Link 300ZLink - N300X - 213-4000

Link N300X Plug-In ECU (Nissan 300ZX Z32) - 213-4000

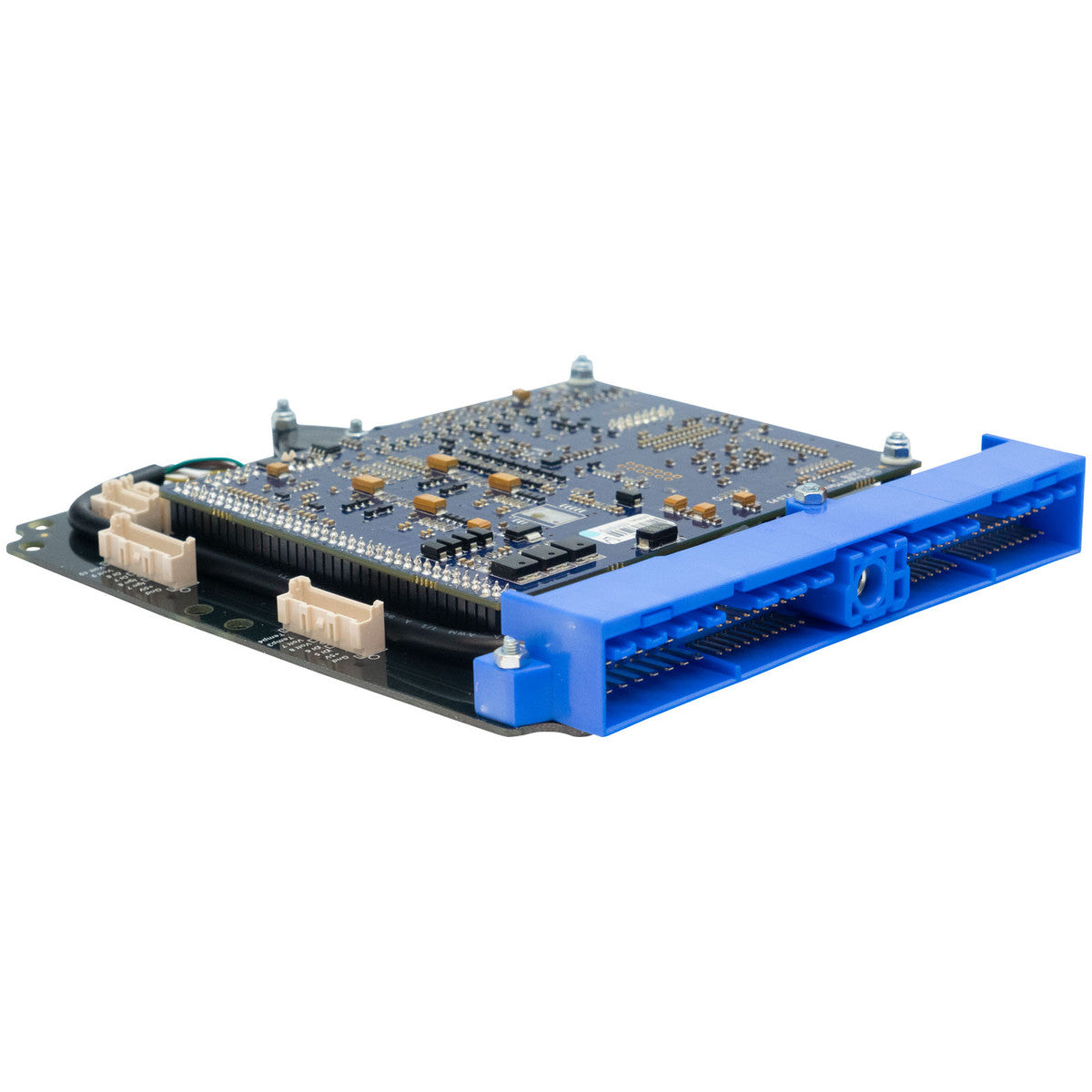

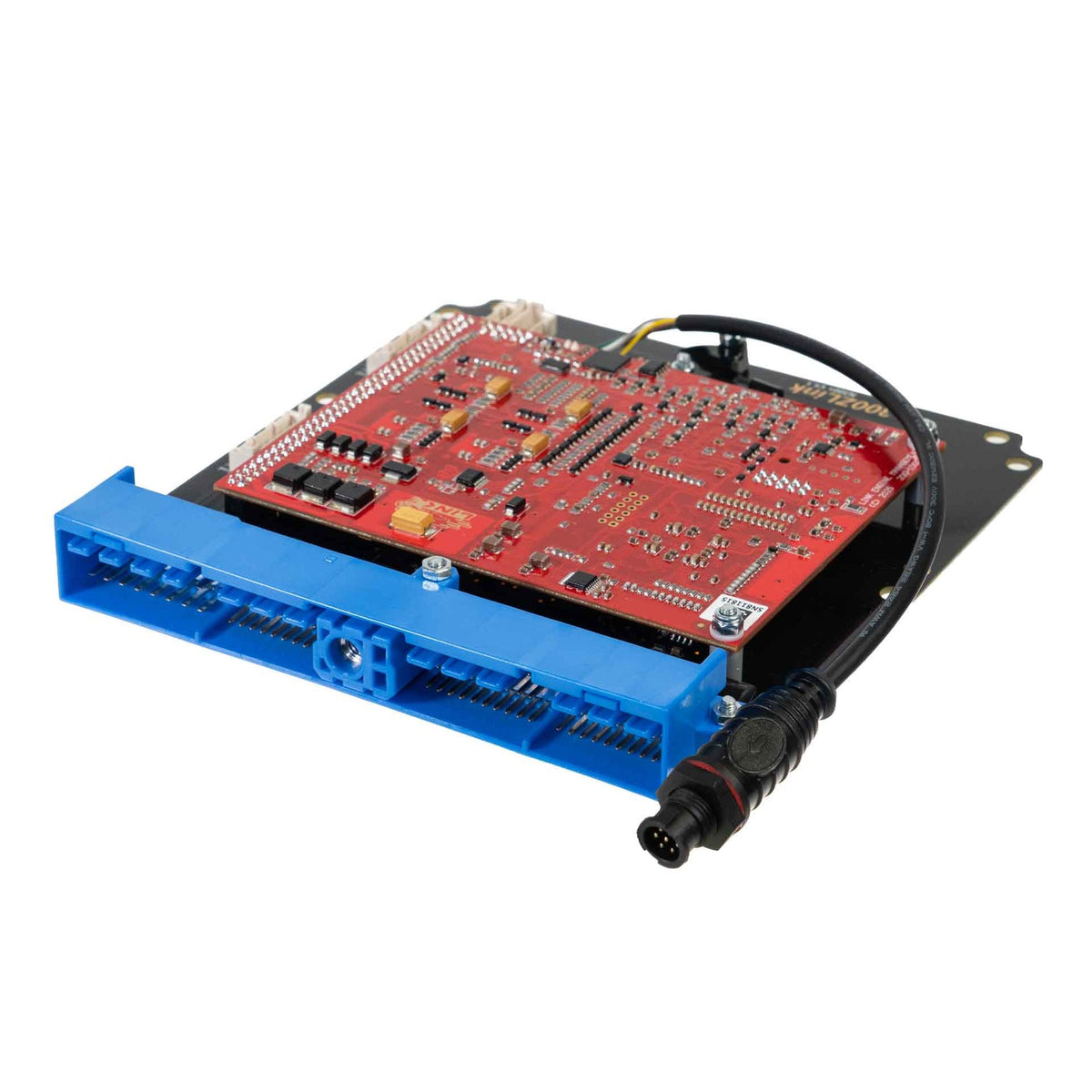

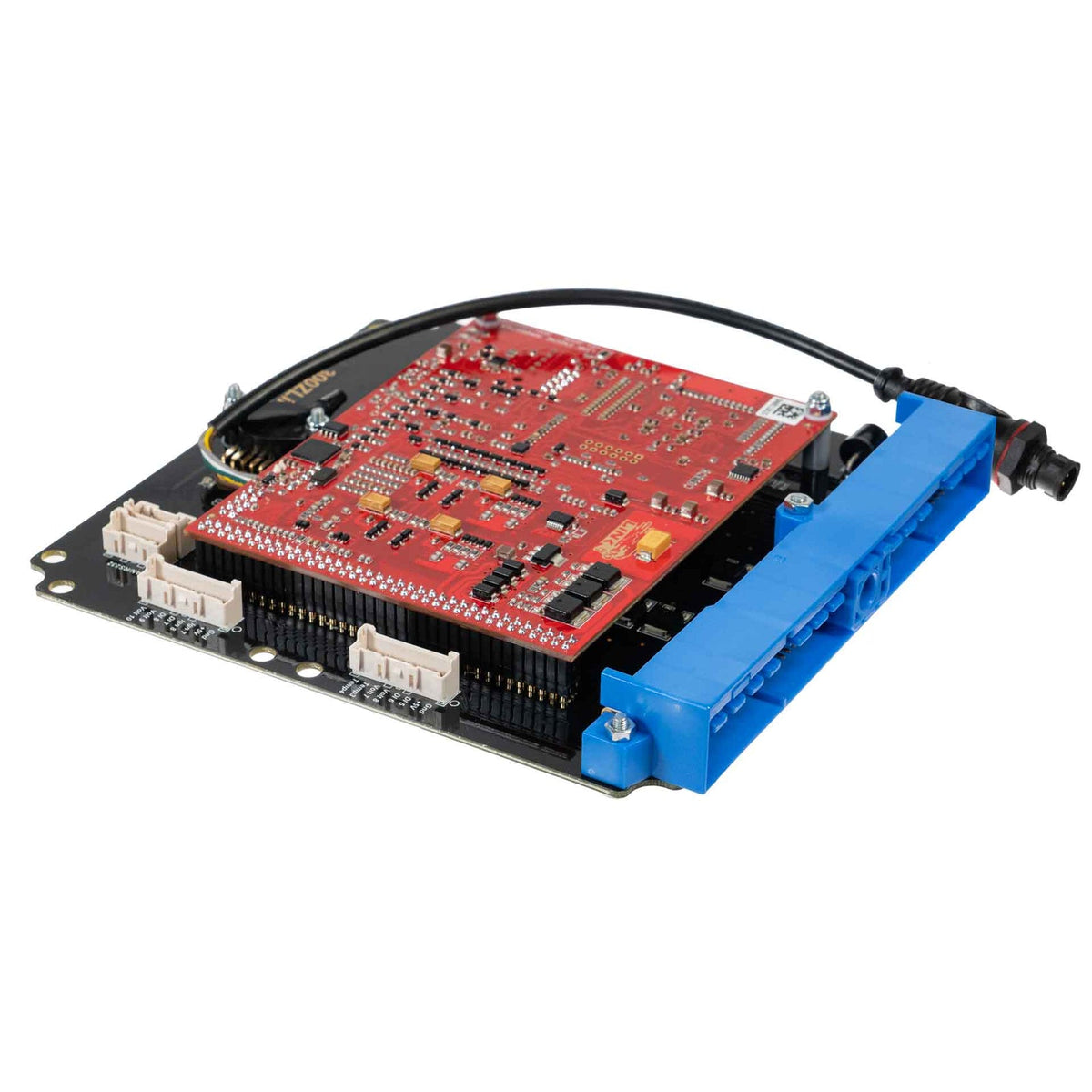

The N300X is a G4X plug-in ECU for the Z32 300ZX. It installs in the factory ECU location on the stock mounts, loom and connectors with no rewiring or adapter looms, and comes with a startup map.

It brings the G4X platform and PCLink software to the Z32, with motorsport functions including nitrous, launch control, anti-lag, traction control and gear/paddle shift control.

Suits: Nissan Z32 300ZX with VG30DE or VG30DETT. Manual transmission.

Includes: G4X N300X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Onboard MAP sensor
• Onboard logging: 512 MB, up to 100 kHz total logging rate
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 3.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the N300X installation manual

Notes

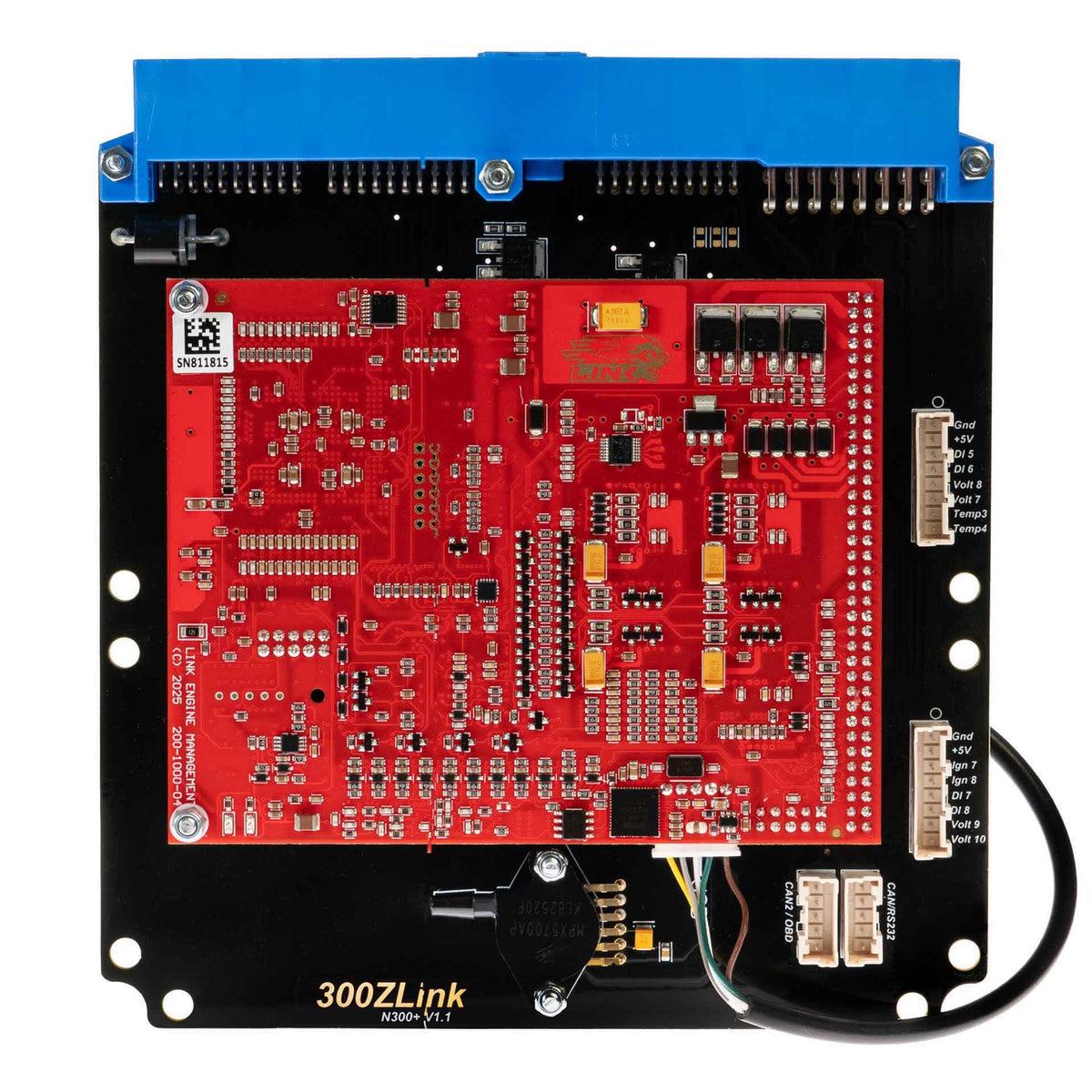

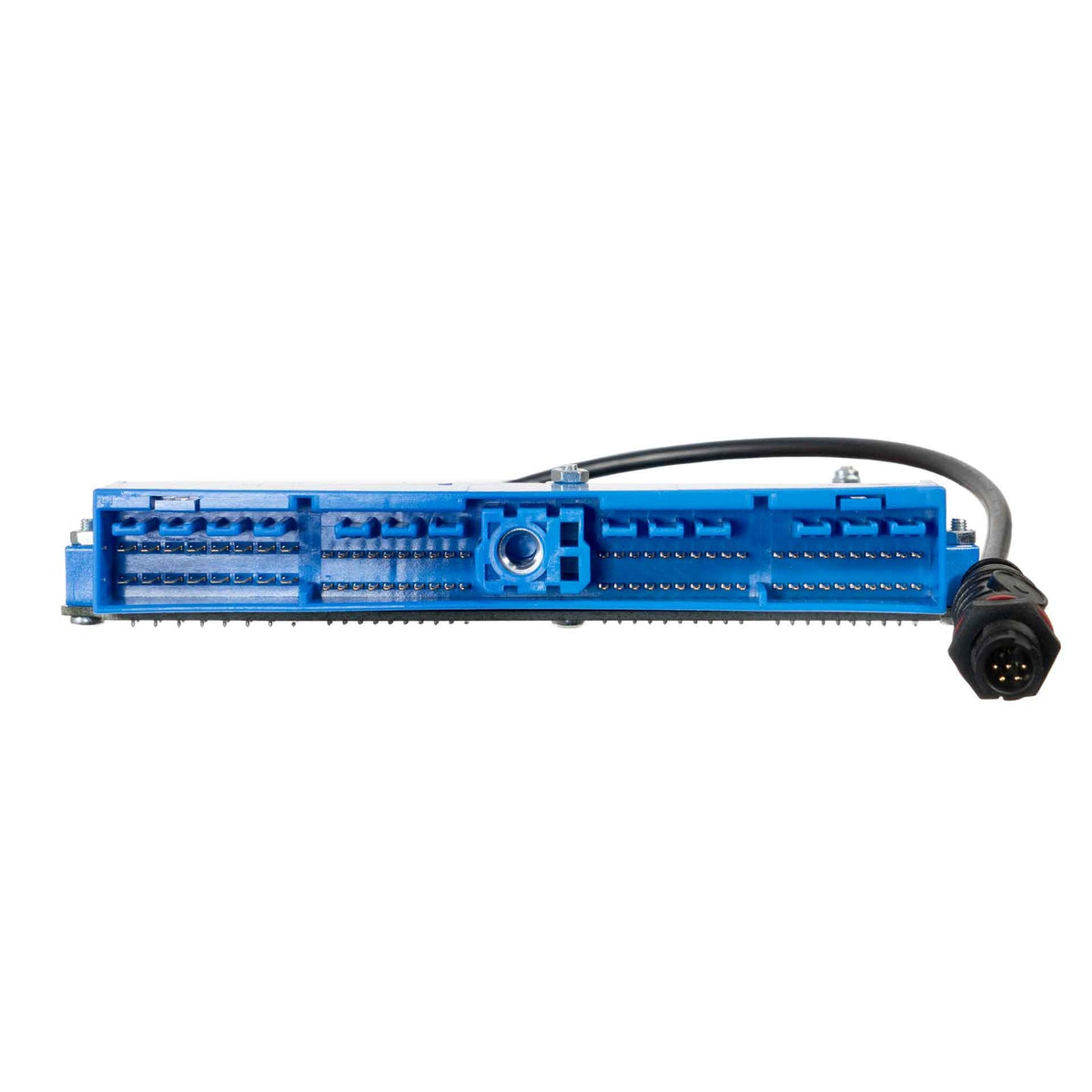

• Check that your connector matches the header shown in the photos before ordering.
• Fitting an intake air temperature (IAT) sensor is highly recommended.
• E-throttle is not usable until the ECU is modified.
• Automatic models: ask us about Direct Automatic Transmission Control.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

An intake air temperature sensor such as the Link IAT1-8 (101-0045).

Downloads

• N300X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
