The Link 5 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for turbocharged and supercharged engines operating at up to 58 psi (4 bar) of boost. Featuring a rugged stainless steel construction and fast response time, it delivers stable and accurate pressure measurement for reliable engine tuning in demanding motorsport and performance applications.

Suits: All Link ECUs. Other aftermarket ECUs with a 5V ratiometric analogue input. Turbocharged and supercharged engines running up to 58 psi (4.0 bar) of boost.

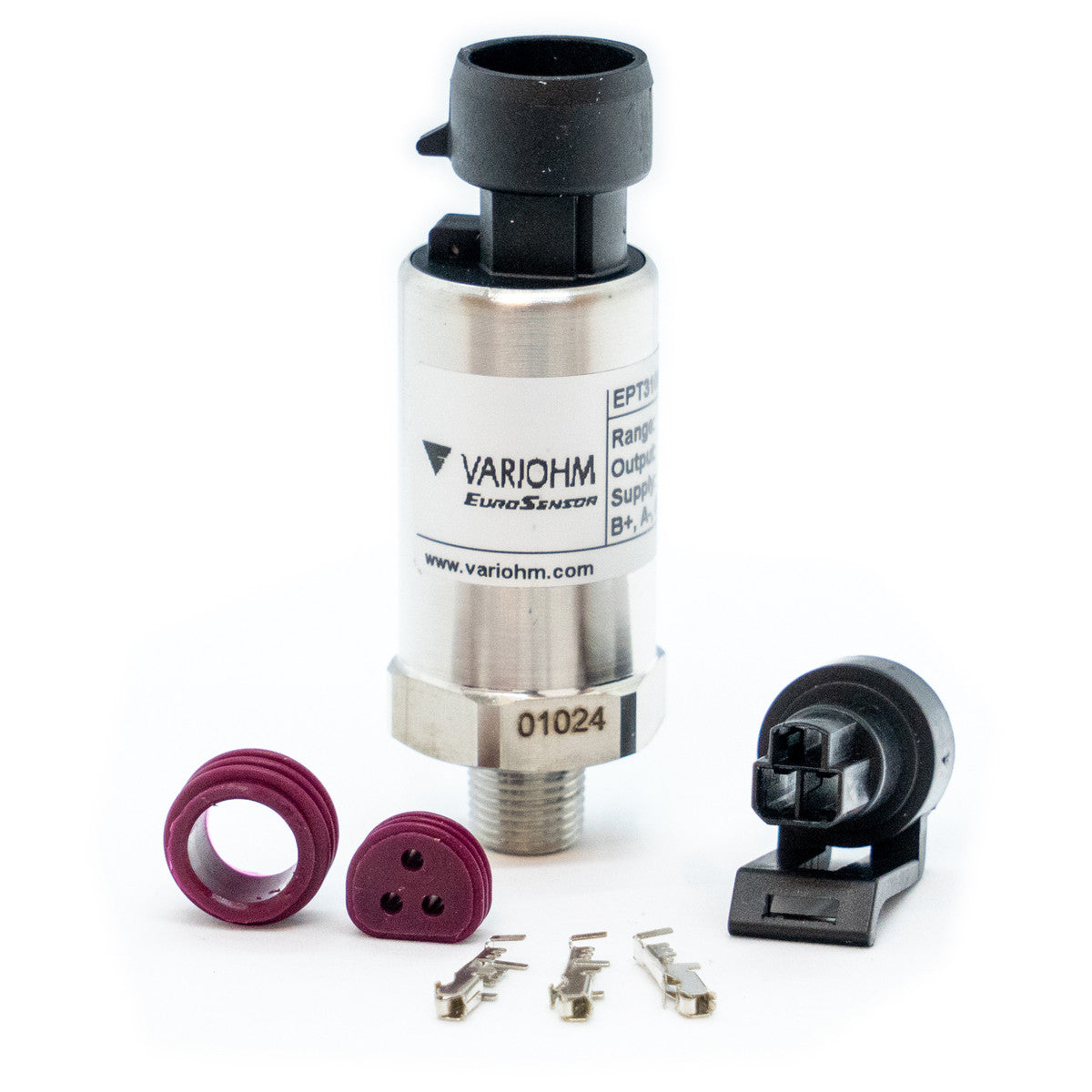

Includes: MAP Sensor 5 Bar, TI Sensor Connector Kit, Printed Accessory instructions.

Specifications

• Pressure range: -1 to +4 bar (-14.5 to +58 psi)
• 0.5-4.5V ratiometric output
• 5V supply voltage
• High-accuracy piezoresistive sensing element
• Stainless steel housing
• Fast response time (<1ms)
• Excellent vibration and shock resistance
• Operating temperature: -40degC to +125degC
• IP66 rated
• Packard Metri-Pack connector
• 1/8" NPT Male pressure port
• Comes with TI Sensor Connector Kit
• Product Dimensions: 70mm(L)x30mm(W)x30mm(H); 2.76in(L)x1.18in(W)x1.18in(H)
• Product Weight: 65 grams (2.29 ounces)
• Electrical: Operating Voltage Range: 5V; Maximum Input Voltage: 5V
• PCLink Calibration Name: "5 Bar Variohm"
• 0.5V = 0kPa, 4.5V = 500kPa
• Connector: TI Sensor Connector Kit 101-0130

Notes

• Designed for use with a regulated 5V sensor supply.
• Using Link G4/G4+/G4X/G5 ECU's select the MAP sensor type in PC Link as 'Variohm 5 Bar'.
• Not recommended for naturally aspired engines or boost levels exceeding 4 BAR / 58psi.
