Link AltezzaLink - TALTX - 220-4000

Link TALTX Plug-In ECU (Toyota Altezza 3S-GE) - 220-4000

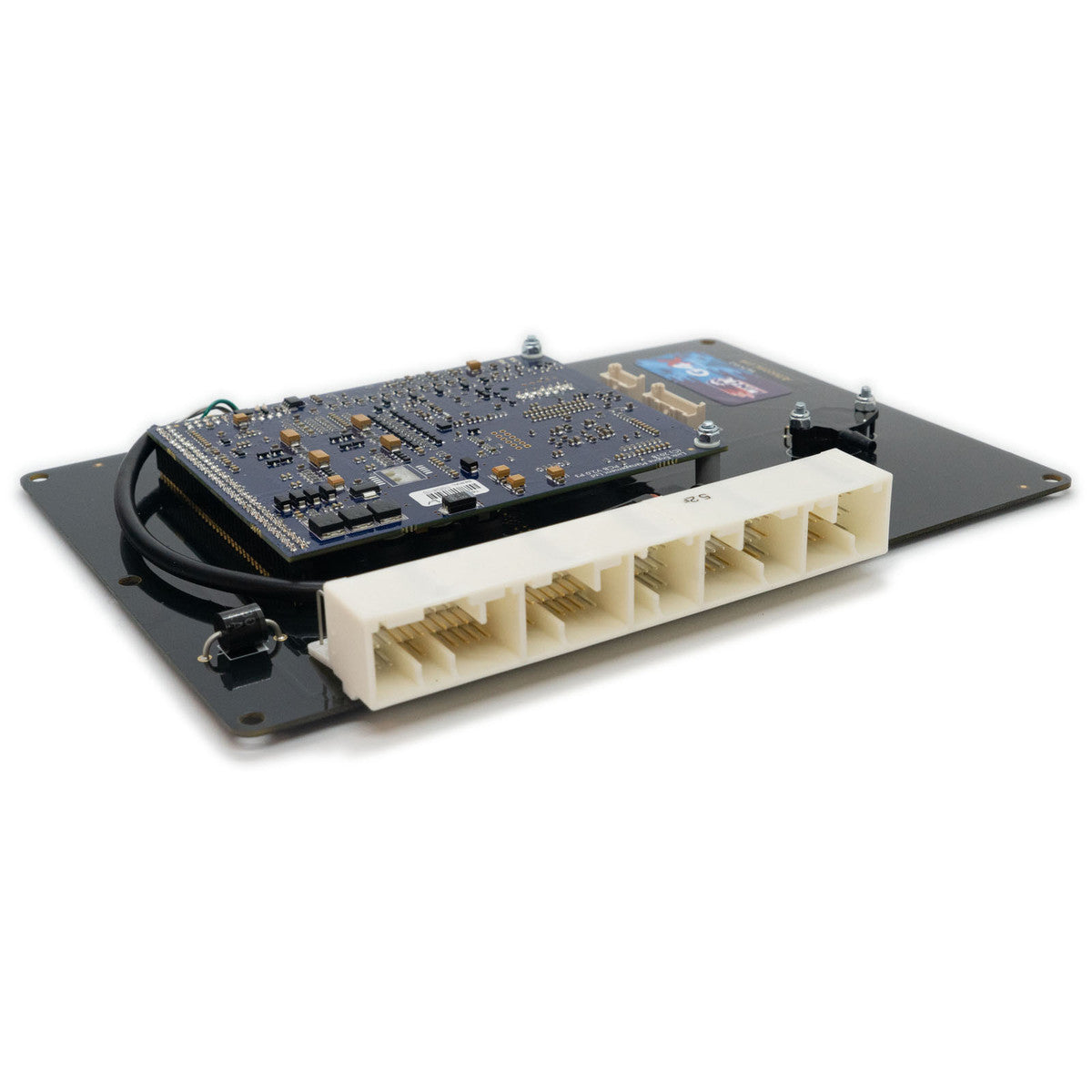

The TALTX is a G4X plug-in ECU for the Toyota Altezza SXE10 with the 3S-GE. It mounts in the factory ECU location on the original mounts, loom and connectors with no rewiring or adapter looms, and includes a startup map and a built-in MAP sensor.

Motorsport functions include nitrous, launch control, anti-lag, cruise control, traction control, race timer/power management and gear and paddle shift control.

Suits: Toyota Altezza SXE10 with 3S-GE engine. Manual transmission only.

Includes: G4X TALTX plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 1 x CAN bus; LTW 6-pin USB tuning connection
• Onboard MAP sensor
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 5.5 A
• Dimensions: 175 x 230 x 30 mm (6.89 x 9.06 x 1.18 in)
• Weight: 175 g (6.17 oz)
• Inputs/outputs: see the TALTX installation manual

Notes

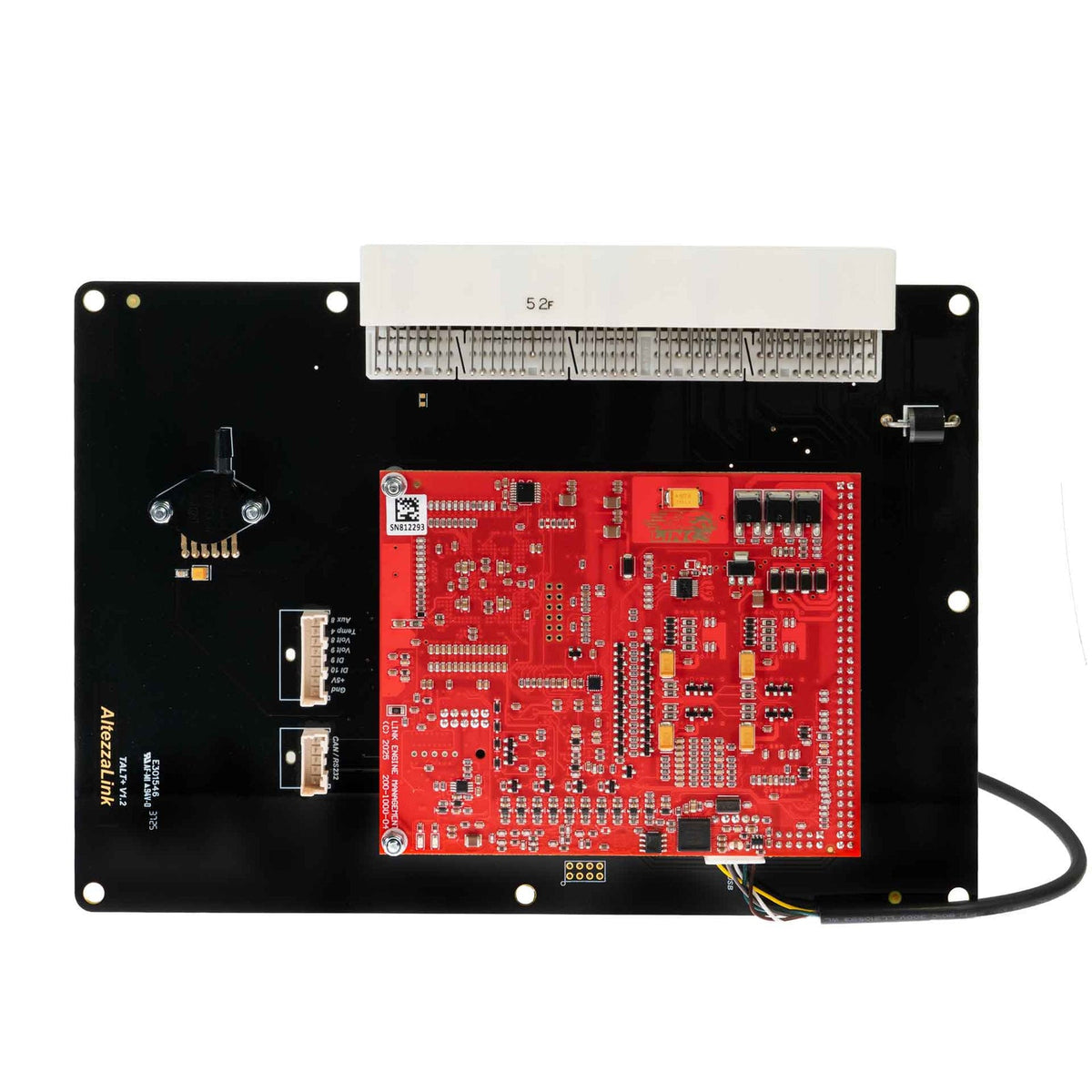

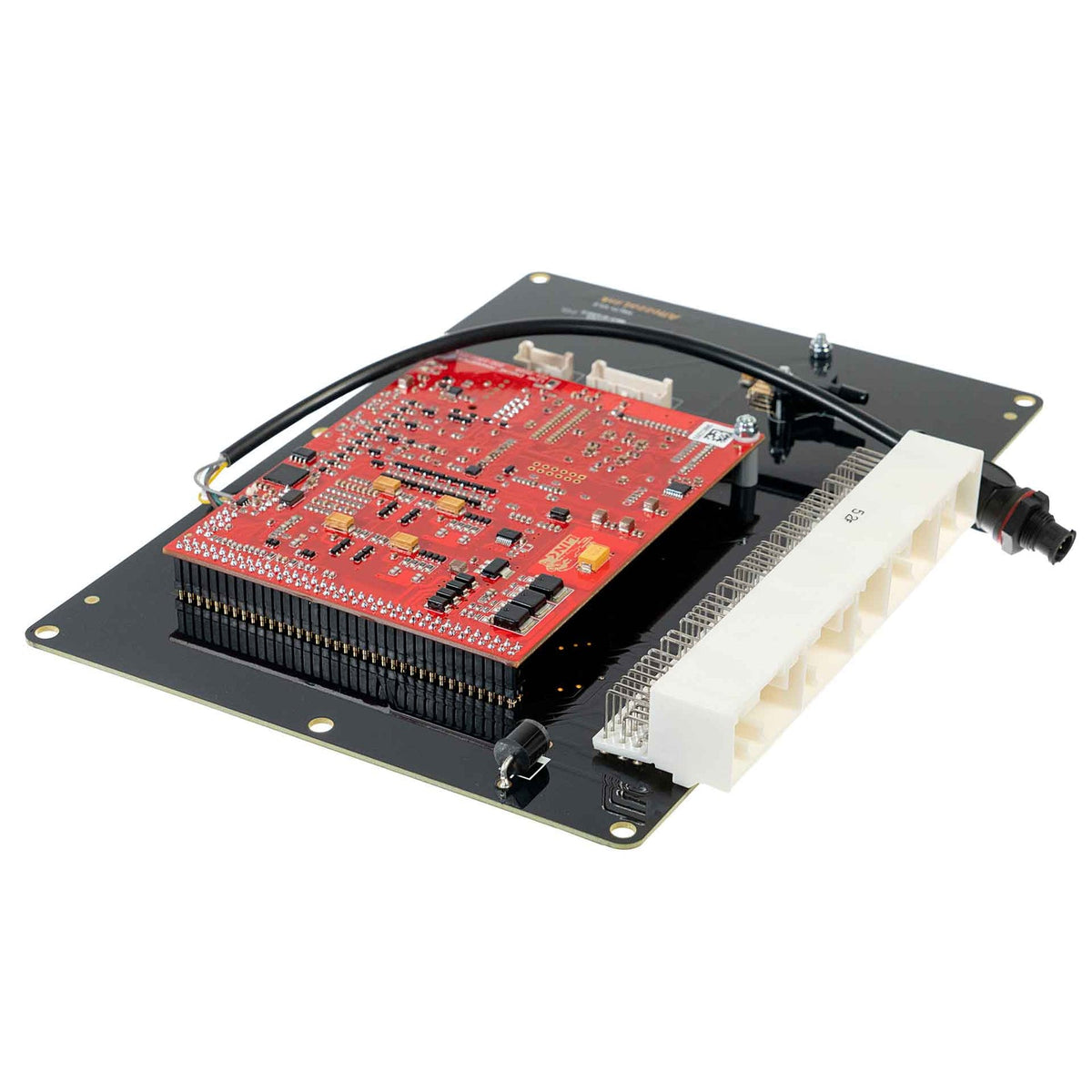

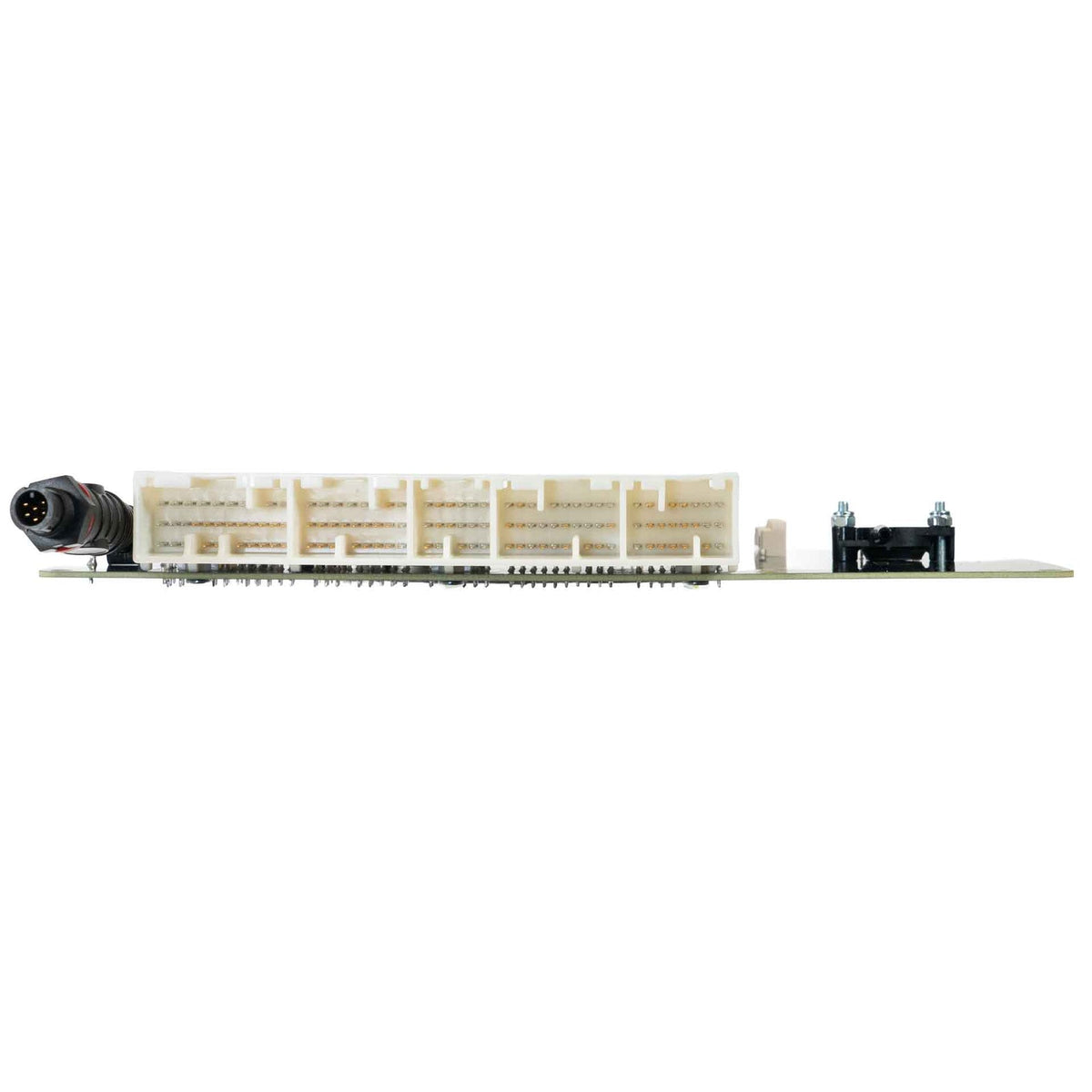

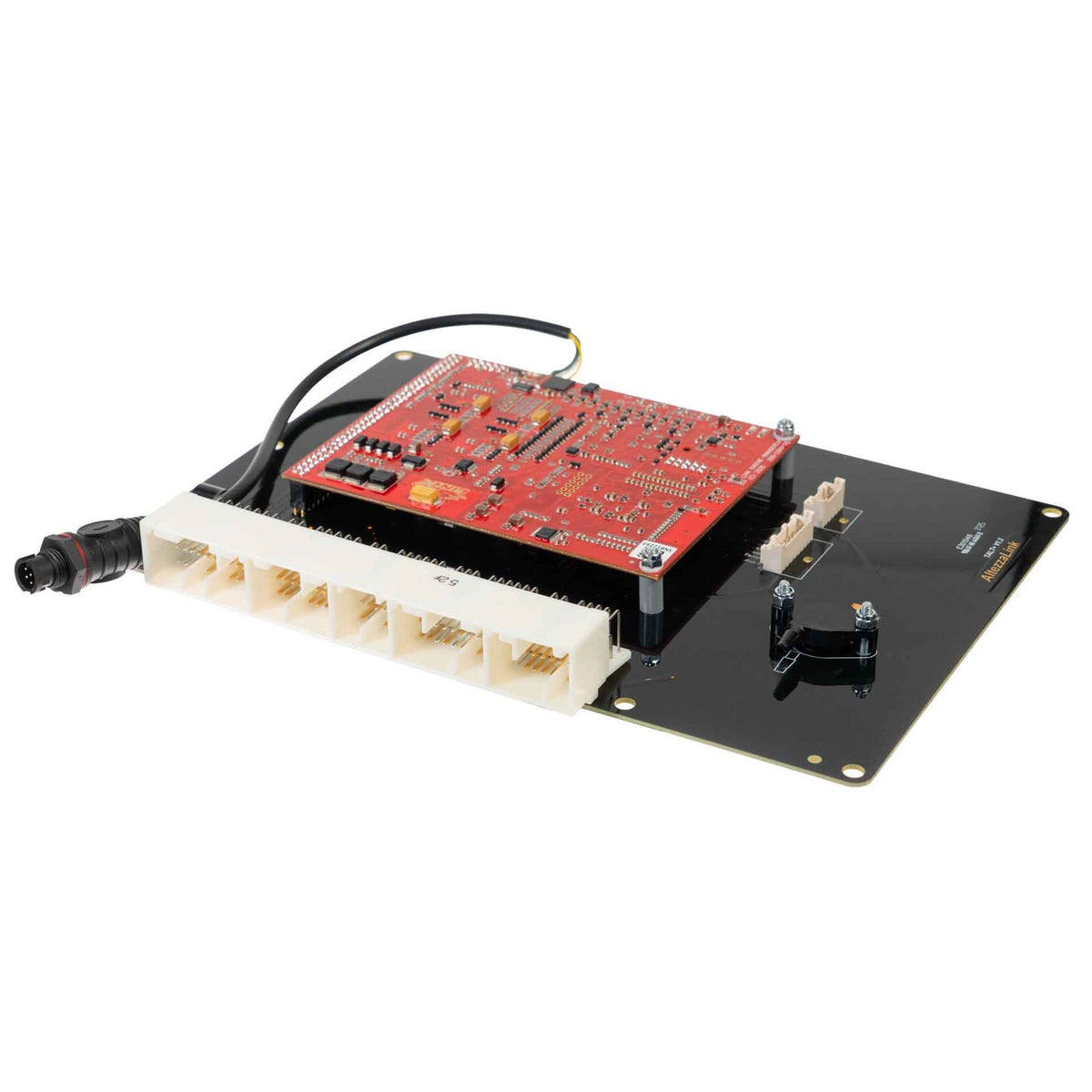

• Check that your connector matches the header shown in the photos before ordering.
• E-throttle is not usable until a modification is made.
• Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

Downloads

• TALTX User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
