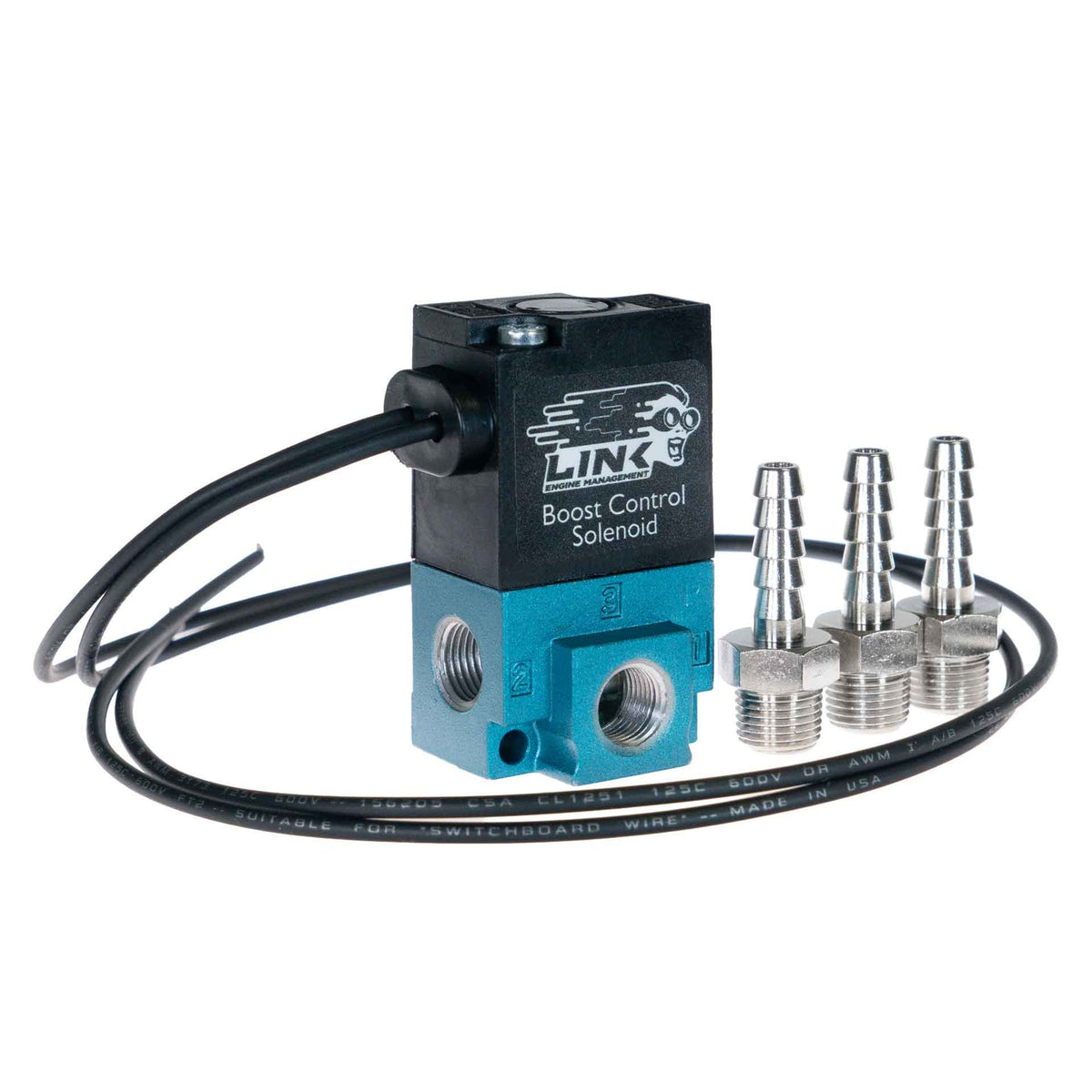

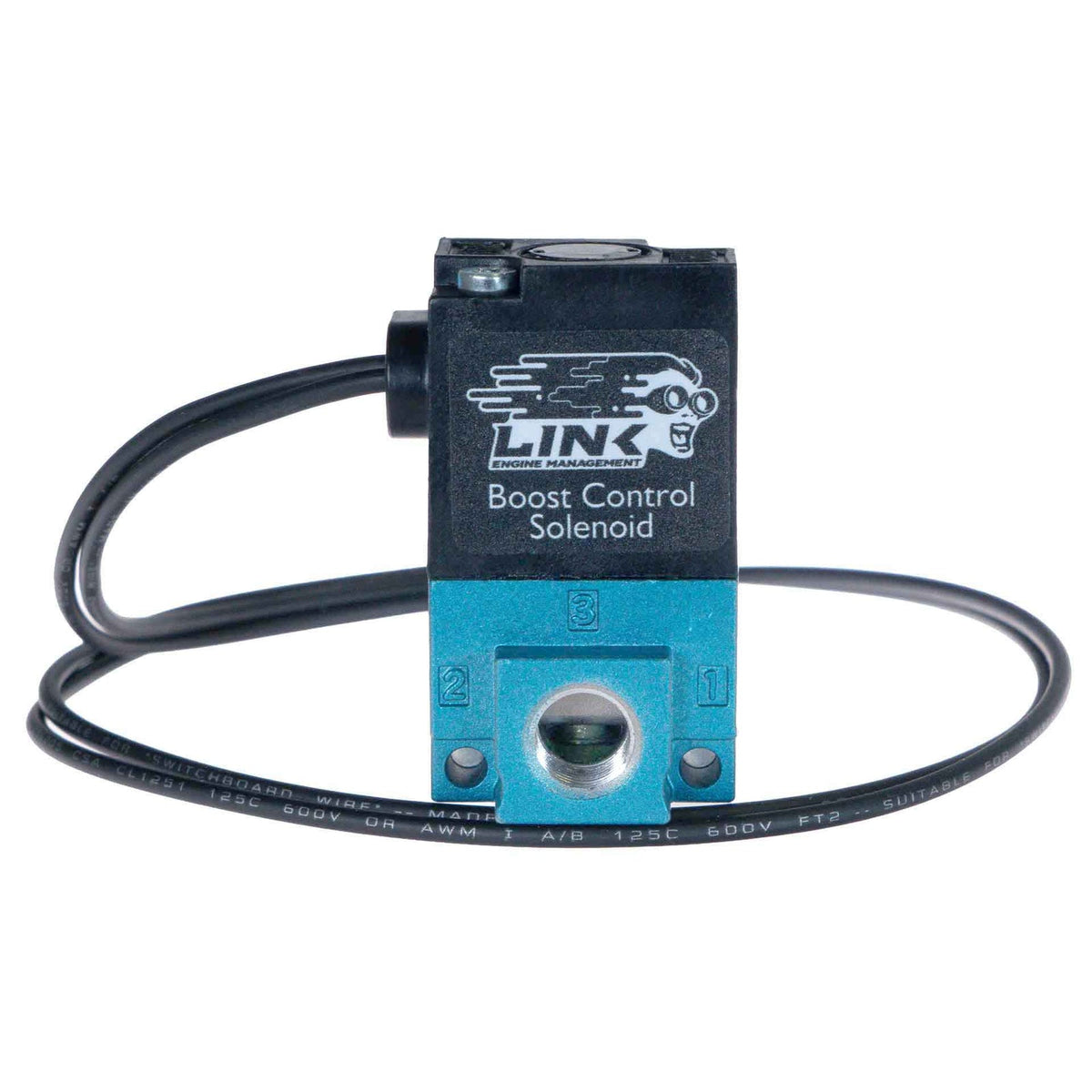

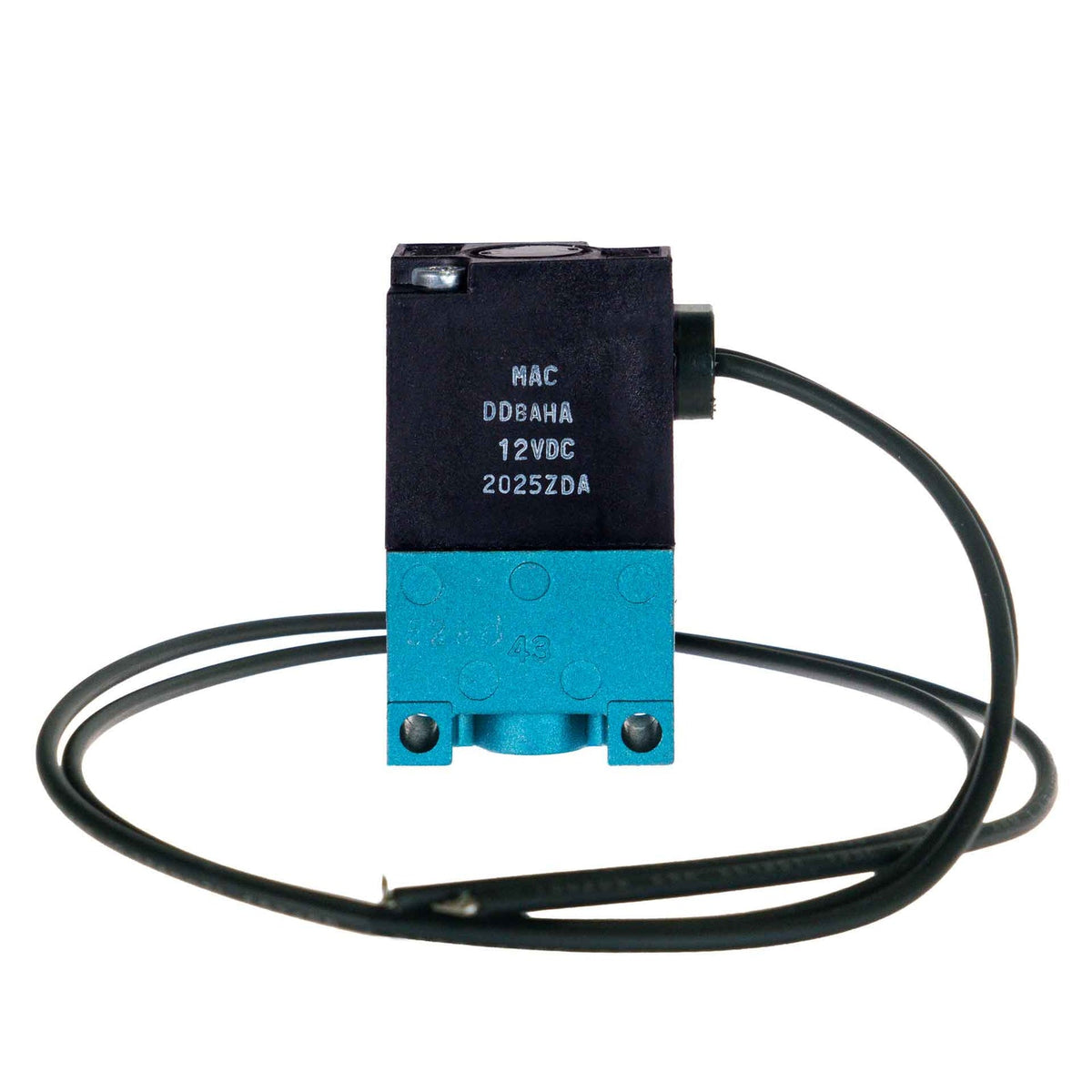

A MAC 35-series 3-port solenoid for electronic boost control on turbocharged engines. It works with internal or external wastegates, single or multiple (via a T-junction), and lets you raise boost to around 2-3 times the wastegate spring pressure using the ECU's open or closed-loop boost control. Fast, consistent response, high shifting force and a balanced poppet that ignores pressure variations make it a good fit for most boost control setups.

Suits: All Link ECUs; internal or external wastegates, single or multiple.

Includes: 3-port boost control solenoid, 3 x 1/8" BSP hose tail fittings, instructions.

Specifications

• Series: MAC 35
• Maximum pressure: 120 PSI
• Port size: 1/8" BSPPL
• Coil: 12 VDC (5.4 W), 18" (45 cm) leads
• Operating voltage: 10.2-13.2 V; maximum continuous current draw 495 mA
• Recommended starting PWM frequency: 20 Hz
• Dimensions: 50 x 20 x 500 mm (1.97 x 0.79 x 19.69 in, as listed by Link)
• Weight: 110 g (3.88 oz)

Notes

• Requires a spare ECU auxiliary output (switched to ground), 12 V ignition-switched power, a MAP sensor and boost control configured in the ECU. No separate boost controller is needed.
• Setup details are in the PCLink help file. Link recommends installation and setup by an official Link dealer.

You may also need

For a wider boost range, or 2-port wastegate control, see the 4-Port Boost Control Solenoid (101-0016).

Downloads

• 3-Port Boost Control Solenoid Instructions (PDF)
