Link CAN Lambda (CANLAM) - 125-1000

Link CAN Lambda Wideband Controller (CANLAM) - 125-1000

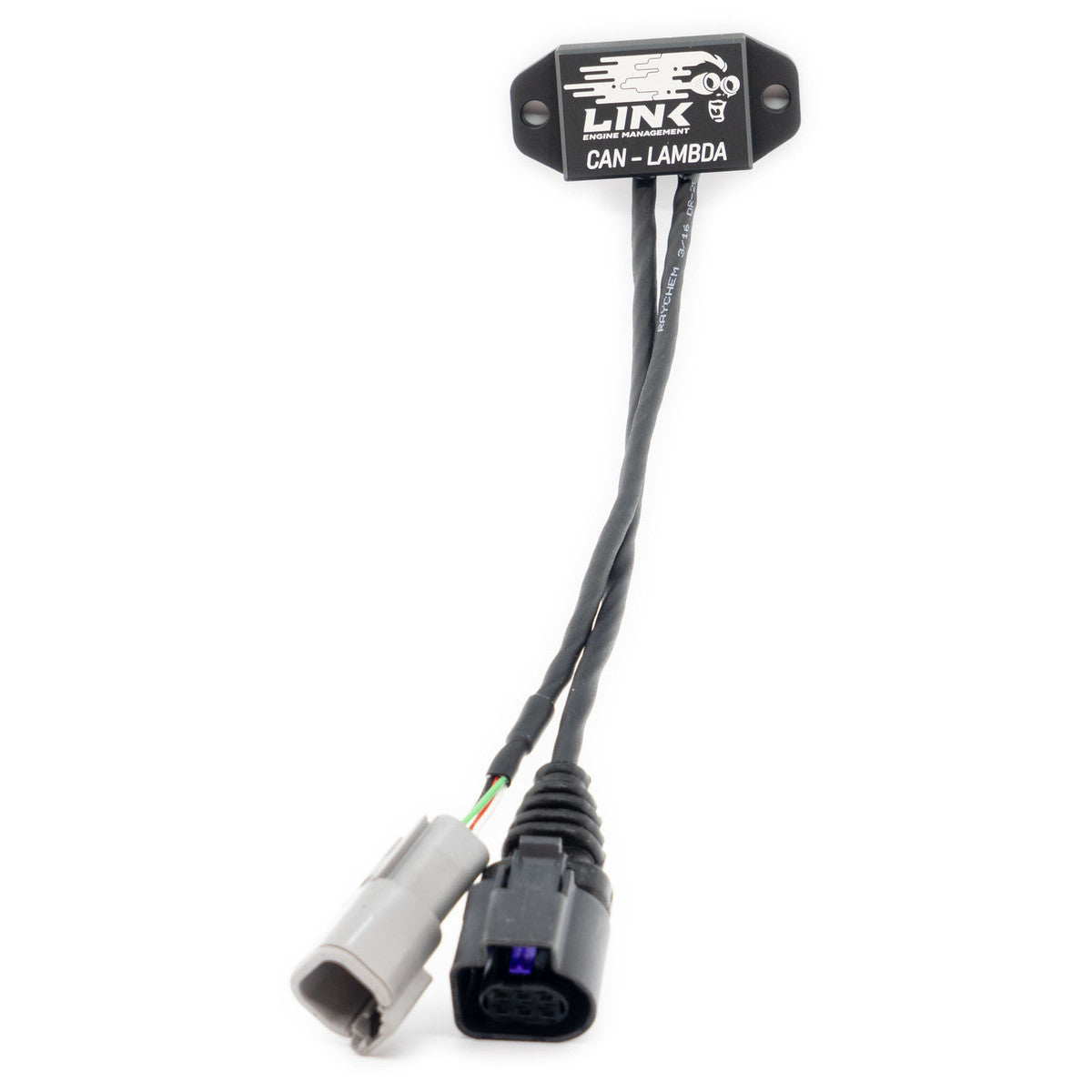

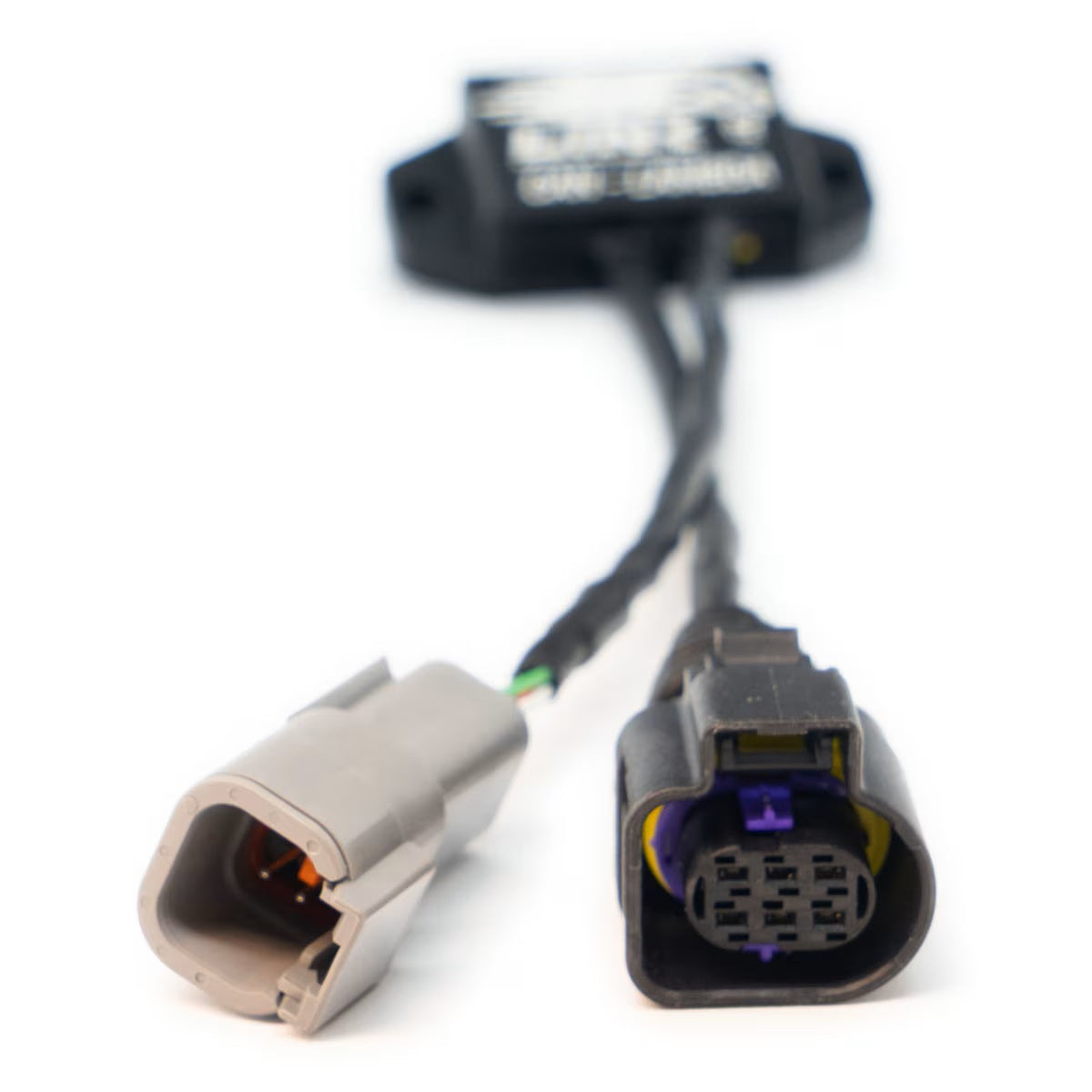

The Link CAN Lambda kit combines a Link CAN Lambda module with a genuine Bosch LSU4.9 wideband lambda sensor to give fast, accurate digital air-fuel ratio measurement over CAN bus. Designed and manufactured by LinkECU, it avoids the signal loss, electrical noise and calibration issues of analogue wideband controllers, and never needs free-air calibration.

Suits: All Link G4+, G4X and G5 ECUs, plus other aftermarket ECUs that support the Link CAN Lambda protocol.

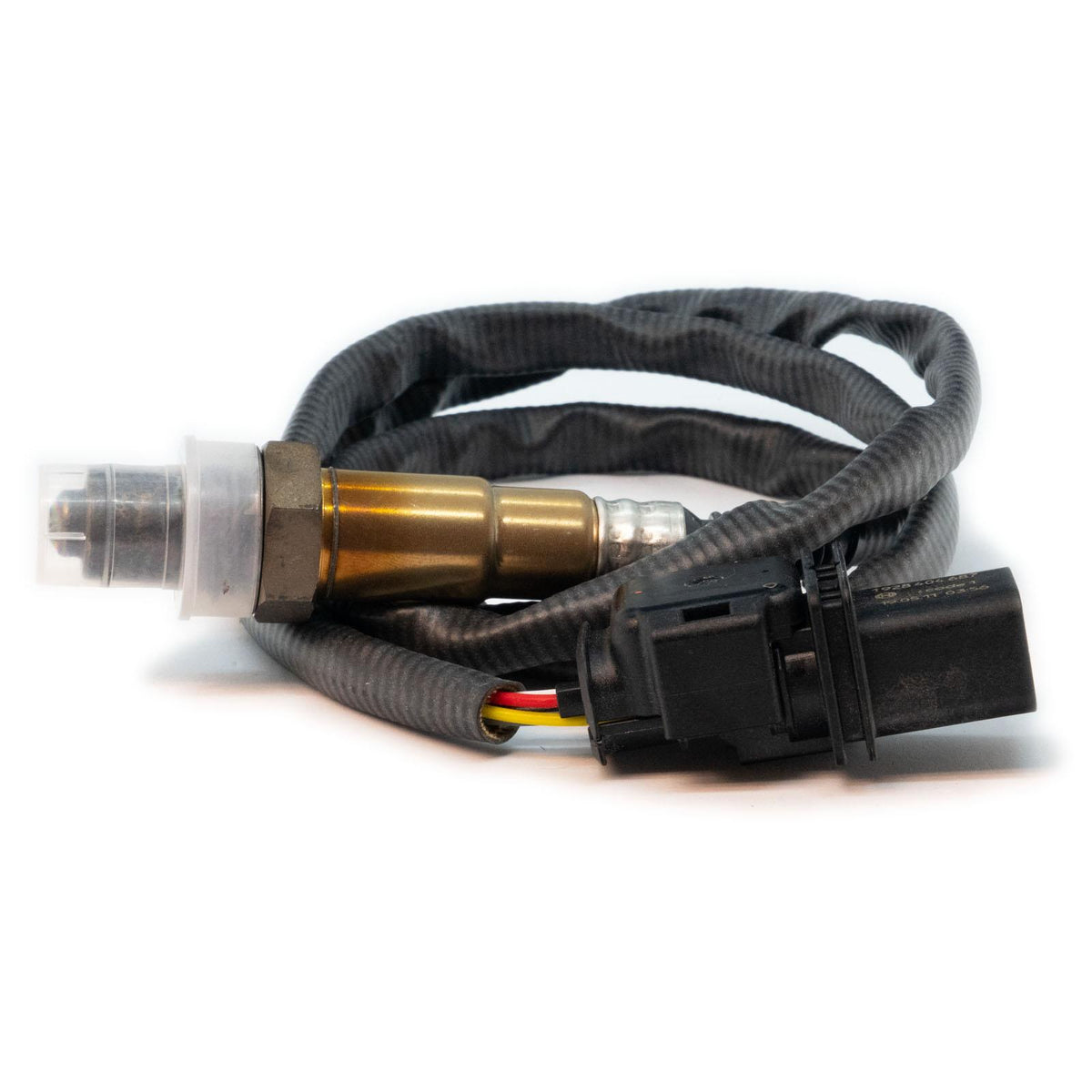

Includes: CAN Lambda module, Bosch LSU4.9 sensor, Deutsch 4-way connector kit, O2 bung and plug, Link stickers, Quick Start Guide.

Specifications

• Lambda measuring range: 0.67 to 10
• CAN bit rates: 1 Mbit/s, 500 kbit/s, 250 kbit/s and 125 kbit/s
• Fully digital CAN communication, no free-air calibration required
• Operating voltage 6-23 V, maximum input voltage 37 V, maximum continuous current draw 3 A

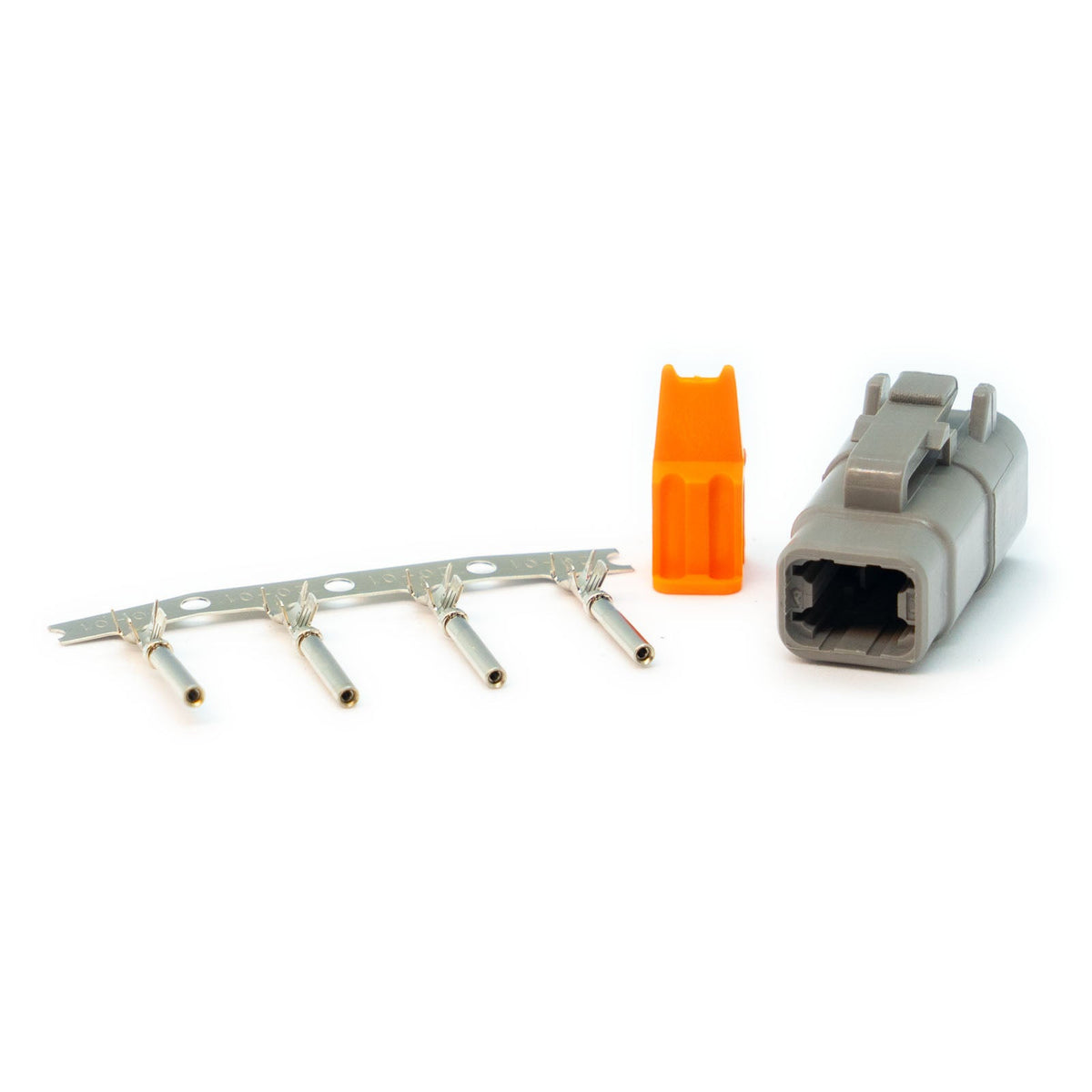

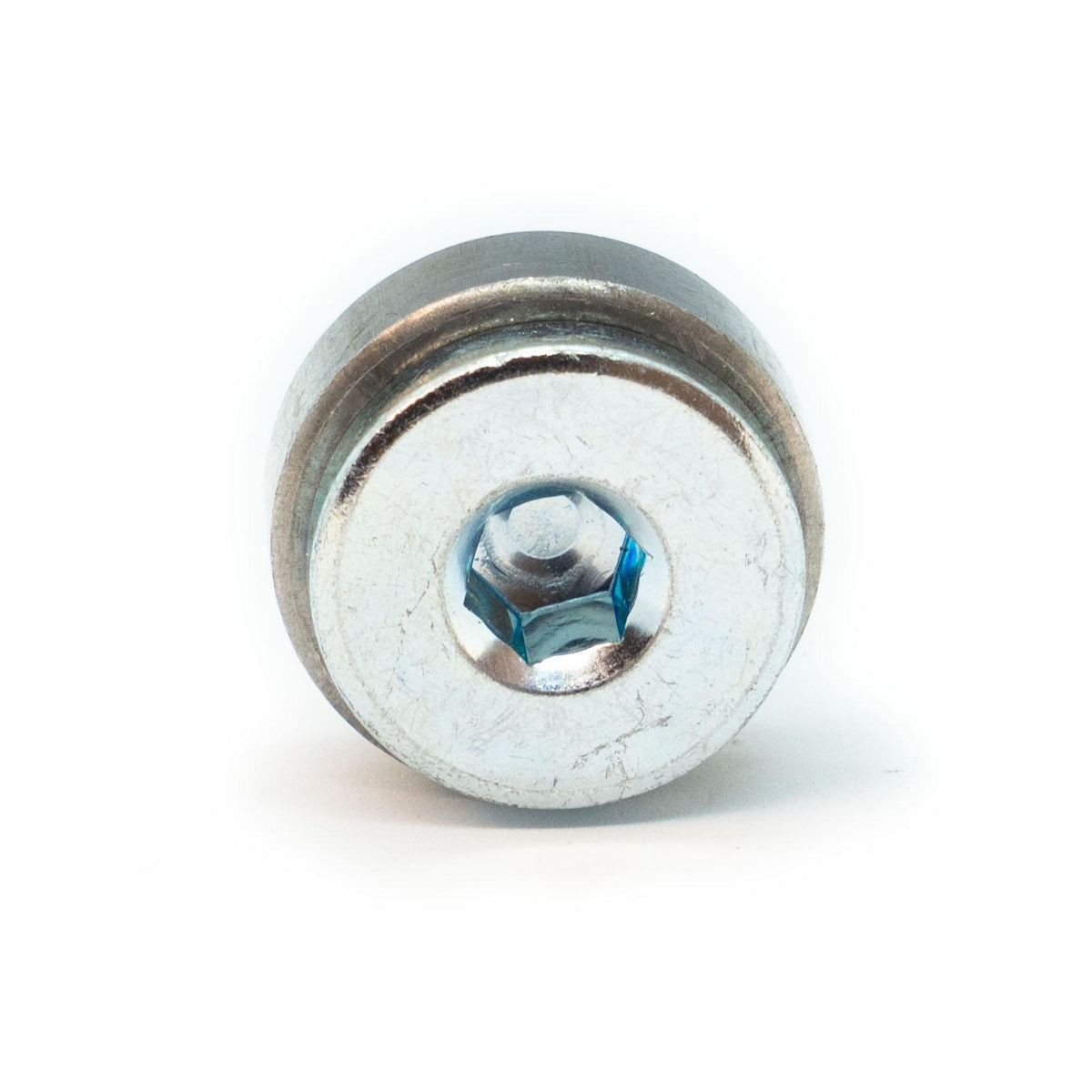

• Connector: Deutsch 4-way connector kit; O2 bung and plug included

Notes

• One CAN Lambda module is required for each wideband sensor. A compatible Link ECU supports up to eight modules.
• Modules are supplied pre-configured for a single-sensor installation.
• Link recommends installation and setup by an official Link dealer.
• The Bosch LSU4.9 sensor is sold for aftermarket use only. Bosch's warranty excludes aftermarket applications, so no warranty is provided on the sensor.

You may also need

For a Link G4+ or G4X Plug-in ECU, you need a CANPCB cable (101-0022) and a CANF field-installable CAN plug (101-0020) to reach the ECU's CAN port.

Downloads

• CAN Lambda User Manual (PDF)
• CAN Lambda Quick Start Guide (PDF)
