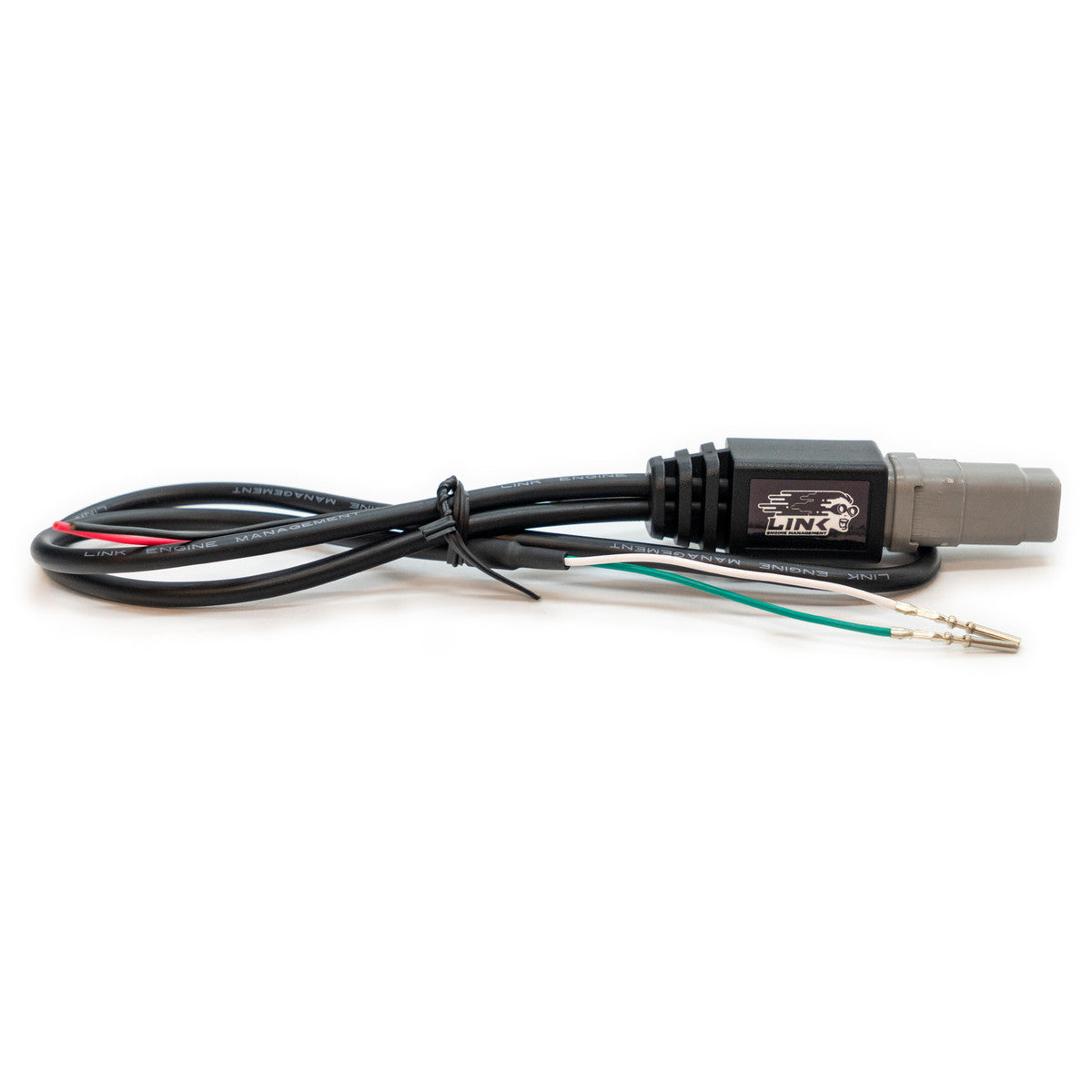

Link CANSS - CAN Connection Cable for G4X/G4+ WireIn ECU’s (ECU Header CAN) - 101-0210

Link CANSS - CAN Connection Cable for Wire-in ECUs (ECU Header CAN) - 101-0210

The Link CANSS is required to add CAN communication to Wire-in ECUs which have CAN accessible via the header.

Suits: G4X/G4+ Atom (CAN1), G4X/G4+ Monsoon (CAN1), G4X/G4+ Storm (CAN2), G4X/G4+ Xtreme (CAN2), G4X/G4+ Fury (CAN2), G5 Voodoo Pro (CAN1), G4+ Force (CAN2), G4+ Thunder (CAN2).

Includes: CANSS - Superseal to DTM4 Cable.

Specifications

• Product Dimensions: 580mm(L)x20mm(W)x15mm(H); 22.83in(L)x0.79in(W)x0.59in(H)
• Product Weight: 45 grams (1.59 ounces)
• Length: 300mm; flying leads 500mm long
• Electrical: Maximum Input Voltage: 300V; Maximum Continuous Current Draw: 3A; Gauges of wire: 20AWG/0.5mm2
• Pinout: Pin 4: CAN H; Pin 3: CAN L; Pin 2: Ground; Pin 1: 12V

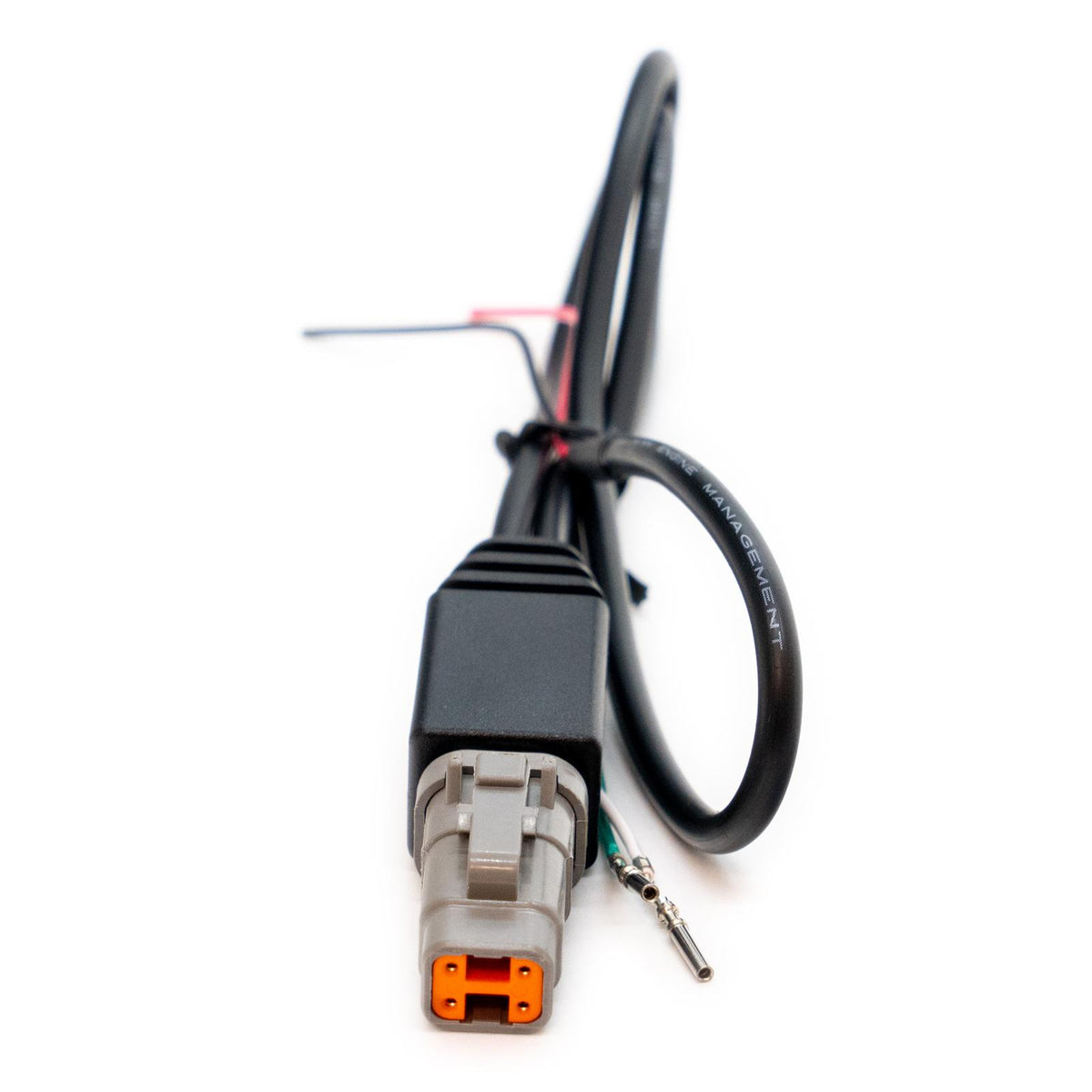

• Connector: DTM4 Male to flying leads; CAN H & L crimped with Superseal terminals; 12V & GND flying leads
