Link Combined Pressure and Temperature Sensor (CPTS) - 101-0320

Link Combined Pressure and Temperature Sensor (CPTS) - 101-0320

A genuine Bosch sensor that reads liquid pressure and temperature at the same point, so one fitting and one connector replace two separate sensors. It saves wiring and space while giving the ECU the data it needs for tuning and engine protection.

Suits: All Link ECUs, plus other aftermarket ECUs with analogue pressure and temperature inputs.

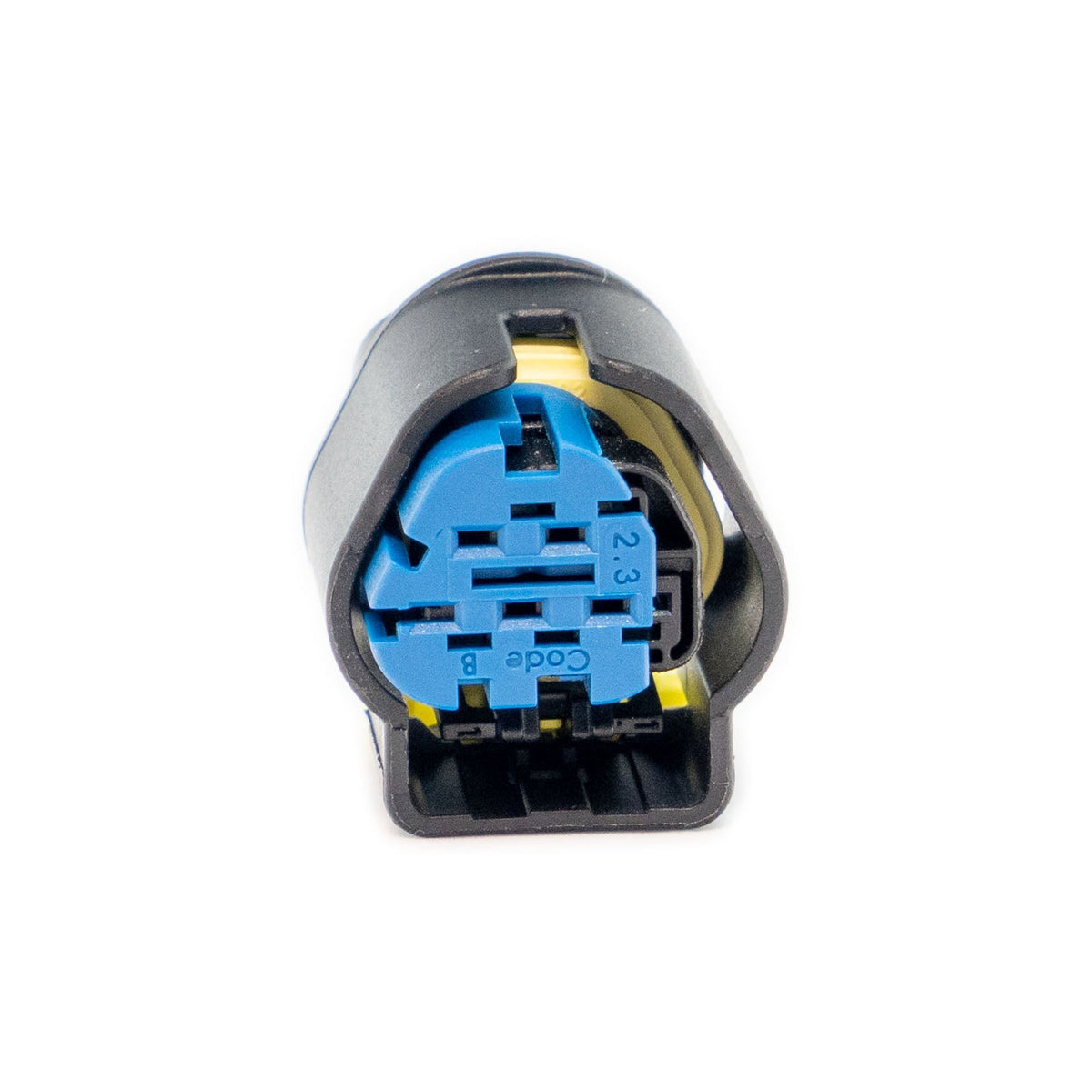

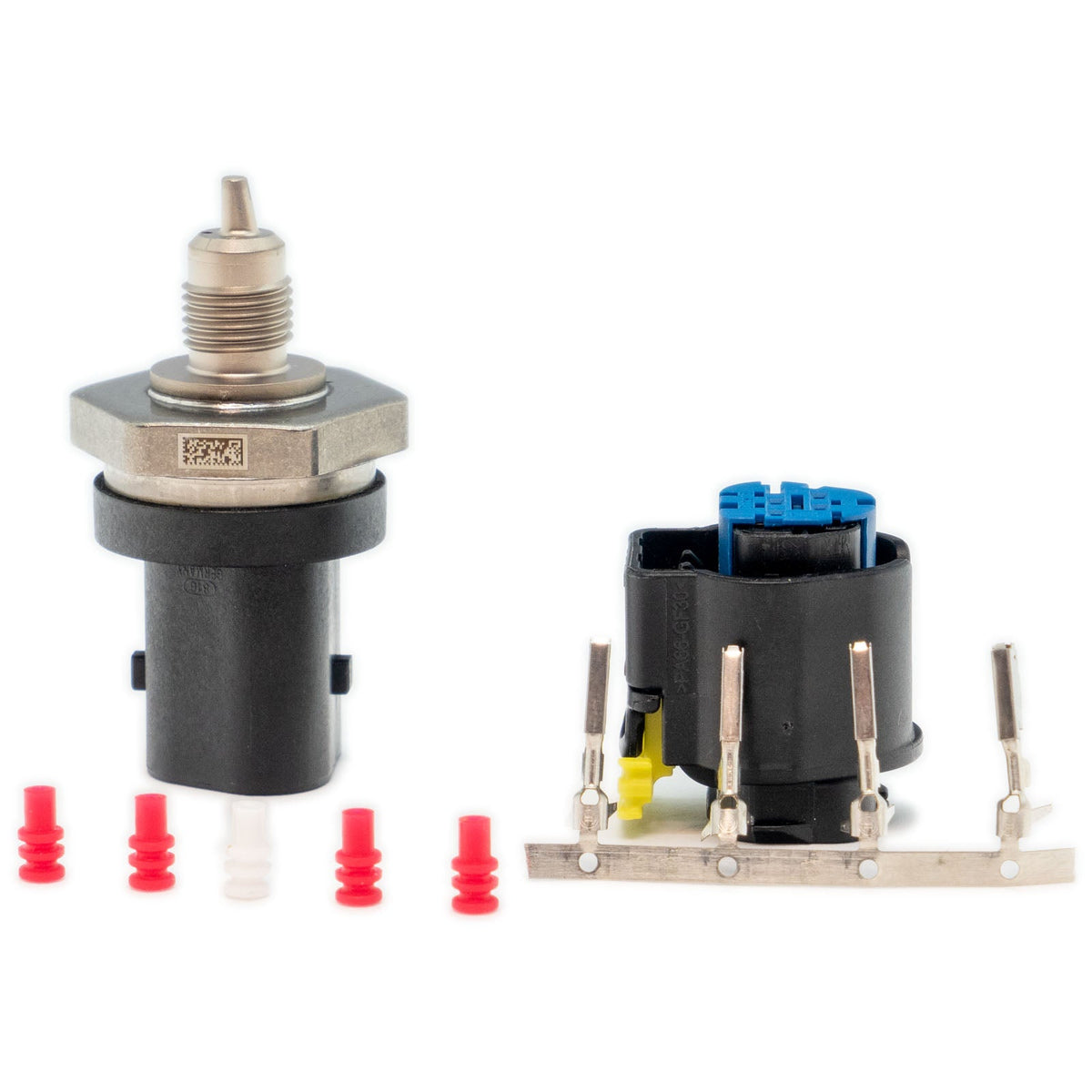

Includes: Bosch liquid pressure/temperature combined sensor, 5-pin Bosch Trapezoid connector kit, printed accessory instructions.

Specifications

• Pressure range: 0 to 10 bar
• Temperature range: -40°C to +140°C
• Thread: M10 x 1 with 45° cone seat
• Operating voltage 4.75-5.25 V, maximum input voltage 5.25 V
• Connector: 5-pin Bosch Trapezoid
• PCLink calibration names: pressure "Bosch 10Bar 0 261 230 340", temperature "Bosch NTC 0 261 230 340"
• Raw pressure calibration: 0.5 V = 0 kPa, 4.5 V = 1000 kPa
• Dimensions: 55 x 30 x 30 mm (2.17 x 1.18 x 1.18 in)
• Weight: 30 g (1.06 oz)

Notes

• Not suitable for water/coolant.
• Maximum permissible overpressure: 20 bar.
• Recommended installation torque: 37.5 ± 2.5 Nm.
• For best performance, install with the sensing tip pointing down, within ±45° of vertical.
• Link recommends installation and setup by an official Link dealer.
