Link Deutsch DTM4 Connector Kit (Female) - 101-0225

Link Deutsch DTM4 Connector Kit (Female) - 101-0225

A female Deutsch DTM4 connector kit that matches Link's CAN bus connections, used to wire CAN devices into a Link CAN bus.

Suits: Link CAN bus connections (DTM4 CAN pinout).

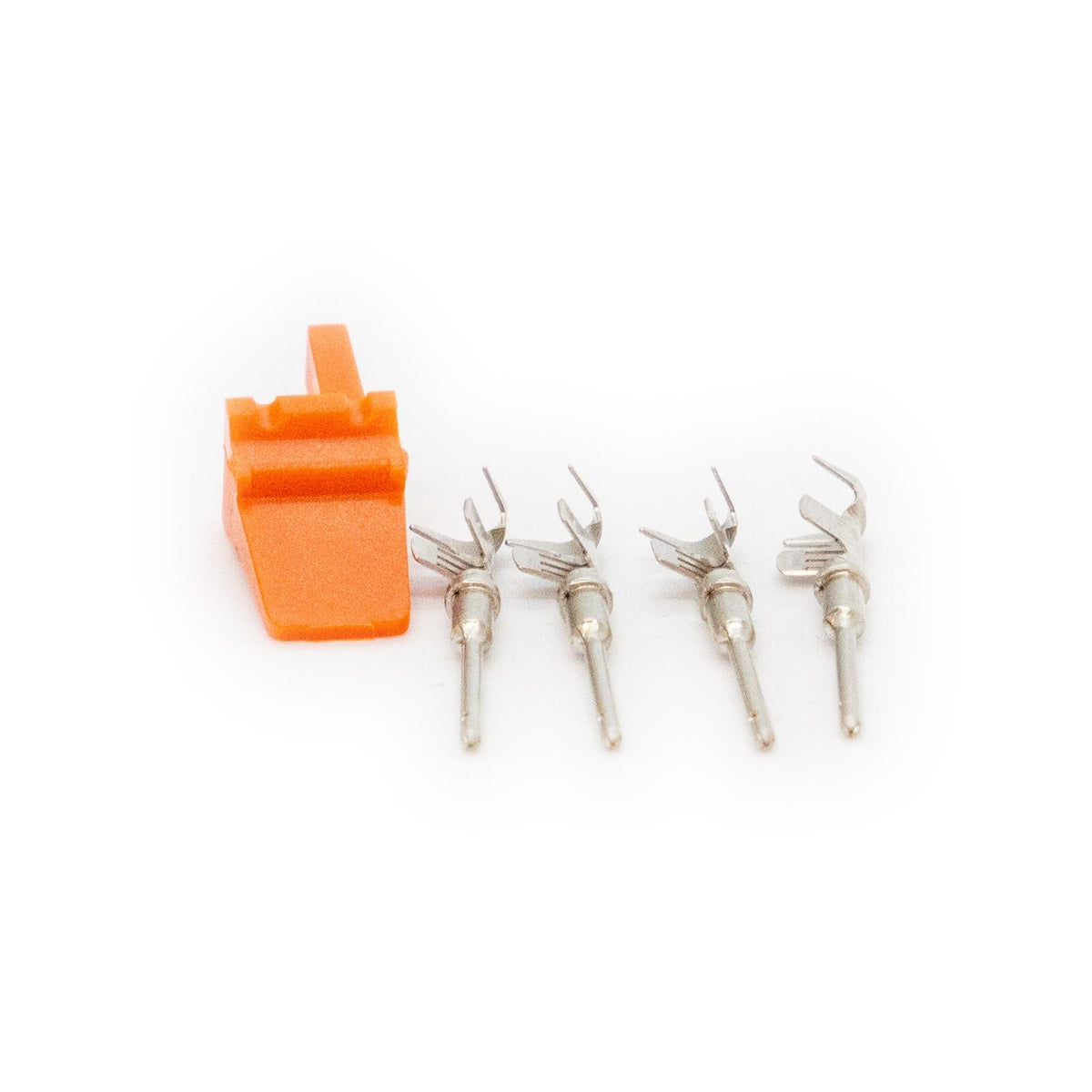

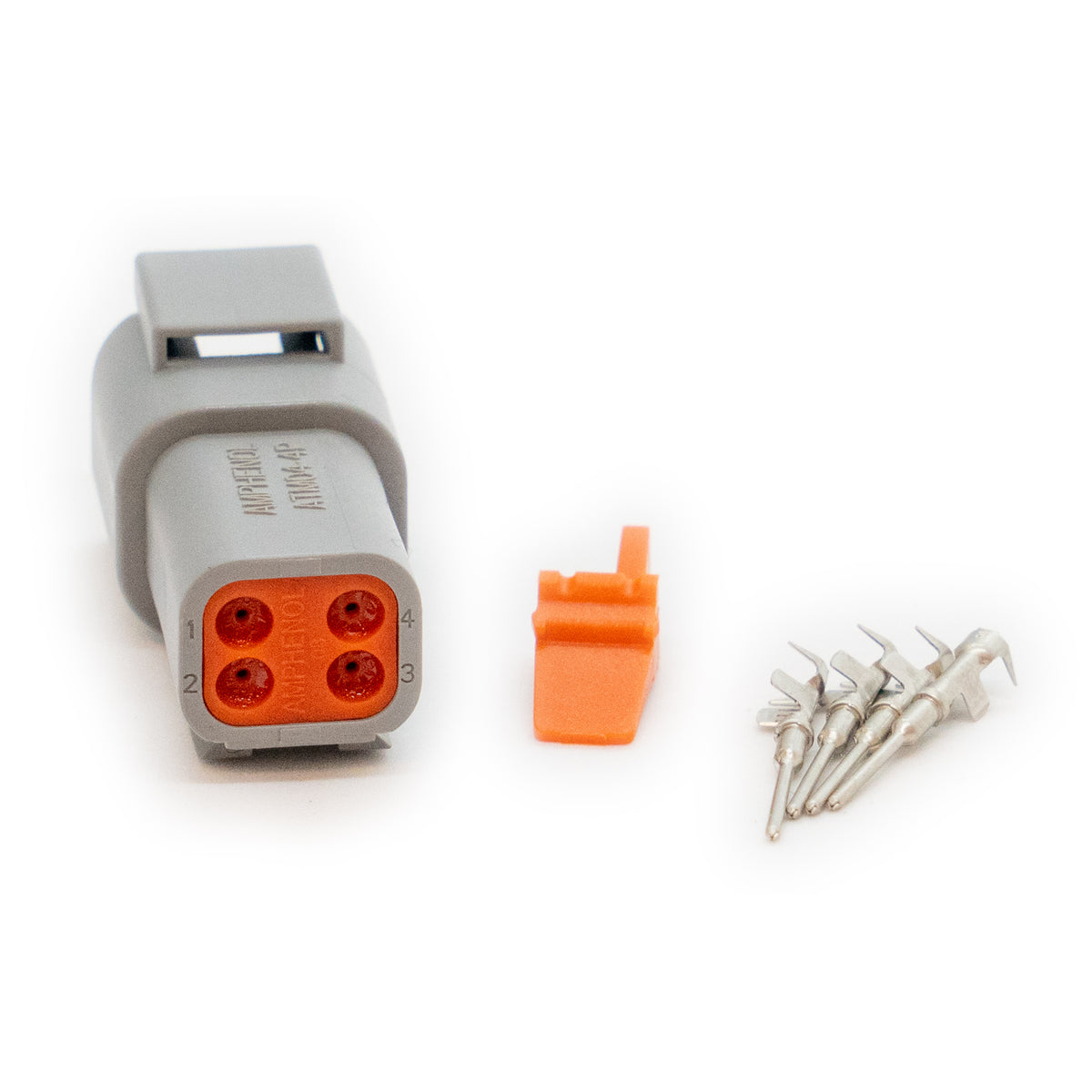

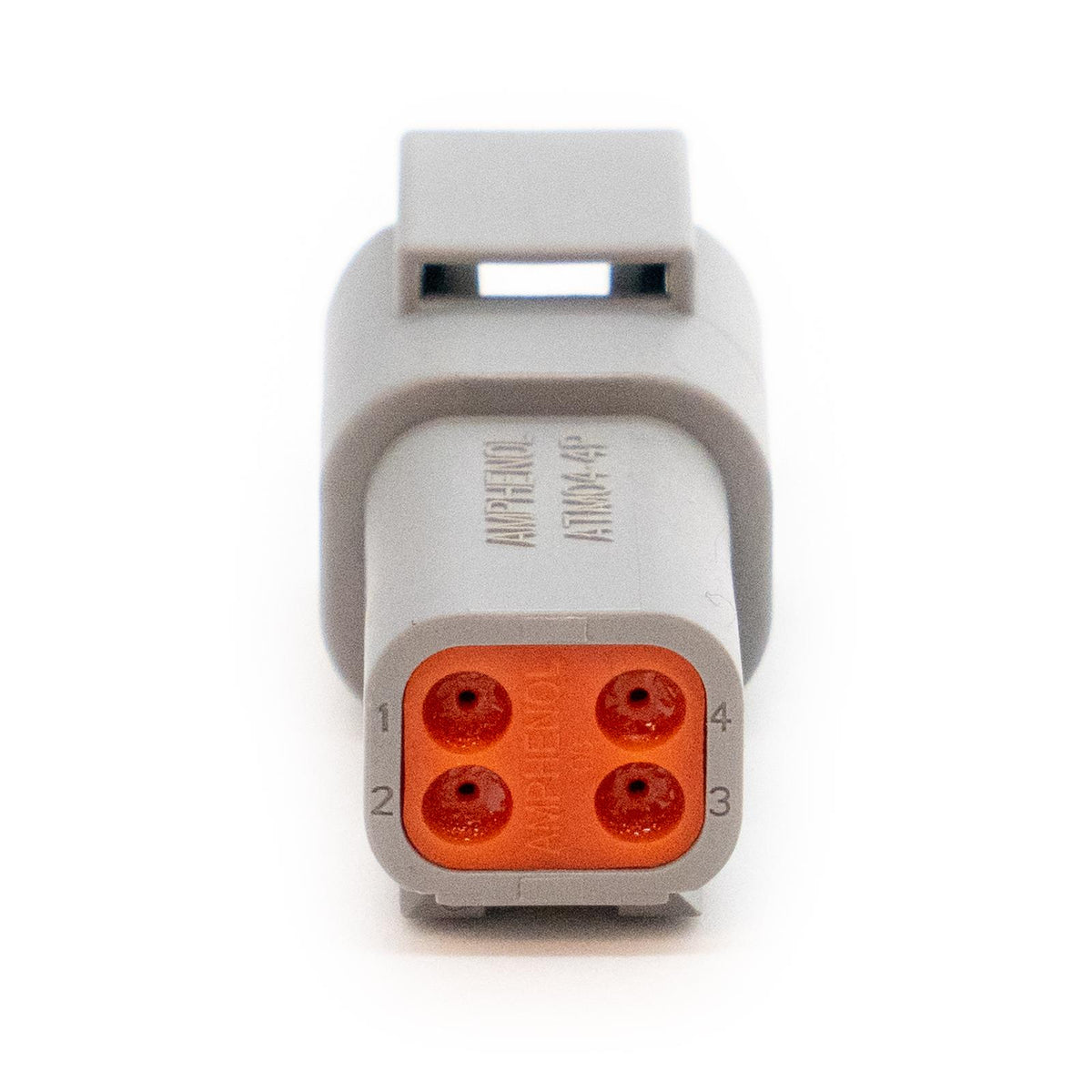

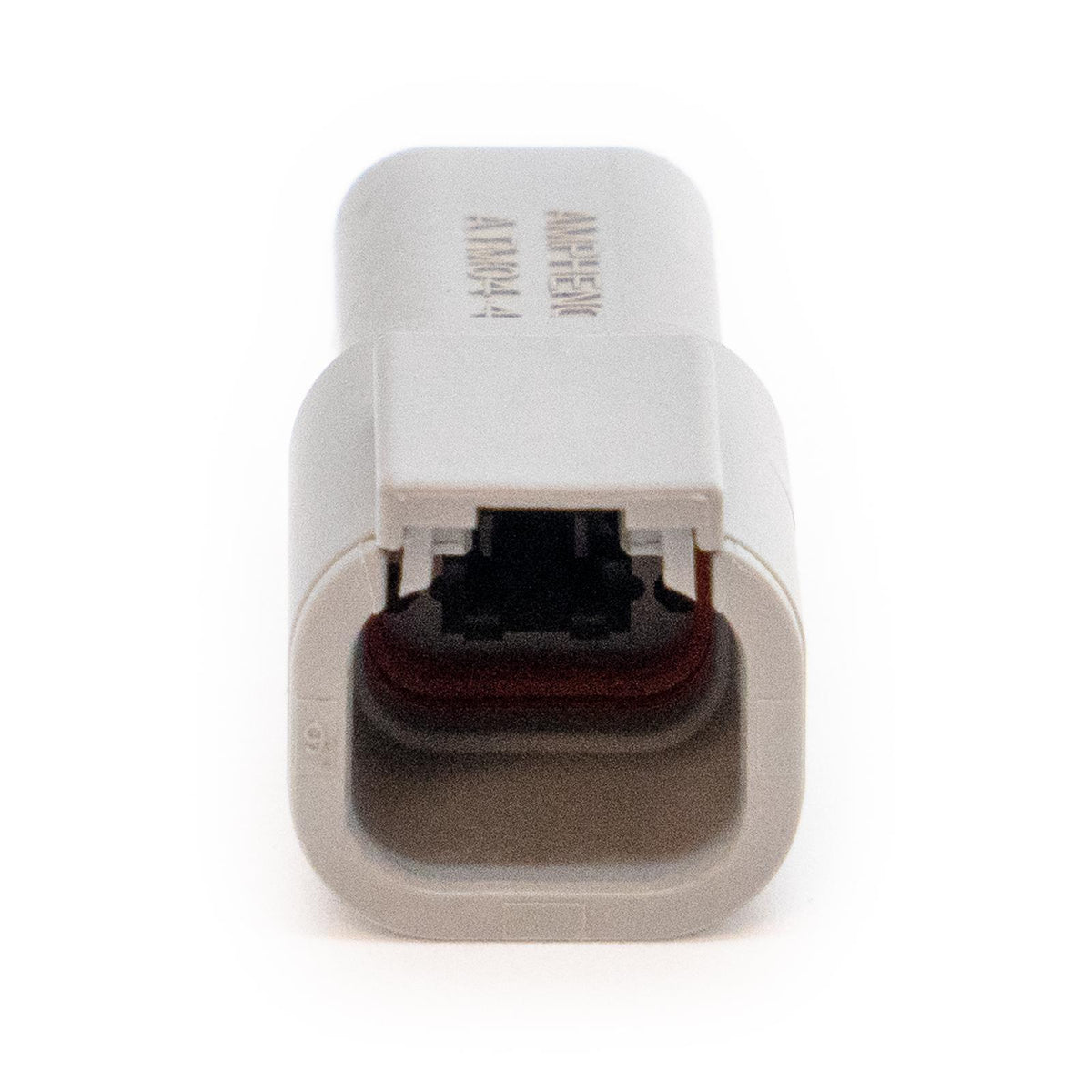

Includes: Female DTM4 housing (receptacle), wedgelock and pins.

Specifications

• Maximum input voltage 250 V, maximum continuous current 7.5 A
• Wire gauge: 22 AWG (0.35 mm²) to 16 AWG (1 mm²)
• Dimensions: 30 x 40 x 20 mm (1.18 x 1.57 x 0.79 in)
• Weight: 10 g (0.35 oz)

Notes

• Link recommends installation and setup by an official Link dealer.

You may also need

The matching DTM4 plug kit (male) 101-0156 and a crimping tool CTSS (101-0229).
