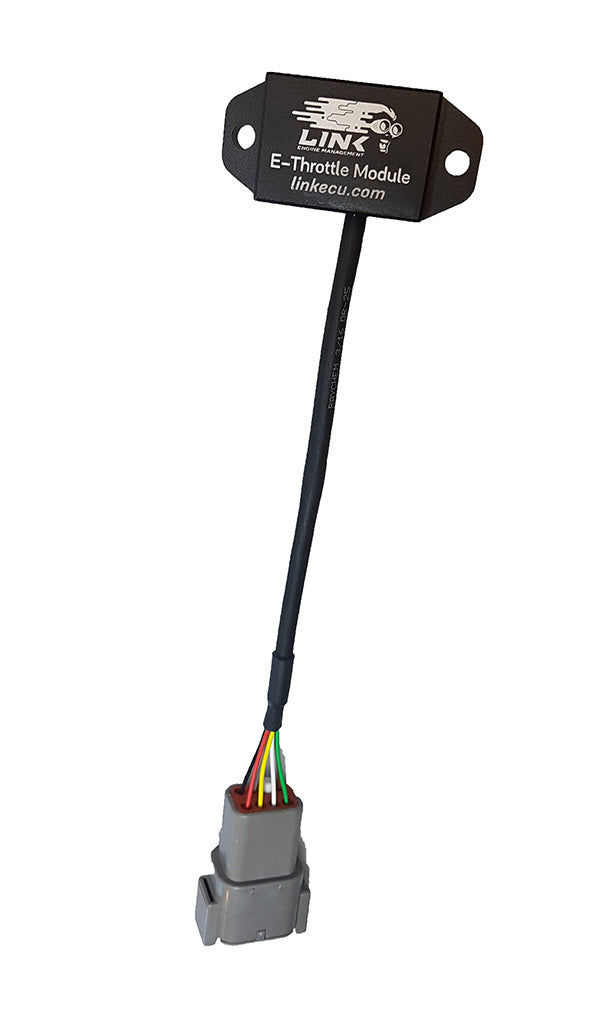

Link E-throttle (RET) - 115-1000

The Link Remote E-throttle Module (RET) adds electronic throttle (drive-by-wire) control to compatible Link ECUs that do not have onboard e-throttle capability.

Designed and manufactured by LinkECU, it enables precise electronic throttle control for improved drivability, throttle response and advanced engine management features.

It can also provide secondary e-throttle control for compatible ECUs with dual electronic throttle applications.

Models Supported

• Link G4+ Storm, Xtreme, Fury and Plug-in ECUs.
• Link G4X MonsoonX, StormX and Plug-inX ECUs.
• Link G4X XtremeX and FuryX ECUs for secondary e-throttle applications.
• Single and dual electronic throttle applications.

Warnings

• Requires three ECU auxiliary outputs for operation.
• The enable input must be driven low to activate the module.

Specifications

The Link Remote E-throttle Module has the following specifications:

• Adds electronic throttle (drive by wire) control to compatible Link ECUs.
• Supports primary or secondary e-throttle control.
• Designed and manufactured by LinkECU.
• Compact remote-mount design.
• Requires three ECU auxiliary outputs.
• Includes wiring loom.
• Electrical: Operating Voltage Range: 6-23V; Maximum Input Voltage: 37V; Maximum Continuous Current Draw: 6A

Manuals & Install Guides

• Wiring Diagram (Example)
