Link EVOLink - EVO9X - 204-4000

Link EVO9X Plug-In ECU (Mitsubishi EVO IX, E-Throttle) - 204-4000

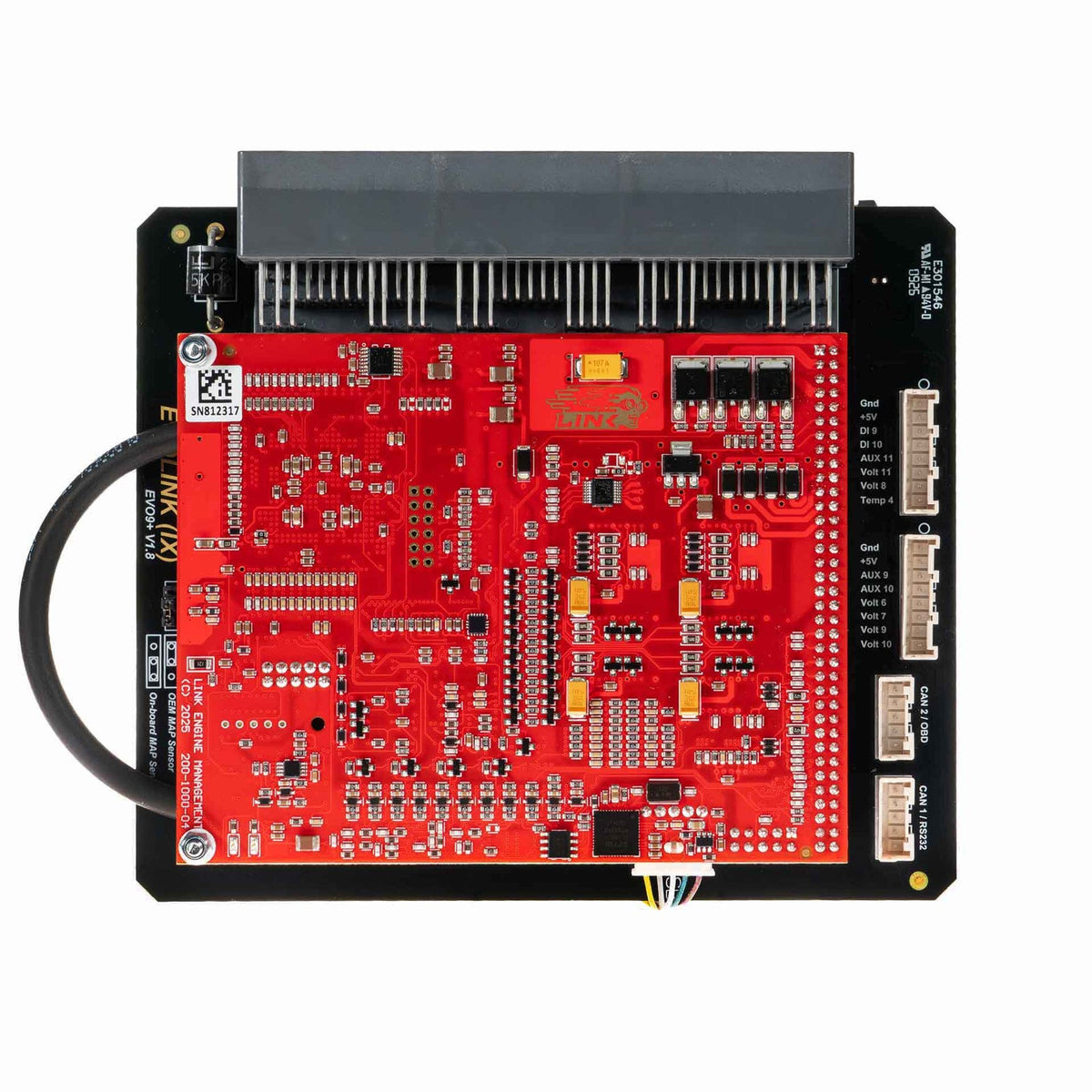

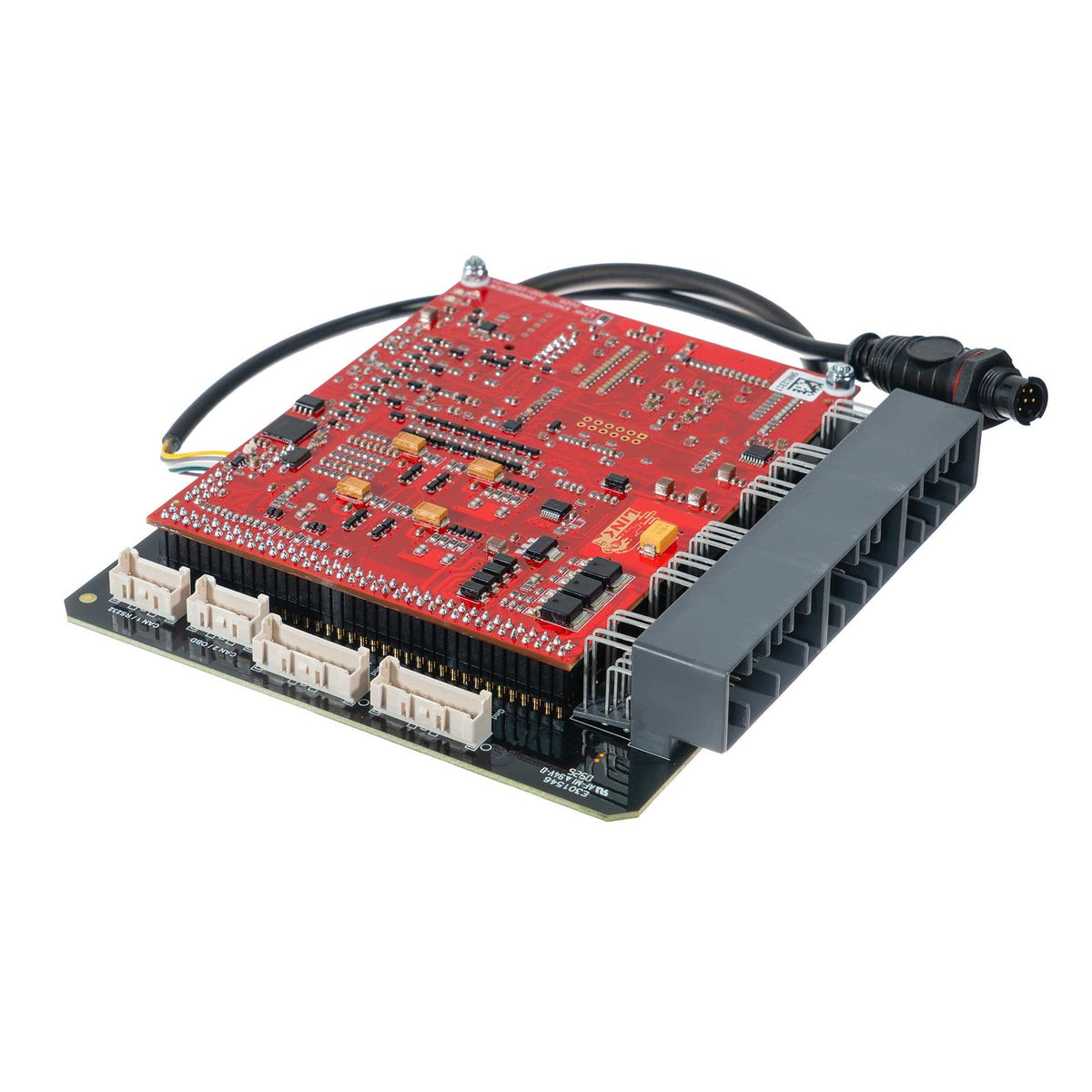

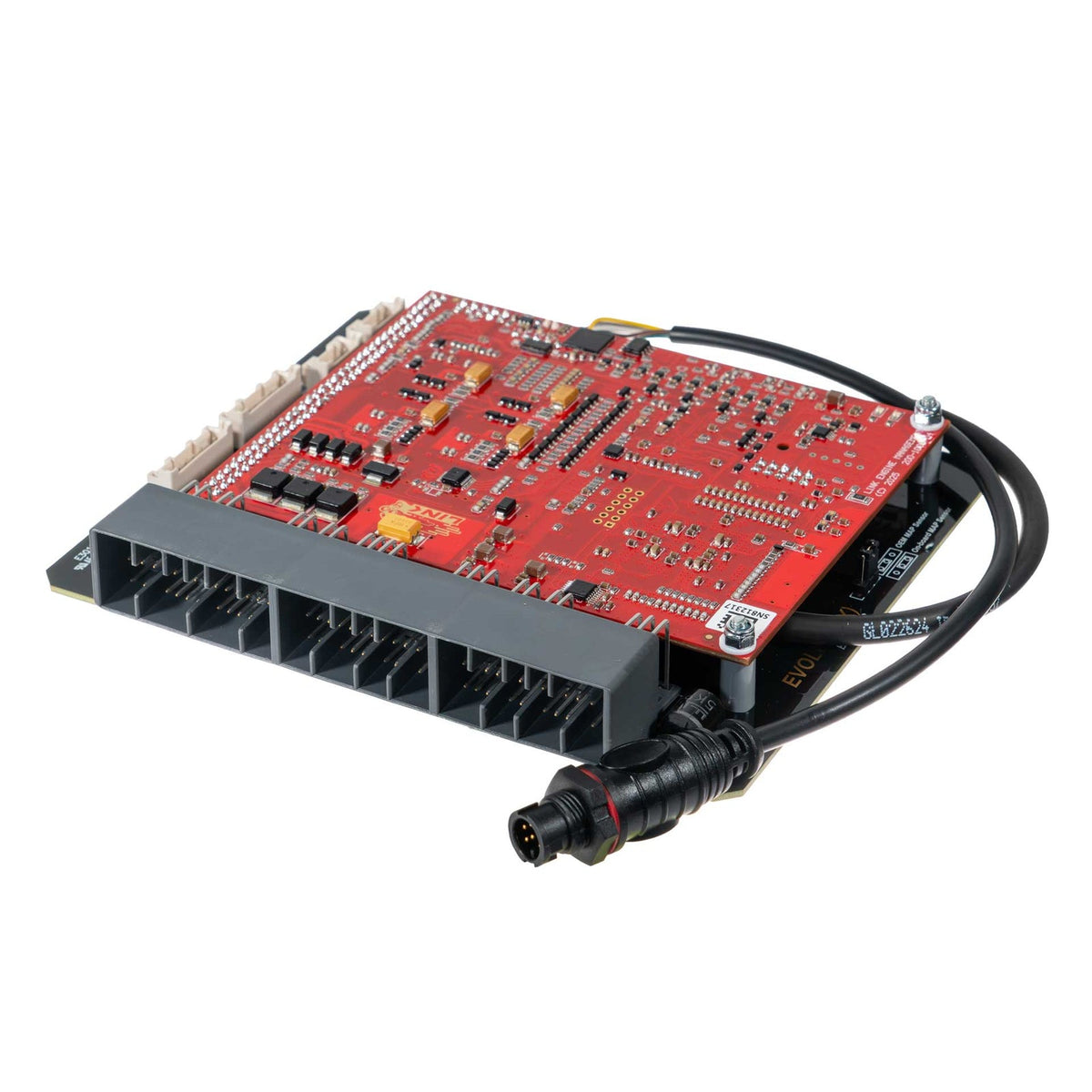

The EVO9X is a G4X plug-in ECU for the Lancer Evolution IX and 3-plug EVO VIII. It mounts in the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, keeps the factory functions and includes a startup map and a built-in MAP sensor.

It runs Link's G4X platform with the full set of tuning and motorsport functions.

Suits: Mitsubishi CT9A Lancer Evolution 9 (2005-2007); CT9A Evolution 8 (2003-2005) and any EVO 8 with a 3-plug ECU. Manual transmission only.

Includes: G4X EVO9X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card, EVO9 end plate.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Onboard MAP sensor
• Onboard logging: 512 MB, 100 kHz maximum total rate, 250 channels
• E-throttle control: single
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 8.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the EVO9X installation manual

Notes

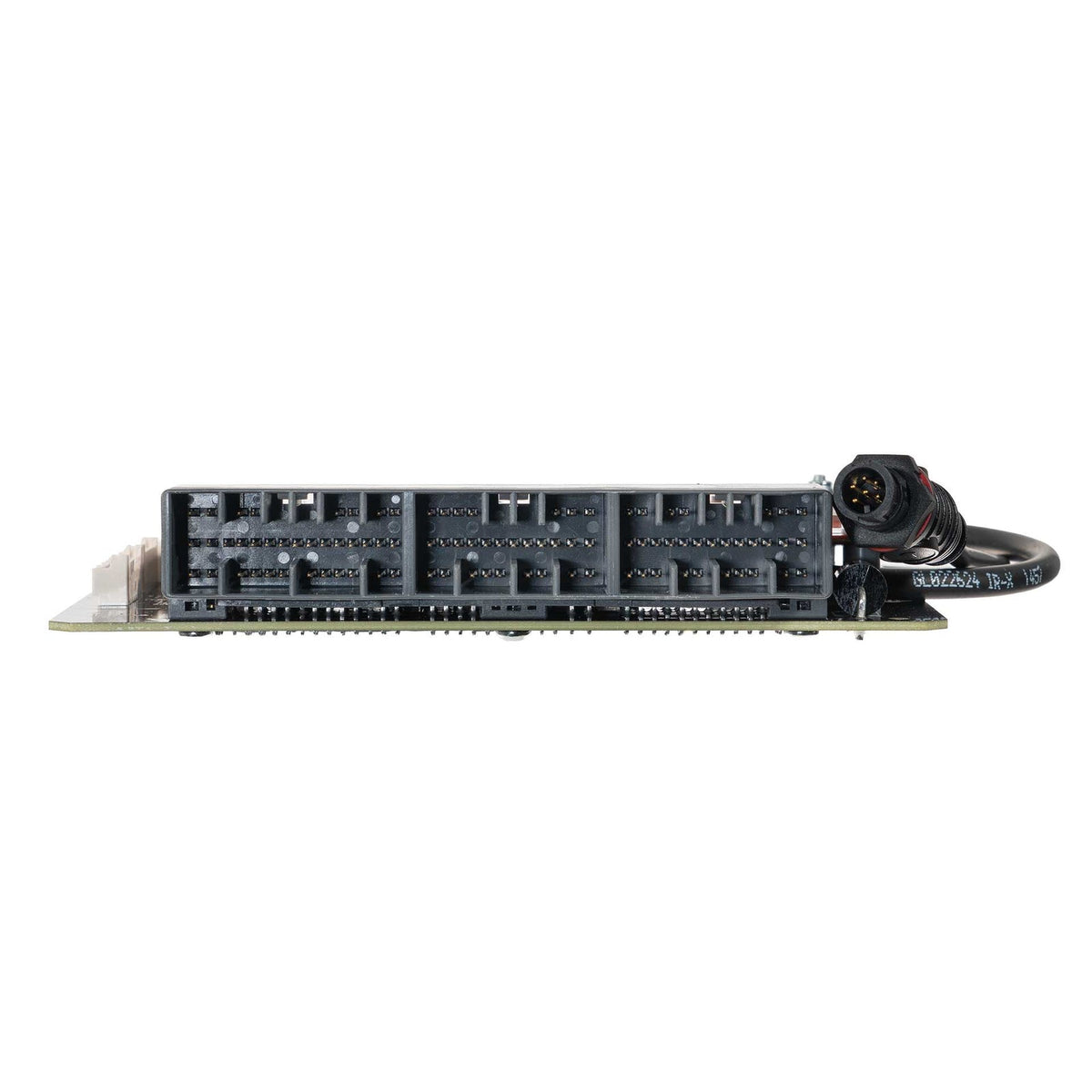

• Check that your connector matches the header shown in the photos before ordering. 4-plug EVO 8 cars use the EVO8X (203-4000).
• An expansion connector is required before e-throttle can be used.
• Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

Downloads

• EVO9X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
