Link EVO3X Plug-In ECU (Mitsubishi EVO I-III) - 202-4000

The EVO3X is a G4X plug-in ECU for the Lancer Evolution I to III. It fits the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, and ships with a startup map and an onboard MAP sensor.

It runs the G4X platform and PCLink software, with motorsport functions such as nitrous, launch control, anti-lag, traction control and paddle shift.

Suits: Mitsubishi Lancer Evolution 1, 2 and 3; Mitsubishi GSR 1.8L 4G62. Manual transmission only.

Includes: G4X EVO3X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Onboard MAP sensor
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 3.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the EVO3X installation manual

Notes

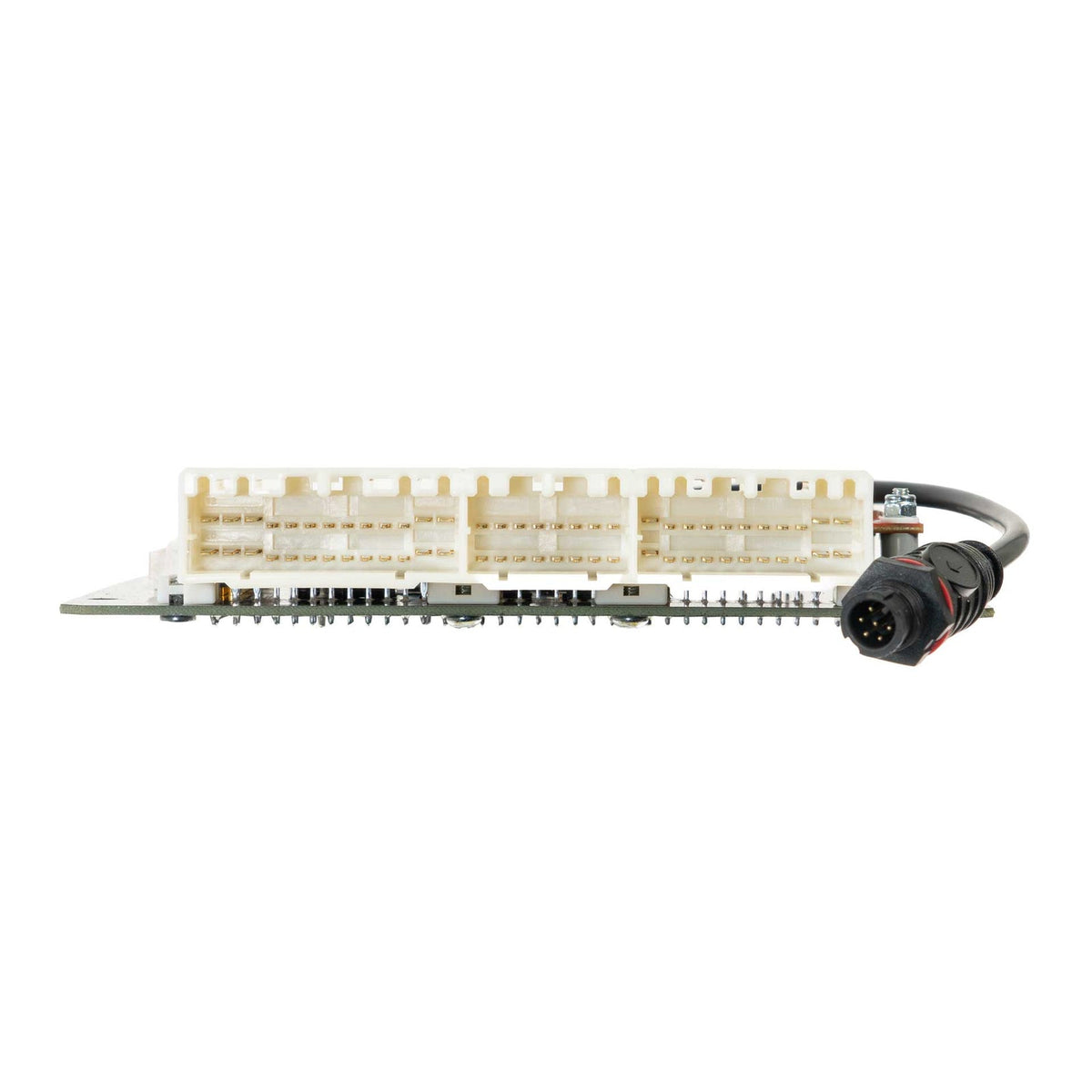

• Check that your connector matches the header shown in the photos before ordering.
• E-throttle needs a modification before it can be used.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

Downloads

• EVO3X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
