Link EVOLink (IV-VIII) - EVO8X - 203-4000

Link EVO8X Plug-In ECU (Mitsubishi EVO IV-VIII, E-Throttle) - 203-4000

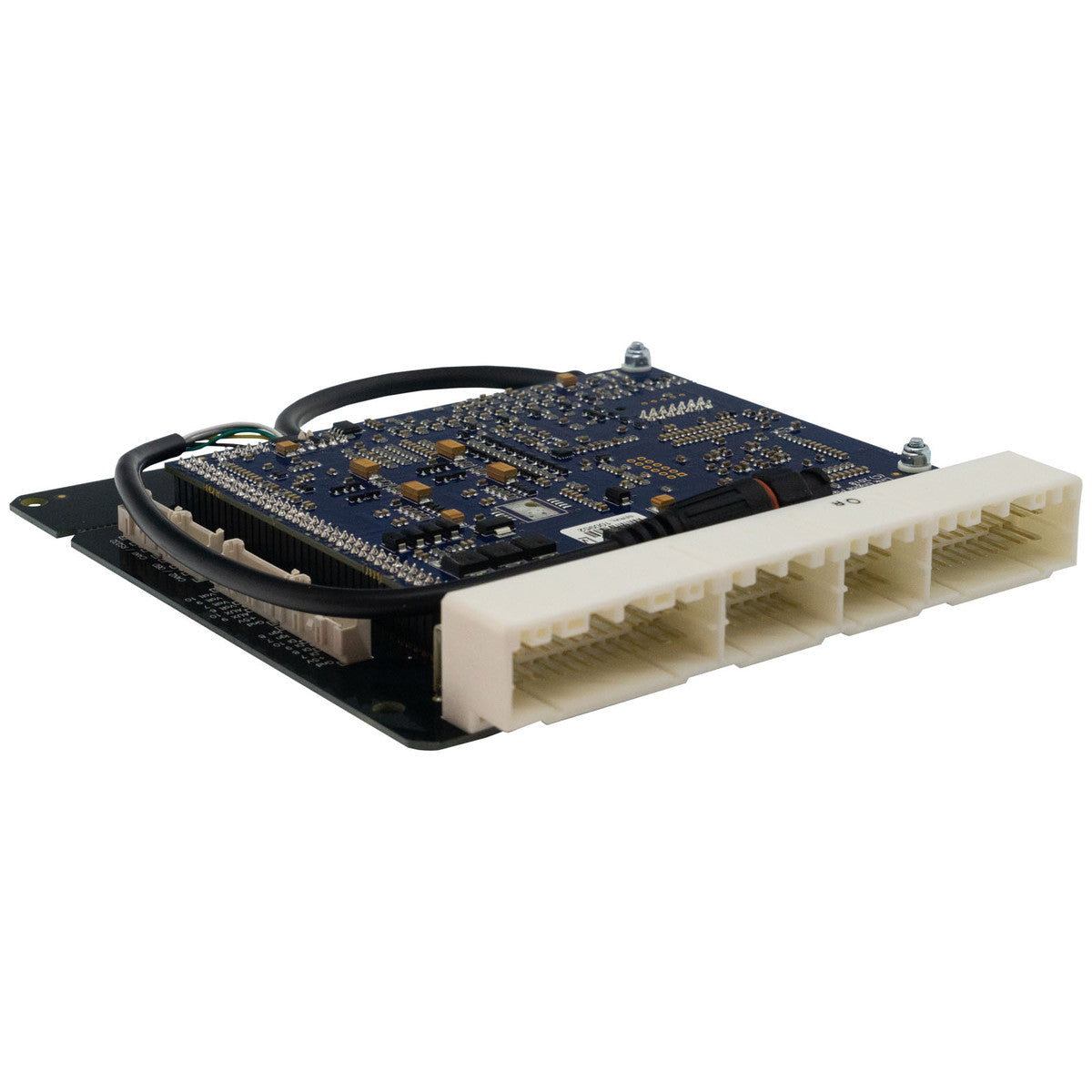

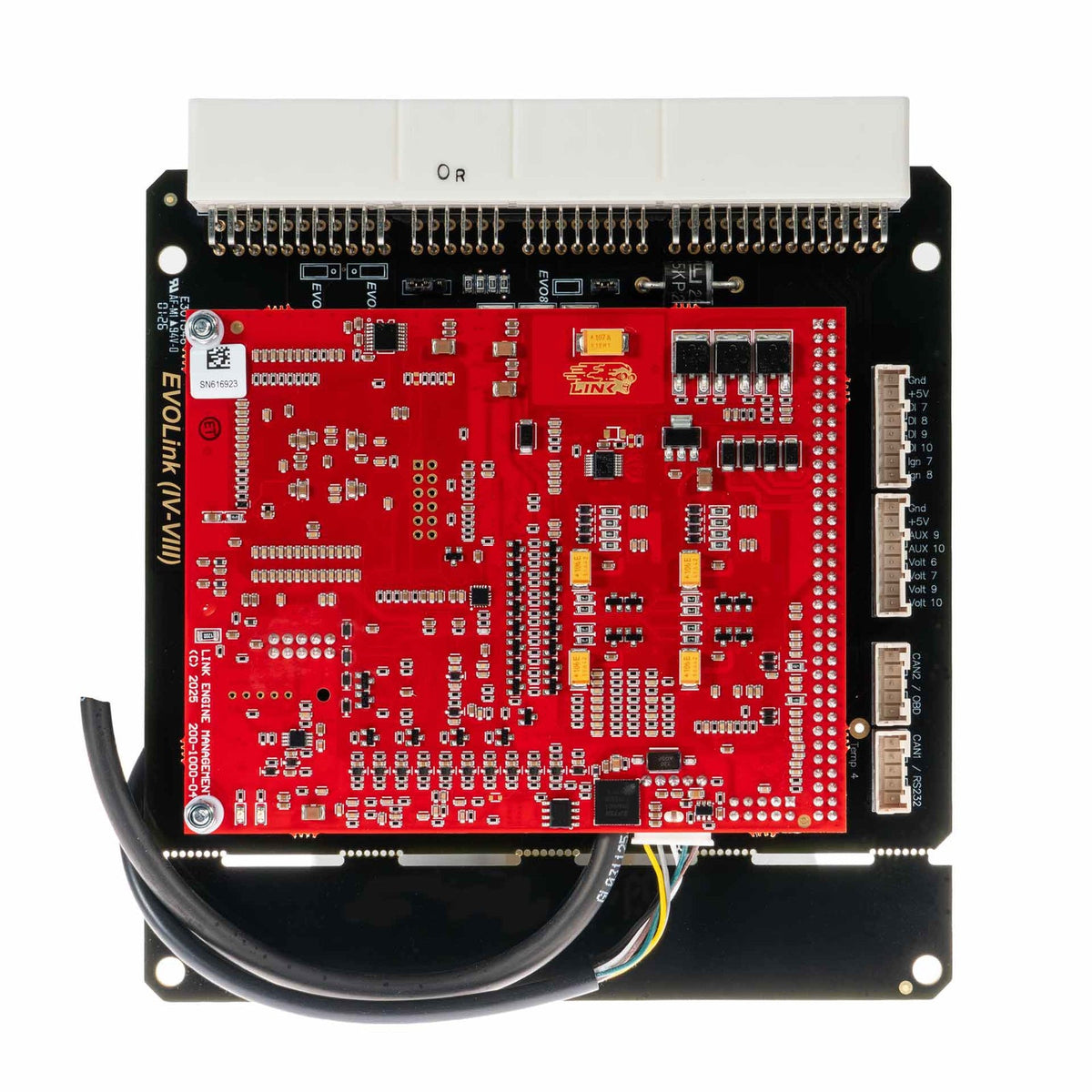

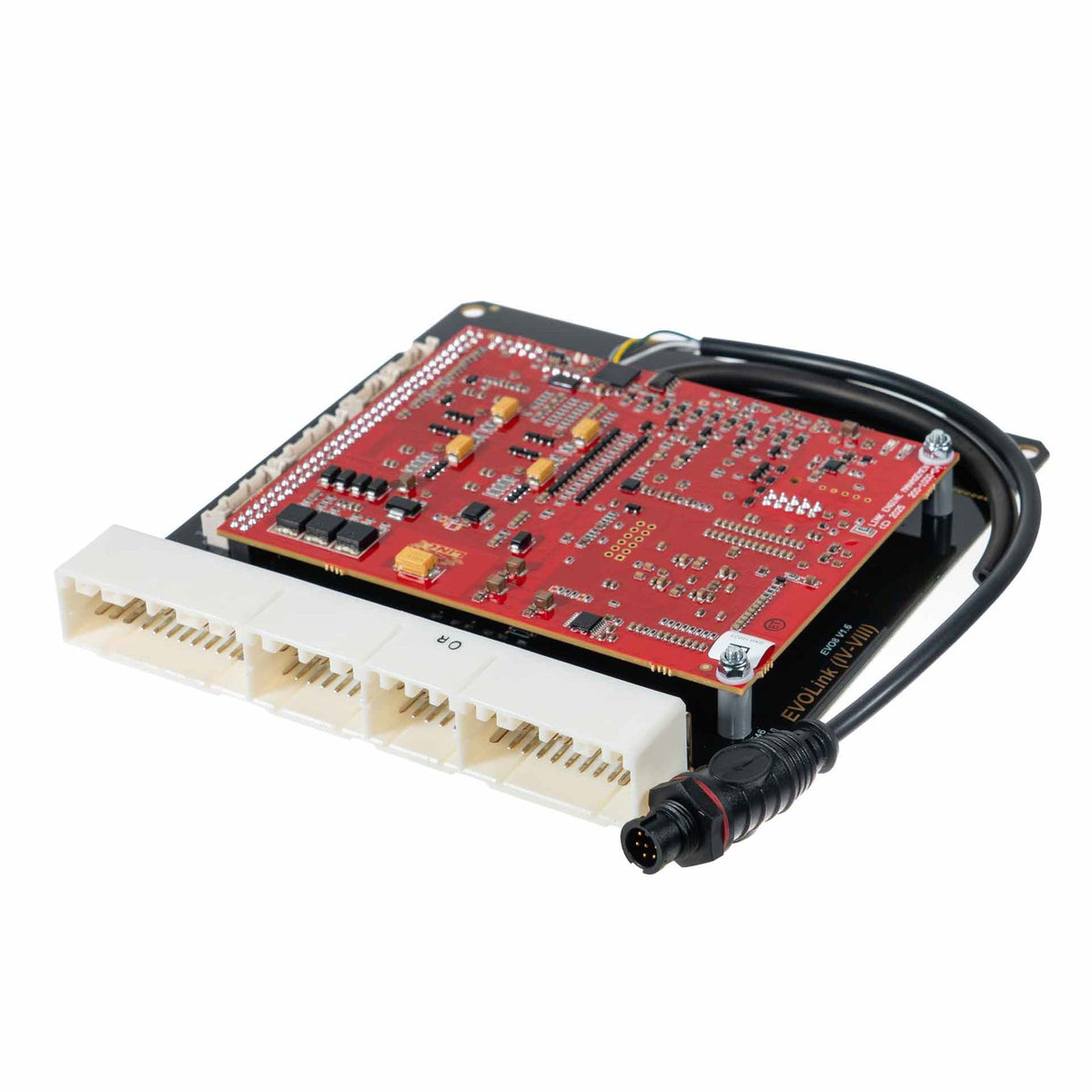

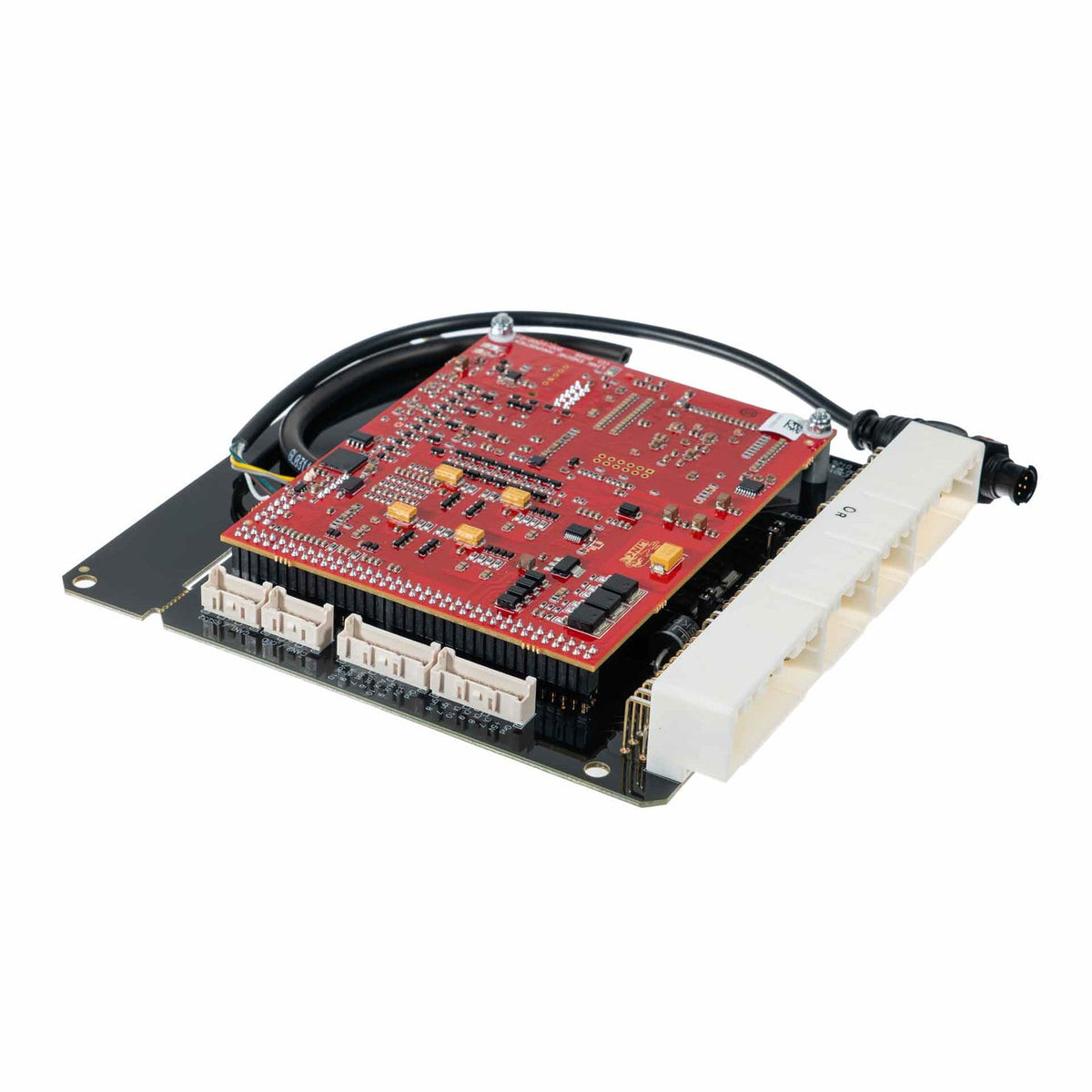

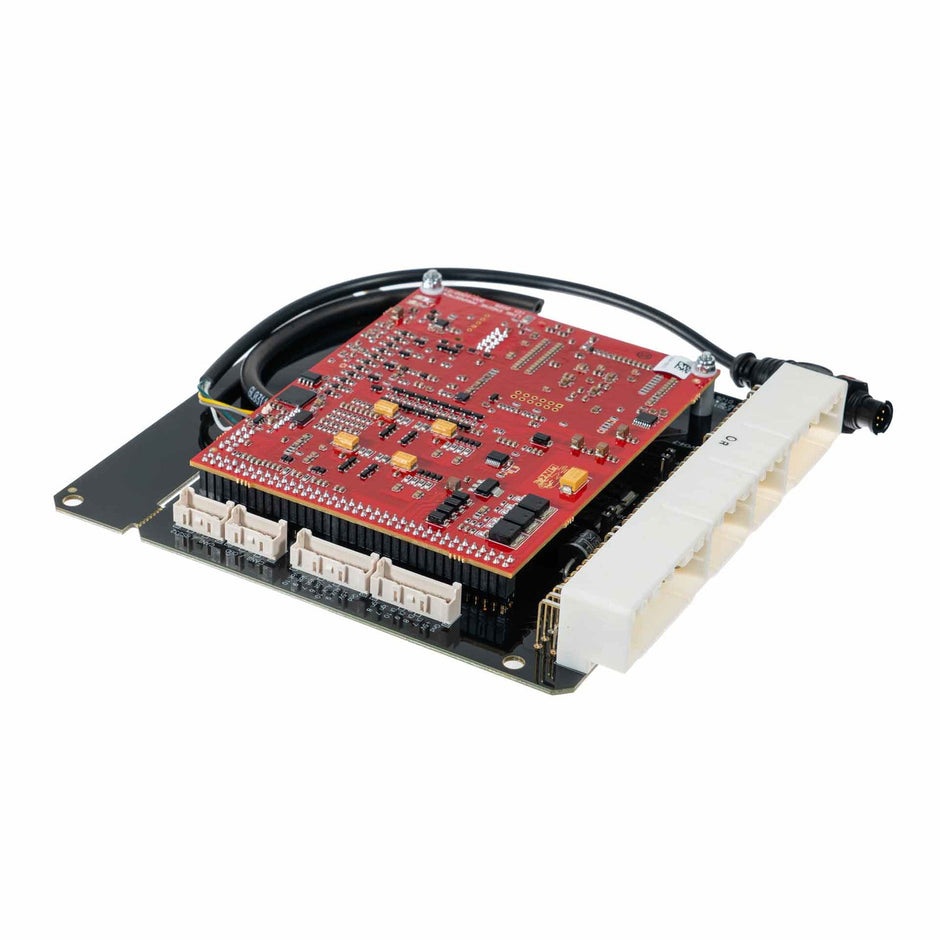

The EVO8X is a G4X plug-in ECU for the Lancer Evolution IV to VIII. It fits the factory ECU location using the original mounts, loom and connectors, and includes a built-in MAP sensor and a startup map.

Motorsport functions include nitrous, launch control, anti-lag, cruise and traction control, race timer/power management, and gear and paddle shift control.

Suits: Mitsubishi CN9A Lancer Evolution 4; CP9A Evolution 5, 6 and 6.5 (TME); CT9A Evolution 7; CT9A Evolution 8 (4-plug ECU models only); Eclipse G2 GS-T 1994-1999. Manual transmission only.

Includes: G4X EVO8X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card, EVO4-8 end plate.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Onboard MAP sensor
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 8.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the EVO8X installation manual

Notes

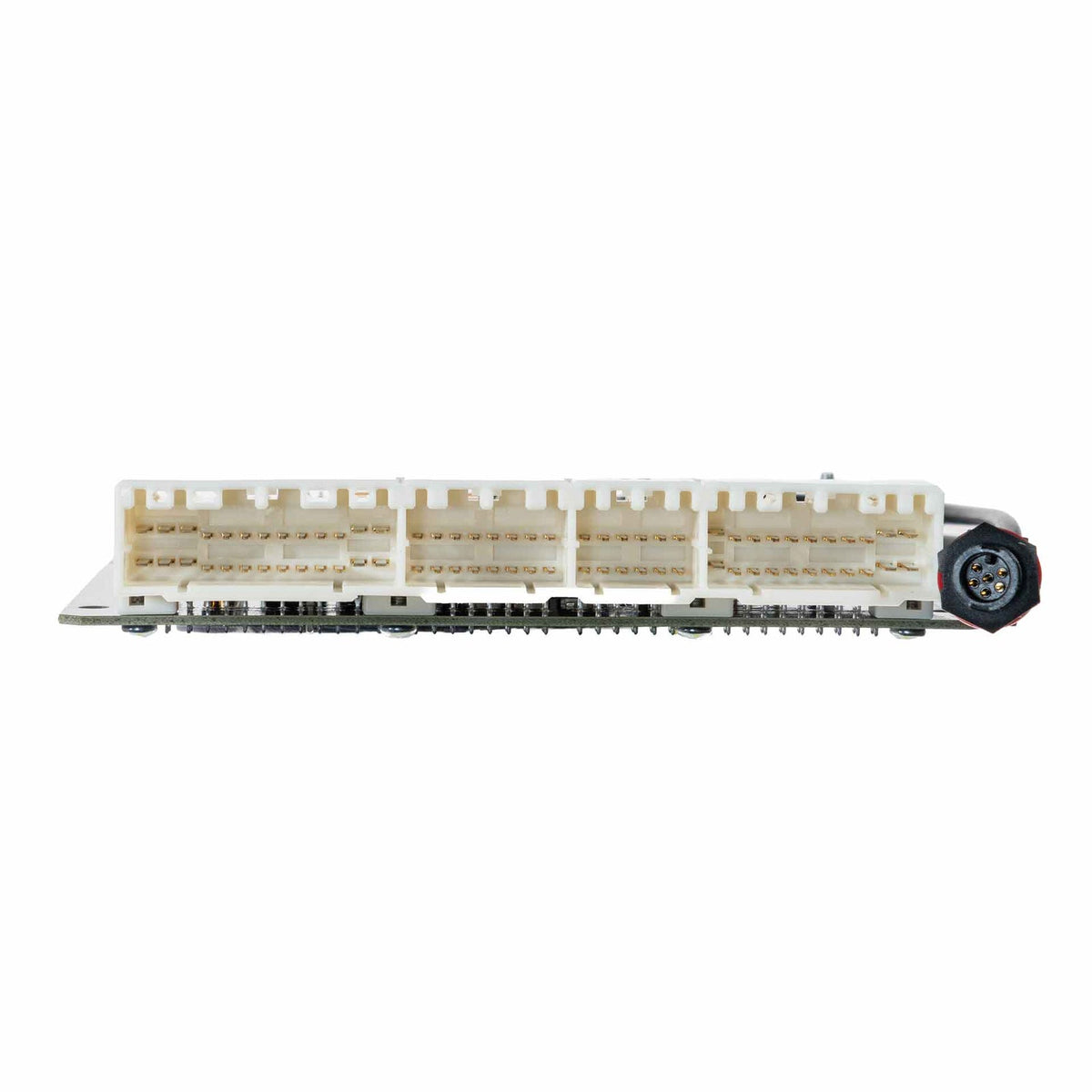

• Check that your connector matches the header shown in the photos before ordering. EVO 8 cars with a 3-plug ECU need the EVO9X (204-4000).
• An expansion connector is required before e-throttle can be used.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

Downloads

• EVO8X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
