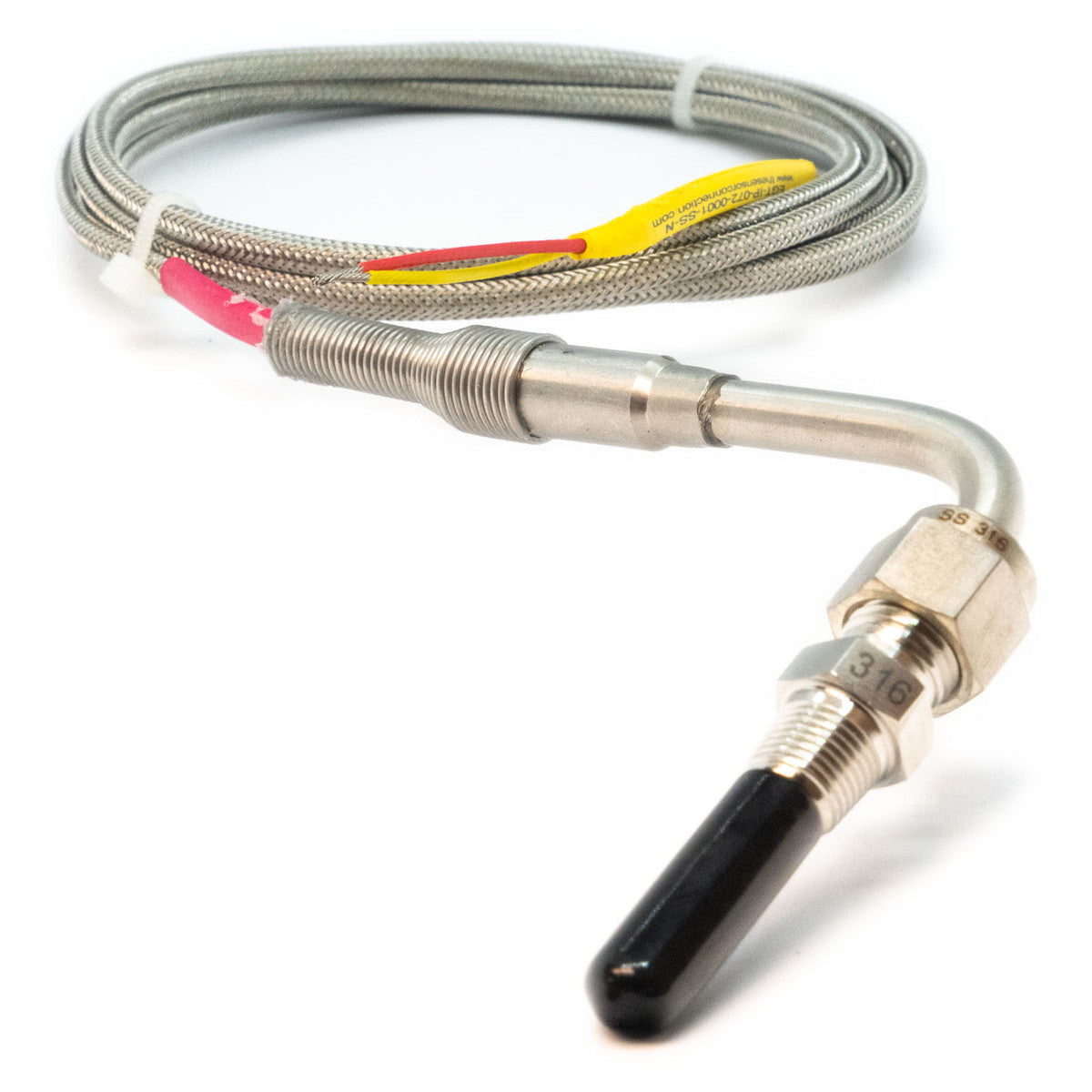

Link Exhaust Gas Temperature Probe (EGT) - 101-0146

Link Exhaust Gas Temperature Probe (EGT) - 101-0146

An extreme-duty, fast-response Type K thermocouple for accurate exhaust gas temperature measurement in high-performance and motorsport use. The exposed sensing junction responds quickly during tuning, while the Inconel sheath, stainless overbraided cable and adjustable 316 stainless compression fitting stand up to racing conditions.

Suits: Link G4+ Thunder (two dedicated EGT inputs); other Link ECUs via a thermocouple amplifier such as the Link TCC EGT-to-CAN modules; other aftermarket ECUs that support Type K thermocouples.

Includes: EGT probe, K-type thermocouple connector (compatible with Link EGT-to-CAN controllers), printed instructions.

Specifications

• Type K thermocouple, ungrounded exposed junction
• Temperature range: -100°C to 1300°C
• Accuracy: ±0.4% of reading (approx. ±1.1°C)
• Response time: 150 ms
• Probe diameter 6.35 mm (1/4"), Inconel outer sheath
• Mounting: adjustable 316 stainless compression fitting, 1/8"-27 NPT male thread
• Cable: 1.8 m stainless steel overbraided; yellow = positive (+), red = negative (-)
• Supports EGT-based individual cylinder fuel trim and engine protection
• Dimensions: 1950 x 15 x 85 mm (76.77 x 0.59 x 3.35 in)
• Weight: 105 g (3.70 oz)

Notes

• A thermocouple amplifier is needed for Link ECUs without a suitable onboard thermocouple input.
• Observe polarity: yellow positive, red negative.
• Link recommends installation and setup by an official Link dealer.

You may also need

A Link EGT-to-CAN module: TCC04 (101-0384), TCC06 (101-0386) or TCC08 (101-0388).

Downloads

• EGT Probe User Manual (PDF)
• EGT Probe Mounting Guide (PDF)
