Link G4 KnockLink Kit - Includes Knock Sensor+Loom (G4KNLK) - 114-2000

Link G4 KnockLink Kit (G4KNLK) - 114-2000

A complete, self-calibrating visual knock warning system. The KnockLink uses digital signal processing to learn the engine's normal noise profile, then flags knock (detonation) with a bright LED warning, with no gain or frequency setup needed.

It runs independently of the ECU, and this kit adds a knock sensor and loom so it is ready to install.

Suits: Link knock sensors and OEM knock sensors.

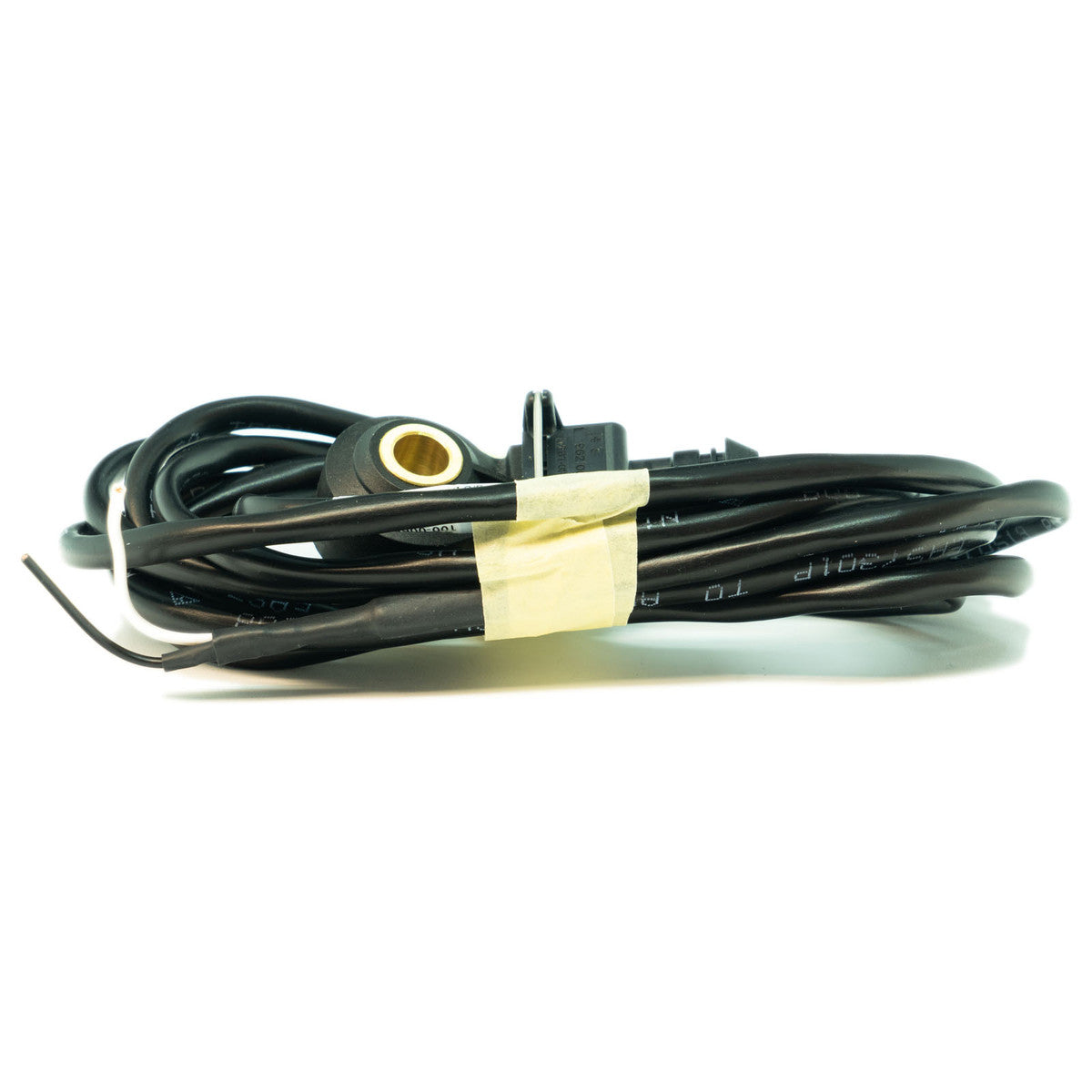

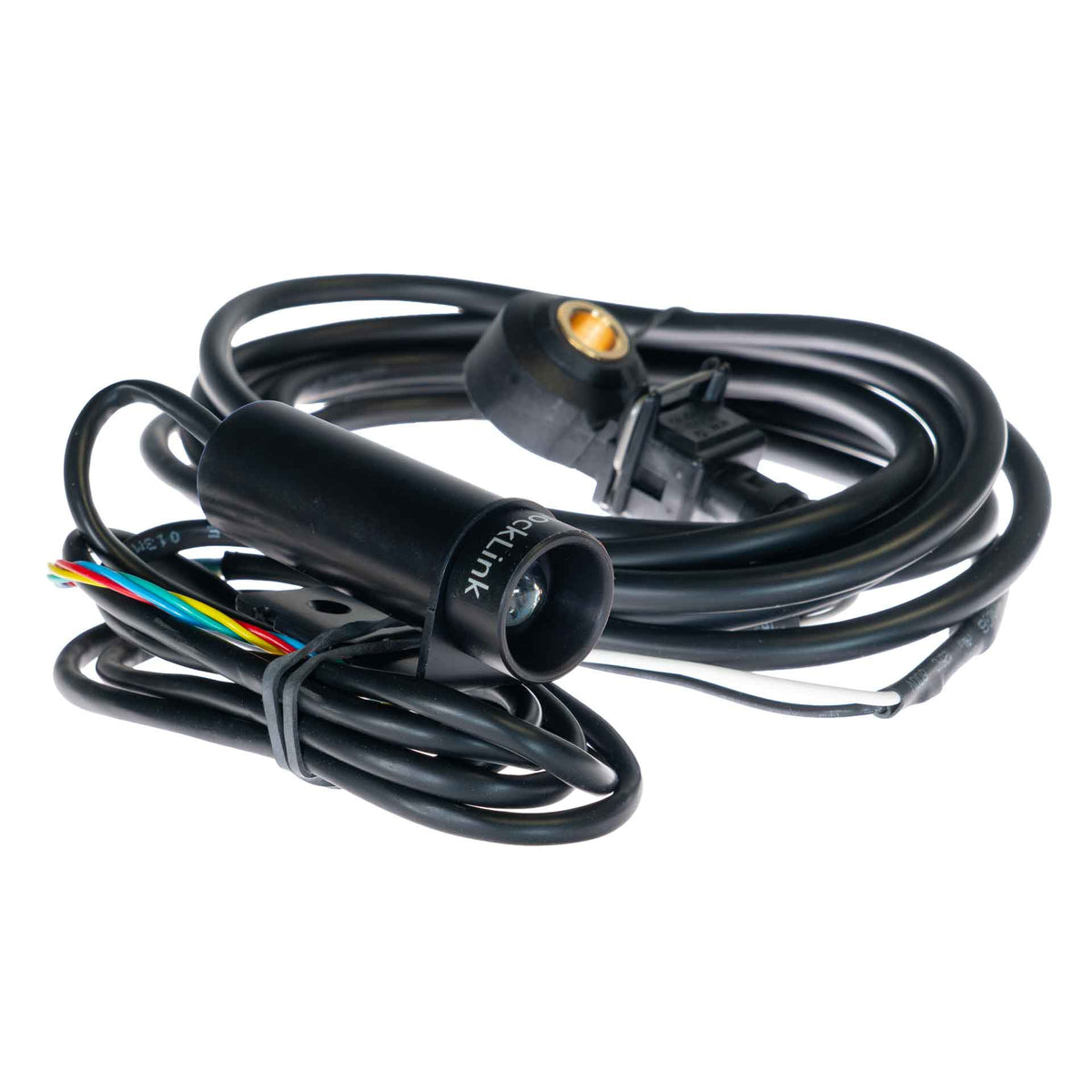

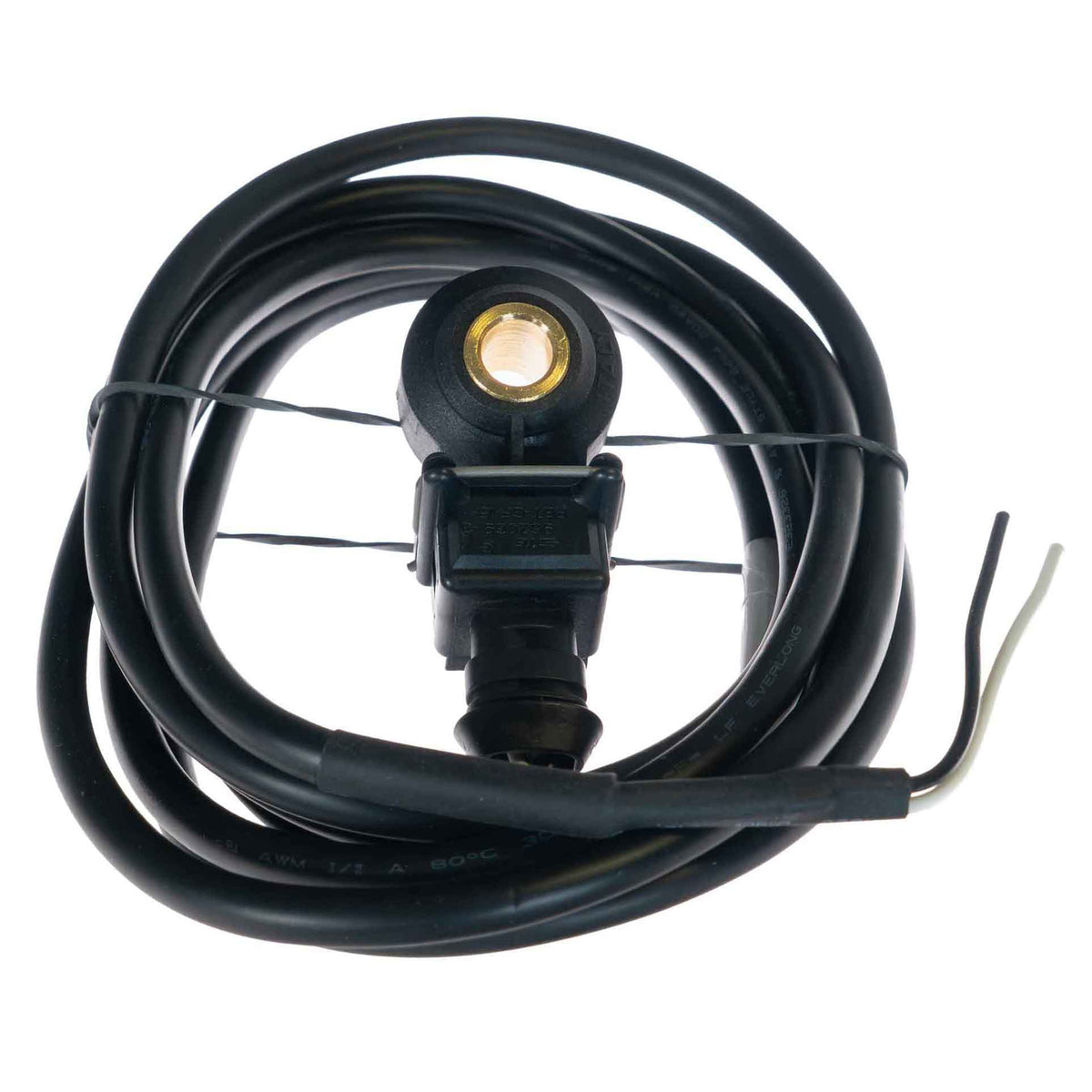

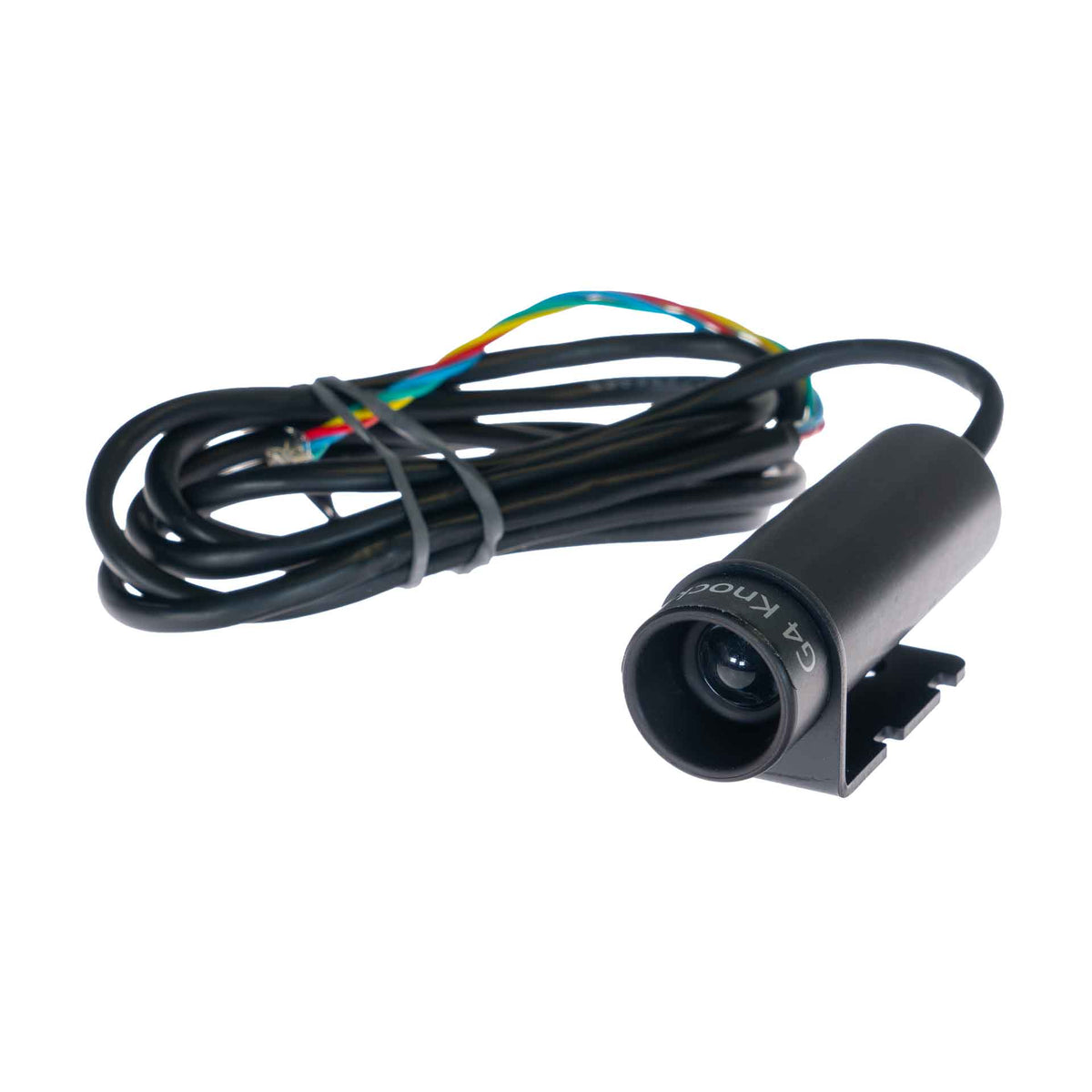

Includes: KnockLink interface, knock sensor with 2.6 m loom, wiring loom and mounting bracket.

Specifications

• Standalone, self-learning, self-calibrating knock detection
• Monitors one knock sensor
• Visual LED knock warning
• Compact CNC aluminium enclosure
• Operating voltage 6-26 V, maximum input voltage 26 V, maximum continuous current draw 100 mA

Notes

• Do not connect the KnockLink and the ECU to the same knock sensor.
• Not suitable for mechanically noisy engines, including engines with high-clearance pistons and two-stroke engines.
• Link recommends installation and setup by an official Link dealer.

Downloads

• KnockLink Instruction Manual (PDF)
