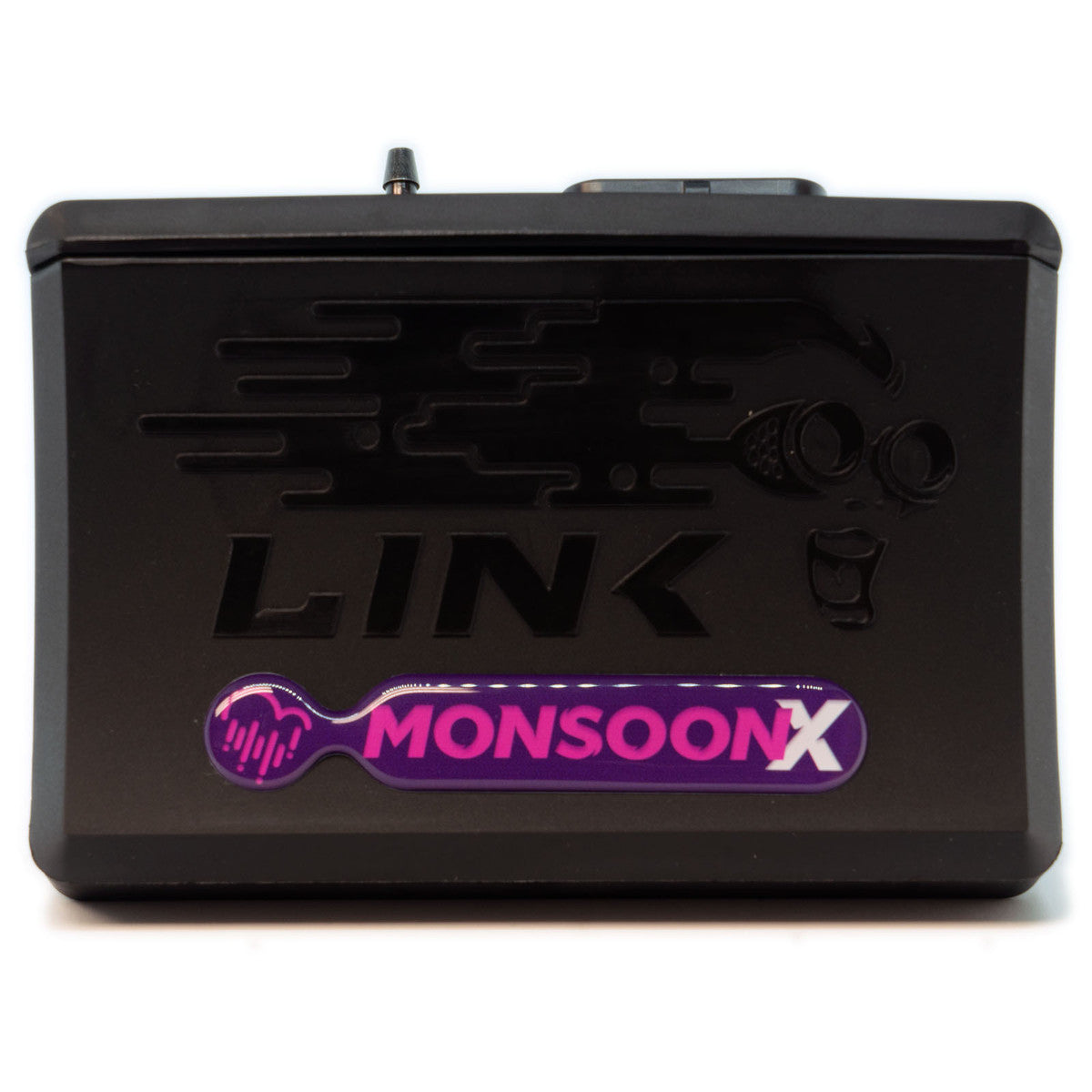

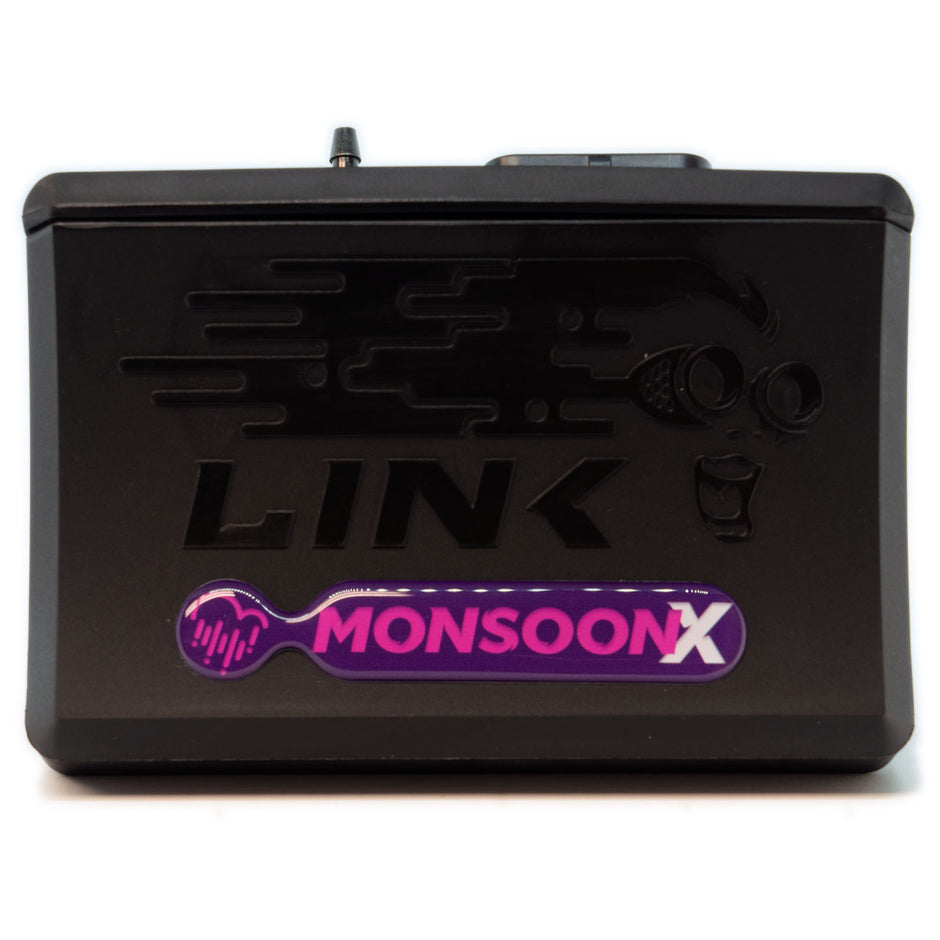

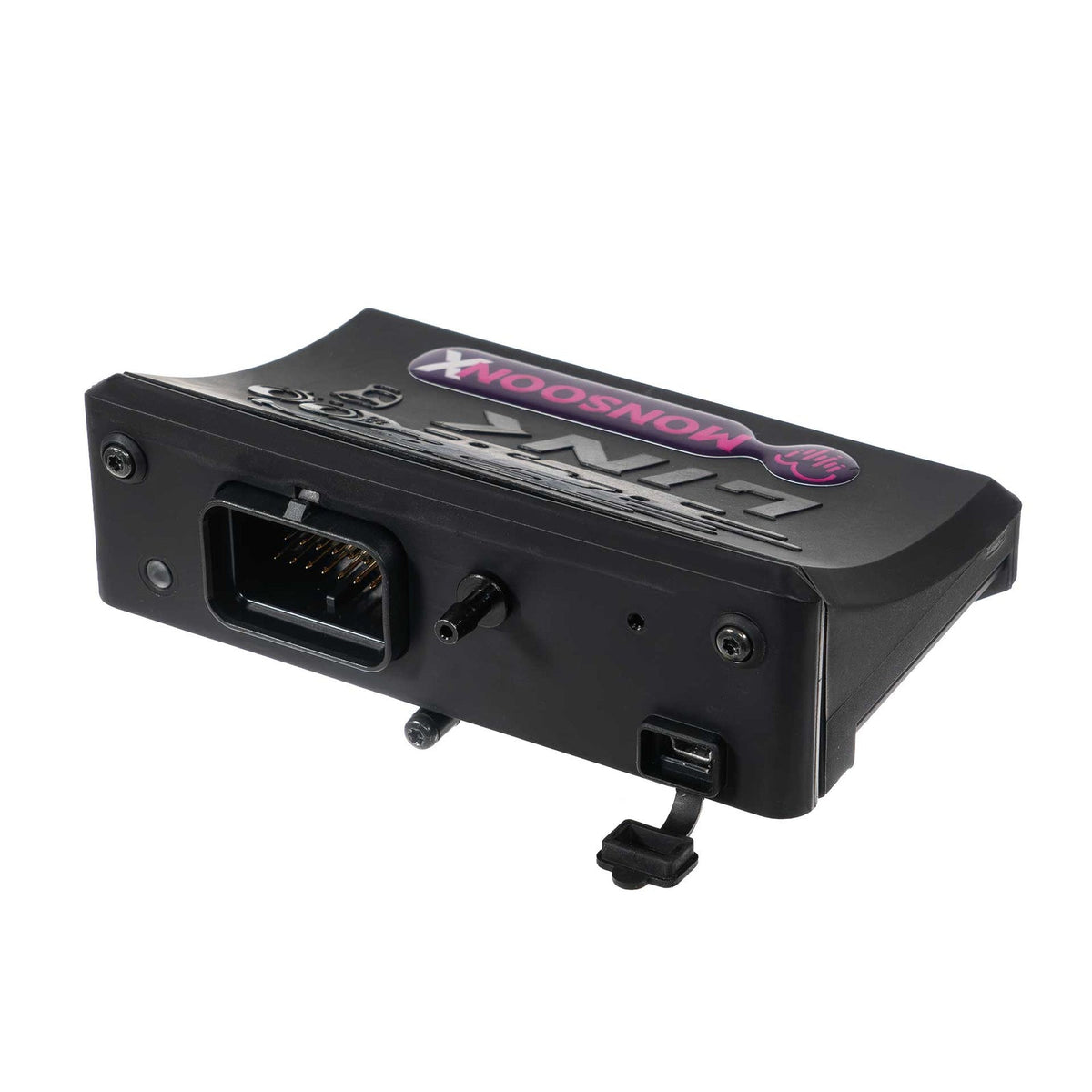

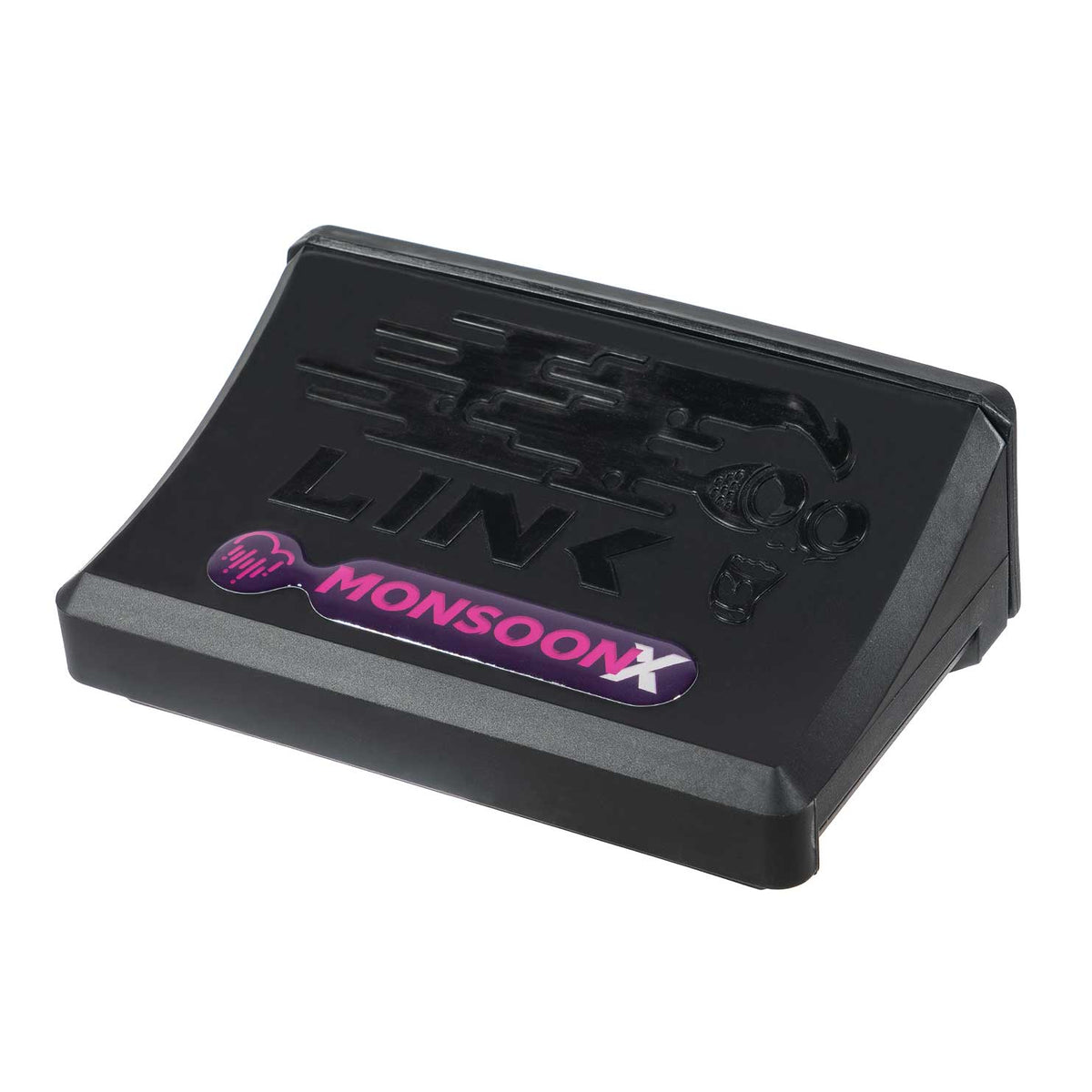

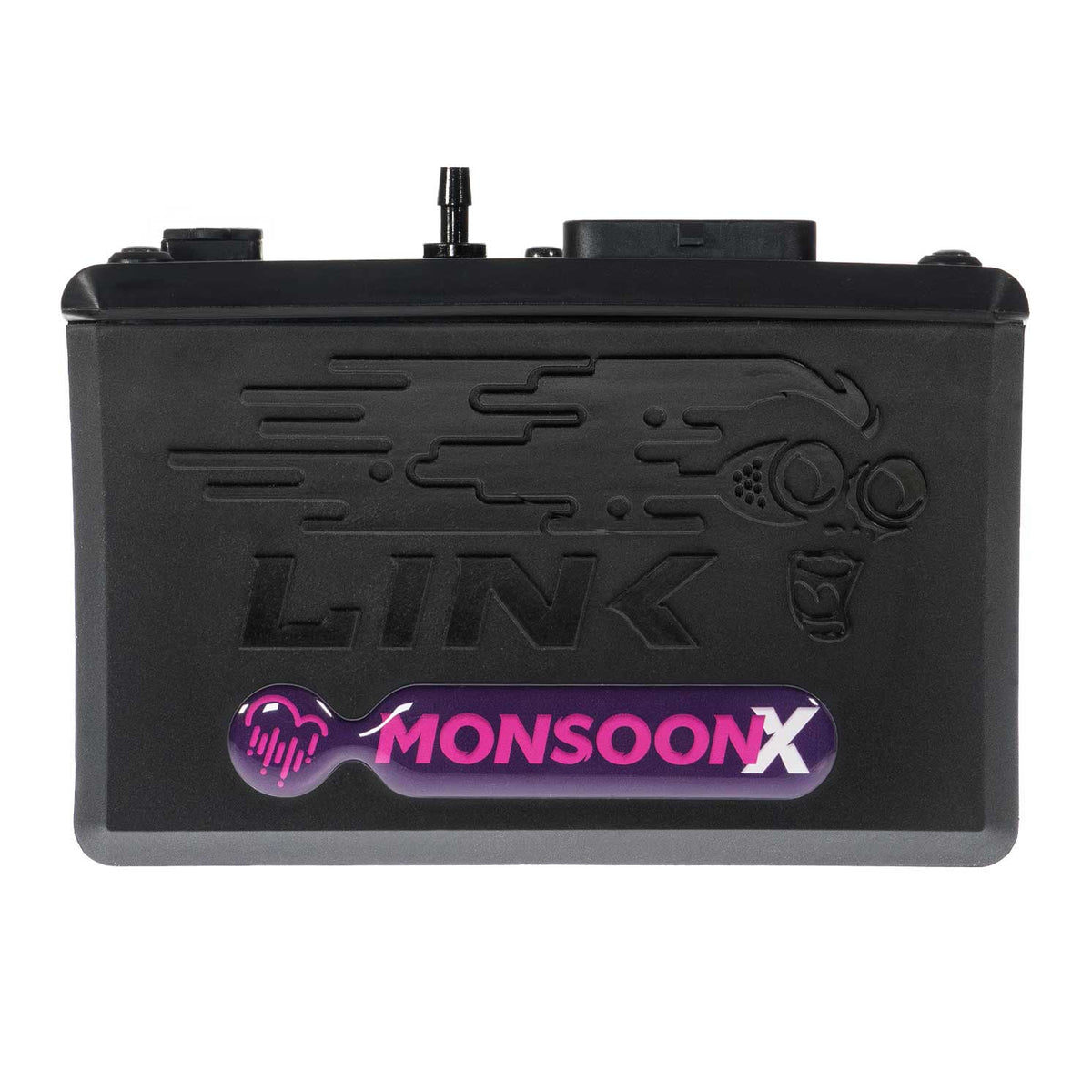

Link G4X MonsoonX - 127-4000

Link G4X MonsoonX Wire-In ECU (up to 4 Cylinders) - 127-4000

The MonsoonX sits between Link's entry and mid-level G4X wire-in ECUs. It builds on the AtomX with extra outputs and inputs, VVT control, closed-loop boost control, launch control, anti-lag and a built-in MAP sensor, for naturally aspirated or turbocharged engines up to 4 cylinders or 2 rotors with sequential injection and direct spark.

Standard G4X features include CAN, flex fuel, flexible engine protection limiters, CAN keypad control, dual closed-loop lambda, trigger oscilloscope, 8 custom math blocks and 512 MB logging, with gear and paddle shift control. Features can be combined as the available I/O allows.

Suits: Wire-in applications up to 4 cylinders or 2 rotors.

Includes: MonsoonX G4X ECU, Quick Start Guide, mounting bracket, USB tuning cable, LinkECU stickers.

Specifications

• Outputs: 4 injection drives, 4 ignition drives, 6 auxiliary outputs (unused inj/ign usable as auxiliaries), +5 V sensor supply
• Inputs: 4 digital, 2 temperature, 4 analogue, 2 trigger, 1 knock; unused temperature/analogue inputs usable as digital inputs
• Built-in MAP sensor
• Communications: 1 x CAN bus; Mini-B USB tuning connection
• Data logging: 512 MB, 100 kHz maximum total rate, 250 channels
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current 3 A; operating current 200 mA

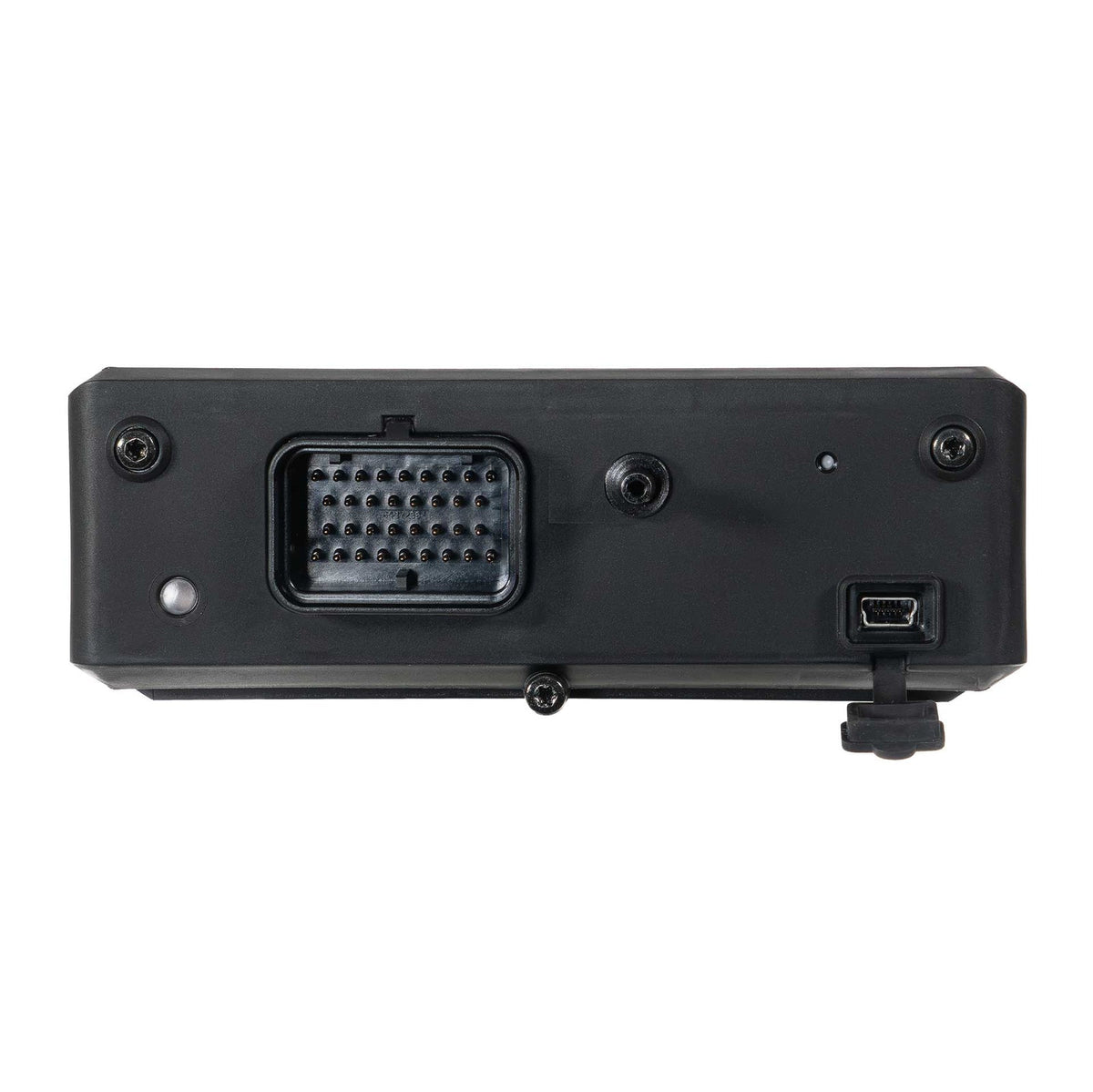

• Connector: Superseal 4-row 34-position (part number 4-1437290-0)
• Enclosure: glass-filled nylon; manufactured to ISO 13485
• Dimensions: 95 x 130 x 45 mm (3.74 x 5.12 x 1.77 in)
• Weight: 220 g (7.76 oz)

Notes

• The MonsoonX can run any of its features, but not all at the same time; how many you can use depends on the I/O each one needs.
• Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

A Link A-loom to wire the ECU: 0LA short (101-0002), 2LA medium (101-0005) or 5LA long (101-0008). For a complete kit, see the MonsoonX Wire-In Bundle (127-9800B).

Downloads

• MonsoonX Quick Start Guide (PDF)
