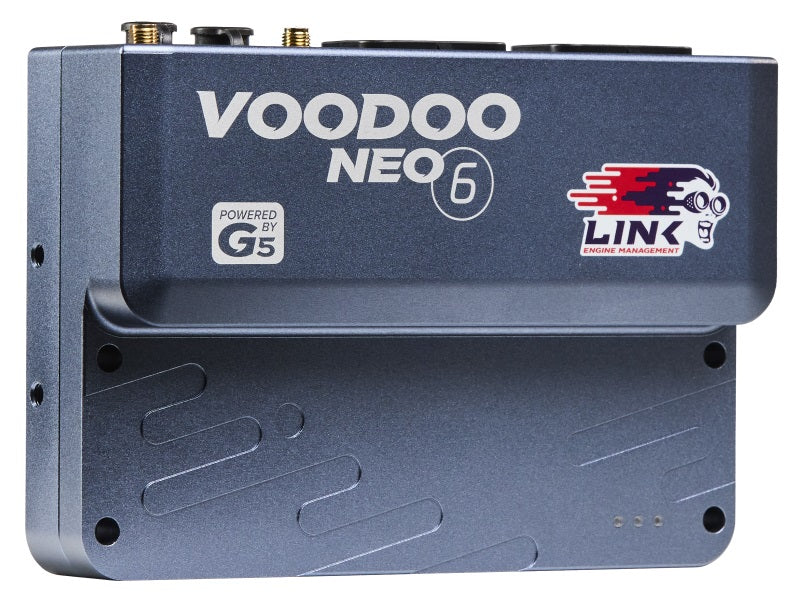

Link G5 Voodoo Neo 6 - 156-5000

G5 Voodoo Neo 6

Built on Link's most advanced, most powerful and most flexible ECU platform ever, the G5 Voodoo Neo 6 delivers next-generation engine management for up to 8 cylinder sequential or 6 cylinder staged sequential builds.

The G5 Voodoo range puts real magic in your hands and opens a new world of possibilities with the ability to control port and direct injection, highly customisable I/O, advanced communications and next-generation features.

G5's multi-board architecture delivers expanded I/O capability over the G4X range through highly customisable ADIO and Aux/Digital Input pins for greater flexibility across high-performance builds.

Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN bus and USB-C tuning, alongside 1GB of internal data logging for high-speed data capture and analysis. The G5 Voodoo Neo 6 also features automatic transmission control, onboard Lambda control, and dual H-bridges for E-Throttle and low power E-Wastegate control.

The G5 Voodoo Neo 6 is ideal for modern high-performance 6 or 8 cylinder builds requiring the next-generation of engine management technology.

Models Supported

• 8 cylinders sequential port or direct injection and direct spark
• 6 cylinders with direct/port staged injection, and direct spark

Features

The G5 Voodoo Neo 6's multi-board architecture delivers next-generation features including:

ECU Features

• Global Positioning System (GPS)
• Dual E-throttle Control
• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• 1k or 10k ohm Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Onboard Digital Wideband Lambda Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• 1 Gigabyte of Internal Data Logging

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Specifications

The G5 Voodoo Neo 6 uses Link's most advanced, most powerful and most flexible ECU platform, delivering advanced communication and specs including:

Outputs

• Injection Drives: 12 drives; can run Direct Injection via driver box; 4 pins are multi-purpose Injection, Aux or Digital Input pins
• Ignition Drives: 8
• Auxiliary Outputs: 6; unused Injection and Ignition drives can be used as Auxiliary Outputs
• Sensor Power: +5V supply

Inputs

• Digital Inputs: 10; 4 pins are multi-purpose Injection, Aux or Digital Input pins; unused Temperature and Analogue Inputs can be used as Digital Inputs
• Temperature Inputs: 4
• Analogue Inputs: 3
• Trigger Inputs: 2
• Knock Inputs: 2

Inputs/Outputs

• ADIO Dual Purpose: 6

Communications

• CAN Bus Channels: 2
• Wi-Fi USB-C Tuning Connection: 1
• Ethernet: 1
• Power Over USB: 1

Data Logging

• Onboard Logging Memory: 1GB
• Maximum Total Logging Rate: 100kHz
• Logging Channels: 250

Physical Specifications

• Dimensions: 107mm(L) x 158mm(W) x 45mm(H); 4.21in(L) x 6.22in(W) x 1.77in(H)
• Weight: 730 grams (25.75 ounces)
• Material: 6061-T6 billet CNC sealed enclosure

Electrical

• Operating Voltage Range: 6-30V
• Maximum Input Voltage: 30V
• Maximum Continuous Current Draw: 17A

Connector

• Type: Superseal 4 Row 34 Position x2
• Part Numbers: 4-1437290-0; 4-1437290-1

What's in the Box

• G5 Voodoo Neo 6 ECU
• USB-C Connection Cable
• Wi-Fi Antenna
• 4m GPS Antenna (Magnetic or Adhesive Mount)
• USB-C and SMA Dust Covers
• Quick Start Guide (A5)
• Installer I/O table (A3)
• Link stickers

Manuals & Install Guides

• Neo6 Quick Start Guide
