Link G5 Voodoo Pro + DI Driver 4 Bundle - 153-9000B

Link G5 Voodoo Pro + DI Driver-4 Bundle - 153-9000B

A complete direct injection engine management package: Link's flagship G5 Voodoo Pro ECU with a DI Driver-4 direct injection controller. The Voodoo Pro supports up to 12 cylinder sequential or 8 cylinder staged sequential builds, and the DI Driver-4 drives up to 4 direct injectors and one high-pressure fuel pump, scalable over CAN for larger DI setups.

Suits: Direct injection or combined port and direct injection engines, typically up to 4 DI cylinders with this bundle.

Includes: 1 x Link G5 Voodoo Pro ECU (153-5000), 1 x Link DI Driver-4 (144-5000).

Specifications

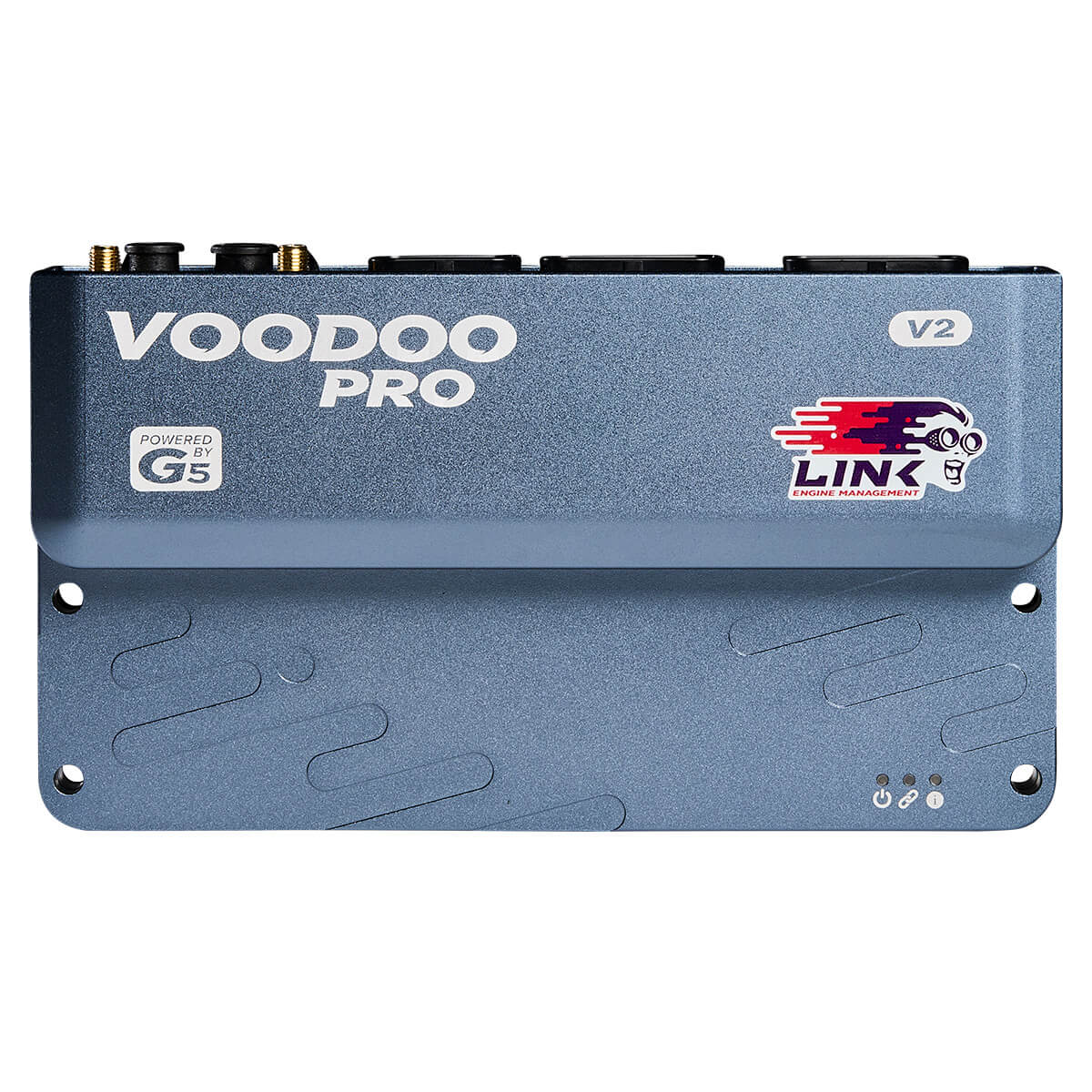

• G5 Voodoo Pro: up to 12 cylinder sequential or 8 cylinder staged sequential; built-in Wi-Fi and GPS; dual wideband and dual e-throttle support

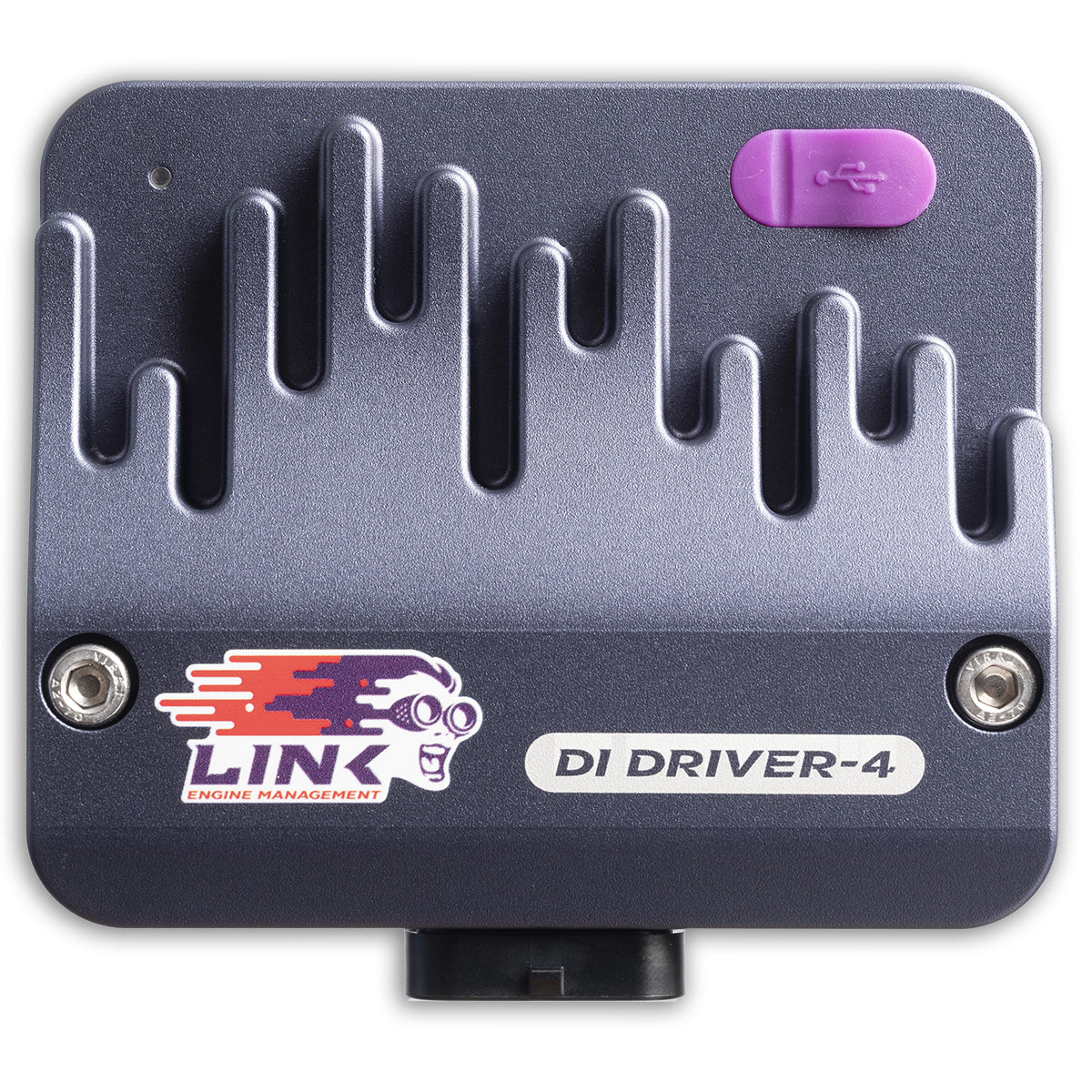

• DI Driver-4: up to 4 DI injectors and 1 high-pressure pump; sealed CNC enclosure; CAN and USB configuration
• See each component listing for full specifications.

Downloads

• G5 Voodoo Pro Quick Start Guide (PDF)
• G5 Voodoo Pro Pinout (PDF)
• DI Driver-4 Quick Start Guide (PDF)
