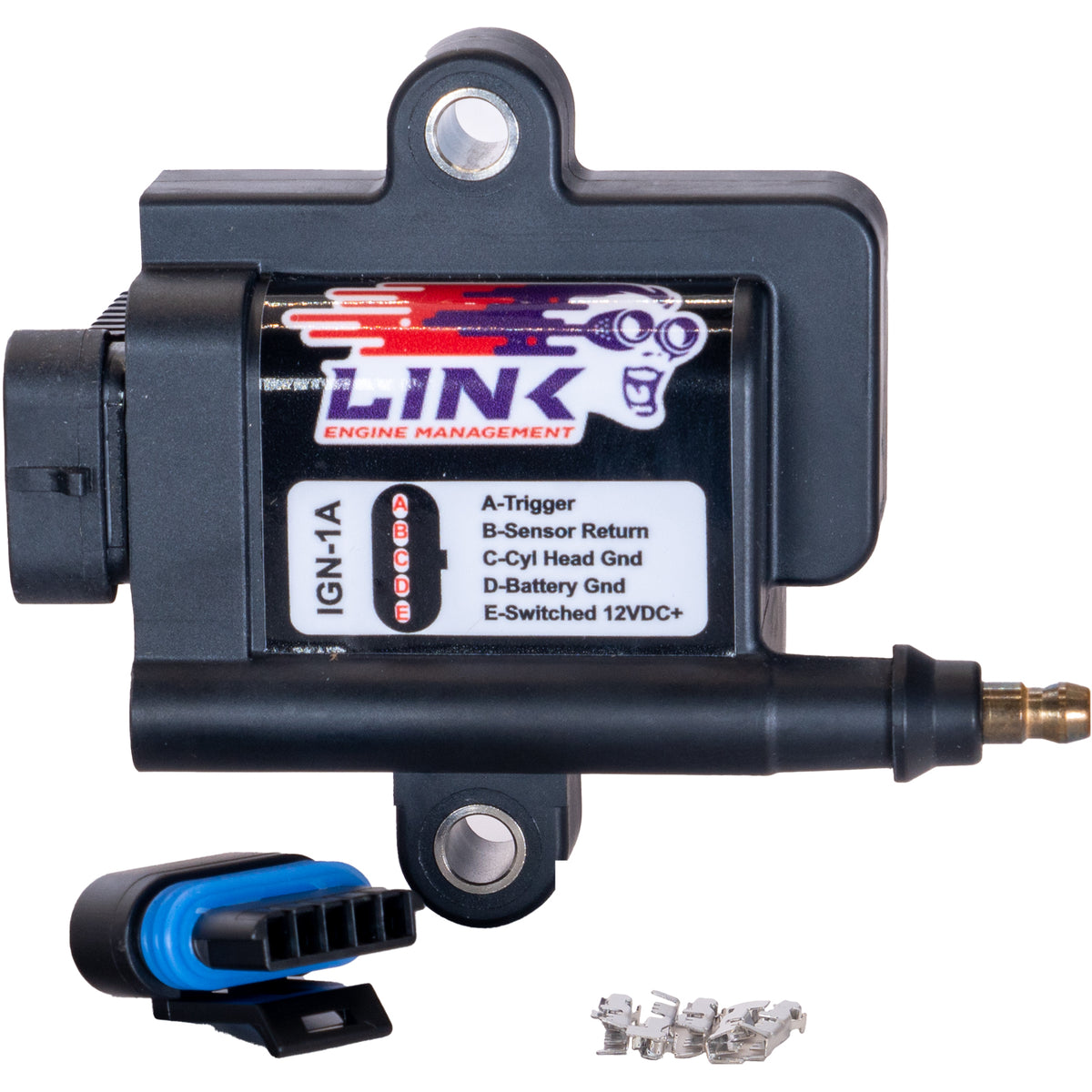

Link IGN1A - High Powered Inductive Smart Coil (Integrated Ignitor) - 101-0291

The Link IGN-1A Smart Coil is a high-output inductive ignition coil with a built-in ignitor, delivering 103 mJ of spark energy and a long 2.9 ms spark duration. Designed for universal ignition systems, it provides reliable, high-energy ignition for naturally aspirated, turbocharged and supercharged engines without requiring an external ignitor.

Models Supported

• Link G4+/G4X/G5 ECU's.
• Other aftermarket ECUs with logic-level ignition outputs.
• HT lead ignition systems using HEI-style plug wire ends/boots.

Warnings

• Designed for HT lead ignition systems. It is not a coil-on-plug ignition coil.
• Connect the logic ground to the ECU ground, the spark ground to the cylinder head, and the power ground directly to the battery negative.
• Excessive dwell or duty cycle can damage the coil.
• Refer to the IGN-1A Smart Coil User Guide for wiring and installation instructions.

Specifications

The Link IGN-1A Smart Coil has the following specifications:

• High-output inductive smart coil with built-in ignitor.
• Delivers 103 mJ spark energy.
• 2.9 ms spark duration.
• Nominal dwell: 3.0 ms.
• Maximum output voltage up to 81 kV
• Universal mounting design.
• Includes mating connector kit.
• Product Dimensions: 110mm(L)x90mm(W)x50mm(H), 4.33in(L)x3.54in(W)x1.97in(H)
• Product Weight: 420 grams (14.82 ounces)
• Operating Voltage Range: 6-17V
• Maximum Input Voltage: 17V
• Maximum Continuous Current Draw: 19A

What's in the Box

• IGN1A Smart Coil
• Mating Connector Kit

Manuals & Install Guides

• IGN-1A Smart Coil User Guide
