Link Knock Sensor with Loom (KNSB) - 101-0054

Link Knock Sensor with Loom (KNSB) - 101-0054

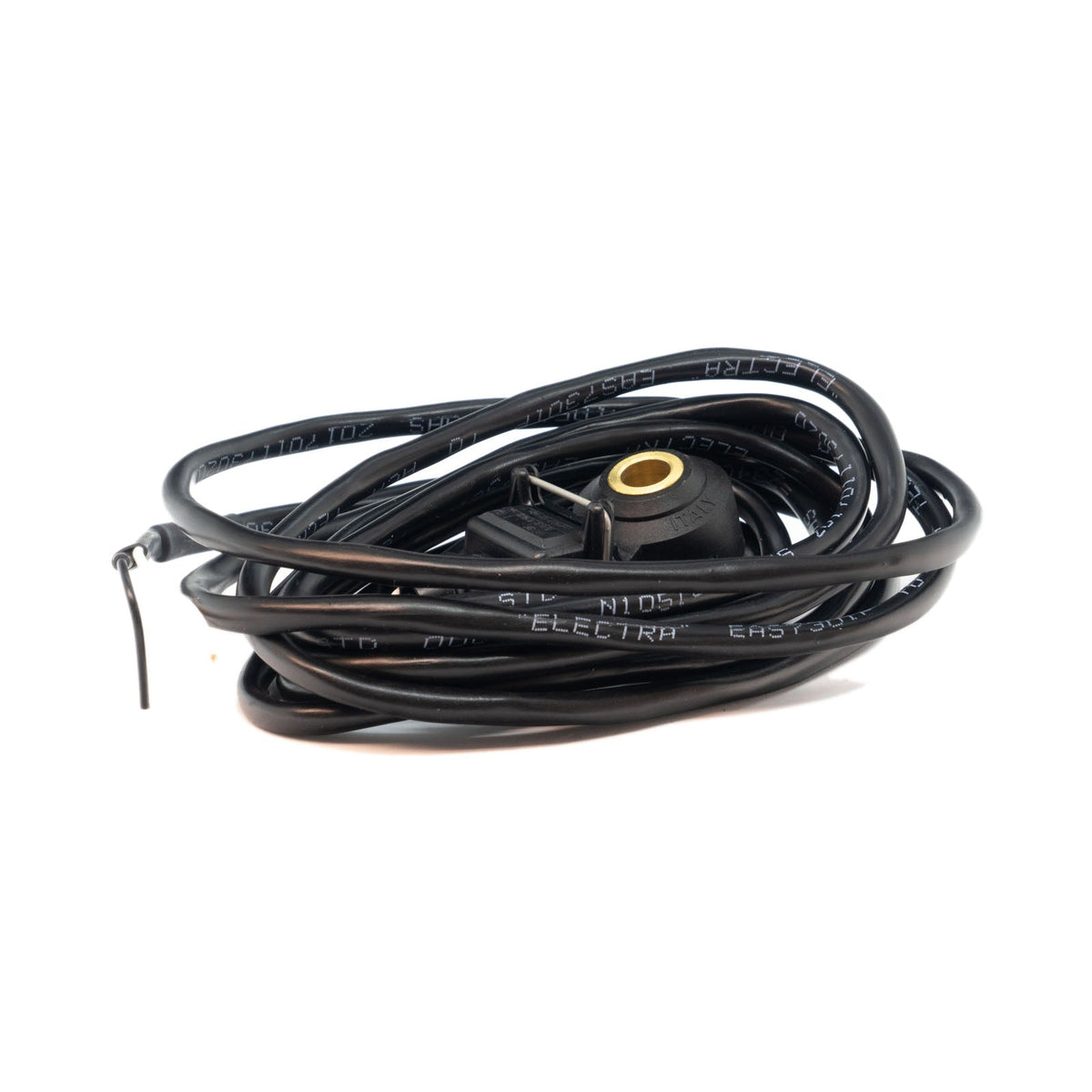

A genuine Facet 9.3010 non-resonant piezoelectric knock sensor supplied pre-wired with a 2.6 m loom and flying leads. It turns engine block vibration into a signal the ECU uses to detect knock (detonation) and adjust calibration to protect the engine. The pre-wired loom also makes it a natural partner for the Link KnockLink visual warning light.

Suits: Link ECUs with knock detection, the Link KnockLink, and other aftermarket ECUs with compatible knock sensor inputs.

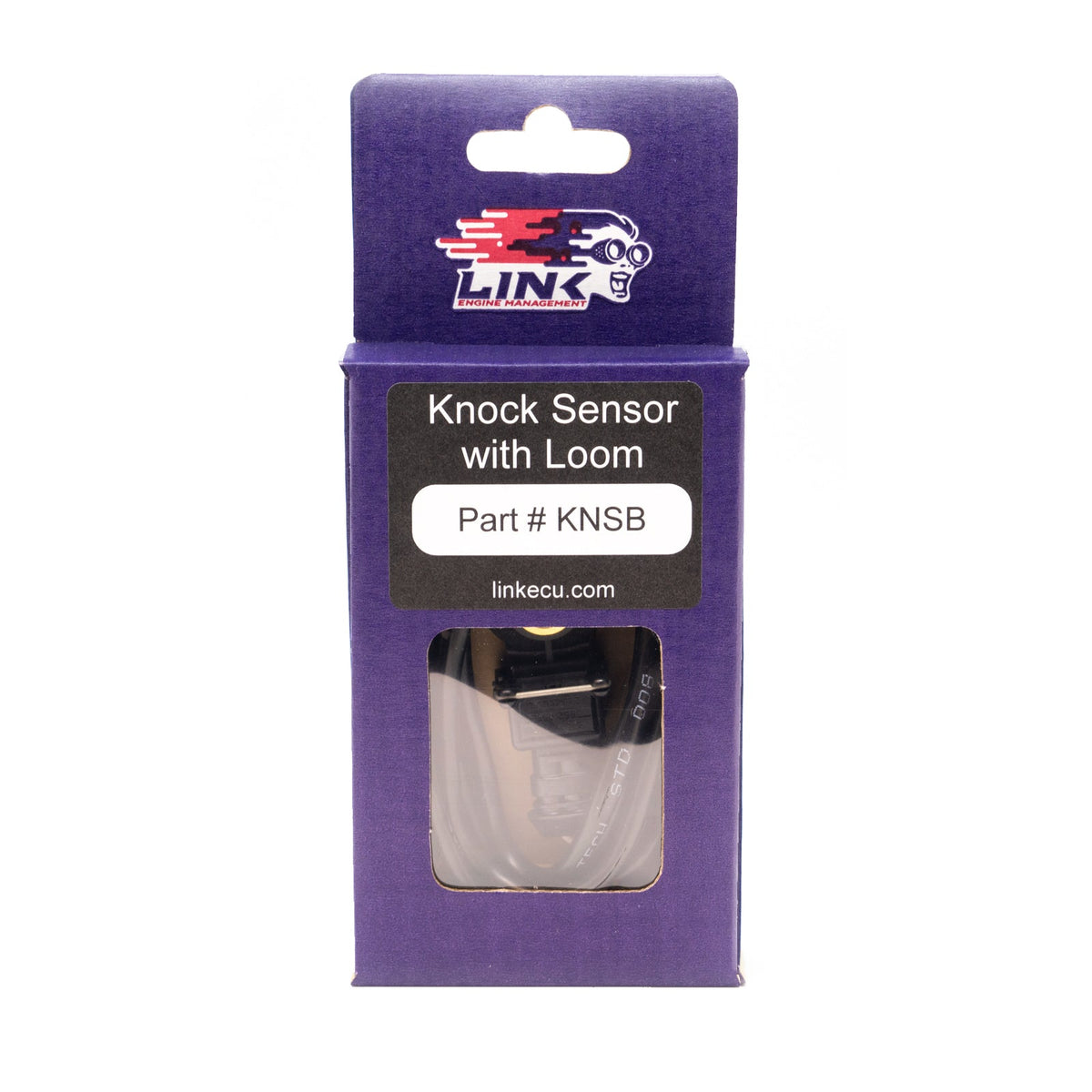

Includes: Knock sensor (donut type) with 2.6 m loom, Bosch plug.

Specifications

• Non-resonant piezoelectric design with flat frequency response
• Sensitivity: 25 mV/g
• Operating temperature: -40°C to +150°C
• IP68 rated
• 8 mm mounting hole
• Loom length: 2.6 m
• Dimensions: 2600 x 25 x 25 mm (102.36 x 0.98 x 0.98 in)
• Weight: 125 g (4.41 oz)

Notes

• Mount directly on a suitable flat surface of the engine block.
• Tighten to 20 ± 5 Nm. Correct torque is critical for accurate knock detection.
• Some engines need more than one sensor.
• Link recommends installation and setup by an official Link dealer.

You may also need

A KnockLink G4 (114-1000) for standalone visual knock warning.
