Link Pin Kit E (TKE) - 101-0293

Genuine Link Plug & Pin Kit E (TKE) for Link Wire-in ECUs. Includes the 26 pin E connector housing and terminals, found of G5 Voodoo Pro ECU, making it ideal for custom wiring looms or replacing a damaged ECU connector.

Specifications

• Product Dimensions: 30mm(L)x35mm(W)x35mm(H) / 1.18in(L)x1.38in(W)x1.38in(H)
• Product Weight: 15 grams (0.53 ounces)
• Electrical: Operating Voltage Range: 6-18V; Maximum Input Voltage: 250V; Maximum Continuous Current Draw: 3-15A; Gauges of wire: 22AWG/0.3mm2 - 16AWG/1.25mm2

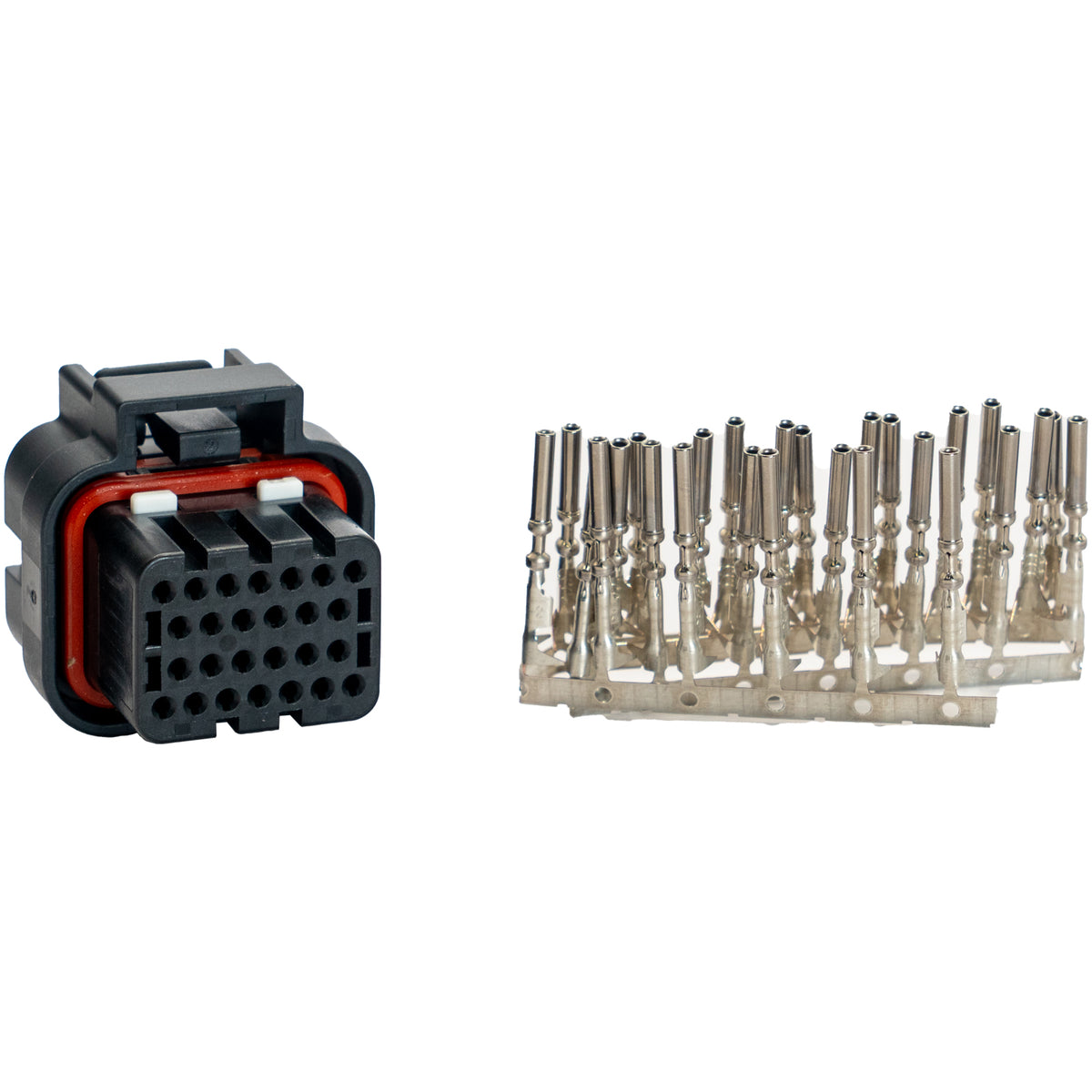

What's in the Box

• 1 x 26 position Superseal Connector Housing "E Plug"
• 26 x Superseal Terminals Gold Contact Finish "Pins"
