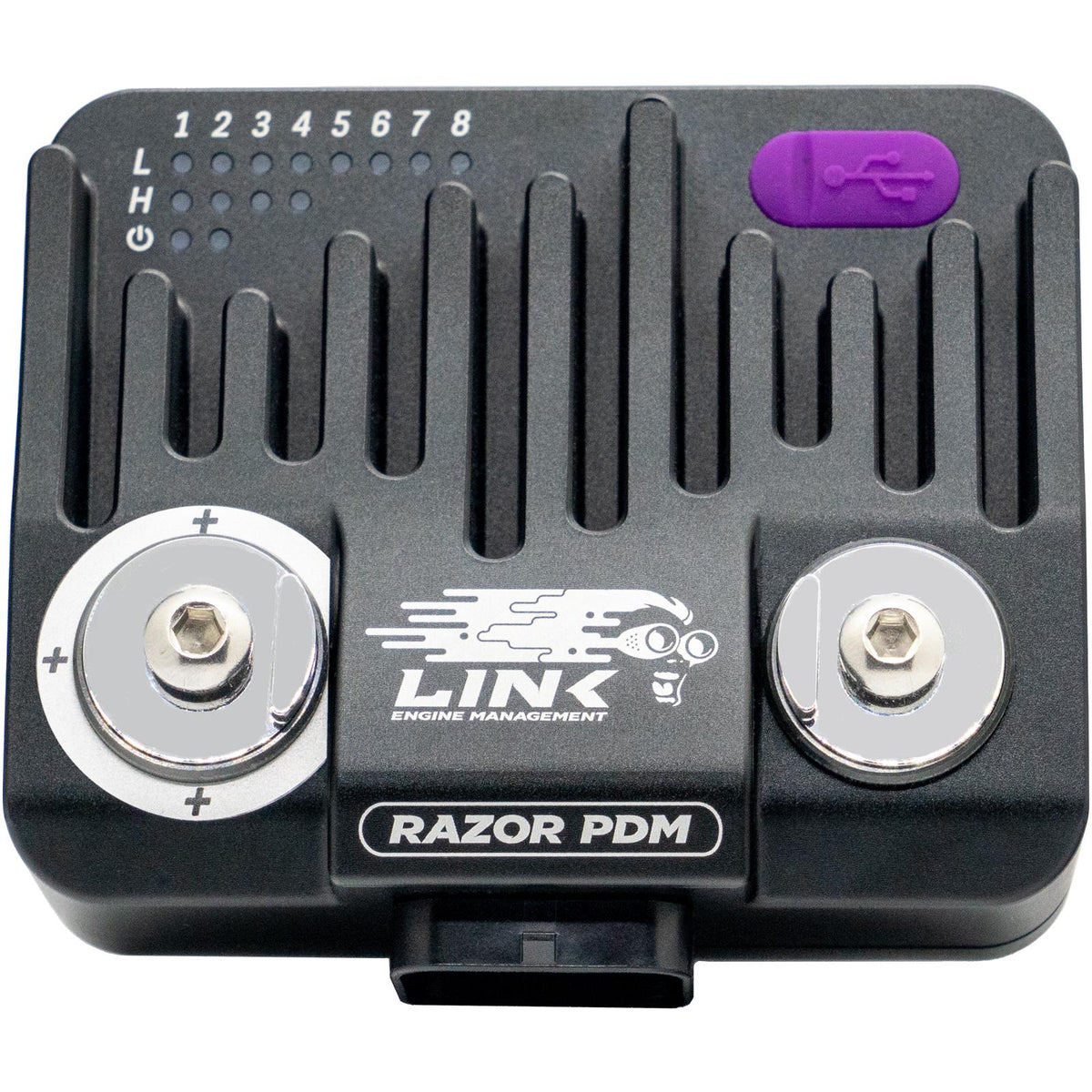

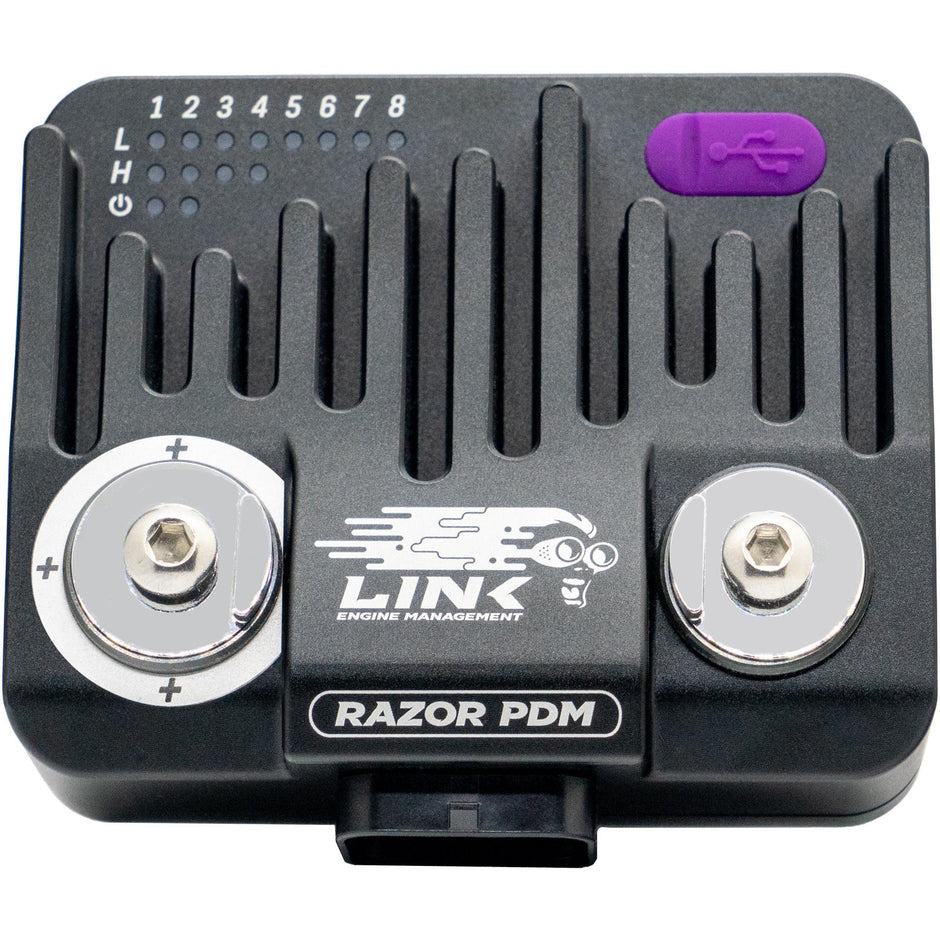

Link Razor PDM Bundle - Twin Pack - 135-9200B

Link Razor PDM Bundle - Twin Pack - 135-9200B

Two Link Razor PDMs in one bundle. The Razor PDM is an intelligent, programmable Power Distribution Module that replaces traditional fuses and relays, controlling fuel pumps, fans, electronic throttles, servos, lights and more, with configurable over-current and short-circuit protection. Each unit handles up to 100A continuous combined current (160A non-repetitive maximum), and multiple units link over CAN for more I/O.

Suits: Use with a Link ECU or as a standalone device. Works with other ECU brands and CAN devices via a custom CAN stream; Link ECUs work out of the box with a pre-configured stream.

Includes: 2 x Link Razor PDM (135-1000), each with mounting plate and screws, Superseal C plug and pin kit, USB-C cable, positive terminal insulation boot, 2 x high-current ring terminals and bolts, and Quick Start Guide.

Specifications

• Up to 100A continuous combined current; 160A non-repetitive maximum (per PDM)
• Configurable over-current and short-circuit protection with adjustable trip and resettable fuse parameters
• PID control, math functions, logic expressions and CAN keypad functions
• Data logging via CAN or USB
• Configured over USB with Link's free PDM Link software
• See the Razor PDM listing for full specifications.

Downloads

• Razor PDM Quick Start Guide (PDF)
• Razor PDM Specification Sheet (PDF)
