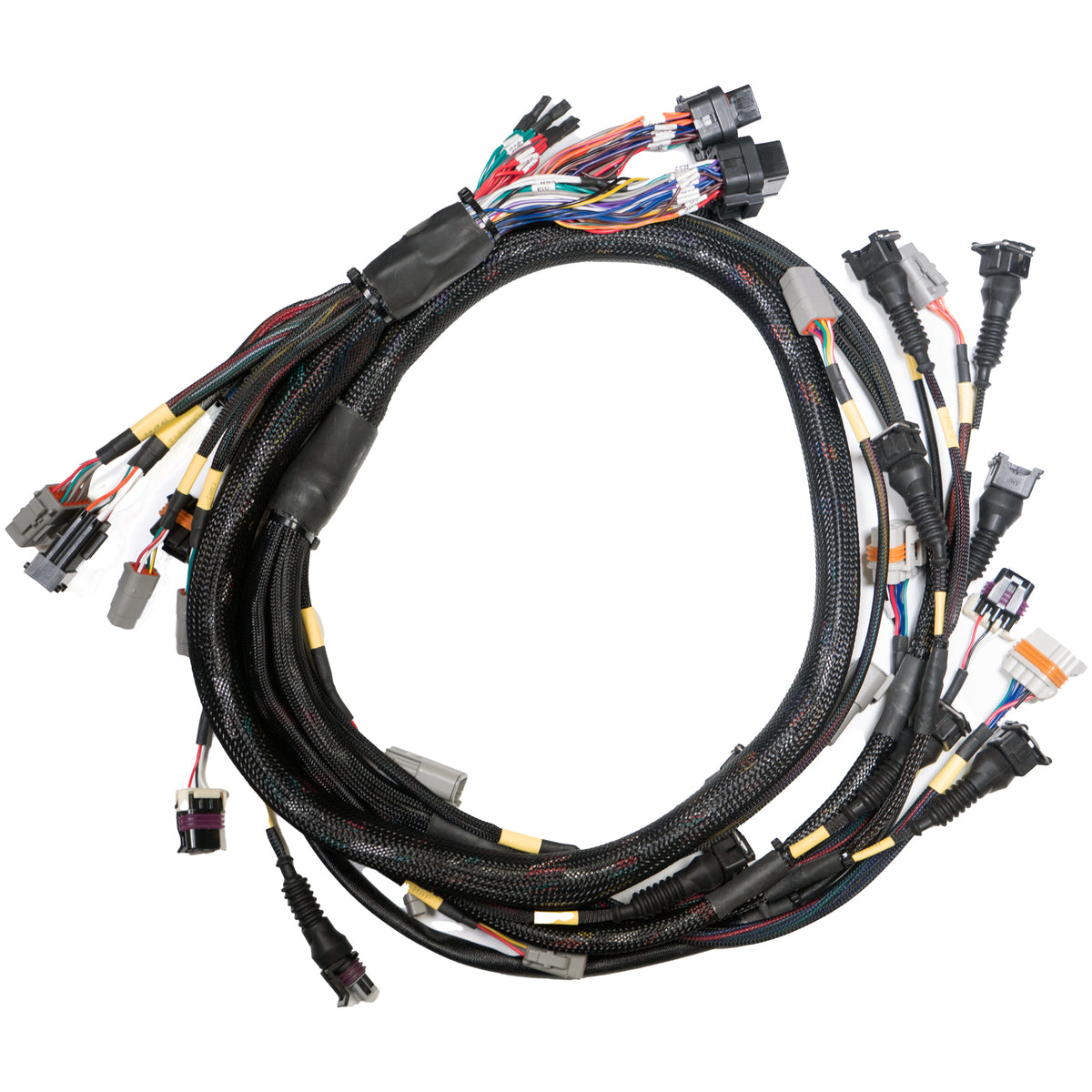

Link Replacement Base Harness GM LS GEN3/4 - 101-0300

LinkECU's Proven LS Solution

Link's Terminated LS Engine Harness is a custom-built solution designed to connect either Link's StormX or XtremeX ECU to Gen 3 LS1/LS6 or Gen 4 LS2/LS3/LS7* engines.

Whether you're powering a stock application, completing an engine swap, or building a high-end race car, it provides a clean and reliable foundation for your engine-management system.

The LS Harness includes connections for everything you need, including injectors, ignition coils, drive-by-wire throttle control, and CAN Lambda sensors, plus twelve spare connections for functions unique to your build.

Each harness uses Link's easy-to-work-with AVSS automotive wire and Link's standard wiring colors.

Before shipping, every harness undergoes comprehensive testing for correct pinout, shorts, splice resistance, insulation resistance, and more before being shipped to you.

LinkECU's Terminated LS Engine Harness uses a single, versatile base loom that can be tailored to your specific LS engine and application with a range of Link accessories.

Models Supported

• Gen 3 LS1/LS6
• Gen 4 LS2/LS3/LS7*

Warnings

*Notes for use with Gen 4 Engines:

• A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor.
• A small modification is required to the crank sensor connector. See "crank connector" section in installation manual for details.
• Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287.
• To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306).
• To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness).
• If you require a fuse box and relay, please purchase 101-0310 in addition.

Features

• Supports both cable-operated throttle bodies (using the LS Stepper Adapter) and Drive-by-Wire throttle bodies (using the LS DBW Adapter).
• Features a powered DTM4 CAN Connector compatible with Link CAN Accessories and Cables.
• Features EV1/JPT injector connectors that plug directly into common LS1 injectors.
• Adapters are required for early truck engines with Multilec injector connectors as well as the later LS3 style USCAR/EV6 injectors (use injector adapter Link PN 101-0287).
• Supports factory 7 Pin Coil Harness Connector.
• Support Link MAP Sensors.
• Use the LS Map Adapter to retain factory Gen 3 MAP Sensor.
• Supports the factory F Body Alternator (ACDelco PN 335-1075).

Specifications

• Material: AVSS automotive wiring

Manuals & Install Guides

• LS Harness Manual
