Link RX7S6X Plug-In ECU (Mazda RX-7 Series 6) - 218-4000

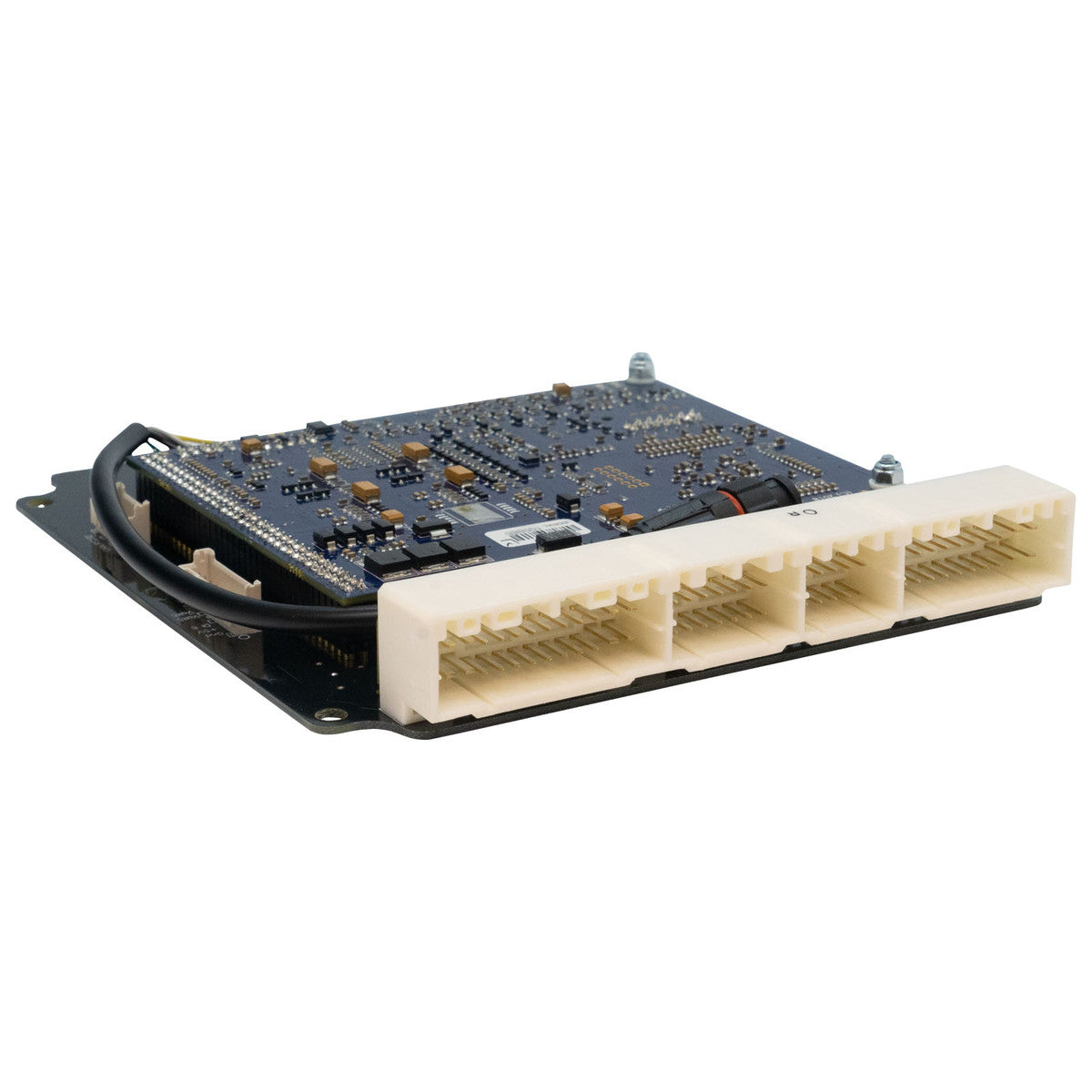

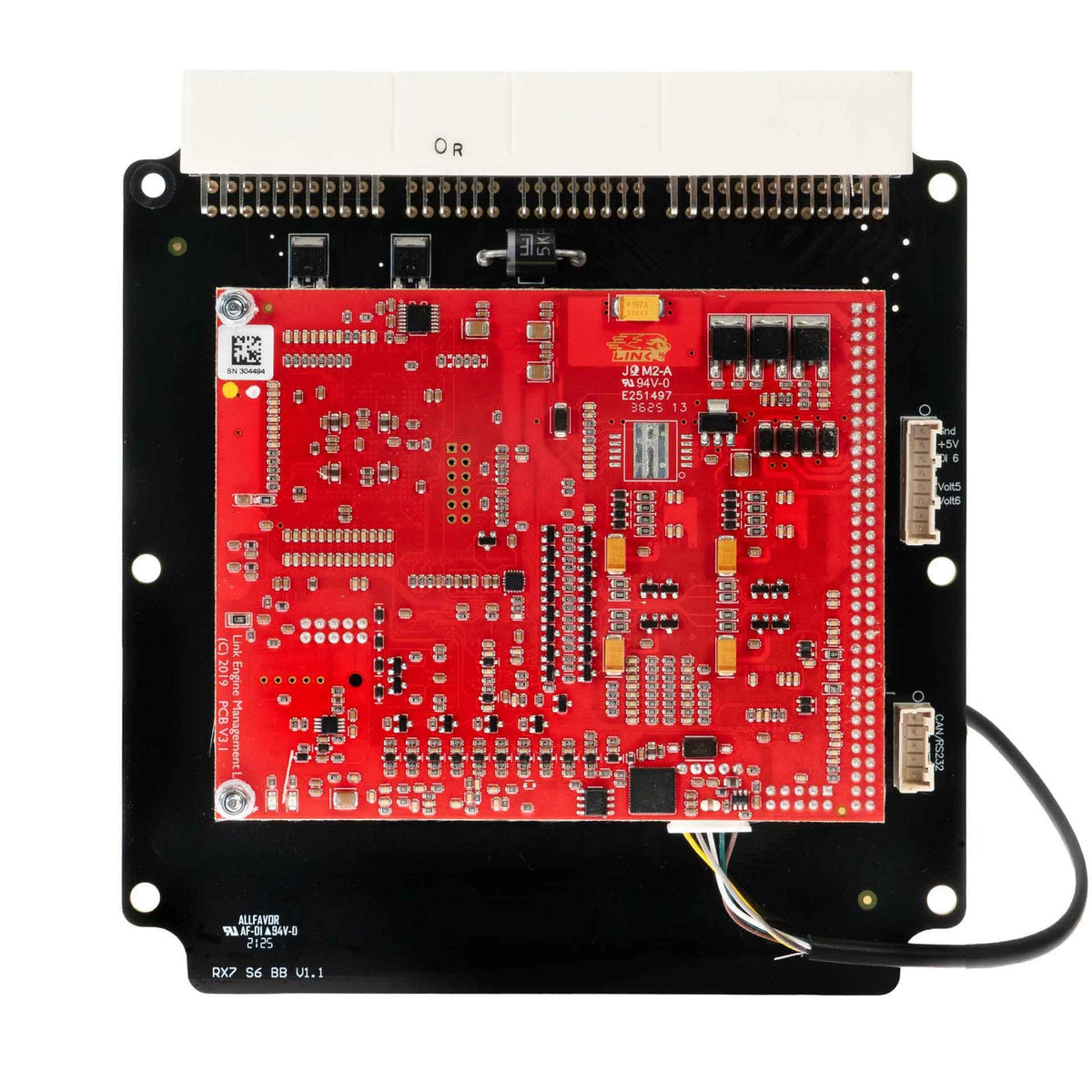

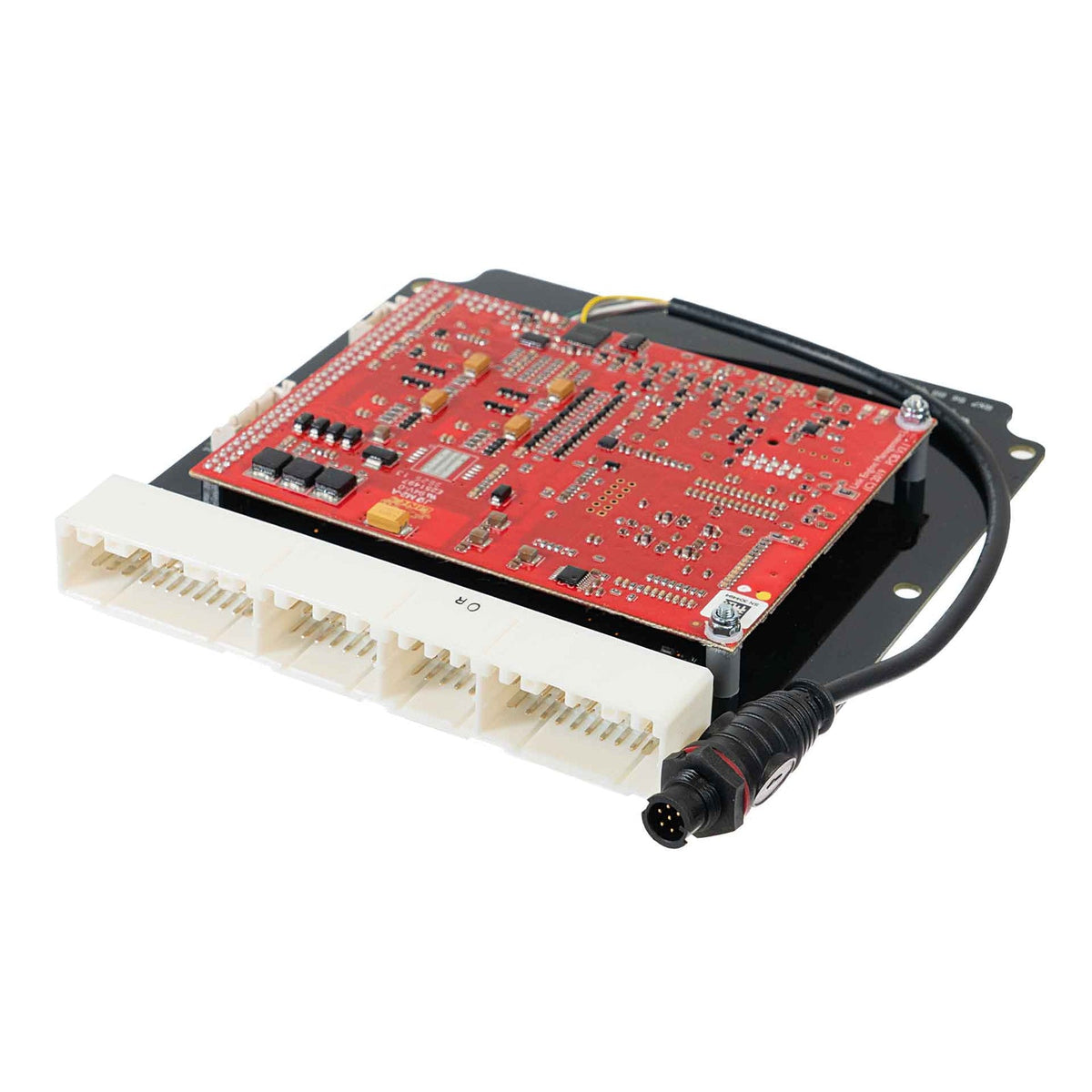

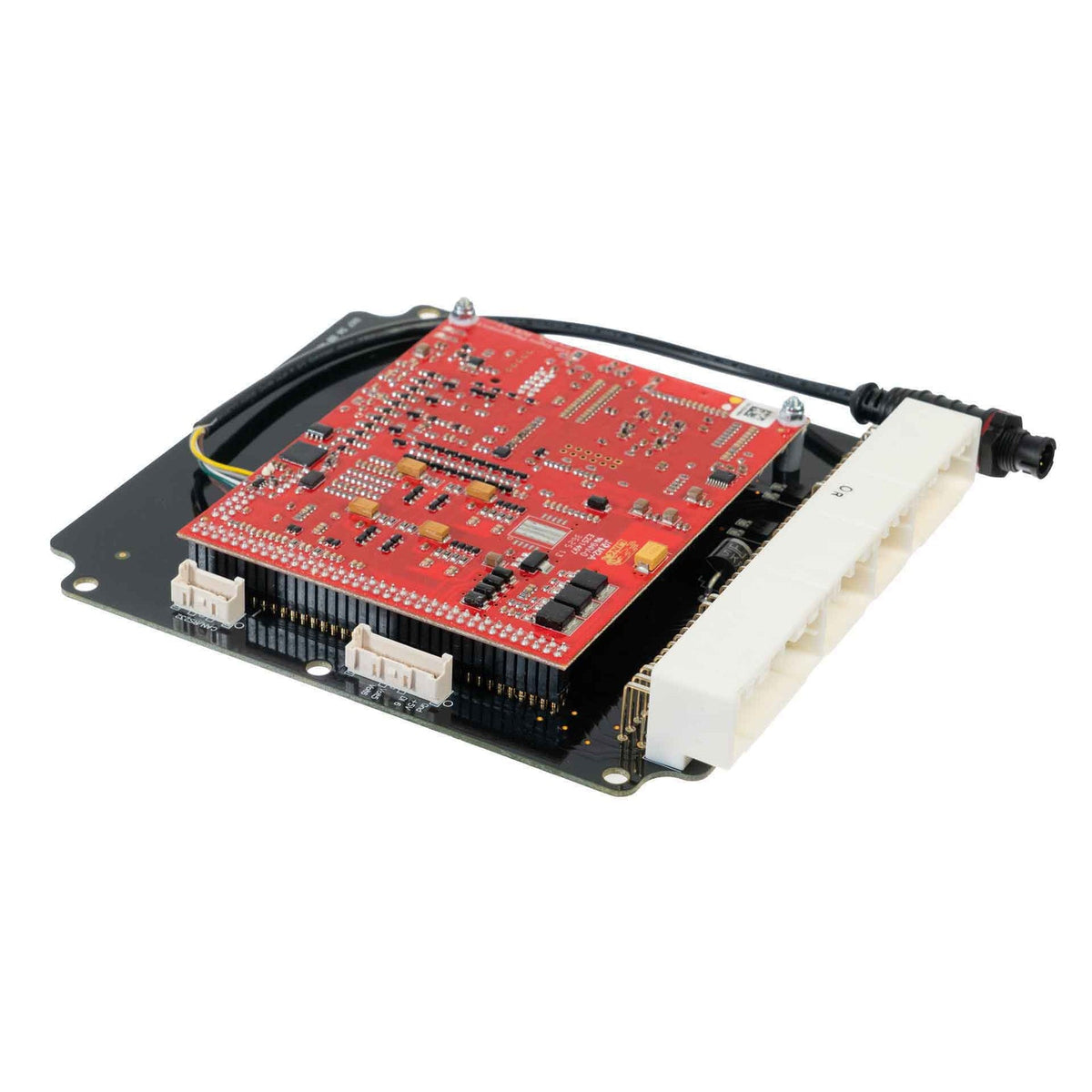

The RX7S6X is a G4X plug-in ECU for the Series 6 FD3S RX-7 with the 13B-REW rotary. It mounts in the factory ECU location using the original mounts, loom and connectors with no rewiring or adapter looms, and includes a startup map.

It supports naturally aspirated, parallel twin-turbo and single-turbo setups through Link's G4X platform and PCLink software.

Suits: Mazda FD3S RX-7 Series 6 with 13B-REW. Manual transmission only.

Includes: G4X RX7S6X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 1 x CAN bus; LTW 6-pin USB tuning connection
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 500 mA
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the RX7S6X installation manual

Notes

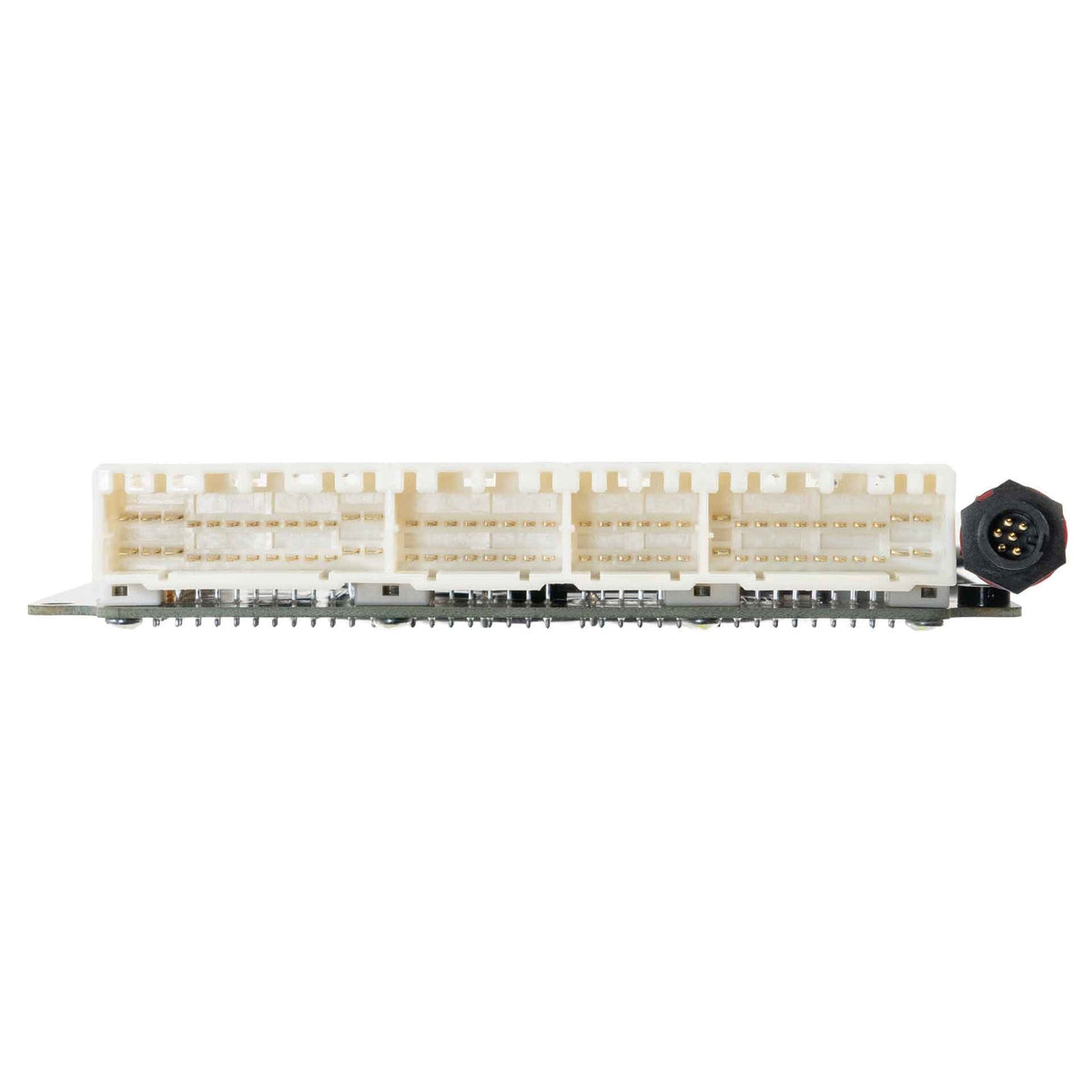

• Check that your connector matches the header shown in the photos before ordering. Series 7-8 cars use the RX7S7X (219-4000).
• Sequential control of the factory twin turbos is not supported.
• E-throttle is not usable until the ECU is modified.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

Downloads

• RX7S6X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
