Link TS2JZX Plug-In ECU (Toyota Supra 2JZ, non-VVTi) - 211-4000

The TS2JZX is a G4X plug-in ECU for the A80 Toyota Supra with the non-VVT-i 2JZ. It fits the factory ECU location using the original mounts, loom and connectors, so there is no rewiring, and it keeps the factory functions and comes with a startup map.

It runs Link's G4X platform and PCLink software, with motorsport functions such as nitrous, launch control, anti-lag, traction control and paddle shift control.

Suits: Toyota Supra A80 with 2JZ non-VVT-i engine, 1993-1997. Manual transmission.

Includes: G4X TS2JZX plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 3.5 A
• Dimensions: 190 x 230 x 45 mm (7.48 x 9.06 x 1.77 in)
• Weight: 680 g (23.99 oz)
• Inputs/outputs: see the TS2JZX installation manual

Notes

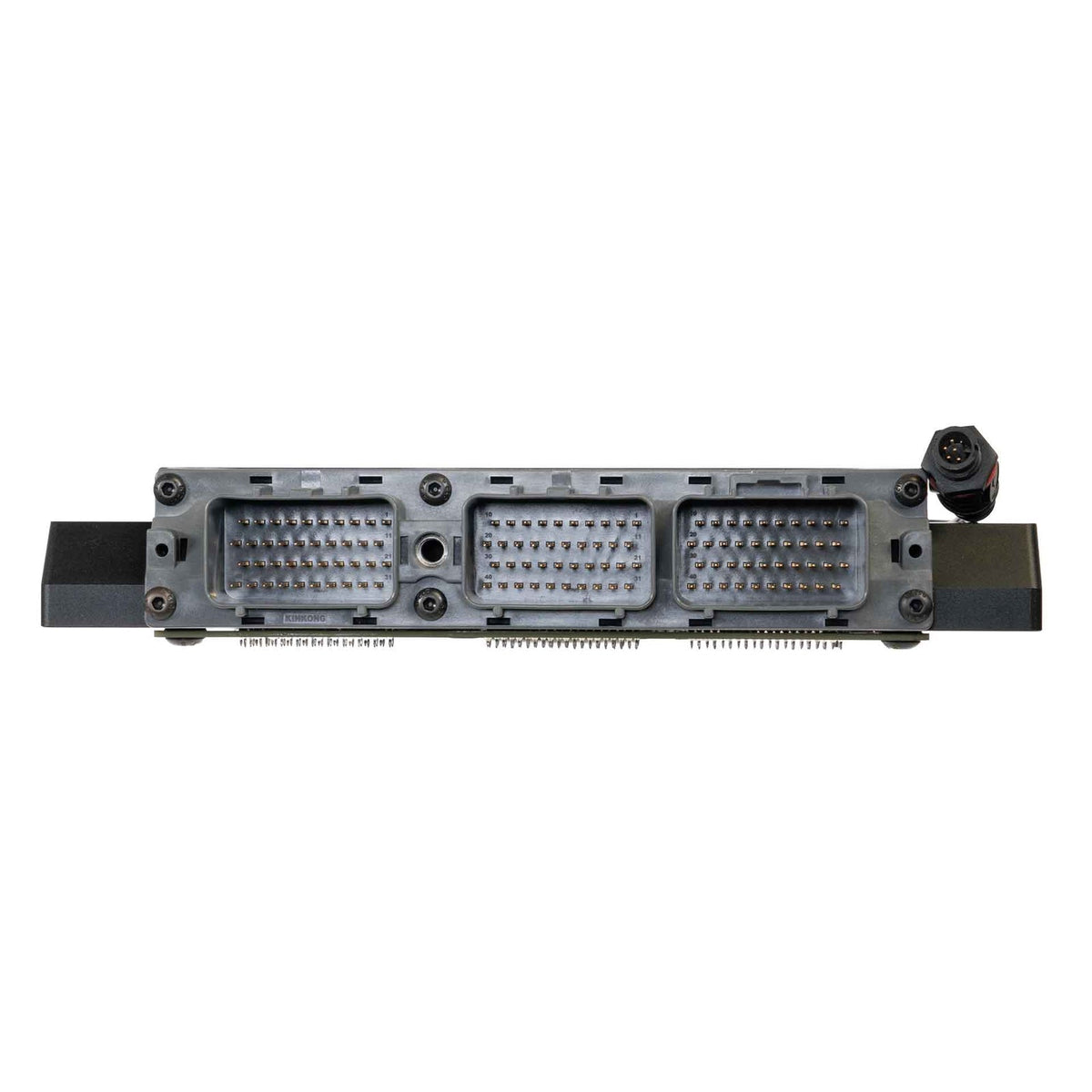

• Check that your connector matches the header shown in the photos before ordering.
• E-throttle is not usable until the ECU is modified.
• Automatic models: ask us about Direct Automatic Transmission Control.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

Downloads

• TS2JZX User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
