Link TB48Link - G5 TB48 - 246-5000

Link TB48Link G5 Plug-In ECU (Nissan Patrol TB48DE) - 246-5000

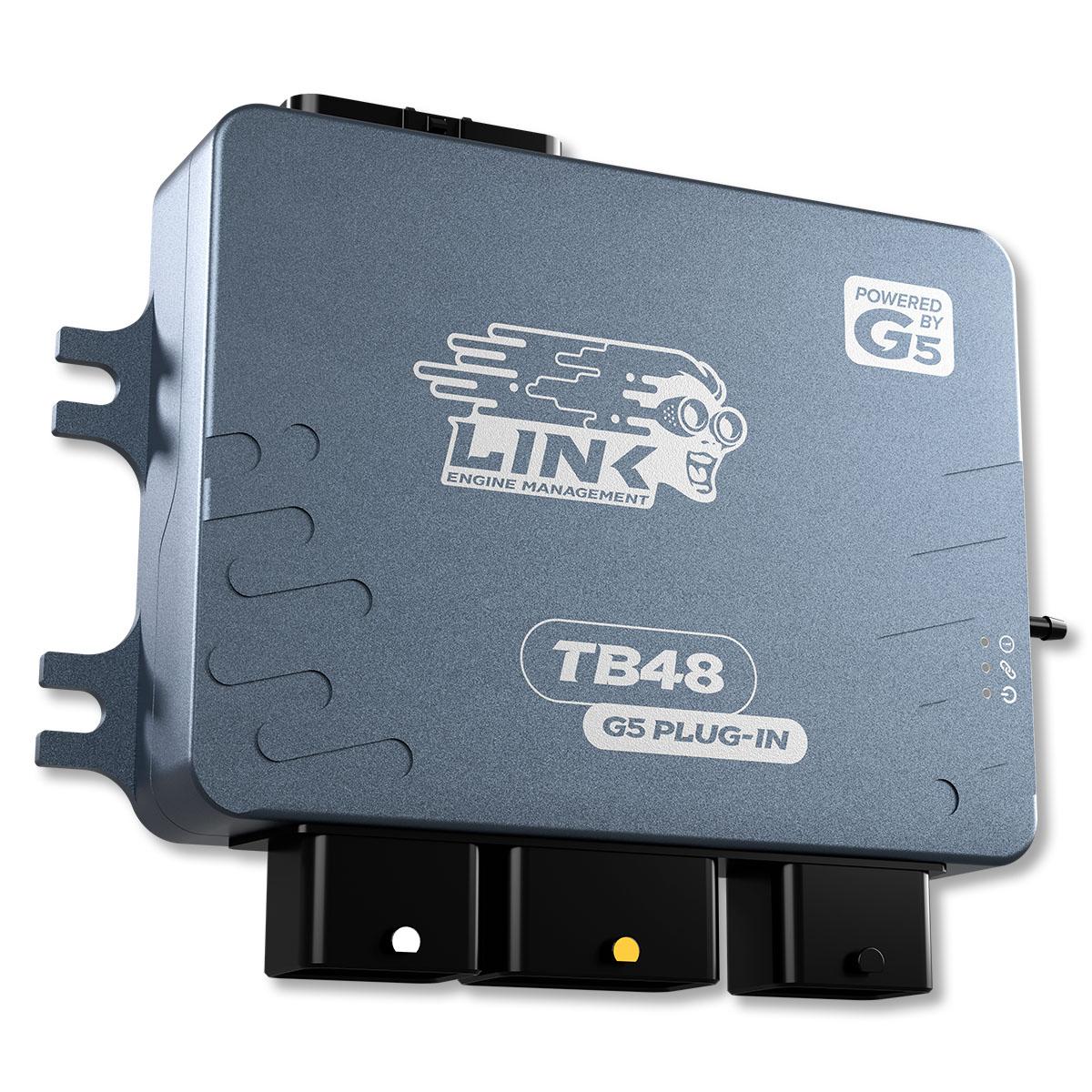

The TB48Link is a G5 plug-in ECU for the post-2016 Nissan Patrol Y61 with the TB48 engine. It fits the factory ECU location using the original mounts, loom and connectors, keeps the factory functions, and includes a startup map, built-in drive-by-wire (e-throttle) control and a MAP sensor.

Being a G5 unit, it adds Wi-Fi tuning, USB-C, Ethernet, GPS and 1 GB of internal logging to Link's tuning platform. Manual and automatic transmissions are supported.

Suits: Nissan Patrol Y61, post-2016, TB48 engine with the 3-plug ECU header (mainly Middle East-market vehicles).

Includes: TB48 G5 plug-in ECU, USB-C connection cable, Wi-Fi antenna, 4 m GPS antenna (magnetic or adhesive mount), USB-C and SMA dust covers, Link stickers, plug-in manual card, product registration card.

Specifications

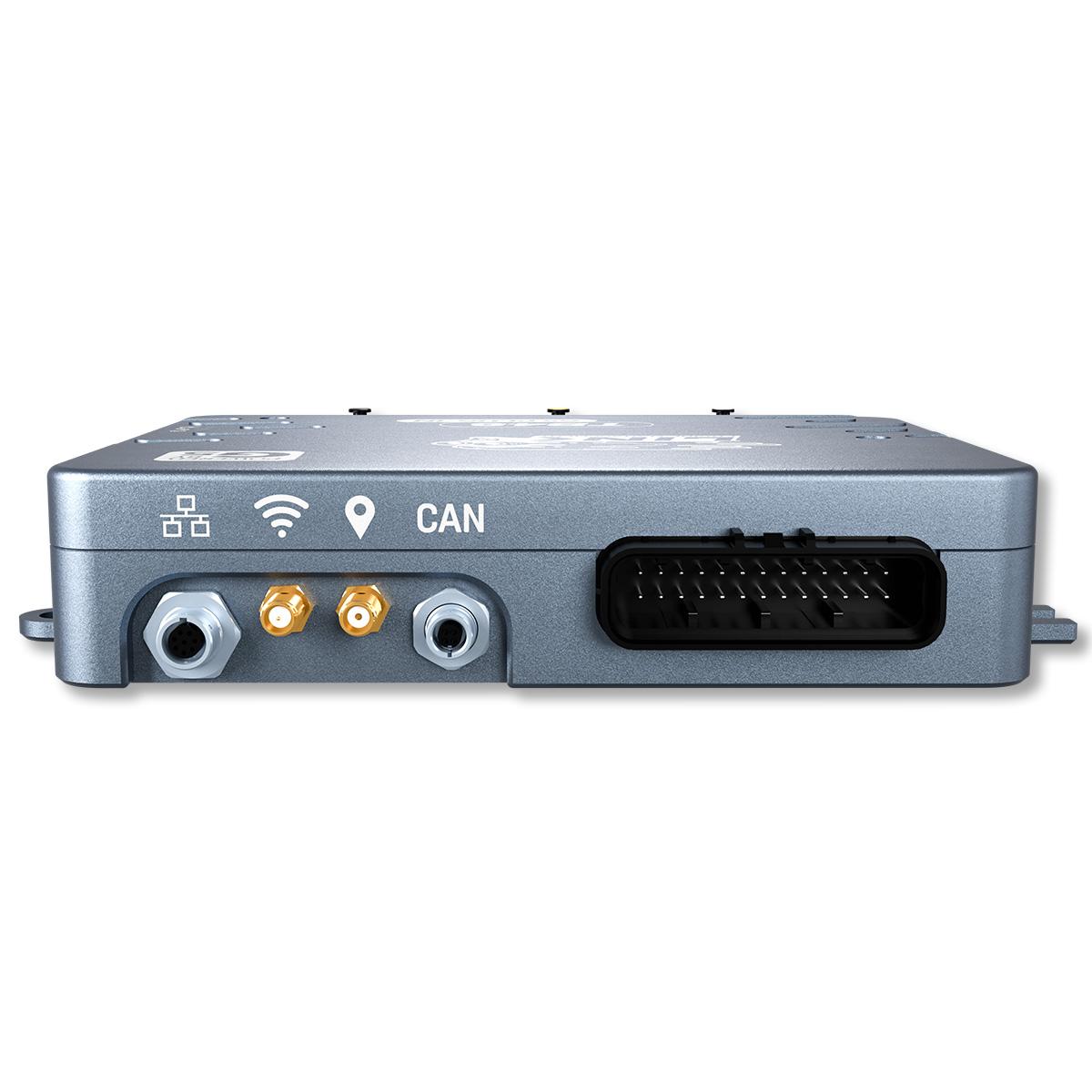

• Communications: 2 x CAN bus, Wi-Fi, USB-C tuning, Ethernet, power over USB
• Internal data logging: 1 GB
• Operating voltage: 6-30 V; maximum input voltage 30 V; maximum continuous current draw 12 A
• Expansion plug: Superseal 2-row 26-position (part number 1473712-1)
• Dimensions: 128 x 169 x 37.2 mm (5.04 x 6.65 x 1.46 in)
• Inputs/outputs: see the TB48 G5 installation manual

Notes

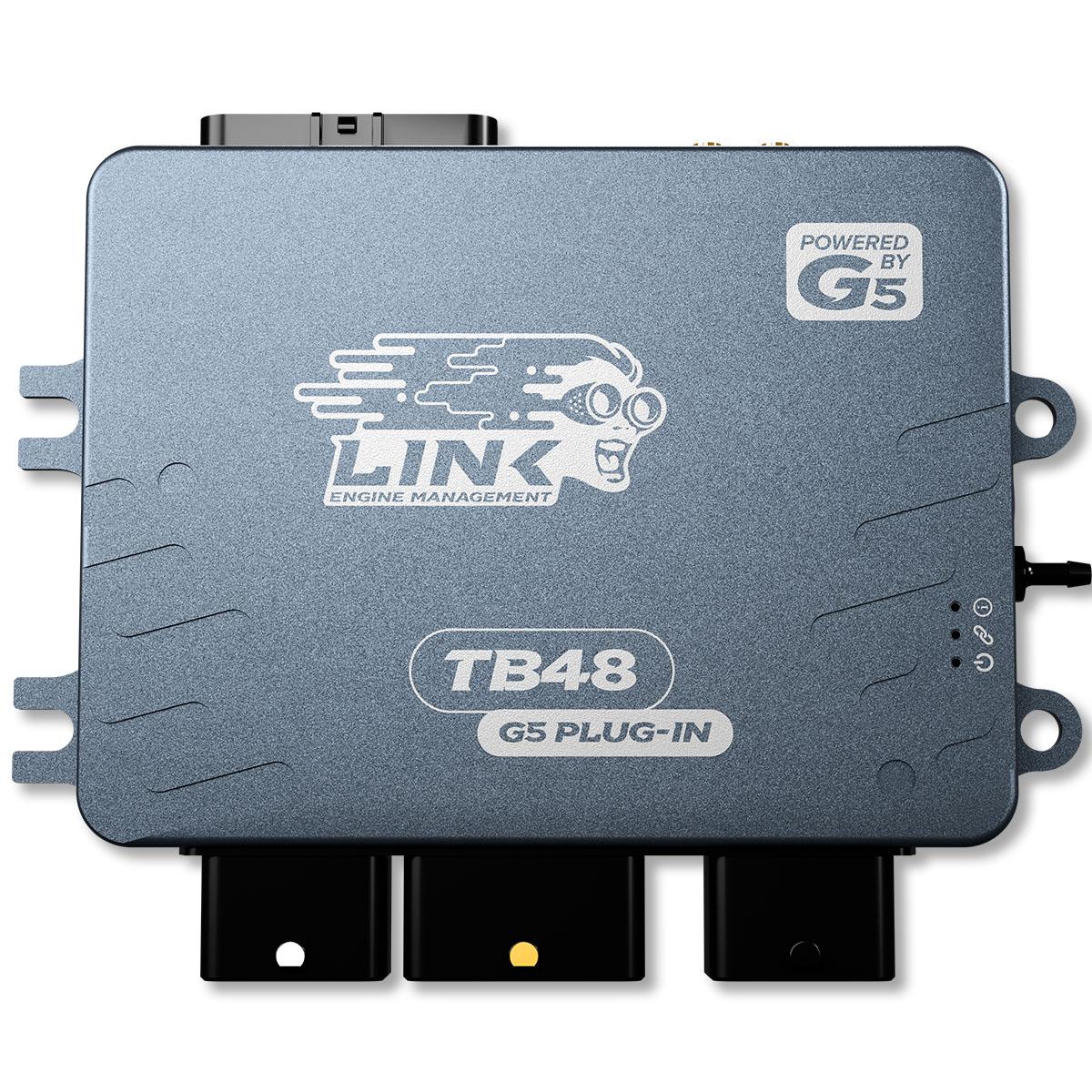

• Check that your connector matches the header shown in the photos before ordering.
• Best suited to vehicles whose factory wiring is in good condition.
• Most factory features are supported. Link recommends installation and setup by an official Link dealer.

Downloads

• TB48 G5 User Manual (PDF)
• G5 Plug-In ECU Specifications (PDF)
