Link Throttle Position Sensor (TPSCW/CCW) - 101-0100

Link Throttle Position Sensor (TPSCW/CCW) - 101-0100

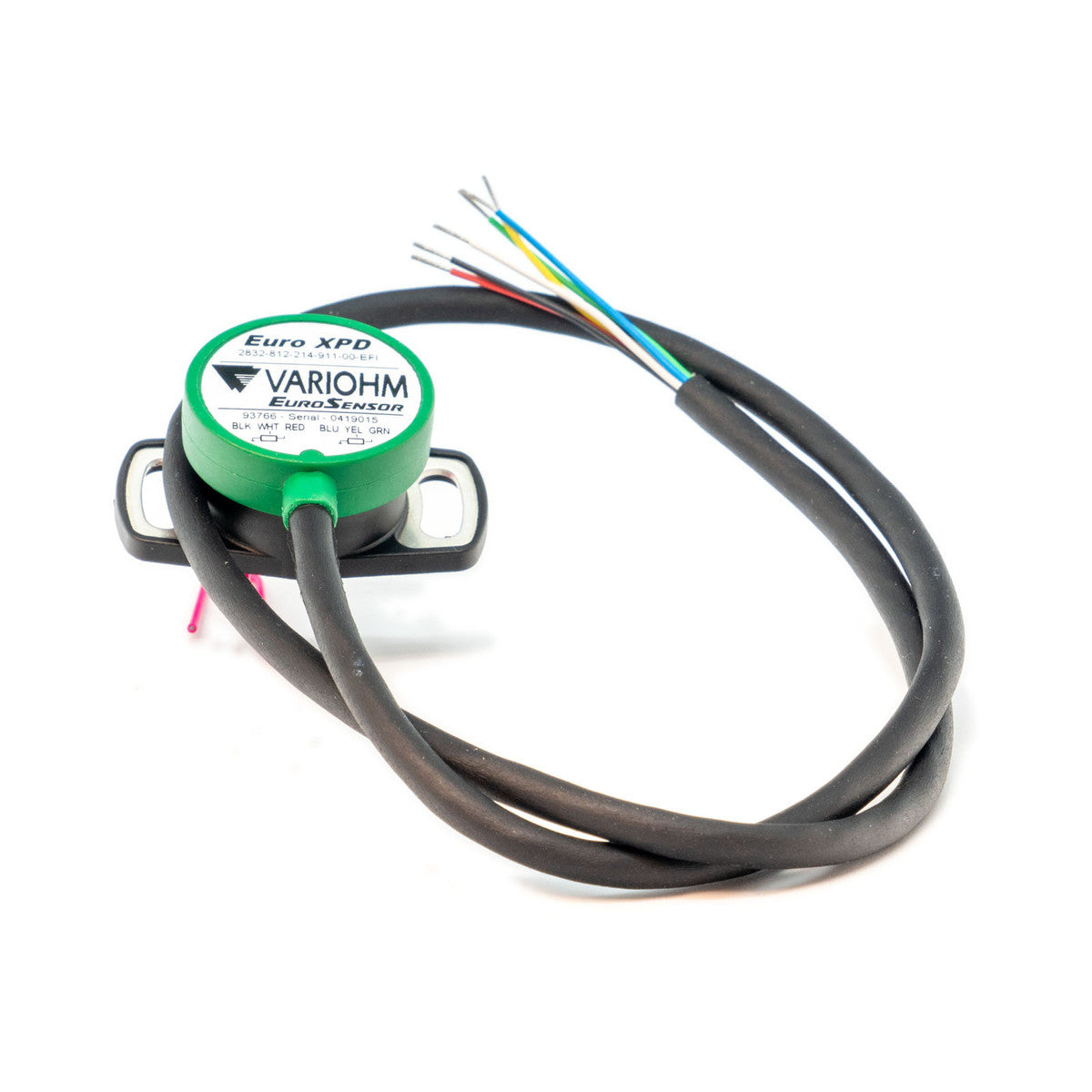

A non-contact Hall Effect rotary position sensor built for motorsport and high-performance use. It works in either clockwise or counter-clockwise rotation and has dual redundant outputs, making it a good fit for custom throttle body installations and harsh environments.

Suits: All Link ECUs and other aftermarket ECUs with analogue throttle position inputs, on 8 mm D-shaft throttle shafts turning either direction.

Includes: Throttle Position Sensor CW/CCW, printed accessory instructions.

Specifications

• Non-contact Hall Effect sensing, dual redundant outputs
• 8 mm D-shaft input, 32 mm mounting bolt pattern
• 5 V supply (operating range -0.5 to 5 V, maximum input 5 V)
• IP68 protection, operating temperature -40°C to +125°C
• Rated for over 50 million operating cycles
• 6-wire flying lead, 24 AWG / 0.2 mm²
• Dimensions: 540 x 45 x 20 mm (21.26 x 1.77 x 0.79 in)
• Weight: 25 g (0.88 oz)

Notes

• Designed for 8 mm D-shaft throttle shafts only.
• Wiring instructions are supplied with the sensor.
• Link recommends installation and setup by an official Link dealer.

Downloads

• Non-Contact TPS Wiring / Pinout (PDF)
• TPS Diagram (image)
