Link WRXLink (3-4) - WRX4X - 227-4000

Link WRX4X Plug-In ECU (Subaru WRX & STI V3-4) - 227-4000

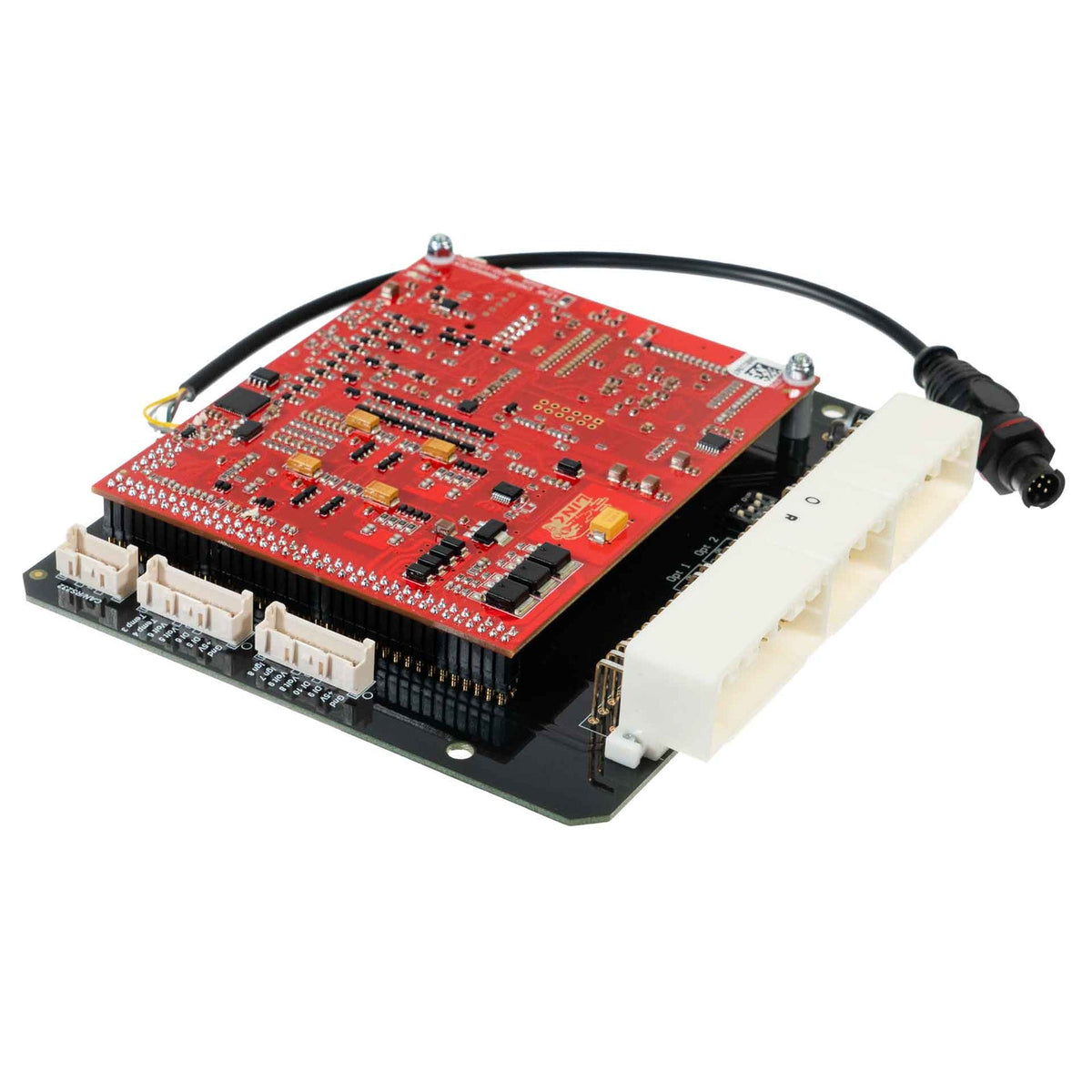

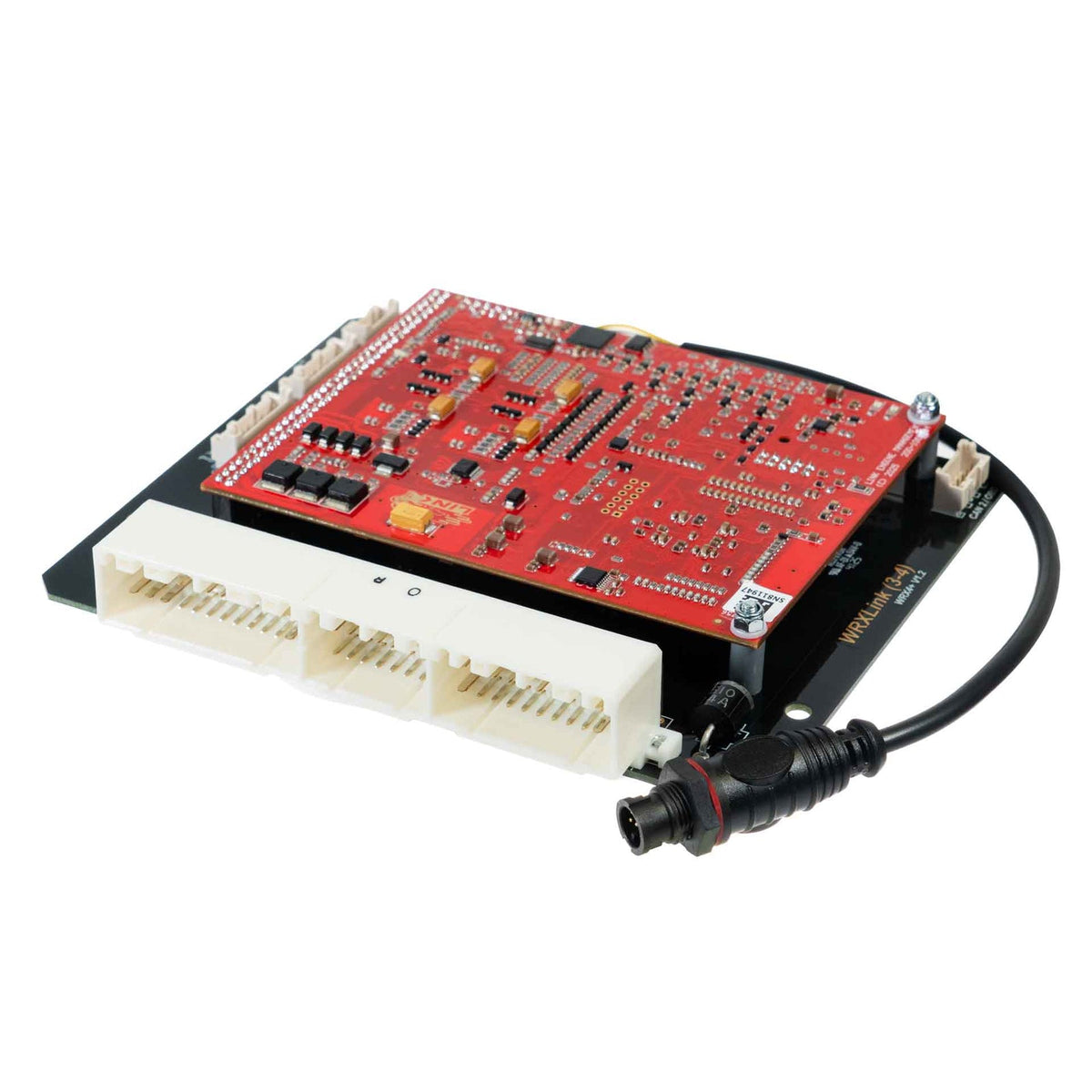

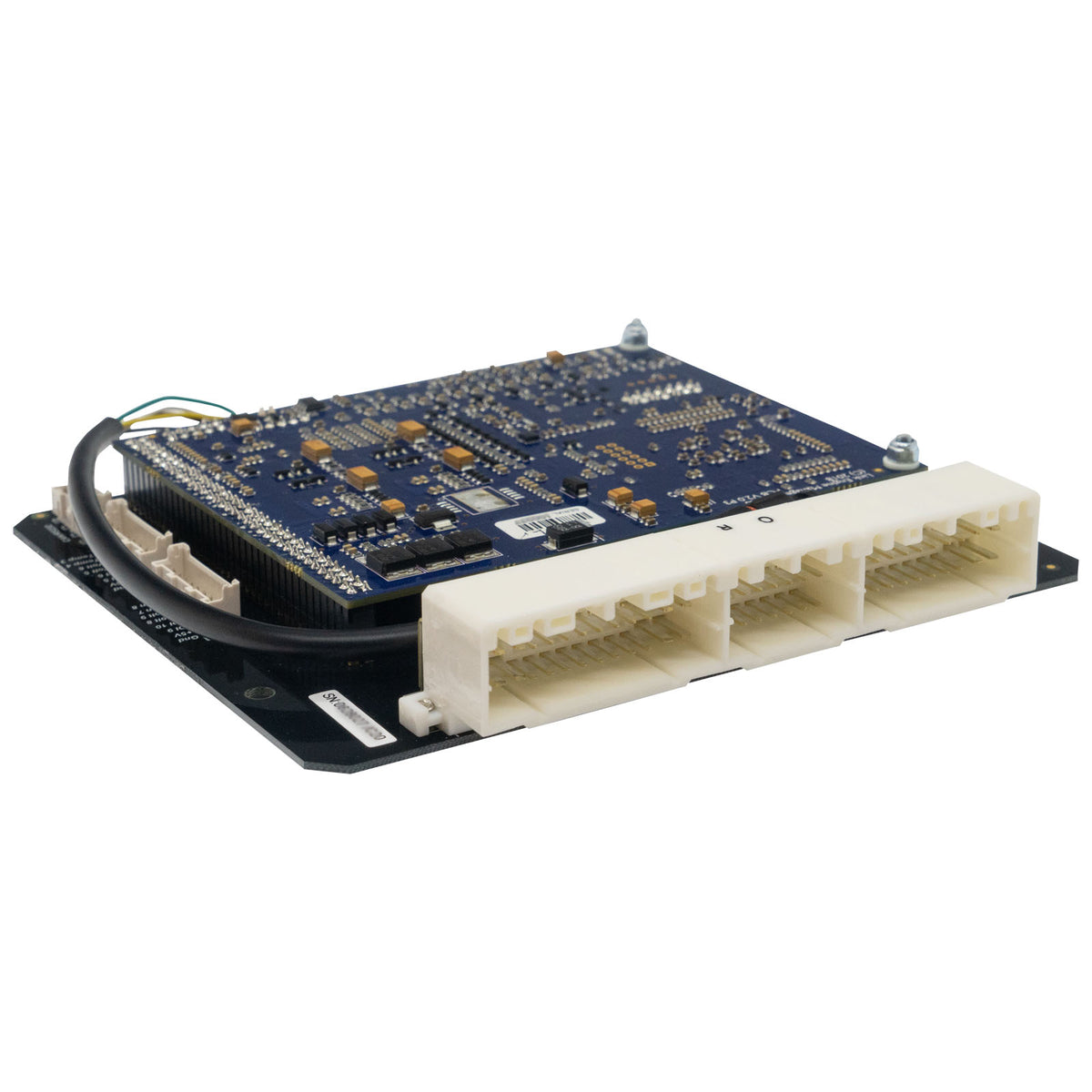

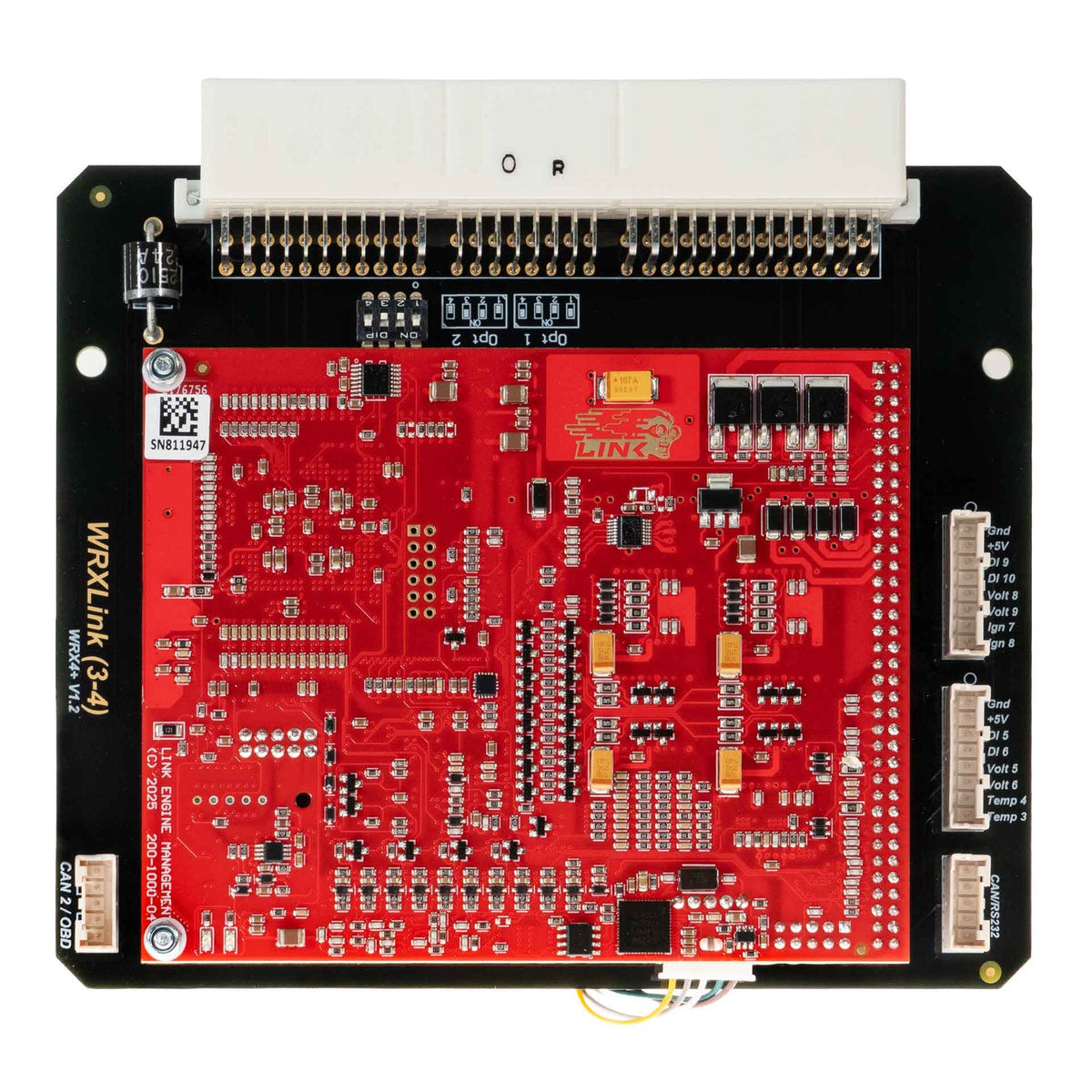

The WRX4X is a G4X plug-in ECU for the Version 3 and 4 Subaru WRX. It fits the factory ECU location using the original mounts, loom and connectors, keeps a stock appearance and ships with a startup map, with no wiring changes or adapters.

You get Link's G4X platform and PCLink software with the full set of tuning and motorsport functions.

Suits: Subaru WRX Version 3 (GC8D, EJ20, 1996-1997) and Version 4 (GC8E, EJ20, 1997-1998). Manual transmission.

Includes: G4X WRX4X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 3.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the WRX4X installation manual

Notes

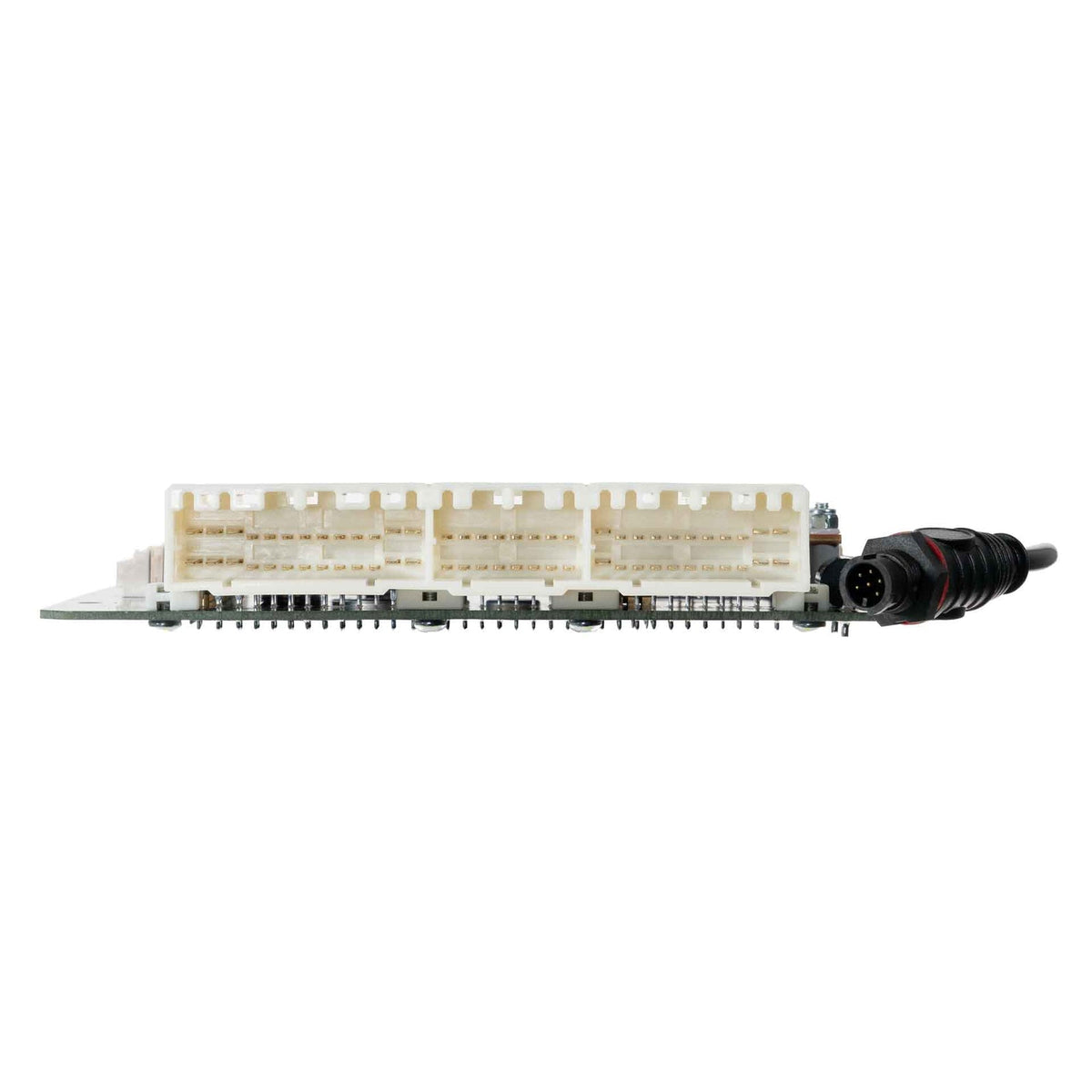

• Check that your connector matches the header shown in the photos before ordering.
• An air temperature sensor is highly recommended.
• E-throttle is not usable until the ECU is modified.
• Automatic models: ask us about Direct Automatic Transmission Control.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

An air temperature sensor such as the Link IAT1-8 (101-0045).

Downloads

• WRX4X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
