Link XS Expansion Loom (XSL) - 101-0106

Link XS Expansion Loom (XSL) - 101-0106

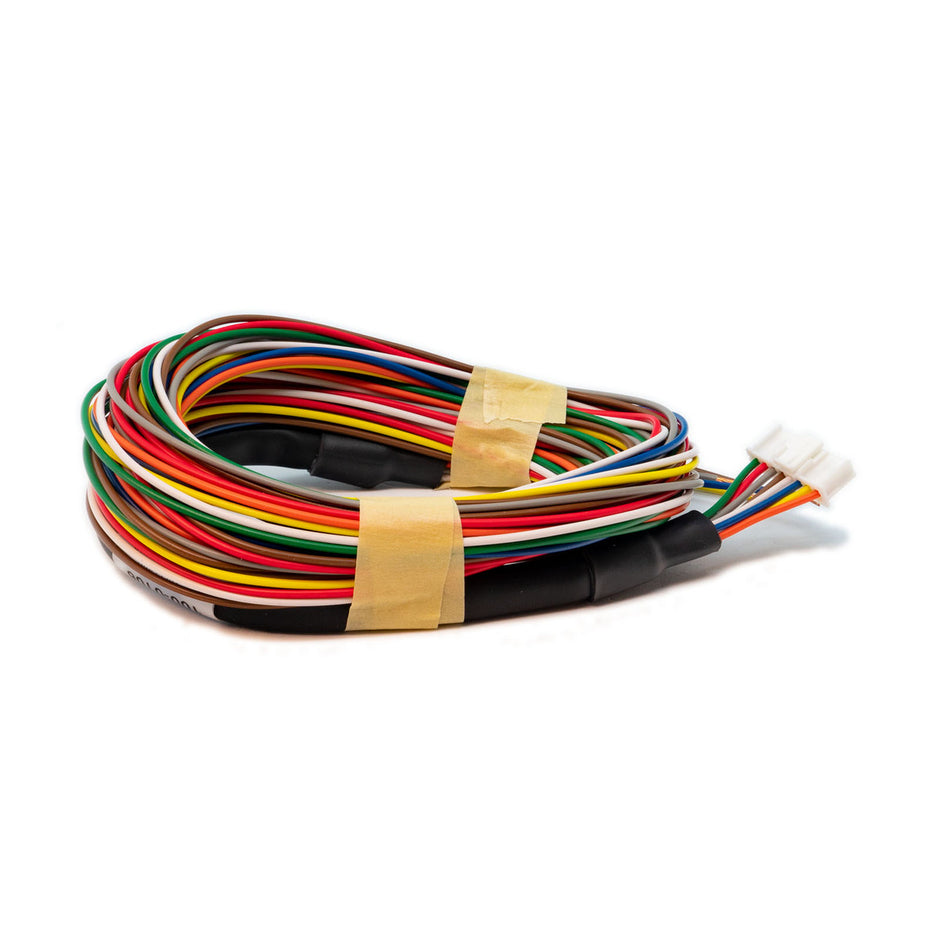

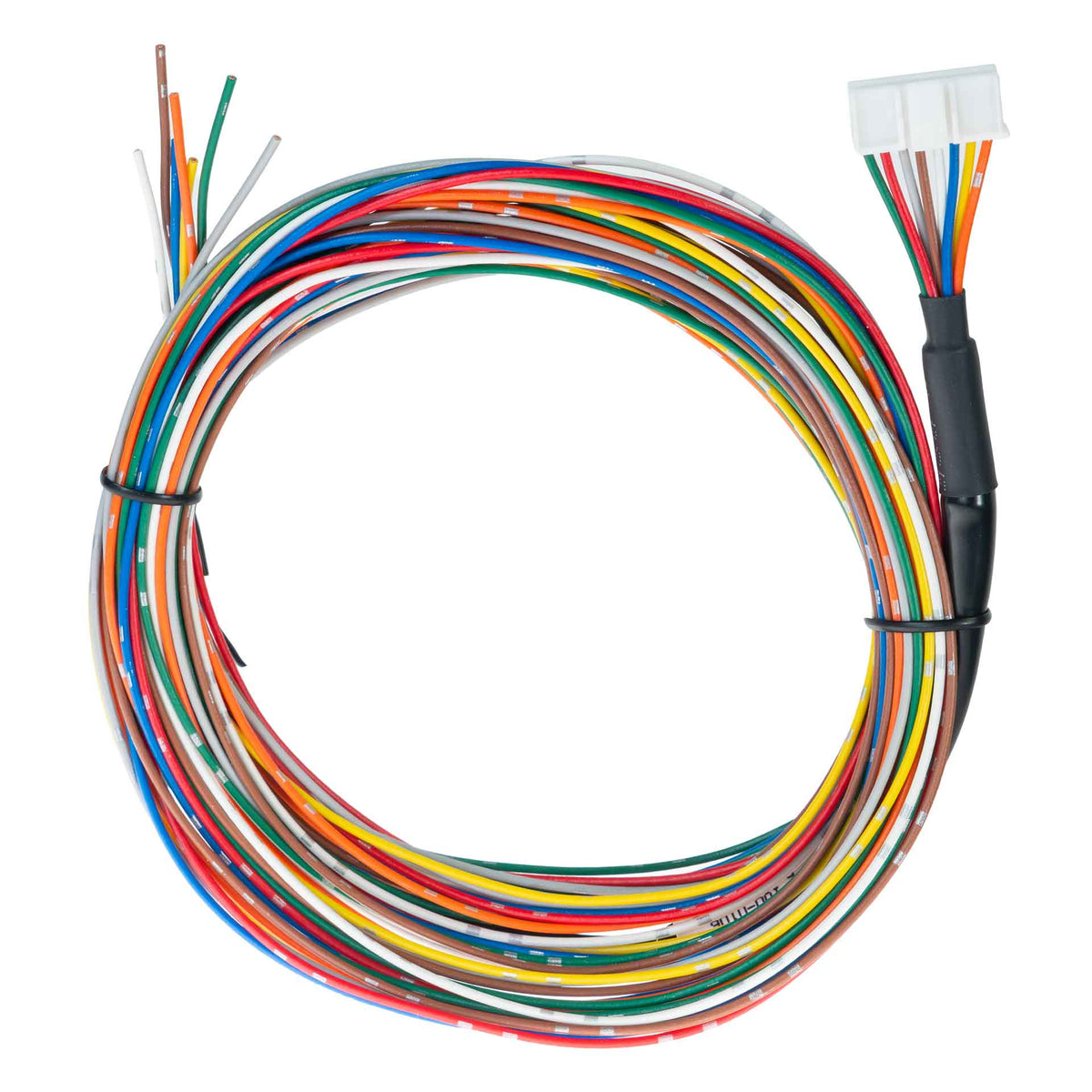

The Link XS Expansion Loom is an easy way to access additional inputs and outputs available on compatible Link Plug-in ECUs, allowing you to add additional sensors, switches and controls to your installation.

Designed to connect directly to the ECU expansion connector, the XS Loom is compatible with Link G4, G4+ and G4X Plug-in ECUs. The additional inputs and outputs available vary between Plug-in ECU models, so check your ECU specifications to confirm the I/O available for your application.

Common applications include connecting oil and fuel pressure sensors, inlet air temperature sensors, wideband Lambda, boost adjustment knobs or switches, and map switches for selecting between different ECU configurations.

Suits: Link G4, G4+ and G4X Plug-in ECUs.

Includes: 2.5m XS Expansion Loom.

Specifications

• Length: 2.5m
• Product Dimensions: 2500mm(L)x30mm(W)x30mm(H); 98.43in(L)x1.18in(W)x1.18in(H)
• Product Weight: 105 grams (3.70 ounces)
• Electrical: Operating Voltage Range: 0-24V; Maximum Continuous Current Draw: 3A; Gauges of wire: 22AWG/0.3mm2
