MUX Switch Board
Part Number: ECUMUXSW
Inventory Location:
Boost Factory Calgary Canada
Stock: 0
0OUT OF STOCK
0
Increments of 1
Minimum of 1
Maximum of

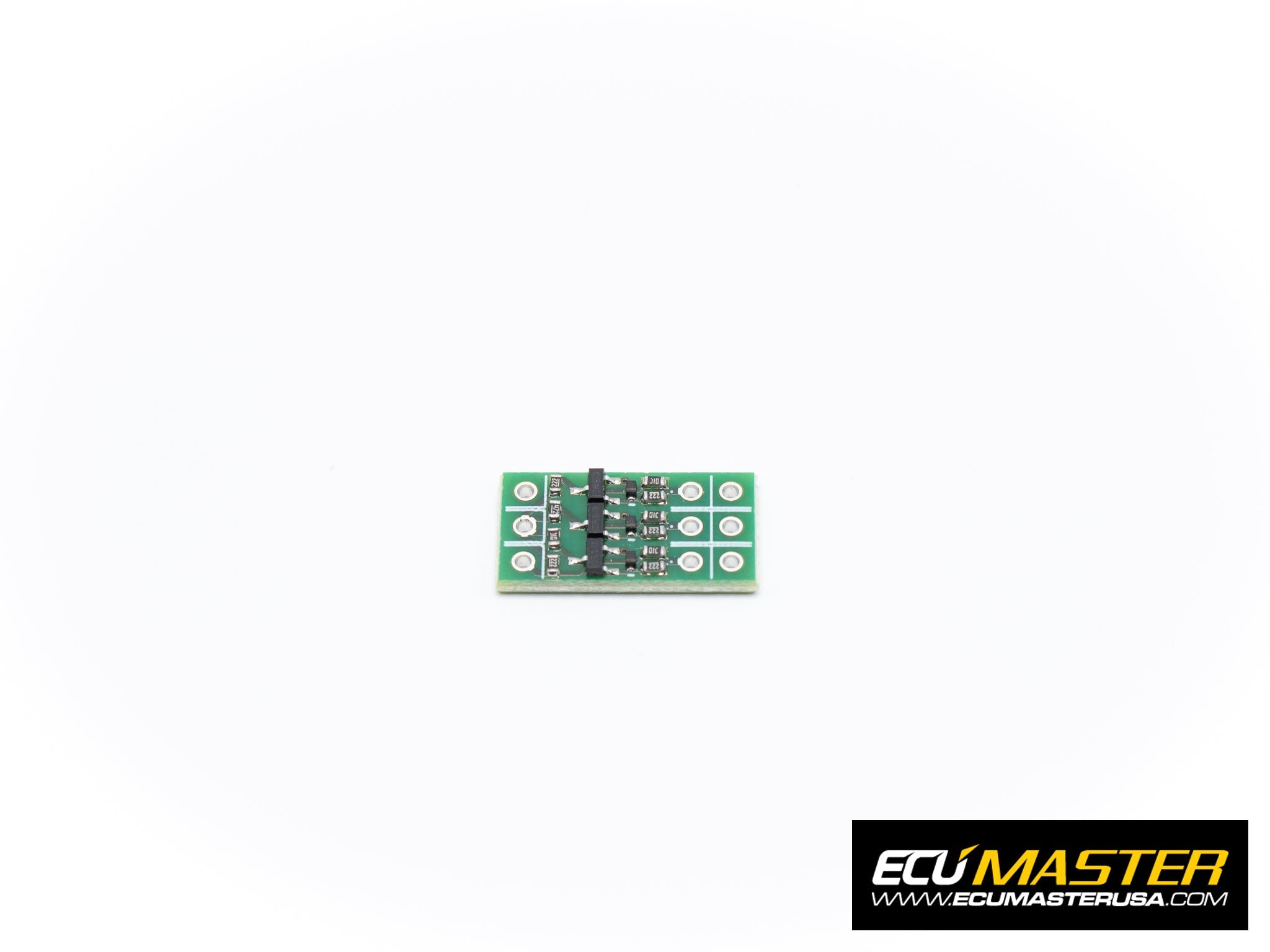

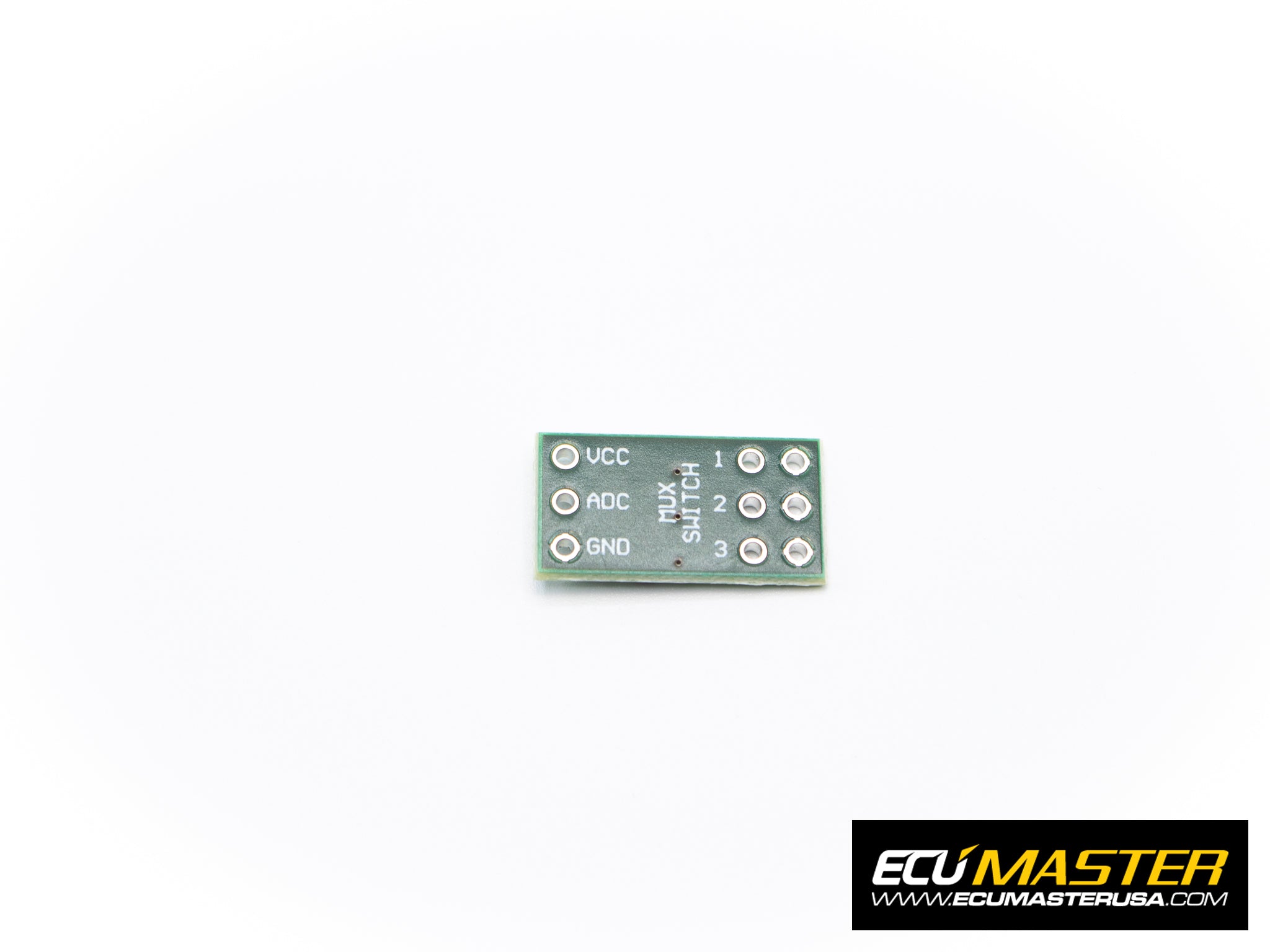

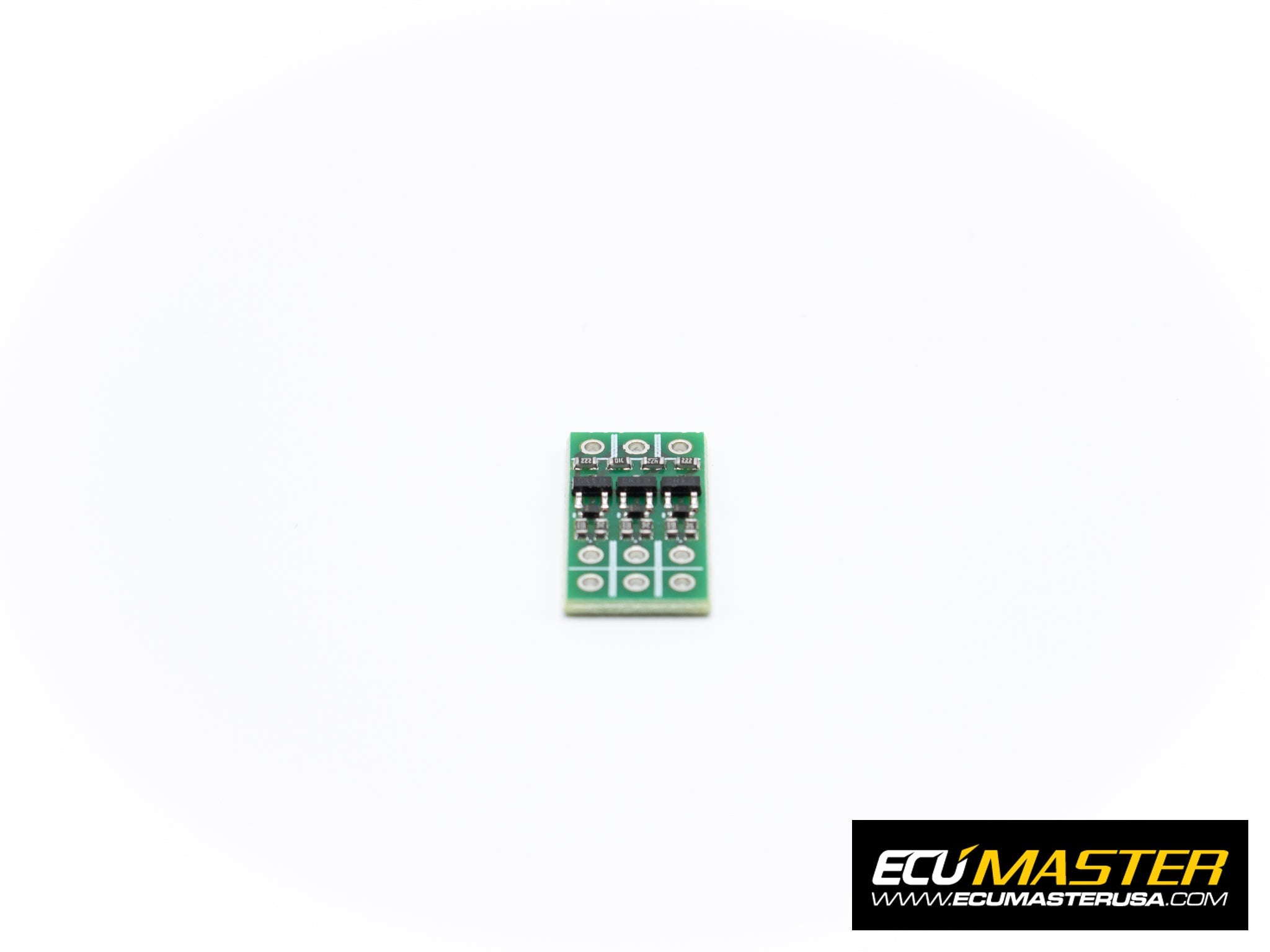

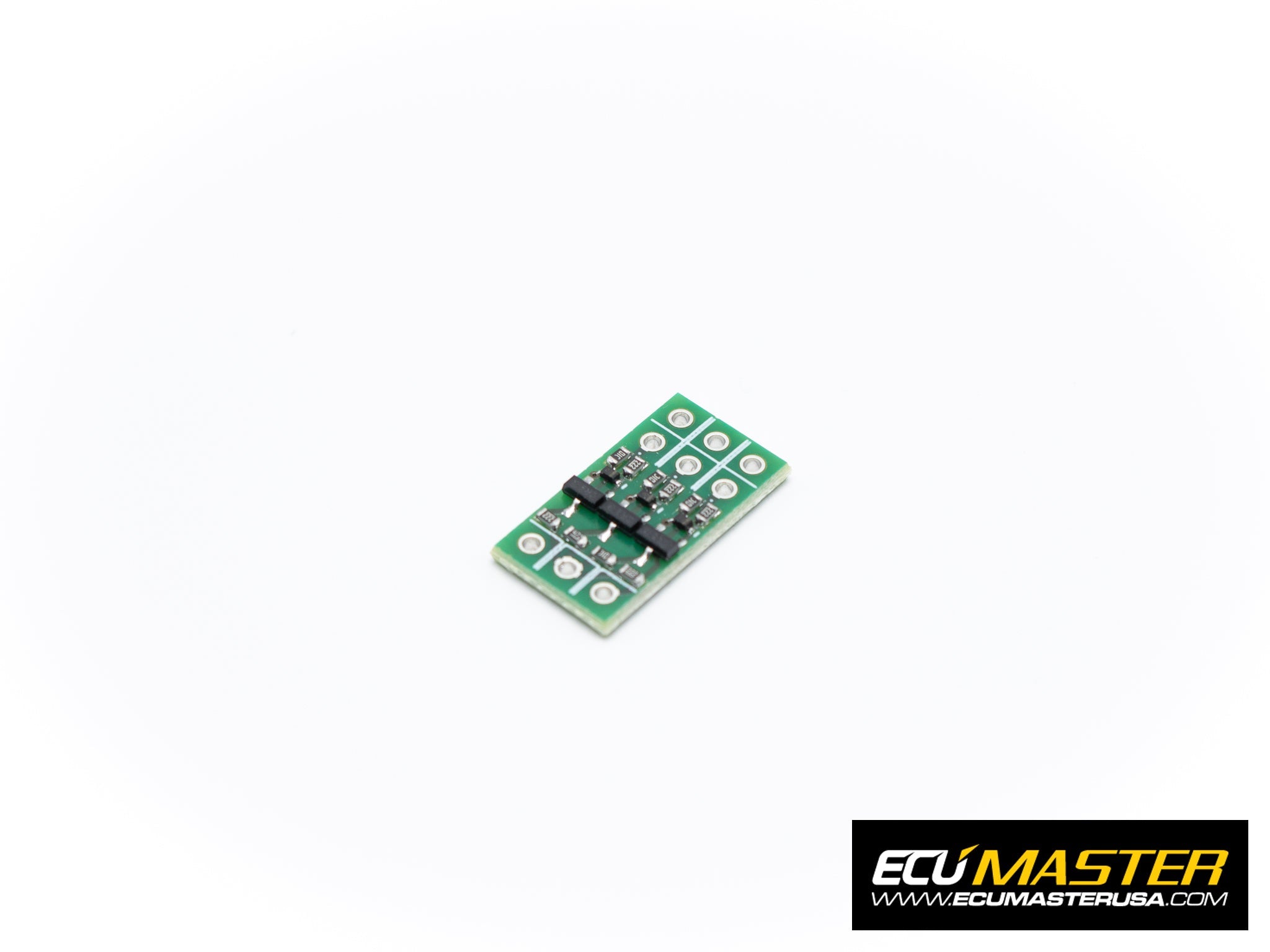

The highly compact ECUMaster MUX Switch Board allows for easy connection of up to 3 switches in a single analog input on ECUMaster devices.
Additional Documents and Information
EMU Black MUX Switch Wiring Diagram
EMU Classic MUX Switch Wiring Diagram
Sensor Grounded Input / Voltage Output Threshold (@5.00v VCC):
1 / 2.030v
2 / 2.260v
3 / 2.975v
1 & 2 / 2.520v
2 & 3 / 4.120v
1, 2, & 3 / 5.020v
No inputs grounded / 1.865v
