GKTech - Replacement PCML12TE heim - PCML12TE
GKTech - Replacement PCML12TE heim - PCML12TE
$26.99 --17% $22.99
$26.99

GKTech - Replacement PCML12TE heim - PCML12TE

Part Number: PCML12TE
  • Our next stocking order from GK Tech Australia will be placed on June 14th. The estimated arrival to our Calgary warehouse is the week of June 22-26th for all in-stock items at GK Tech at the time of ordering.
  • SPECIAL ORDER ITEM – PLEASE CONTACT US TO VERIFY THE LEAD TIME BEFORE PLACING YOUR ORDER.

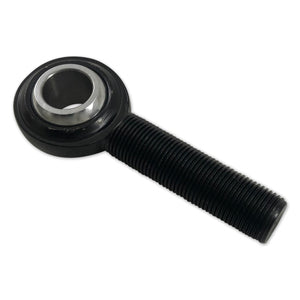

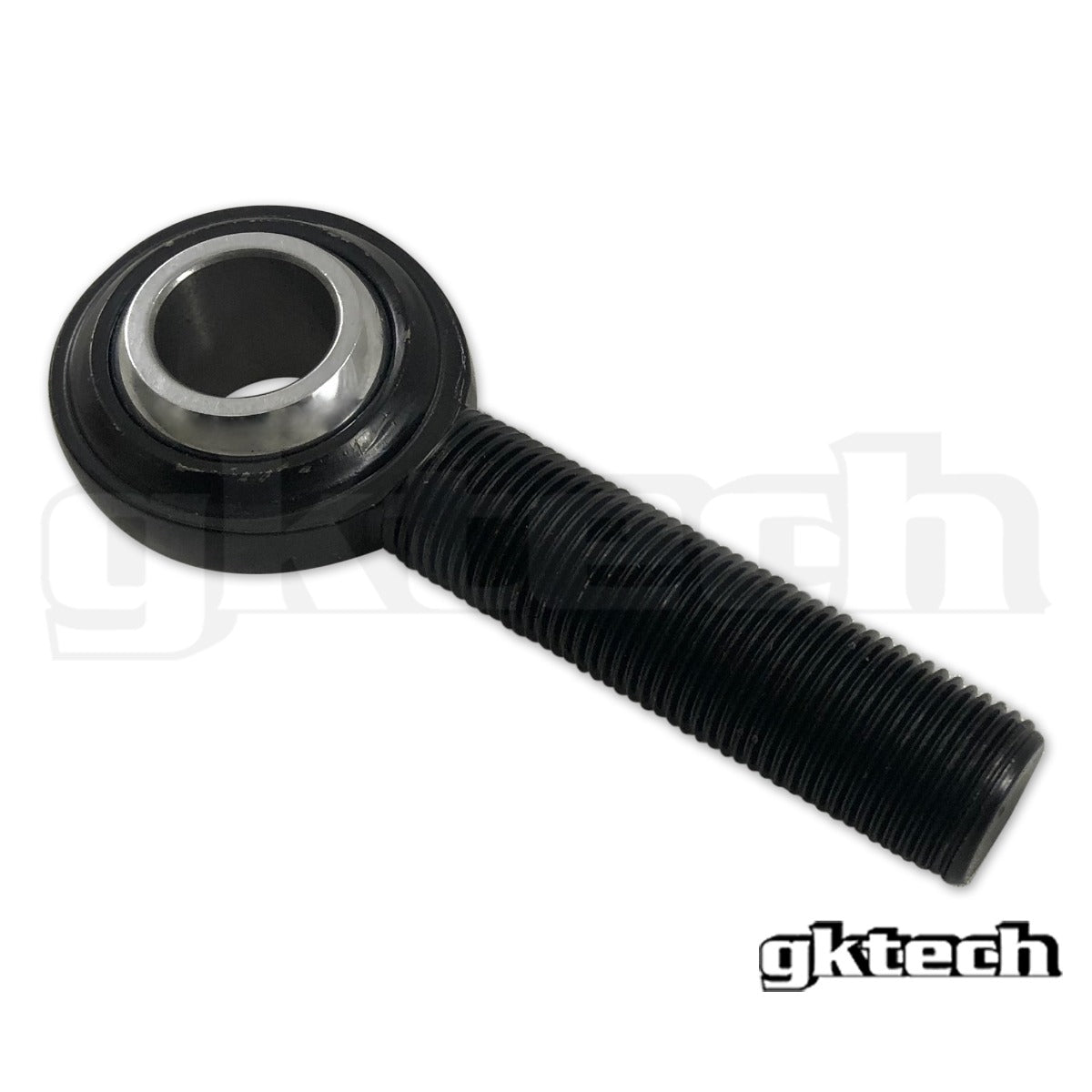

Replacement PCML12TE heim (can also be replaced with PCML12T, non extended version)

Used in the following GKTECH products:
V3 and V4 Rear traction rods (SKU = REAR-TRTN when used in S13/R32 subframe)

If running REAR-TRTN in S14, S15, R33 or R34 subframe use the PCML12TES

SOLD INDIVIDUALLY

PCML12TE

IMPERIAL METRIC
ROD END BALL BORE SIZE ROD END BALL BORE SIZE
0.7500 in 19.0500 mm
ROD END BALL WIDTH ROD END BALL WIDTH
0.8750 in 22.2250 mm
THREAD LENGTH THREAD LENGTH
1.7500 in 44.4500 mm
THREAD SIZE THREAD SIZE
3/4 - 16 UNF LH 3/4 - 16 UNF LH
ROD END HEAD DIAMETER ROD END HEAD DIAMETER
1.7500 in 47.4980 mm
ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE
24 degrees 24 degrees
ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg)
30,290 lbs 13,739 kg
ROD END MATERIAL ROD END MATERIAL
Chromoly Chromoly
LUBRICATION LUBRICATION
PTFE lined PTFE lined


["NISSAN R32 SKYLINE GTR","NISSAN R32 SKYLINE GTS-T","NISSAN R33 SKYLINE GTR","NISSAN R33 SKYLINE GTS-T","NISSAN R34 SKYLINE GT-T","NISSAN S13 CA18 240SX HATCH","NISSAN S13 CA18 240SX/SILVIA","NISSAN S13 SR20 240SX HATCH","NISSAN S13 SR20 240SX/SILVIA","NISSAN S14 240SX/SILVIA","NISSAN S15 SILVIA","INFINITI G35 SKYLINE","INFINITI G37 SKYLINE","NISSAN Z32 300ZX","NISSAN Z33 350Z","NISSAN Z34 370Z"]
