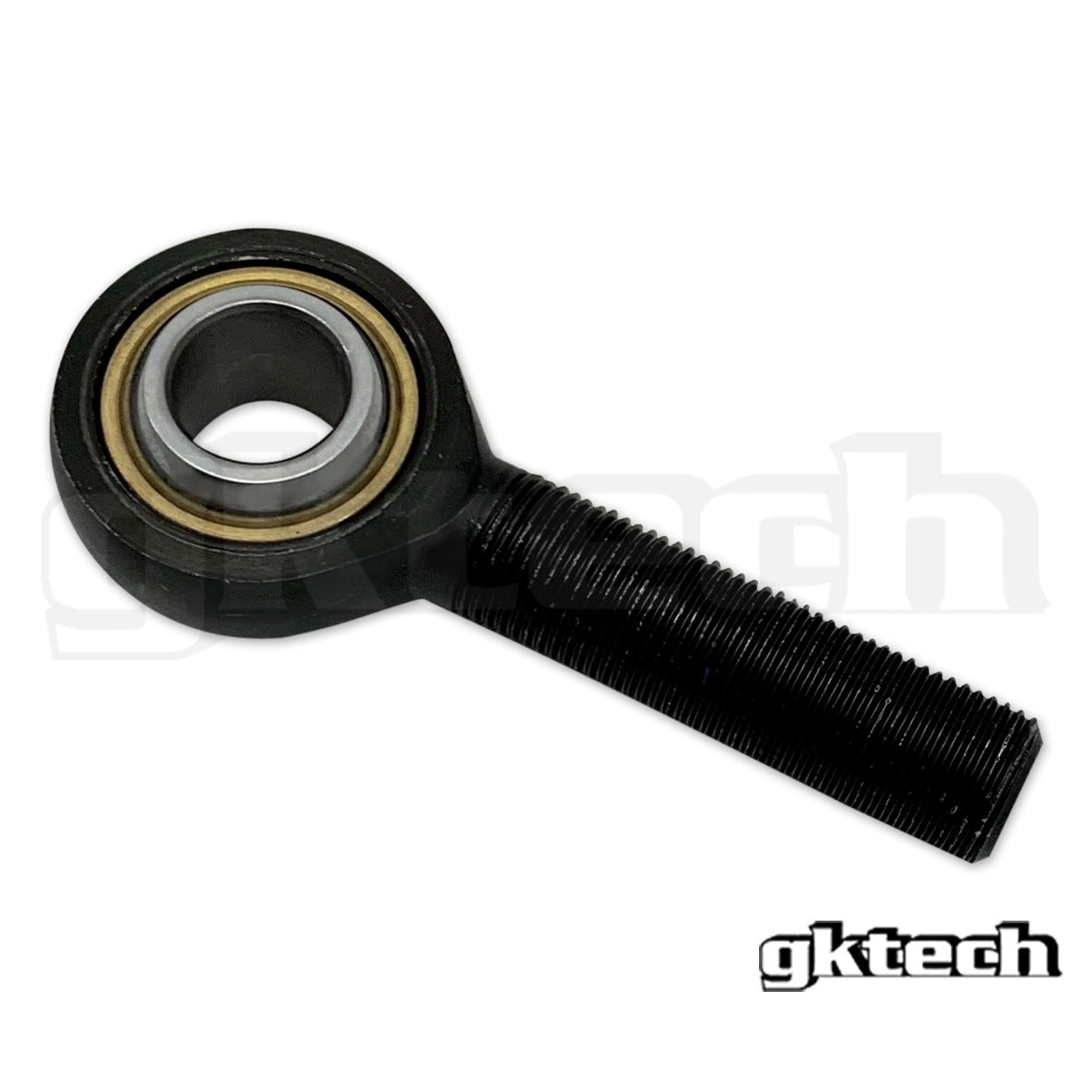

GKTech - Replacement PCML12TES heim - PCML12TES
Part Number: PCML12TES
Inventory Location:
Manufacturer Warehouse USA
Increments of 1
Minimum of 1
Maximum of
Replacement PCML12TES heim (can also be replaced with PCML12T, non extended version and PCML12TE)
Used in the following GKTECH products:
Super Lock LCA's (SKU = S13X-944X, S13X-3974, S145-035X, S145-3065)
V3 and V4 Rear camber arms (SKU = REAR-CMBR and STRT-CMBR)
V3 and V4 Rear toe arms (SKU= S13X-TOEX and S145-TOEX)
V3 and V4 Rear traction rods (SKU = REAR-TRTN when used in S14/S15/R33/R34 subframe)
R32 front upper camber arms (SKU= R32X-FUCA)
R33 front upper camber arms (SKU= R33X-FUCA)
V2 Rear LCA's (SKU=REAR-LCAX)
V2 High clearance lower control arms (SKU = BUDG-2045, BUDG-4065)
V3 and V4 Front tension rods (SKU = S13X-CSTR and S145-CSTR)
Z33/350z Front upper camber arms (SKU = Z33X-FUCA)
Z33/350z Rear camber arms (SKU = 350Z-CMBR)
Z33/350z Front super lock arms (SKU = Z33X-FLCA)
Z33/350z Toe arms (SKU=350Z-TOEX)
PCML12TES
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.7500 in | 19.0500 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 0.8750 in | 22.2250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 2.53 in | 64.45 mm |
| THREAD SIZE | THREAD SIZE |
| 3/4 - 16 UNF LH | 3/4 - 16 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 1.8700 in | 47.4980 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 24 degrees | 24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
