GKTech - Replacement PCML13TES heim - PCML13TES

Part Number: PCML13TES

Our next stocking order from GK Tech Australia will be placed on June 14th. The estimated arrival to our Calgary warehouse is the week of June 22-26th for all in-stock items at GK Tech at the time of ordering.

SPECIAL ORDER ITEM – PLEASE CONTACT US TO VERIFY THE LEAD TIME BEFORE PLACING YOUR ORDER.

Inventory Location: Manufacturer Warehouse USA

Stock: 0

0OUT OF STOCK

Quantity: (In cart: 0)

Increments of 1 Minimum of 1 Maximum of

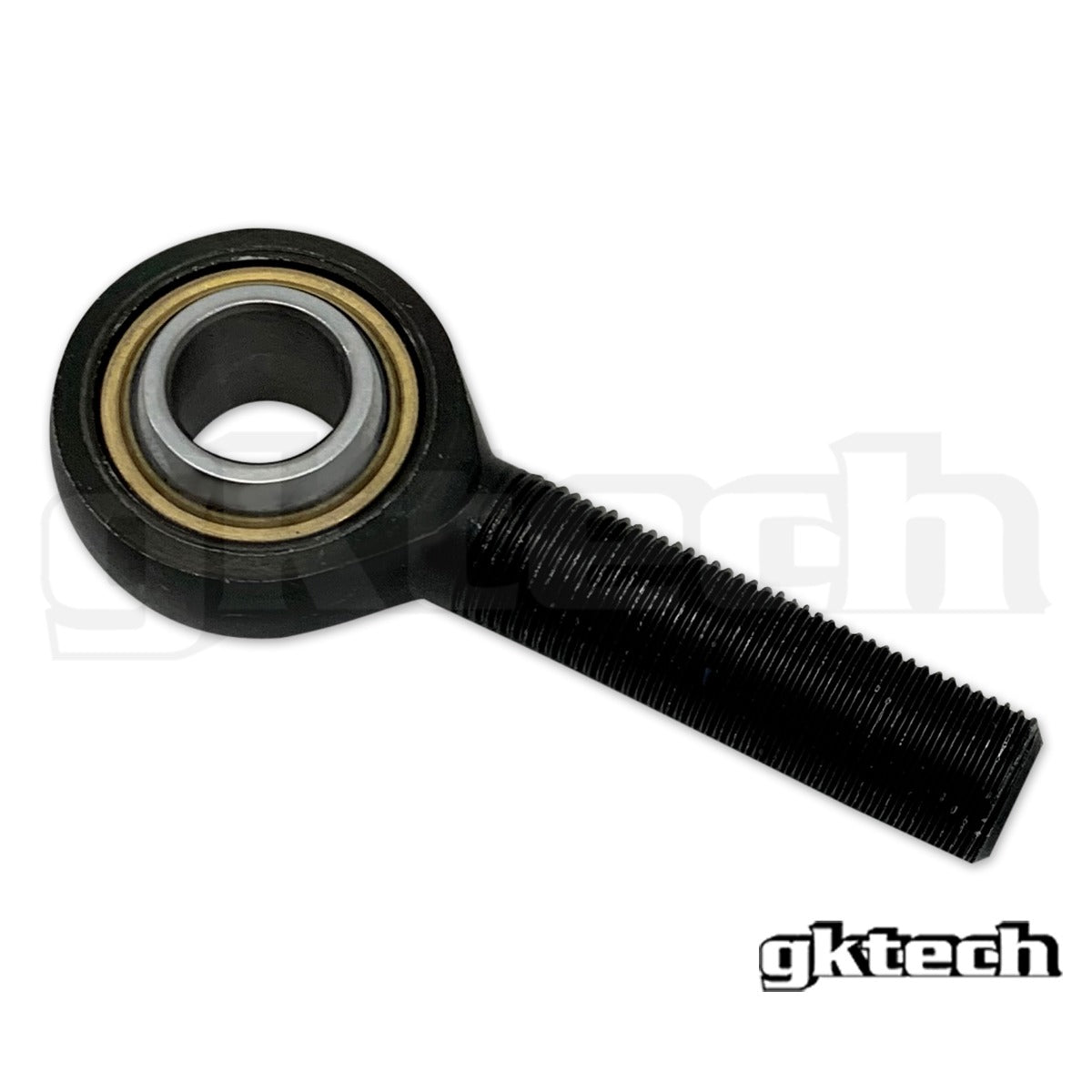

Replacement PCML13TES heim

Used in the following GKTECH products:
Z33 350Z/G35 Rear Traction Arms (350Z-TRTN)

Sold individually

IMPERIAL	METRIC
ROD END BALL BORE SIZE	ROD END BALL BORE SIZE
0.8000 in	20.3200 mm
ROD END BALL WIDTH	ROD END BALL WIDTH
0.8750 in	22.2250 mm
THREAD LENGTH	THREAD LENGTH
2.5000 in	63.5000 mm
THREAD SIZE	THREAD SIZE
3/4 - 16 UNF LH	3/4 - 16 UNF LH
ROD END HEAD DIAMETER	ROD END HEAD DIAMETER
1.7500 in	44.4500 mm
ROD END MISALIGNMENT ANGLE	ROD END MISALIGNMENT ANGLE
24 degrees	24 degrees
ROD END STATIC LOAD CAPACITY (lbs)	ROD END STATIC LOAD CAPACITY (kg)
28,025 lbs	12,712 kg
ROD END MATERIAL	ROD END MATERIAL
Chromoly	Chromoly
LUBRICATION	LUBRICATION
PTFE lined	PTFE lined

["INFINITI G35 SKYLINE","NISSAN Z33 350Z"]
