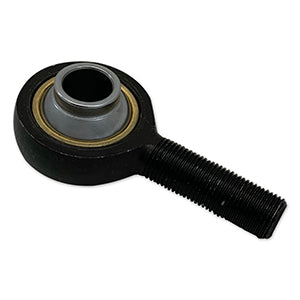

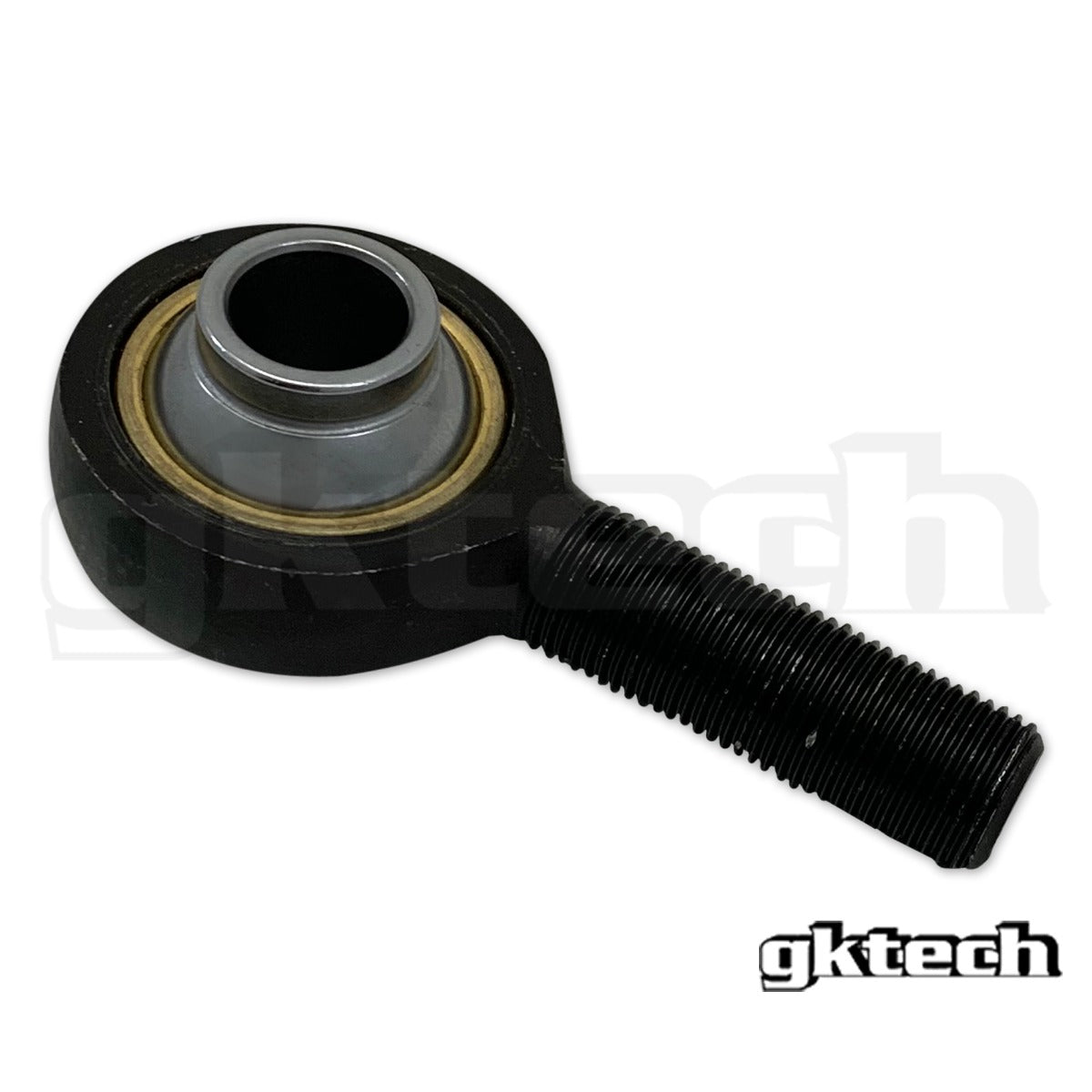

GKTech - Replacement PCYML10TS tie rod end heim - PCYML10TS
GKTech - Replacement PCYML10TS tie rod end heim - PCYML10TS
$31.99 --18% $26.99
$31.99

GKTech - Replacement PCYML10TS tie rod end heim - PCYML10TS

Part Number: PCYML10TS
  • Our next stocking order from GK Tech Australia will be placed on June 14th. The estimated arrival to our Calgary warehouse is the week of June 22-26th for all in-stock items at GK Tech at the time of ordering.
  • SPECIAL ORDER ITEM – PLEASE CONTACT US TO VERIFY THE LEAD TIME BEFORE PLACING YOUR ORDER.

Replacement PCYML10TS tie rod end heim Used in the following GKTECH products:

M12/M14 tie rod ends (SKU = M125-TROD, M145-TROD, Z33X-SSTR, Z34X-SSTR, Z33X-TROD, GTRX-TROD)

Sold individually

PCYML10TS

IMPERIAL METRIC
ROD END BALL BORE SIZE ROD END BALL BORE SIZE
0.6250 in 15.8750 mm
ROD END BALL WIDTH ROD END BALL WIDTH
1.3750 in 34.9250 mm
THREAD LENGTH THREAD LENGTH
2.0000 in 50.8000 mm
THREAD SIZE THREAD SIZE
5/8 - 18 UNF LH 5/8 - 18 UNF LH
ROD END HEAD DIAMETER ROD END HEAD DIAMETER
2.0000 in 50.8000 mm
ROD END MISALIGNMENT ANGLE ROD END MISALIGNMENT ANGLE
64 degrees 64 degrees
ROD END STATIC LOAD CAPACITY (lbs) ROD END STATIC LOAD CAPACITY (kg)
30,290 lbs 13,739 kg
ROD END MATERIAL ROD END MATERIAL
Chromoly Chromoly
LUBRICATION LUBRICATION
PTFE lined PTFE lined
["NISSAN R32 SKYLINE GTR","NISSAN R32 SKYLINE GTS-T","NISSAN R33 SKYLINE GTR","NISSAN R33 SKYLINE GTS-T","NISSAN R34 SKYLINE GT-T","NISSAN S13 CA18 240SX HATCH","NISSAN S13 CA18 240SX/SILVIA","NISSAN S13 SR20 240SX HATCH","NISSAN S13 SR20 240SX/SILVIA","NISSAN S14 240SX/SILVIA","NISSAN S15 SILVIA","INFINITI G35 SKYLINE","INFINITI G37 SKYLINE","NISSAN Z32 300ZX","NISSAN Z33 350Z","NISSAN Z34 370Z","TOYOTA GT86 ZN6","SCION FRS ZN6"]
